A60 Dusk-to-Dawn LED Bulb

An A60 LED bulb with integrated ambient-light sensing for automatic indoor dusk-to-dawn operation. Two discrete models pair 7 W with 600 lm and 9 W with 820 lm.

Ambient-Light Switching: The integrated sensor switches on below 25 lux and off above 25 lux.
High-Diffusion PC Cover: The PC cover spreads light across the enclosed A60 surface.
Minimized-Flicker Driver: The listed driver construction reduces visible flicker during normal operation.
Rated-Life Range: The series carries a 15,000–25,000 hour rated-life marking.

Size	Dia. 60 x 108 mm
Power / output	7 W / 600 lm; 9 W / 820 lm
CCT	3000-6500 K

Beam	200 degrees
Use boundary	Indoor only; no IP rating stated

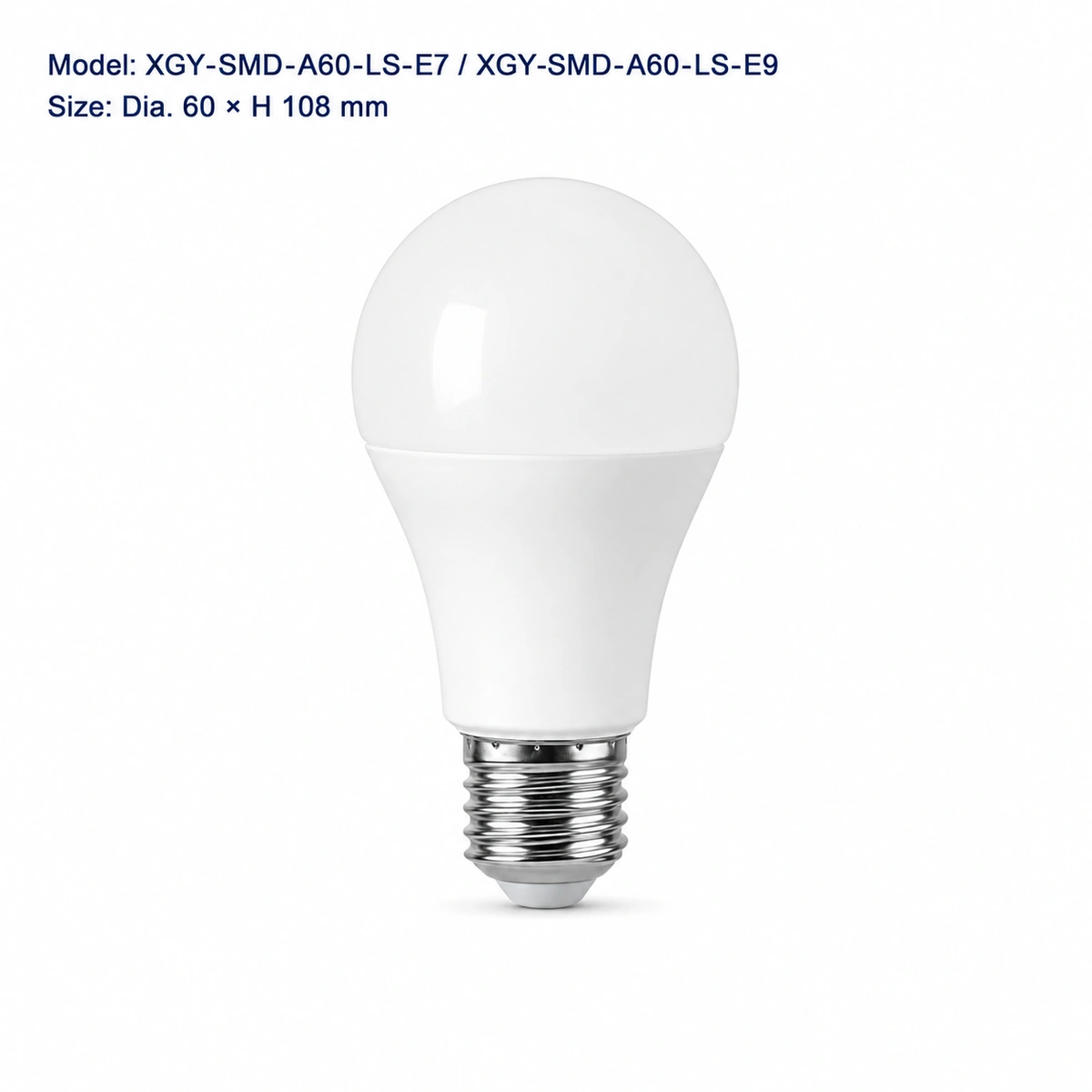

XGY-SMD-A60-LS-E7 and E9 dusk-to-dawn A60 LED bulb, 60 millimeters diameter by 108 millimeters high

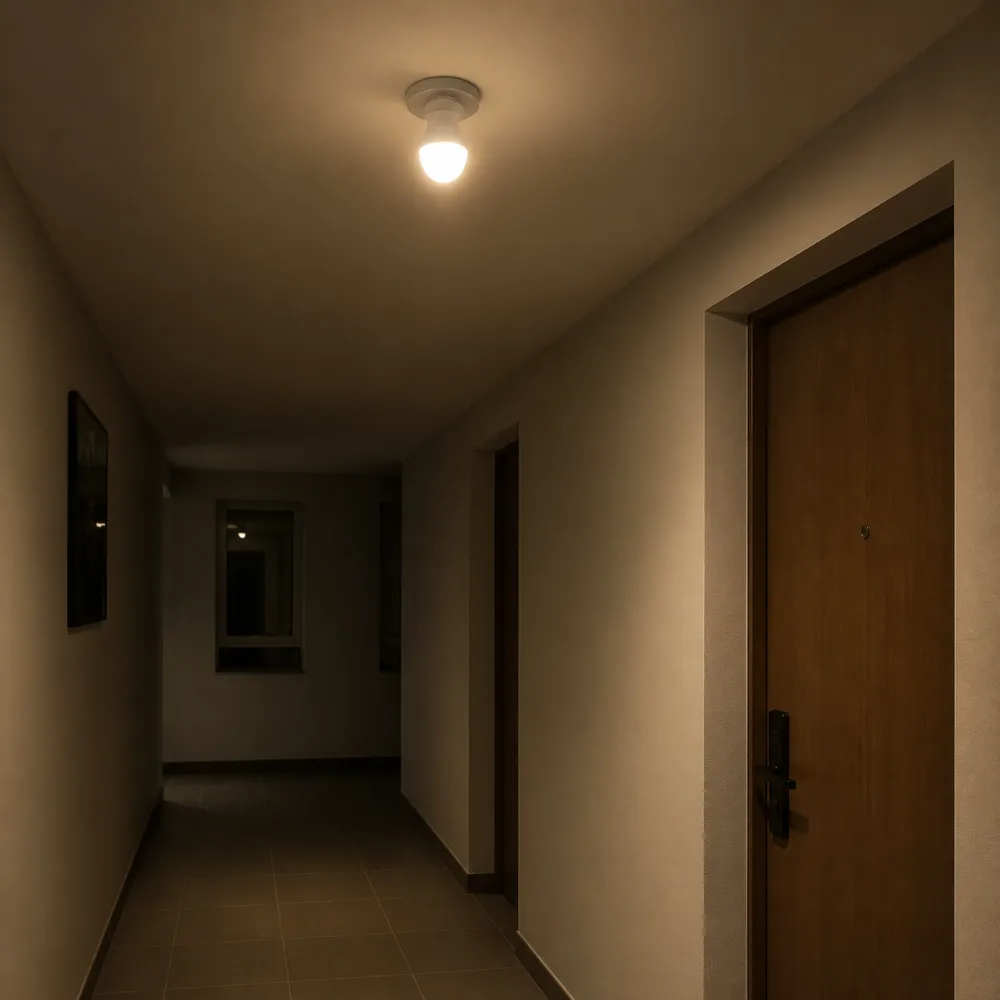

A60 light-sensor bulb illuminating an indoor corridor

Technical Specifications

Model Specifications

Model	Dimensions	Rated Power	Total Lumen	CCT	Beam	Switch Threshold
XGY-SMD-A60-LS-E7	Dia. 60 x 108 mm	7 W	600 lm	3000-6500 K	200 degrees	ON 25 lux
XGY-SMD-A60-LS-E9	Dia. 60 x 108 mm	9 W	820 lm	3000-6500 K	200 degrees	ON 25 lux

Product Description

Product Details

Product Construction

The 60 x 108 mm A60 envelope is joined to an ALU+PC body. Ra80 and Ra90 appear as series color-rendering grades.

Selection & Installation Notes

Position the photosensitive area where it receives representative ambient illumination, away from light cast by this bulb or an adjacent luminaire. E26 and E27 appear as series base options, but the assignment for each model is not defined. The supply marking is S:220-240 V, and the meaning of S is not defined; confirm the base and supply configuration before sampling. This is an indoor product with no published IP rating.

Recommended Application

Applications

Apartment Corridors: Automatic low-light switching serves shared indoor passageways after ambient light falls.
Hotel Landings: Dusk-to-dawn operation supports indoor circulation and lift-lobby lighting.
Indoor Entrances: The sensor controls general lighting near entrances that remain within indoor conditions.
Utility Passageways: Automatic low-light operation serves back-of-house indoor routes.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

At what light level does the bulb switch?

It switches on below 25 lux and switches off above 25 lux.

Does it need an external photocell?

No. The ambient-light sensor is integrated into the bulb.

Can it operate behind an opaque shade?

An opaque shade can prevent representative ambient light from reaching the sensor. Use an open or suitably translucent fixture.

Which power and output models are available?

XGY-SMD-A60-LS-E7 is 7 W and 600 lm; XGY-SMD-A60-LS-E9 is 9 W and 820 lm.

Which lamp base should be ordered?

E26 and E27 appear as series base options, but the option assigned to each model is not defined. Confirm the intended holder and base before sampling.

What supply should be specified?

The supply marking is S:220-240 V, but the meaning of S and its assignment are not defined. Confirm the supply configuration for the approved order.
