Which smart-control platforms does this T8 tube support?

The series supports Wi-Fi and Bluetooth control through Tuya Smart, with Amazon Alexa and Google Home voice-control compatibility.

Wi-Fi・Bluetooth制御対応スマートT8 LED管

This smart T8 LED tube combines 3000-8000 K tunable white light with Wi-Fi and Bluetooth control through Tuya Smart. Three models cover 590, 1199 and 1499 mm lengths at 9, 18 and 22 W for compatible indoor tube fixtures.

Flexible Nearby or Networked Access: Users can pair locally during setup and then manage connected lamps across supported accounts.
Warm-to-Cool Scene Changes: One lamp family adapts from relaxed ambience to focused task lighting without swapping tubes.
Near-Omnidirectional Tube Output: Light reaches around the cylindrical diffuser instead of leaving a narrow forward-only strip.
Stable Light During Adjustments: Supported control changes are designed to avoid visible flicker in normal operation.

消費電力・代替	9 / 18 / 22 W; 18 / 36 / 58 W相当
Dimensions	直径 26 x L 590 / 1199 / 1499 mm
CCT & Efficacy	3000-8000 K; 80-160 lm/W

Electrical & CRI	180-260 V; Ra80
Beam & Lifetime	320度; 35,000時間
Smart Control	Wi-Fi / Bluetooth; Tuya Smart / Alexa / Google Home; 調光はオプション

XGYT8B102WFBT-E9 smart T8 LED tube, 26 mm diameter by 590 mm long

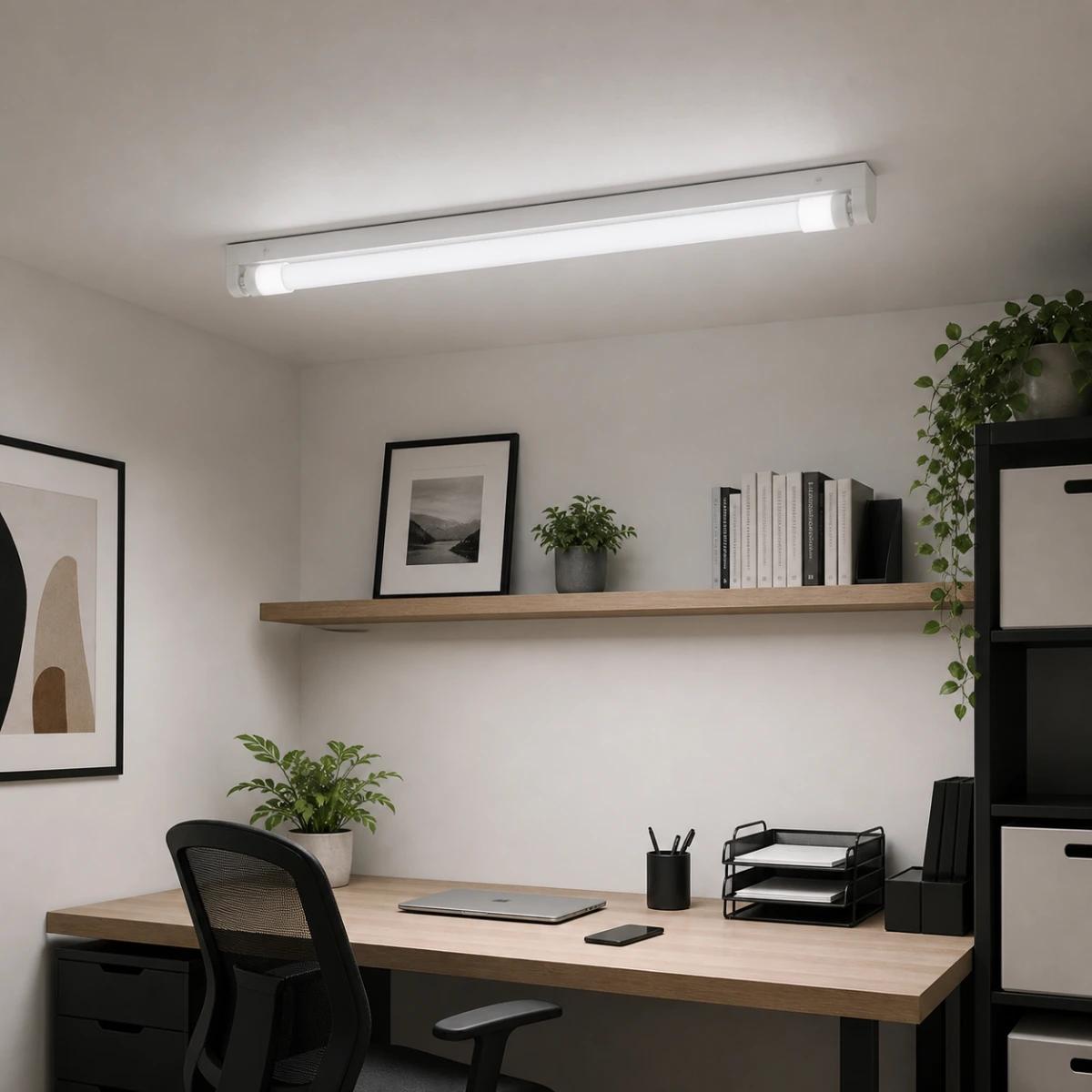

Smart T8 LED tube installed in an open single-tube ceiling batten above a home office desk

XGYT8B104WFBT-E18 smart T8 LED tube, 26 mm diameter by 1199 mm long

XGYT8B105WFBT-E22 smart T8 LED tube, 26 mm diameter by 1499 mm long

Technical Specifications

Model Specifications

Model No.	寸法 D x L (mm)	消費電力	交換	Efficacy	CCT	入力 / CRI / 配光角
XGYT8B102WFBT-E9	26 x 590	9 W	18 W	80-160 lm/W	3000-8000 K	180-260 V; Ra80; 320 degrees
XGYT8B104WFBT-E18	26 x 1199	18 W	36 W	80-160 lm/W	3000-8000 K	180-260 V; Ra80; 320 degrees
XGYT8B105WFBT-E22	26 x 1499	22 W	58 W	80-160 lm/W	3000-8000 K	180-260 V; Ra80; 320 degrees

Series features: Wi-Fi and Bluetooth control through Tuya Smart, Amazon Alexa and Google Home compatibility, no-flicker operation, optional dimming and a 35,000-hour rated life. Confirm the selected wireless module and fixture wiring before installation.

Product Description

Product Details

Product Construction

The 26 mm T8 body combines a white cylindrical diffuser, faceted white end caps, LED light source, driver and internal control electronics. The complete lamp retains the familiar linear tube form while housing the connected-lighting components inside the body.

Selection & Installation Notes

Select the 590, 1199 or 1499 mm model by fixture length and rated power. Confirm the existing lamp holders, fixture wiring, 180-260 V supply and required module before installation; the available sources do not establish ballast compatibility or one universal wiring topology. Offline behavior depends on the selected module and saved control logic.

Recommended Application

用途

Home Office Lighting: Use tunable white light and connected control above desks and everyday work areas.
Cafes & Restaurants: Adjust white-light settings and schedules across customer seating and service areas.
Libraries & Galleries: Group compatible tubes for coordinated lighting across reading, display and circulation spaces.
Meeting & Retail Areas: Use connected T8 lighting in compatible indoor fixtures where scenes or scheduled operation are useful.

つながりを
保つ

市場と製品のニーズをお聞かせください

市場、関心のある製品、用途、または予定数量をお知らせください。当社チームが、製品選定から見積り・サンプル相談までをより迅速に進められるよう支援します。

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

このT8管はどのスマート制御プラットフォームに対応していますか？

このシリーズはTuya Smartを通じたWi-FiおよびBluetooth制御に対応し、Amazon AlexaおよびGoogle Homeの音声制御との互換性があります。

白色の色温度は調整できますか？

Yes. The published range is 3000-8000 K, covering warm through cool white settings within the selected smart configuration.

Is every model dimmable?

No. Dimming is optional, so the dimmable driver and matching wireless-control configuration must be selected for the order.

Which length and power options are available?

The range includes 590 mm at 9 W, 1199 mm at 18 W and 1499 mm at 22 W, all with a 26 mm tube diameter.

インターネット接続が失われた場合でも、スマート機能は継続しますか？

Behavior depends on the selected wireless module and saved control logic. Bluetooth access, stored schedules and cloud commands may behave differently, so the required offline behavior should be confirmed on the selected configuration.

このスマート管は既設のどのT8器具にも設置できますか？

No. Fixture length, lamp holders, wiring topology, supply voltage and ballast compatibility must be checked before installation. The available sources do not establish universal ballast compatibility.
