IP44/IP54 LED Bulkhead Lights

Round and oval surface-mounted LED bulkhead lights with PP housings, 5-18 W power options and IP44 or IP54 configurations. The range is intended for indoor and sheltered circulation or service spaces.
  • Sealed PP Construction: The PP body and PP cover form the protected luminaire enclosure.
  • Round and Oval Footprints: Two housing shapes fit different wall and ceiling mounting areas.
  • Integrated Driver Format: The LED light source and internal driver form a self-contained surface-mounted luminaire.
  • Optional Microwave Sensor: A microwave motion-sensor version is available when specified for the order.
ShapesRound / Oval
Rated Power5 / 8 / 10 / 12 / 15 / 18 W
Housing SizesRound 160 x 160 x 65 mm; Oval 178 x 86 x 58 or 204 x 99 x 56 mm
ProtectionIP44 / IP54 configuration
CCT3000-6500 K
Luminous Efficacy70-120 lm/W
Request a Quote
Round IP44/IP54 LED bulkhead light with a smooth white PP housing
Compact oval IP44/IP54 LED bulkhead light mounted beside an interior corridor door

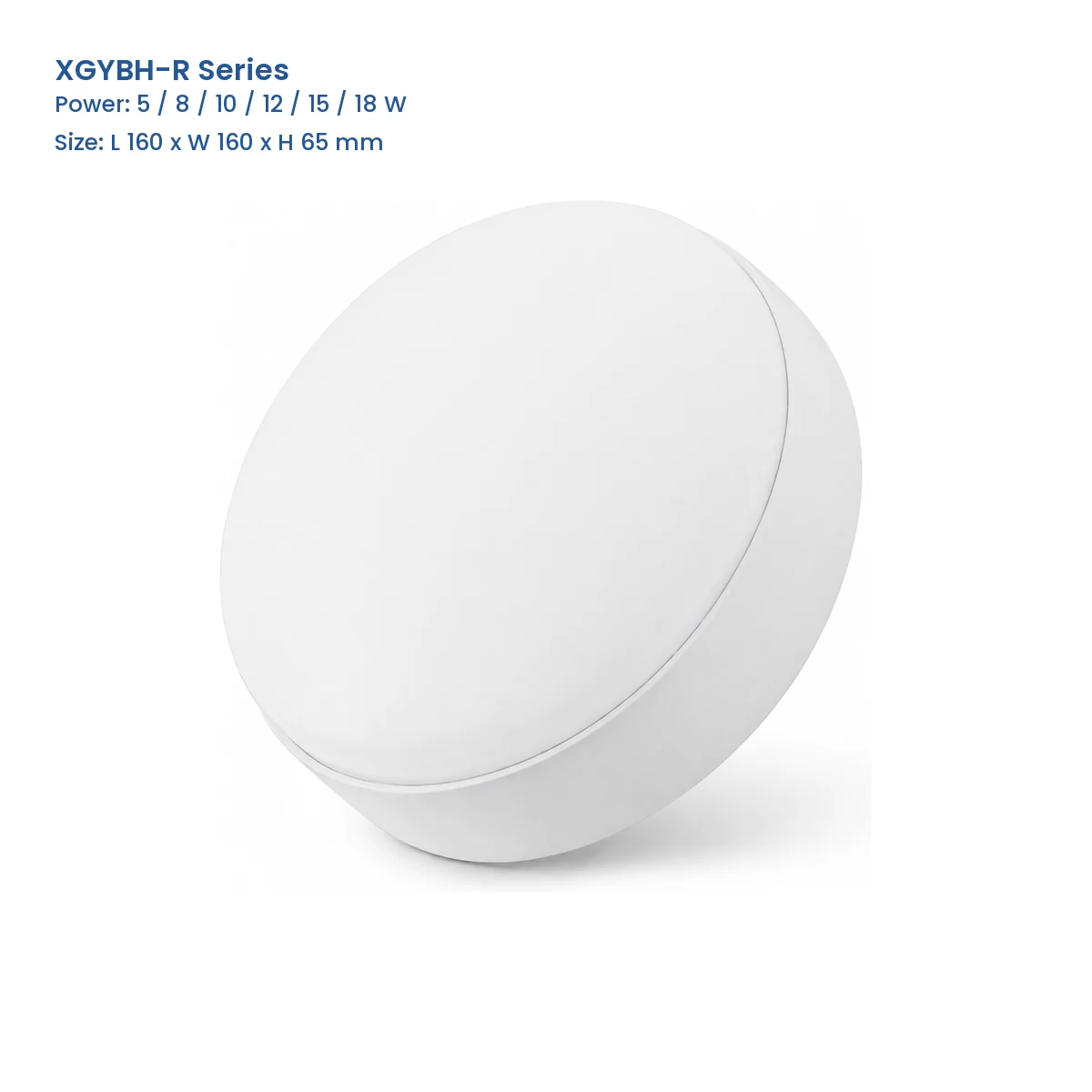

XGYBH-R Series round LED bulkhead configuration, 5 to 18 W, 160 x 160 x 65 mm
XGYBH-O Compact oval LED bulkhead configuration, 5 to 12 W, 178 x 86 x 58 mm

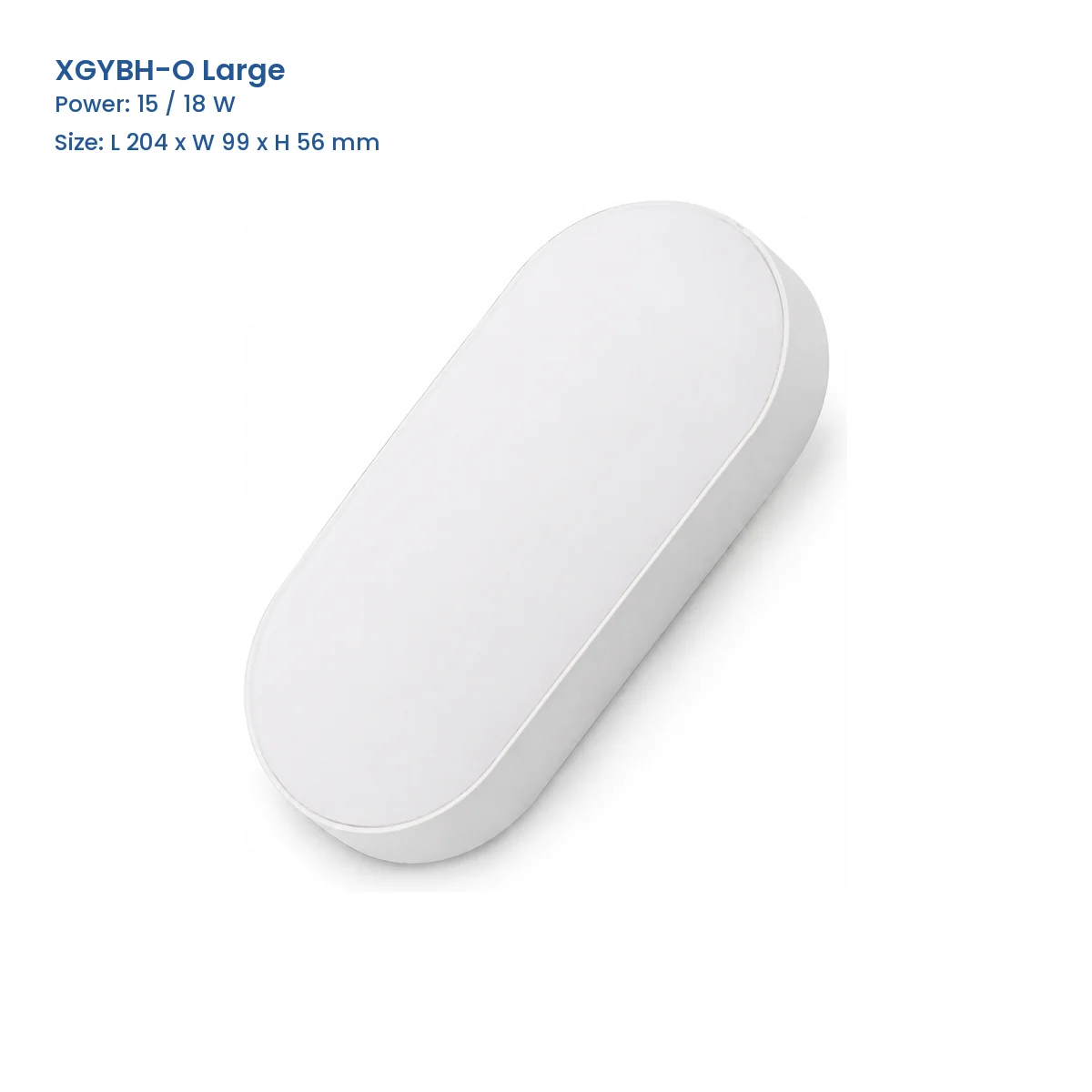

XGYBH-O Large oval LED bulkhead configuration, 15 or 18 W, 204 x 99 x 56 mm

Technical Specifications

Model Specifications

ModelShapeDimensionsProtectionRated PowerLuminous EfficacyCCT
XGYBH-R-E5Round160 x 160 x 65 mmIP44/IP545 W70-120 lm/W3000-6500 K
XGYBH-R-E8Round160 x 160 x 65 mmIP44/IP548 W70-120 lm/W3000-6500 K
XGYBH-R-E10Round160 x 160 x 65 mmIP44/IP5410 W70-120 lm/W3000-6500 K
XGYBH-R-E12Round160 x 160 x 65 mmIP44/IP5412 W70-120 lm/W3000-6500 K
XGYBH-R-E15Round160 x 160 x 65 mmIP44/IP5415 W70-120 lm/W3000-6500 K
XGYBH-R-E18Round160 x 160 x 65 mmIP44/IP5418 W70-120 lm/W3000-6500 K
XGYBH-O-E5Oval178 x 86 x 58 mmIP44/IP545 W70-120 lm/W3000-6500 K
XGYBH-O-E8Oval178 x 86 x 58 mmIP44/IP548 W70-120 lm/W3000-6500 K
XGYBH-O-E10Oval178 x 86 x 58 mmIP44/IP5410 W70-120 lm/W3000-6500 K
XGYBH-O-E12Oval178 x 86 x 58 mmIP44/IP5412 W70-120 lm/W3000-6500 K
XGYBH-O-E15Oval204 x 99 x 56 mmIP44/IP5415 W70-120 lm/W3000-6500 K
XGYBH-O-E18Oval204 x 99 x 56 mmIP44/IP5418 W70-120 lm/W3000-6500 K

Product Description

Product Details

Product Construction

SMD 2835 LEDs provide a 160-degree beam with Ra80 color rendering. White and black finishes are available, and the light engine is listed for a 25,000-hour lifetime with a two-year warranty.

Selection & Installation Notes

Select the exact reference by mounting footprint and rated power, then specify the required IP44 or IP54 configuration. Choose the S 220-240 V or U 100-265 V input version on the order. Use the IP44/IP54 dimensions and electrical data on this page; select the separate IP65 series when IP65 protection is required.

Recommended Application

Applications

  • Covered Corridors: Surface-mounted round or oval housings provide general illumination along sheltered circulation routes.
  • Utility Rooms: The sealed PP body supports ceiling or wall lighting in indoor service spaces.
  • Commercial Stairwells: The broad 160-degree beam distributes light across landings and stair circulation areas.
  • Indoor Car Parks: The optional microwave sensor configuration supports occupancy-based operation in enclosed parking areas.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How do I choose between the round and oval versions?

Choose the shape by the available mounting footprint. Round models are 160 x 160 x 65 mm, while oval models use either 178 x 86 x 58 mm or 204 x 99 x 56 mm housings.

Which rated powers are available?

This IP44/IP54 range covers 5 W, 8 W, 10 W, 12 W, 15 W and 18 W in both round and oval families.

Does every order use the same protection configuration?

No. Specify the required IP44 or IP54 configuration for the selected model and installation.

Which input voltage versions are offered?

The range identifies an S version for 220-240 V and a U version for 100-265 V. State the required input version on the order.

Is microwave sensing standard?

No. Microwave motion sensing is an optional configuration and must be specified for the selected order.

Which product compliance marks apply to this range?

The range is listed with CE LVD, CE EMC, IECEE CB, ErP and RoHS compliance. Confirm the destination-market document set for the ordered configuration.
