BK323052-3/4 Silver-Trim Ceiling-Mount LED Fan Light with Grid

The BK323052-3/4 Silver-Trim Ceiling-Mount LED Fan Light with Grid combines a bordered grid face, local lighting and a fan function in one overhead unit. Confirm the exact relationship between the 3 and 4 variants, electrical definition, controls and mounting requirements before ordering.

Silver Perimeter Accent: The contrasting trim defines the outer edge against the ceiling surface.
Structured Grid Face: The visible pattern gives the lower area a clear architectural character.
Integrated Room Functions: Illumination and air movement are brought together in one overhead product.
Single Mounting Position: The complete fixture uses one prepared ceiling location.

Dimensions	Φ604 × 170 mm
Light / fan load	Max 40 W / Max 15/20 W HF
Efficacy / CCT	110 lm/W / 3000–5500 K
Input	AC 220–240 V

Material	PP base / MS diffuser / PC blade / PP grid
Control	IR remote: brightness, CCT, 24-step fan, reverse, timer
Optics & use	120° / Ra80 / PF 0.9 / IP20 indoor

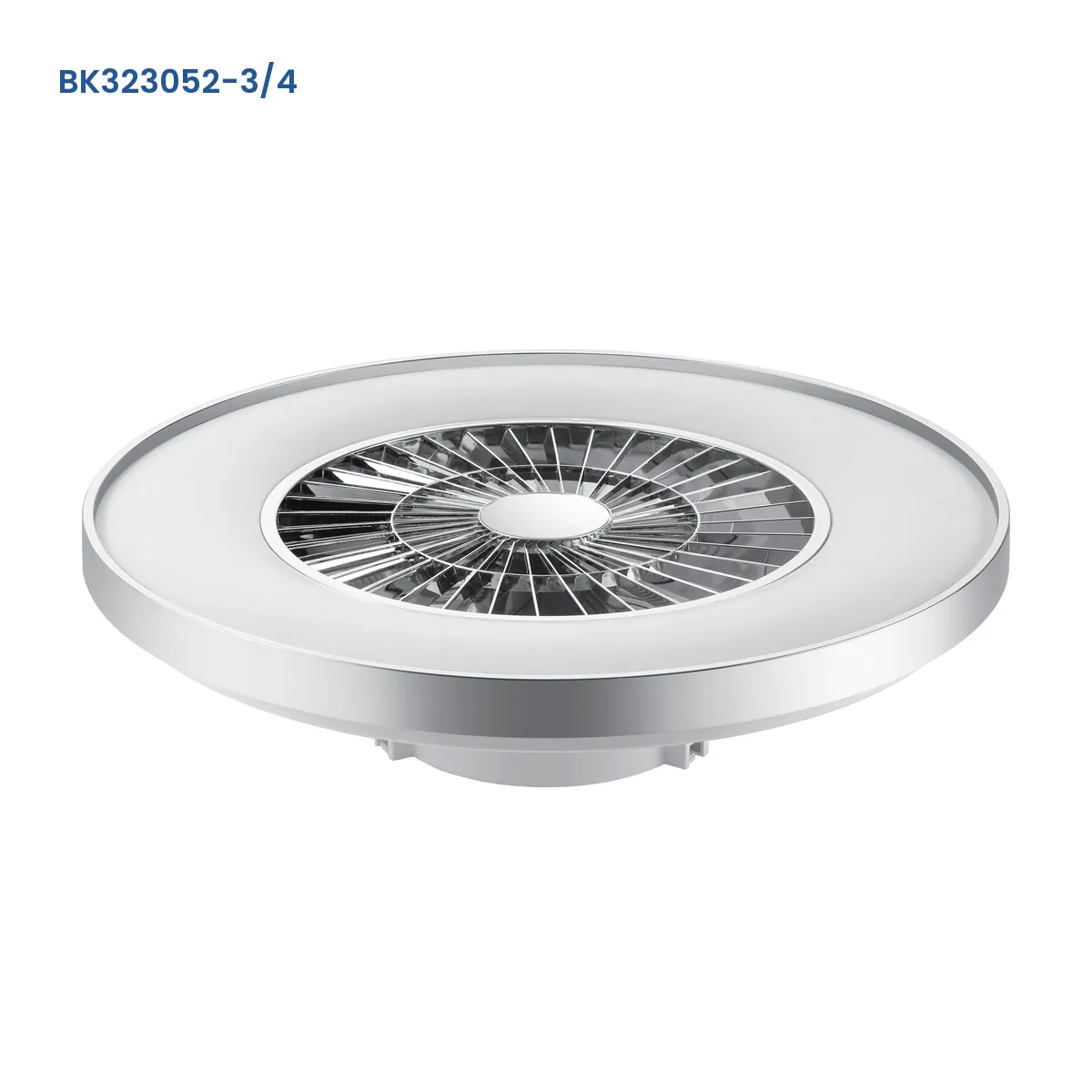

XGYFANCL-BK323052-3/4-E55/60 (Starry/Opal) silver ceiling-mount LED fan light model

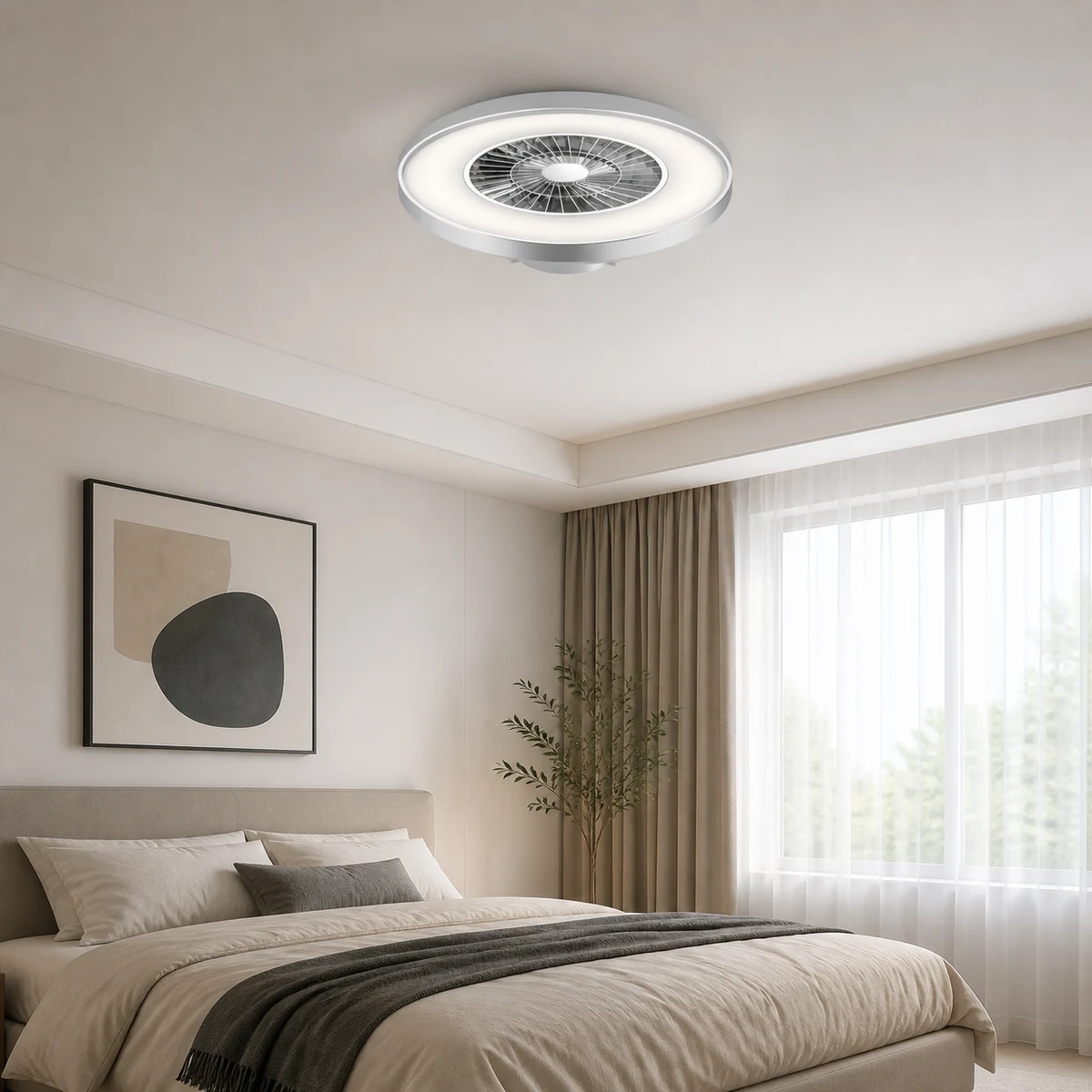

BK323052-3/4 silver-trim ceiling-mount LED fan light with grid installed in a bedroom

Technical Specifications

Model Specifications

Model	Diffuser	Dimensions	Light / Fan Load	Efficacy	CCT	Material
XGYFANCL-BK323052-3/4-E55/60	Starry/Opal	Φ604 × 170 mm	Max 40 W / Max 15/20 W HF	110 lm/W	3000–5500 K	PP / MS / PC / PP

Shared reference conditions: AC 220–240 V, Ra80, 120° beam angle, PF 0.9 and IP20. The full E55/E60 or E55/E62 suffix remains in Model; Starry/Opal is shown separately as the diffuser configuration. Confirm the ordered configuration on the approved sample.

Product Description

Product Details

Product Construction

A contrasting metallic-tone border frames the patterned luminous area and ventilation section within one assembled overhead body. The trim remains part of the visible fixture appearance.

Selection & Installation Notes

The 3/4 title does not establish an exact variant relationship. Record the full ordered code, then verify the trim appearance, electrical supply, control method, ceiling interface, structural support, clearance, service access and included hardware against the approved specification and sample. Compare related products in our ceiling fan light range.

Recommended Application

Applications

Contemporary Bedrooms: Use the confirmed silver-trim unit where the plan specifies a combined ceiling light and fan.
Residential Living Areas: Coordinate the bordered grid face with the room finish and assigned ceiling point.
Hotel Guest Rooms: Apply the approved variant and operating package across matching room types.
OEM Interior Programs: Carry the accepted trim, grid and functional definition into repeated project schedules.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What is the difference between BK323052-3 and BK323052-4?

The 3/4 title does not establish the exact relationship. Confirm each suffix against the approved model list, trim appearance and physical sample before ordering.

What does silver-trim describe on this fixture?

It identifies the contrasting perimeter finish. Approve the exact tone, sheen, grid pattern and material appearance against the product image and sample.

What airflow, speed or noise level does this model provide?

These figures cannot be determined from the title or appearance. Confirm required performance data in the approved technical specification and sample.

How is the ceiling fan light controlled?

Confirm the controller, available functions and operating sequence for the ordered variant, then verify them on the supplied sample.

What should be checked before ceiling installation?

Verify the electrical supply, ceiling interface, structural support, mounting hardware, clearance, service access and included accessories against the approved drawing and instructions.

Which certifications apply to BK323052-3/4?

Confirm the certificate document, covered model and destination-market requirements before relying on any certification claim.
