Fixed-Base E27 LED Fan Light
- Warm-to-Cool Light: The CCT range supports white-light adjustment for different room conditions.
- Remote Brightness Control: The handset adjusts the light without reaching the fitting.
- Three Airflow Settings: The remote provides selectable fan-speed steps.
- Timer Operation: Timed running is available from the IR handset.
| Base / Form | fixed E27 |
|---|---|
| Dimensions | Ø260×115 mm |
| Rated Power | 22/7 W |
| Efficacy | 85 lm/W |
|---|---|
| CCT / Material | 3000–7000 K / PP |
| Control | IR remote; brightness, CCT, three-step fan, timer |
Technical Specifications
Model Specifications
| Model No. | Variant | Size Ø×H | Rated Power | Efficacy | CCT | Material |
|---|---|---|---|---|---|---|
| XGYFANCL-HS-FH-E29 | Fixed E27 | Φ260×115 mm | 22/7 W | 85 lm/W | 3000–7000 K | PP |
Product Description
Product Details
Product Construction

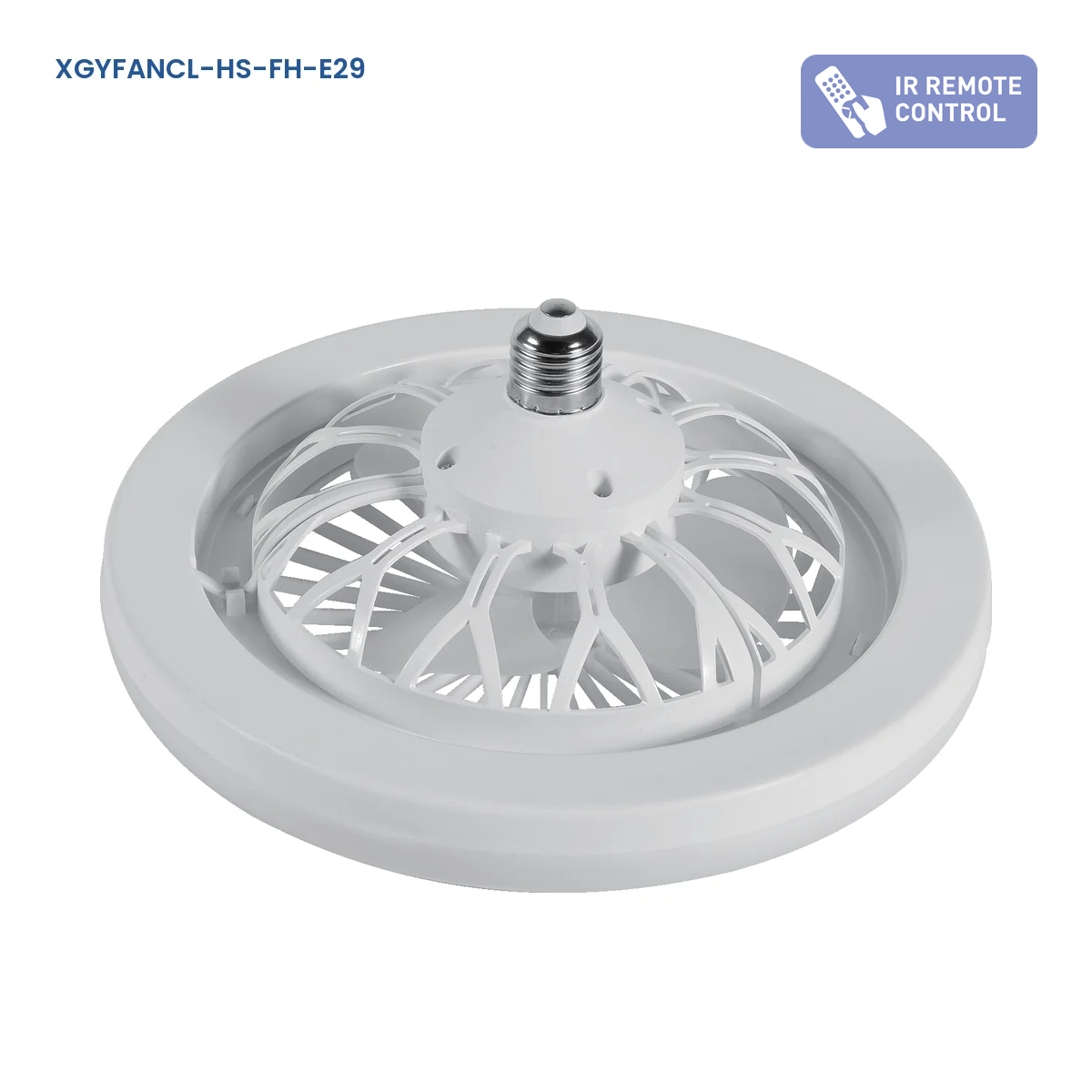

The XGYFANCL-HS-FH-E29 combines a fixed E27 screw-in base, a circular protective grille, a central motor housing and a lower light diffuser inside a Ø260 × 115 mm PP body.
Selection & Installation Notes
Use the product with a compatible E27 lampholder that supports the assembled load, and allow clear space around the full product body. Confirm the supply voltage, holder condition and ceiling support before installation. The IP20 construction is for dry, protected interiors. Compare related products in our Edison screw fan lights range.
Recommended Application
Applications
- Primary Bedrooms: The combined light and fan serves dry indoor sleeping spaces with a compatible E27 ceiling lampholder.
- Small Living Rooms: Remote brightness, CCT, fan-speed and timer controls support everyday room adjustment.
- Home Offices: Integrated lighting and air movement suit compact work areas with limited ceiling space.
- Dry Indoor Retrofits: The fixed screw-in format provides a combined fan-light option for protected renovation projects.
