IP65 E26/E27 Outdoor String Light
- Serviceable Lamp Format: Individual screw-in lamps can be replaced without replacing the cable assembly.
- Two Hanging Profiles: The socket can hang below the main cable or sit close to the cable junction for a different decorative profile.
- Outdoor Socket Protection: The rated assembly supports exposed decorative lighting runs when external power components are correctly selected.
- Project-Sized Light Runs: The cable span and number of light points can be configured for the intended overhead layout.
| Lamp Holders | E26 / E27 |
|---|---|
| Socket Layout | Drop / Derrick Head |
| Length | 24 / 48 ft or 5 / 10 m |
| Socket Count | 5 / 10 / 12 / 20 / 24; customizable |
| Input | 100 / 110 / 230 V AC or 12 V DC |
|---|---|
| Protection | IP65 |
| Bulb Supply | Confirm per order |
Technical Specifications
Model Specifications
| Model | Length | Lamp Holder | Socket Count | Input Options | Cable Options |
|---|---|---|---|---|---|
| XGYLS-US (AC/DC) | 24 / 48 ft | E26 | 12 / 24, custom | 110 V AC / 12 V DC | 2 x 18 / 20 AWG |
| XGYLS-EU | 5 / 10 m | E27 | 5 / 10 / 20, custom | 230 V AC / 12 V DC | 2 x 1.5 / 0.5 mm2 |
| XGYLS-AU | 5 / 10 m | E27 | 5 / 10 / 20, custom | 230 V AC / 12 V DC | 2 x 1.5 / 0.5 mm2 |
| XGYLS-UK | 5 / 10 m | E27 | 5 / 10 / 20, custom | 230 V AC / 12 V DC | 2 x 1.5 / 0.5 mm2 |
| XGYLS-JP | 24 / 48 ft | E26 | 12 / 24, custom | 100 V AC / 12 V DC | 2 x 0.75 / 0.5 mm2 |
Select the complete market row because lamp holder, input and cable specification are linked configurations. Bulb supply is confirmed per order.
Product Description
Product Details
Product Construction

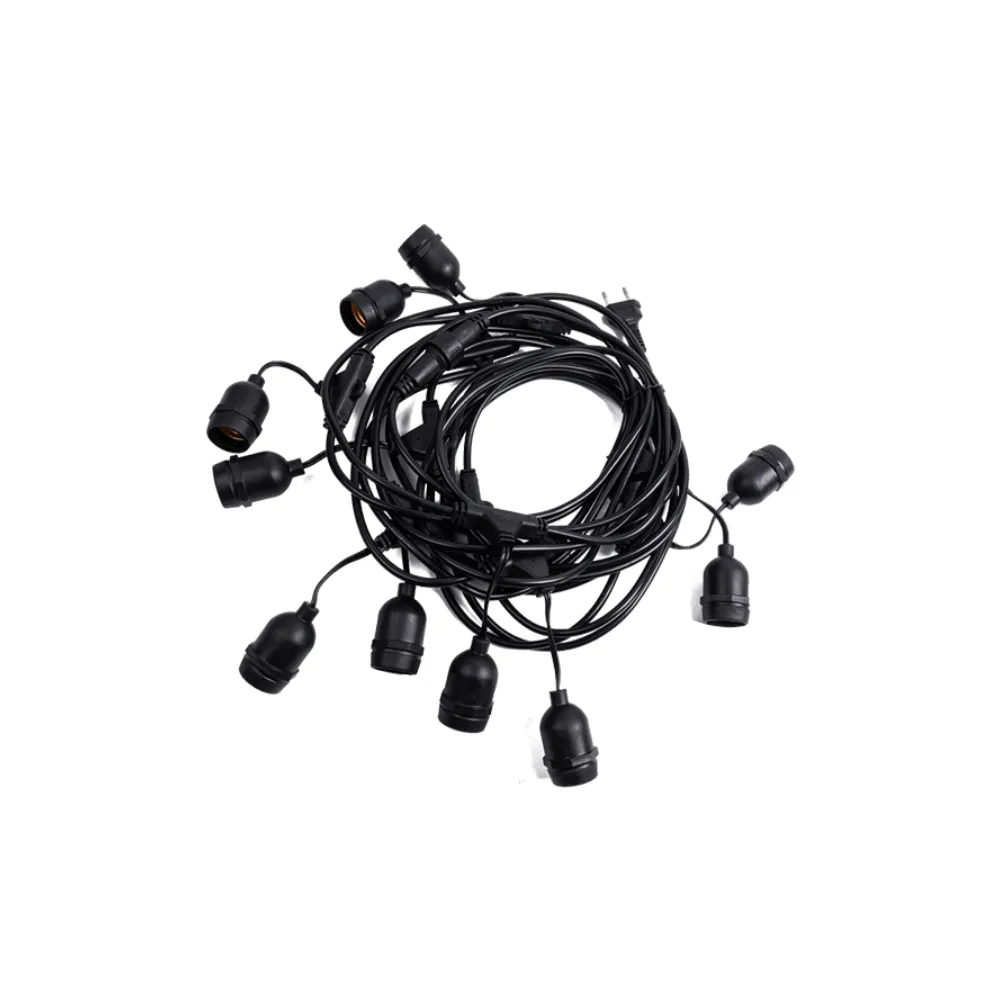

Black insulated conductors connect a sequence of molded socket bodies and terminate in destination-specific plug assemblies. Regional versions use AWG or metric conductor sizes and differ in nominal supply.
Selection & Installation Notes
Choose the destination market first because plug type, nominal voltage and conductor size vary together. Confirm that the chosen bulb and any auxiliary electrical equipment match the voltage program, and verify bulb supply. Provide independent mechanical support for suspended cablework and install each connection according to its own rating.
Recommended Application
Applications

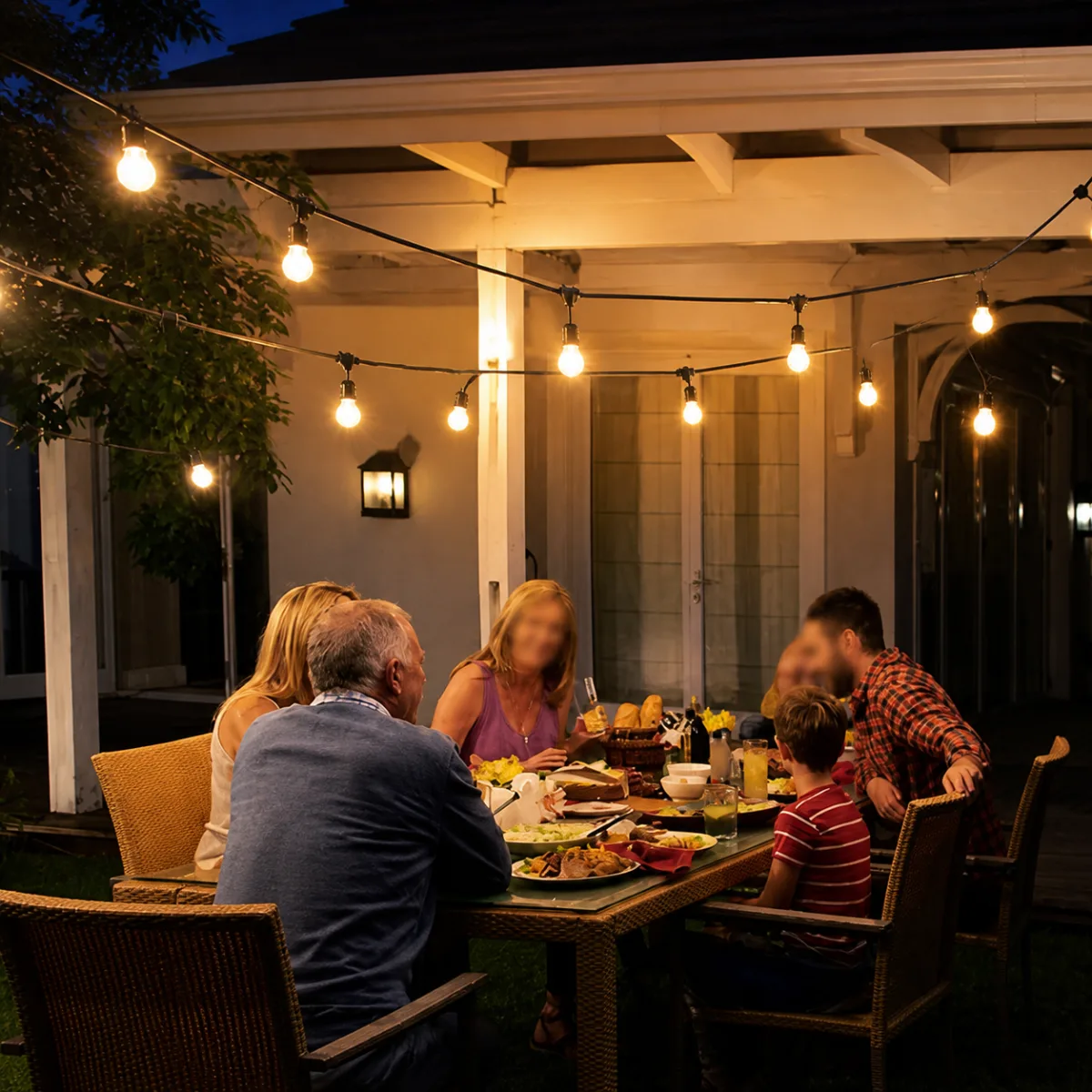

- Patio Dining: Suspended socket runs add decorative lighting above outdoor dining tables and seating zones.
- Cafe Terraces: E26 or E27 lamp holders create evenly spaced decorative points across terrace seating areas.
- Hotel Courtyards: Black cable and replaceable lamps provide a flexible decorative layer across courtyard gathering spaces.
- Event Canopies: Customizable cable lengths and socket counts support temporary overhead lighting layouts for event spaces.
