GR10Q T9 Circular Fluorescent Lamps
- Full-Circle Output: Illumination reaches every side of the source for broad area coverage.
- Serviceable Source: A worn tube assembly can be exchanged while reusable luminaire components stay installed.
- Phosphor-Coating Choice: Halophosphor and tri-phosphor options support different cost, efficacy and color-rendering targets.
- Separate Control Gear: Operating electronics sit in the host luminaire rather than inside the glass assembly.
| Tube Diameter | 29 mm |
|---|---|
| Power Range | 22-40 W across the product family |
| Output Range | 850-2500 lm across the product family |
| CCT Range | 2700K-6500K |
| Electrical Interface | GR10Q four-pin with compatible electronic ballast |
|---|---|
| Supply Boundary | Lamp only; fixture, holder and ballast are not included |
| Certifications | CE (LVD/EMC) and RoHS |
Technical Specifications
Model Specifications
| Model No. | Tube Dia. (mm) | Cap | Rated Power | Total Lumen | Color Temperature |
|---|---|---|---|---|---|

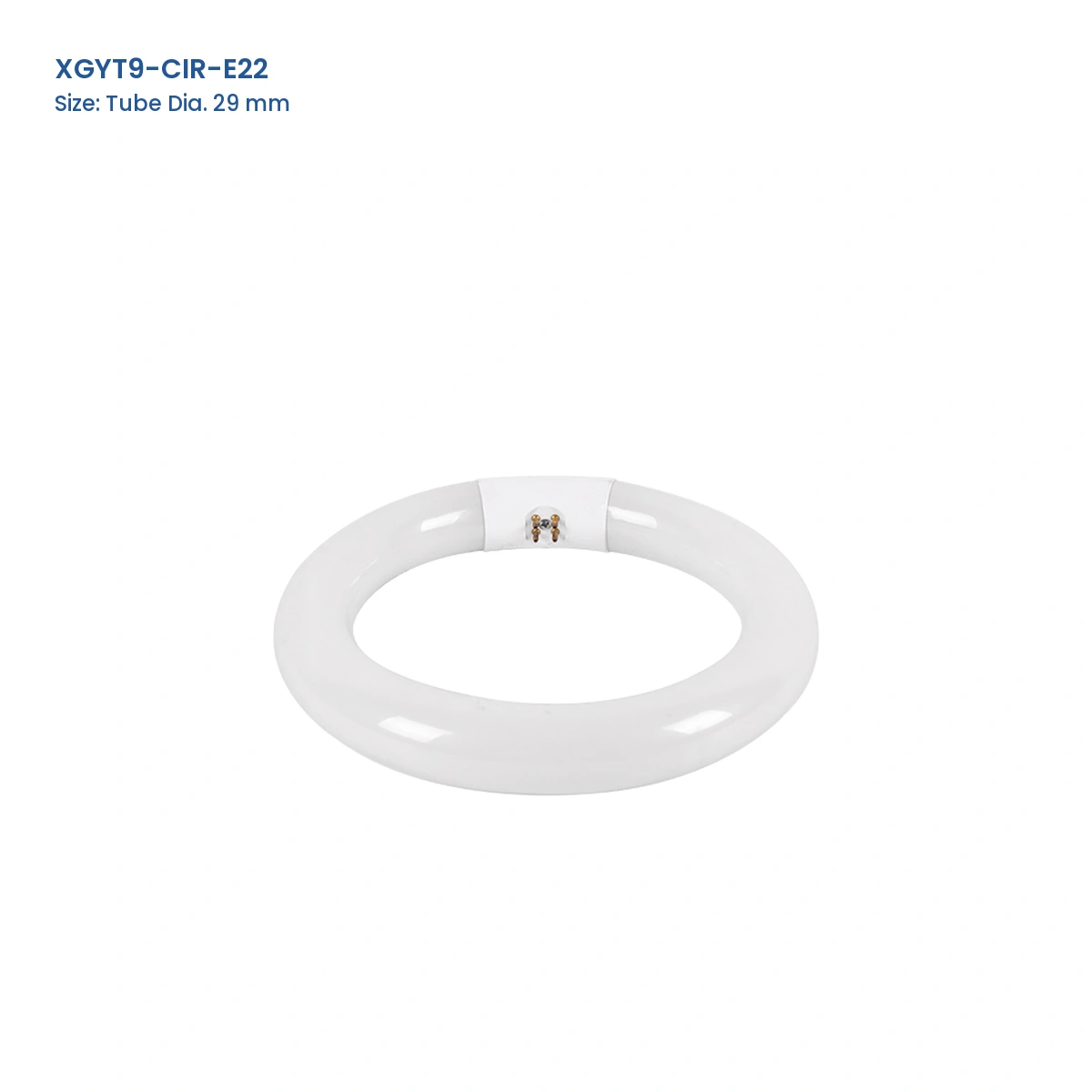

| XGYT9-CIR-E22 | 29 | GR10Q | 22 W | 850-1100 lm | 2700K-6500K |

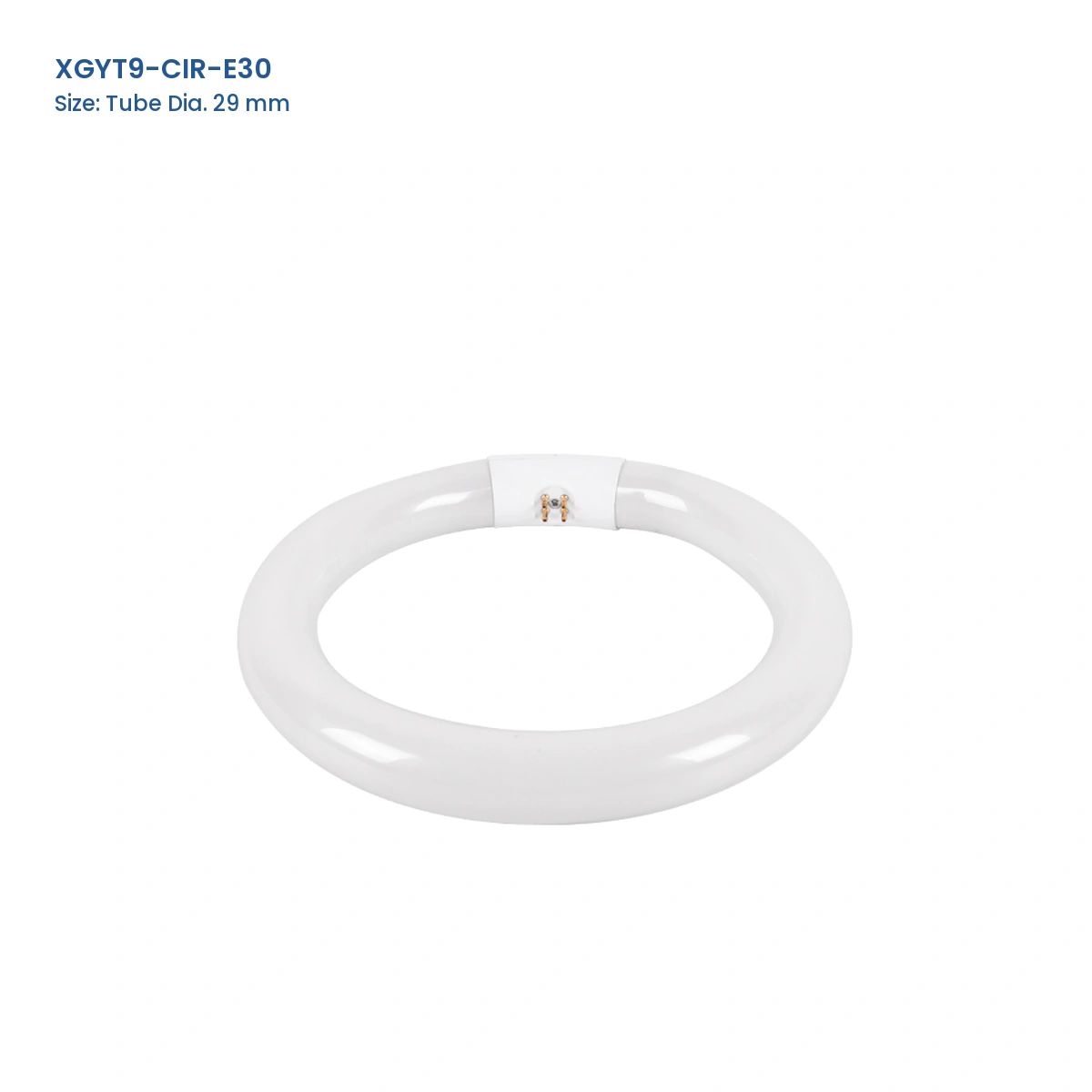

| XGYT9-CIR-E30 | 29 | GR10Q | 30 W | 1600-1900 lm | 2700K-6500K |

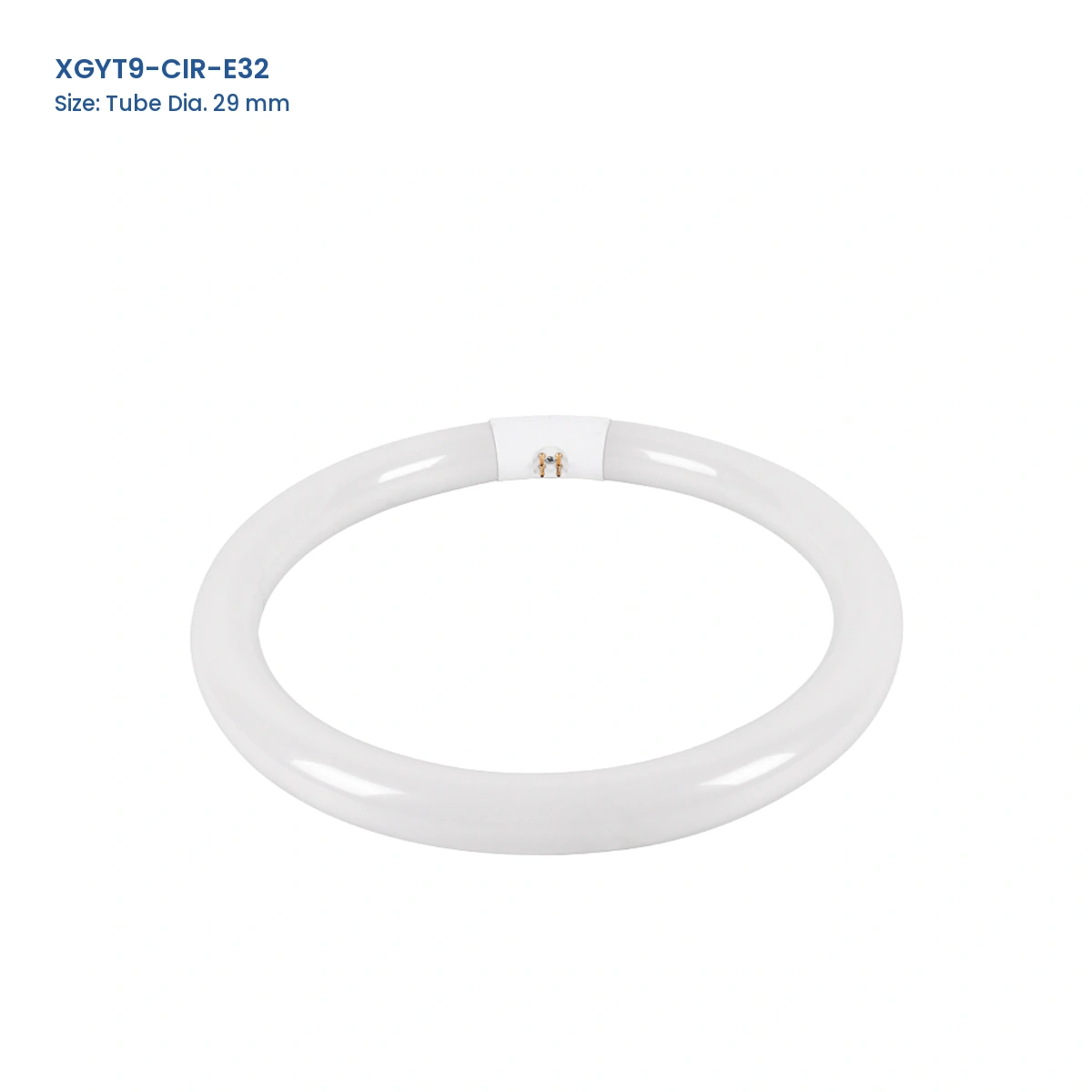

| XGYT9-CIR-E32 | 29 | GR10Q | 32 W | 2000-2450 lm | 2700K-6500K |

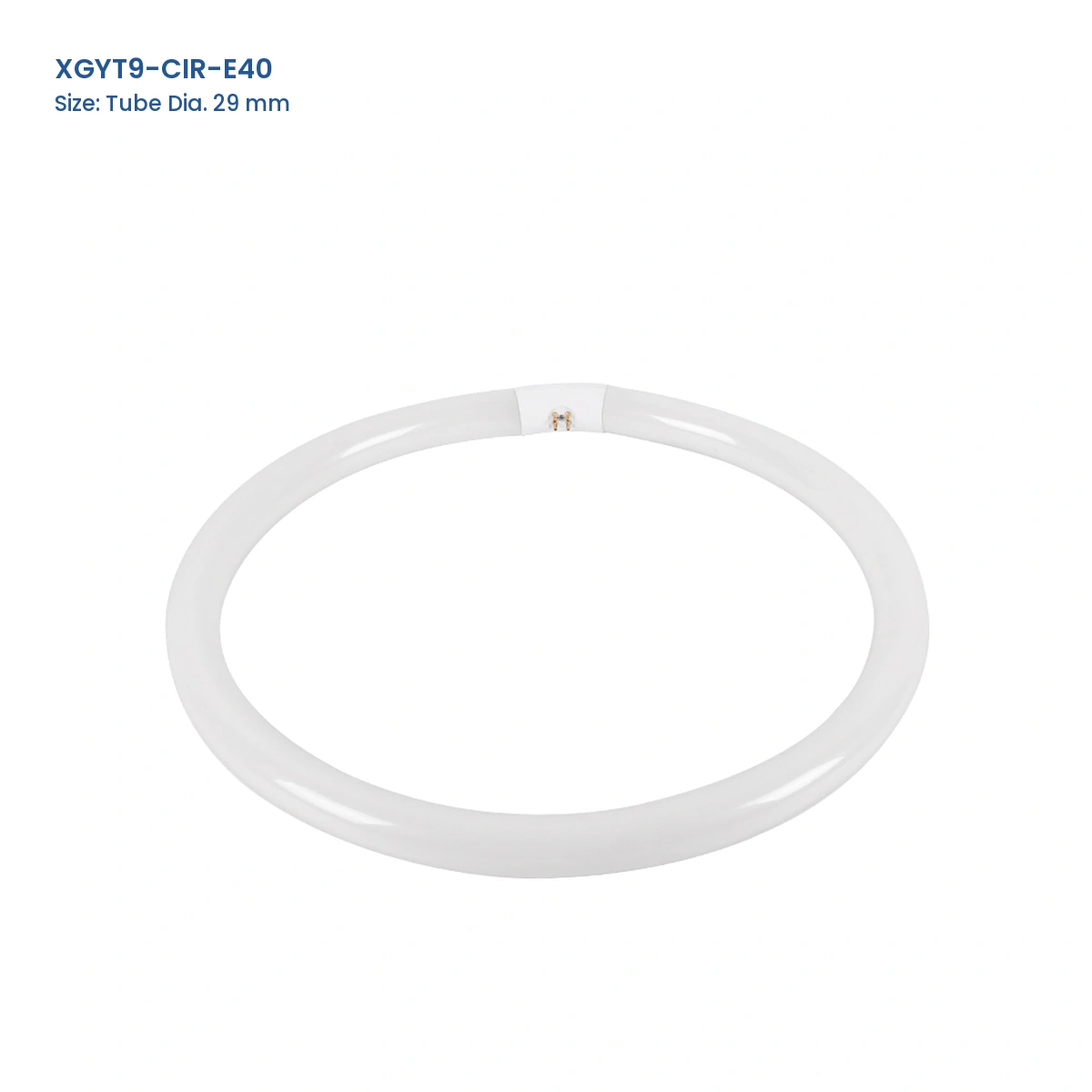

| XGYT9-CIR-E40 | 29 | GR10Q | 40 W | 2200-2500 lm | 2700K-6500K |
Product Description
Product Details
Product Construction
A phosphor-coated glass tube is bent into a ring and joined to a central bridge that holds the four electrical pins. During operation, discharge inside the tube excites the coating to produce visible light around the circular envelope.
Selection & Installation Notes
Match the lamp power and output range to a suitable electronic ballast, then verify ring clearance and GR10Q holder orientation. The fixture, holder and ballast are separate from the replacement lamp. Compare related formats in our circular and 2D fluorescent lamp range.
Recommended Application
Applications

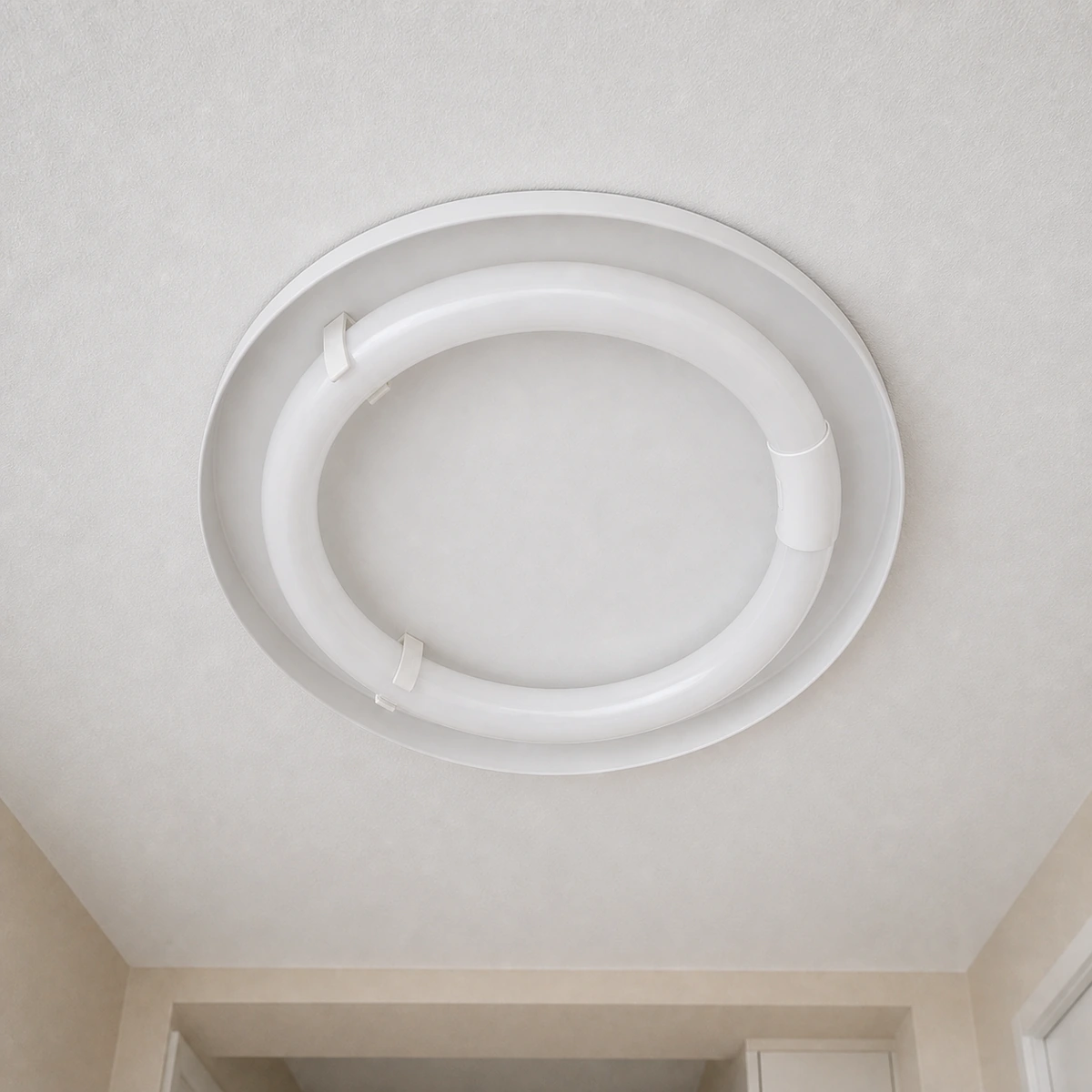

- Residential Ceiling Fixtures: Provides broad general lighting in ceiling luminaires designed for GR10Q circular lamps.
- Office General Lighting: Fits suitable electronic-ballast ceiling fixtures used for regular workspace illumination.
- Retail Ceiling Luminaires: Supports even ambient lighting in shops and merchandise areas with matching circular fixtures.
- Hospitality Corridor Fixtures: Serves circular ceiling or wall luminaires in hotel corridors and shared indoor spaces.
