C35 Halogen Bulbs

C35 halogen bulbs use a candle-shaped lamp format for chandeliers and other compatible decorative indoor fixtures. Confirm the complete order reference and approved project specification before production.
  • Candle-Shaped Silhouette: The narrow outline suits exposed-lamp decorative designs.
  • Two Visual Treatments: Clear and frosted versions create distinct visible-bulb presentations.
  • Chandelier-Oriented Range: The C35 type suits chandelier lighting and other decorative indoor fixtures.
Selection documentComplete signed item reference
Manufacturing authorityApproved bill of materials
Mechanical recordConfirmed fixture interface and clearance
Electrical recordApproved project schedule
Appearance recordConfirmed order artwork
Installation recordIntended luminaire and room location
Request a Quote

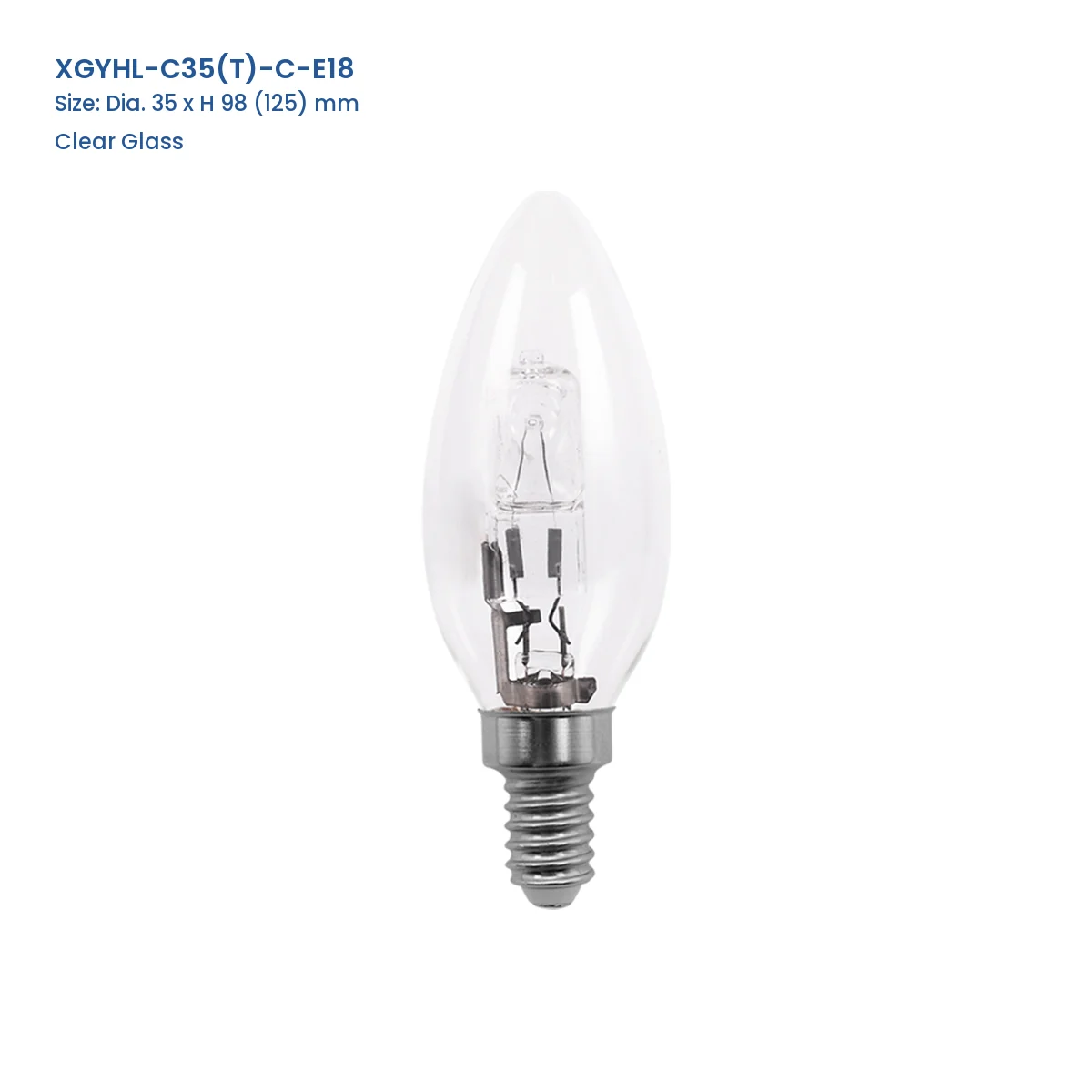

XGYHL-C35(T)-C-E18 C35(T) clear glass halogen bulb, Dia. 35 x H 98 (125) mm

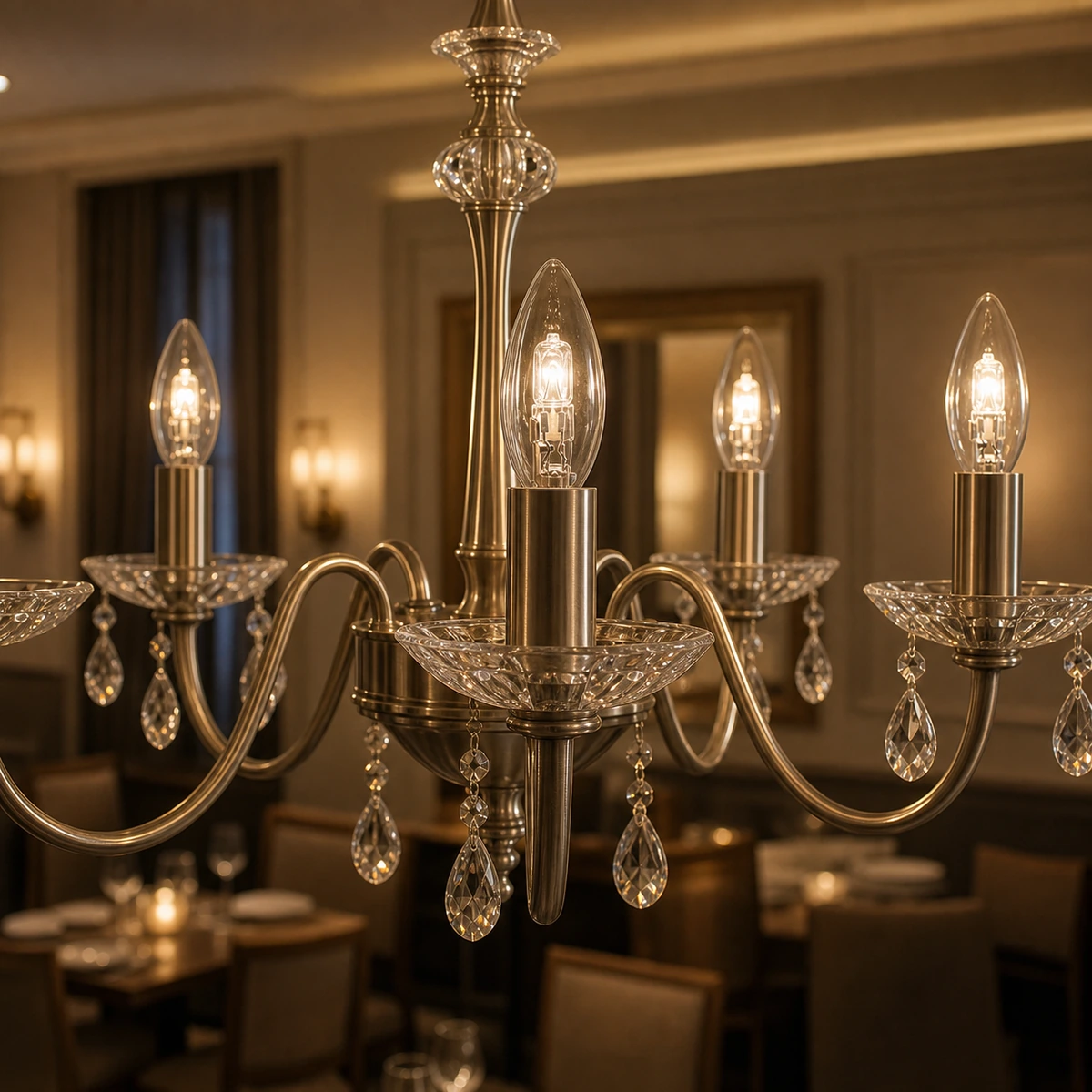

Clear C35 candle-shaped halogen bulbs installed upright in an indoor chandelier

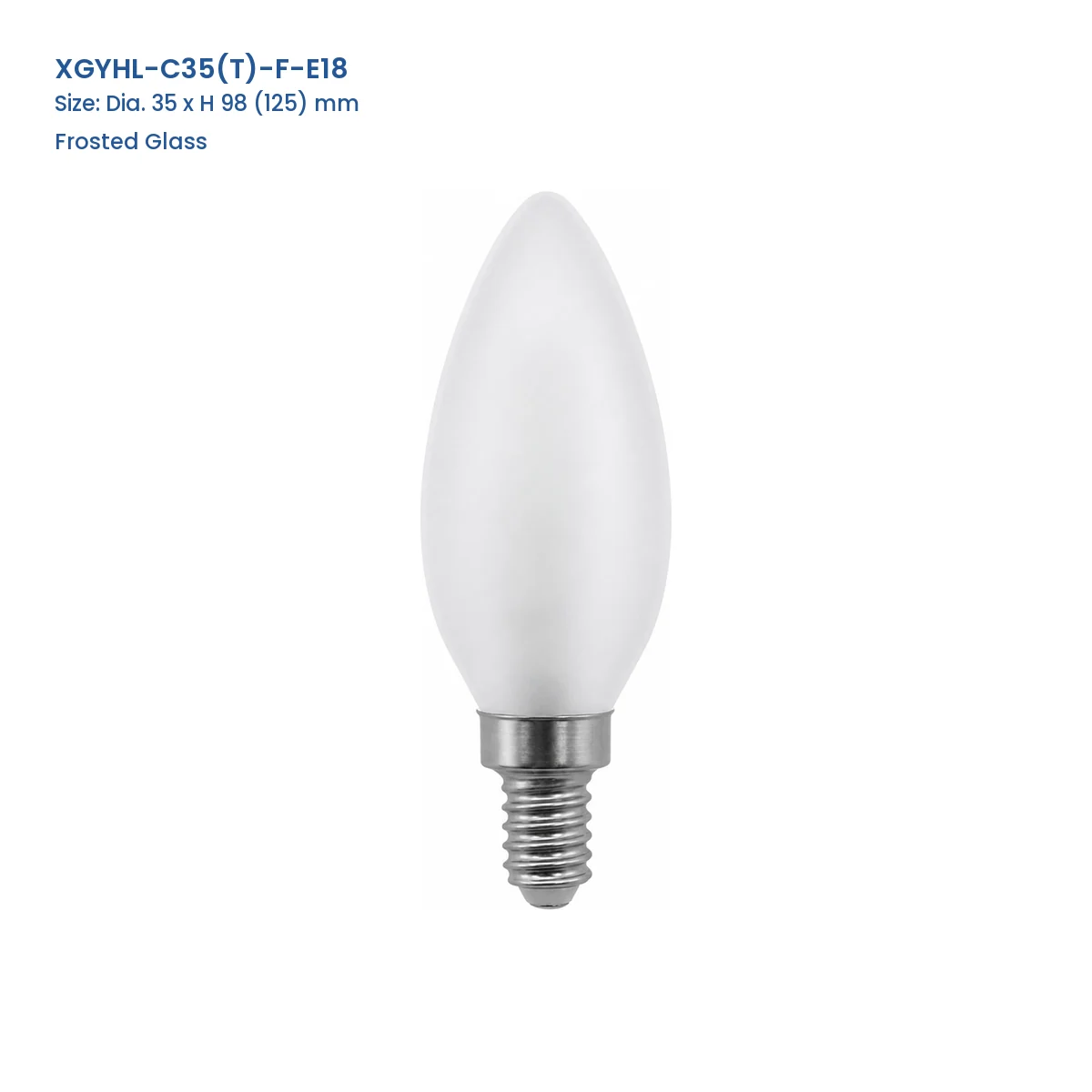

XGYHL-C35(T)-F-E18 C35(T) frosted glass halogen bulb, Dia. 35 x H 98 (125) mm

Technical Specifications

Model Specifications

ModelEnvelopeFinishDimensions (mm)Rated Power (W)Total Lumen (lm)
XGYHL-C35(T)-C-E18C35(T)Clear GlassDia. 35 x H 98 (125)18200
XGYHL-C35(T)-C-E28C35(T)Clear GlassDia. 35 x H 98 (125)28370
XGYHL-C35(T)-C-E42C35(T)Clear GlassDia. 35 x H 98 (125)42590
XGYHL-C35(T)-F-E18C35(T)Frosted GlassDia. 35 x H 98 (125)18200
XGYHL-C35(T)-F-E28C35(T)Frosted GlassDia. 35 x H 98 (125)28370
XGYHL-C35(T)-F-E42C35(T)Frosted GlassDia. 35 x H 98 (125)42590

The family dimension is listed as Dia. 35 x H 98 (125) mm, but the parenthetical height form is not identified. One cap designation is also inconsistent, so confirm the exact lamp height, cap and 120/230 V supply for the selected order.

Product Description

Product Details

Product Construction

Use the signed bill of materials and production drawing as the controlling definition for every ordered reference. These documents govern the visible parts, internal assembly, materials and markings.

Selection & Installation Notes

Start from the intended luminaire and room layout. Resolve the mechanical interface, electrical compatibility, available clearance and maintenance access from the approved project file. Compare related products in our halogen lamp range.

Recommended Application

Applications

  • Indoor Chandeliers: Fits candle-shaped lamp positions in compatible indoor chandelier fixtures.
  • Decorative Wall Lights: Places a C35 lamp in compatible decorative wall fittings.
  • Decorative Table Lamps: Uses the candle-shaped format in compatible table-lighting fixtures.
  • Hospitality Interiors: Supports exposed-bulb decorative lighting in restaurants, guest rooms and reception areas.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What does C35 identify?

It identifies a candle-shaped halogen bulb family. Use the complete order reference to confirm the exact lamp configuration.

Are clear and frosted C35 appearances available?

Yes. Clear and frosted outer-glass appearances are available. Confirm the selected appearance in the approved order specification.

Does the C35 family name define power or voltage?

No. Confirm the electrical specification for the selected order reference rather than deriving it from the family name.

Which lamp holder should be used?

The C35 family name does not establish one holder interface. Match the approved lamp cap to the compatible holder before installation.

What should be checked before installation?

Check the approved supply, holder interface, lamp dimensions, fixture clearance and control equipment for the selected order reference.

Where are C35 halogen bulbs typically used?

C35 lamps suit chandeliers and other decorative indoor fixtures, including wall and table lamps.
