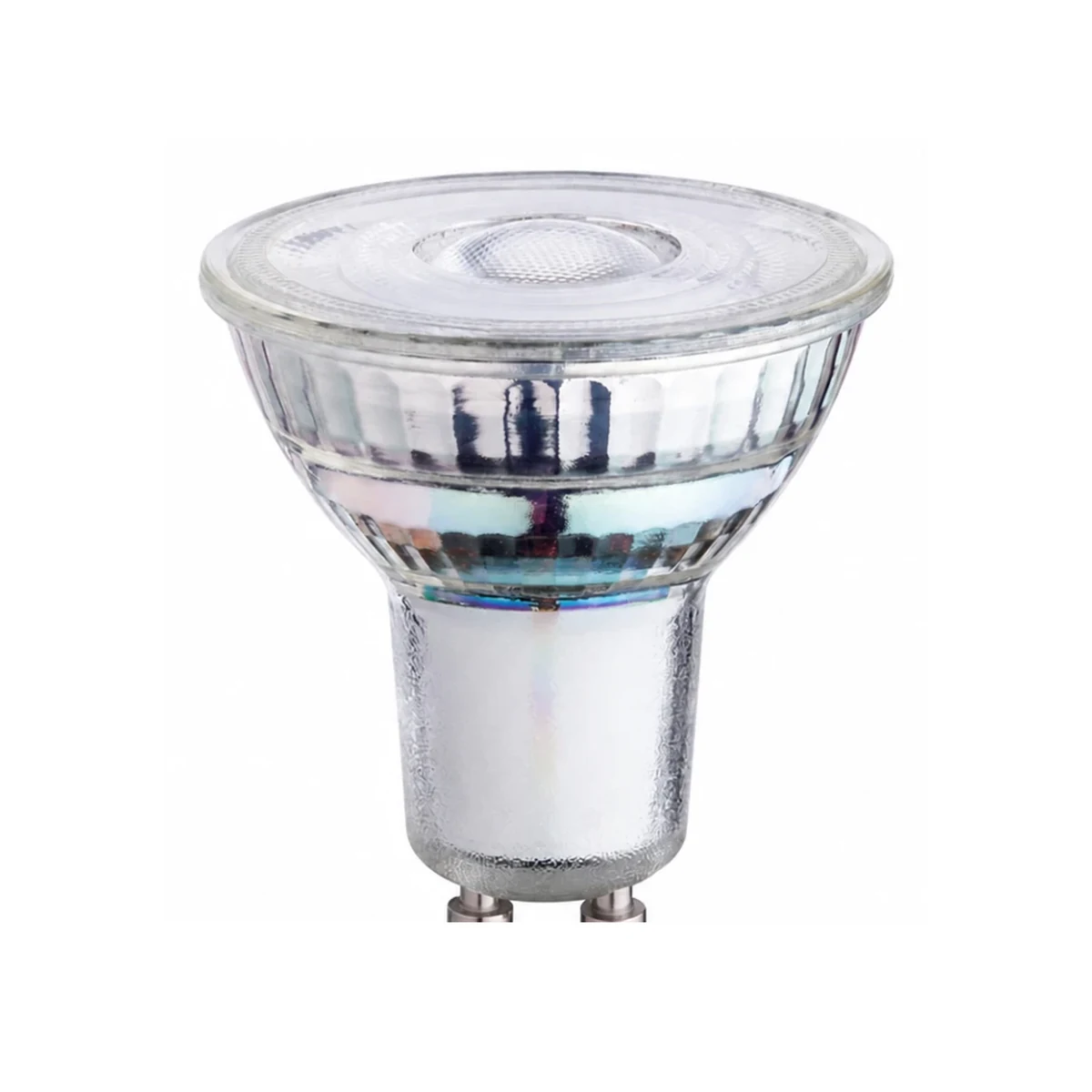

Glass GU10 LED Spotlights
- Molded Glass Optics: Distinct glass face patterns define the visible optical structures in this GU10 family.
- Two-Pin Twist Connection: Keyed contacts lock into compatible mains-voltage fittings.
- Configuration-Specific Control: Fixed, LC-dimming, dim-to-warm and three-step functions remain separate ordering choices.
- Stable Illumination: No-flicker performance is specified throughout the family.
| Dimensions | Ø35 × 46 / Ø50 × 54–55.5 mm |
|---|---|
| Rated Power | 1.9–4.5 W |
| Lumen Output | 220–400 lm |
| CCT | 2200–6500 K by configuration |
|---|---|
| Beam Angle | 36° |
| Control Options | Fixed / LC Dim / DTW / 3-Step |
Technical Specifications
Model Specifications
| Model No. | Configuration | Dimensions | Rated Power | Lumen | CCT / Levels | Beam Angle |
|---|---|---|---|---|---|---|

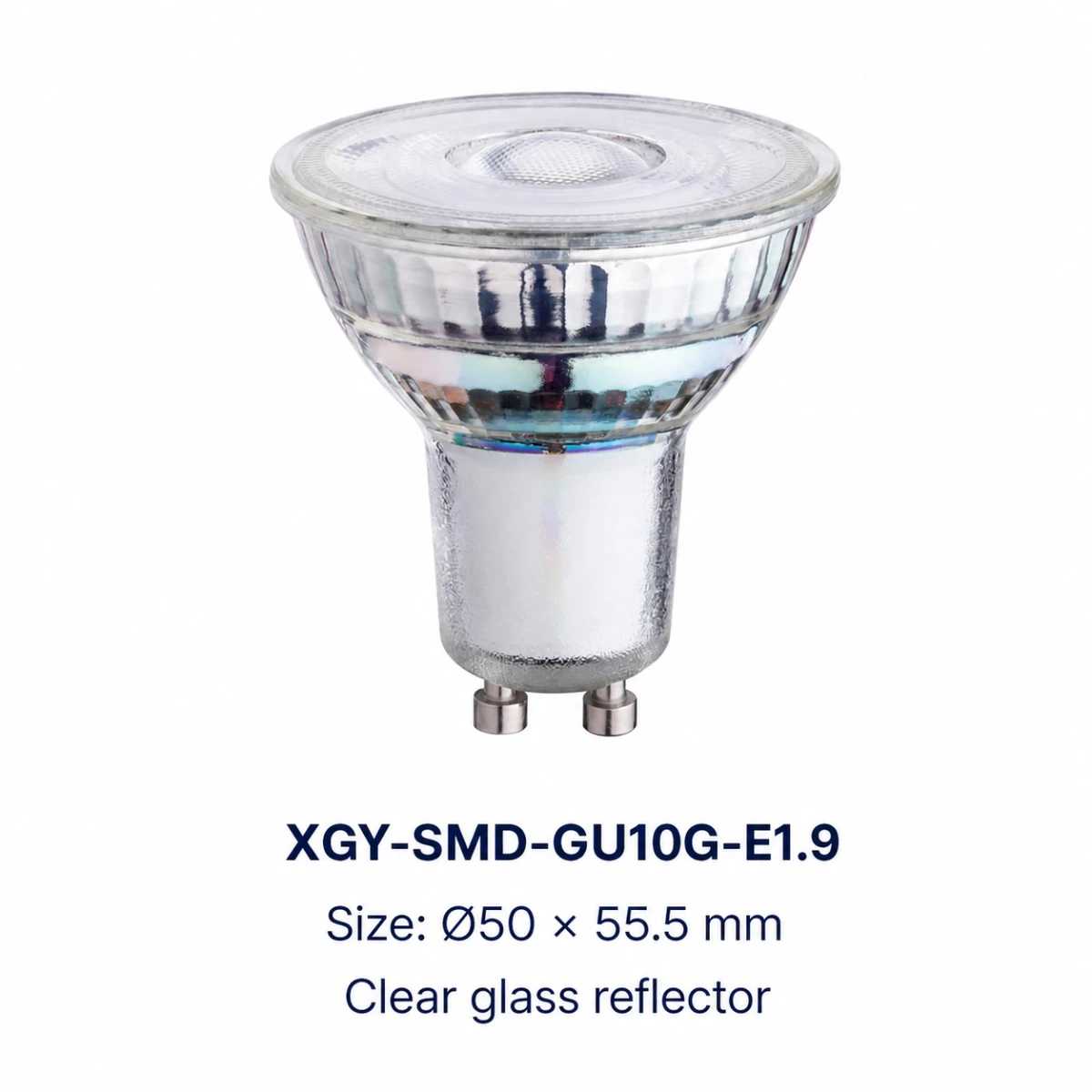

| XGY-SMD-GU10G-E1.9 | ErP Class A / Fixed | Ø50 × 55.5 mm | 1.9 W | 340 lm | 3000–6500 K | 36° |

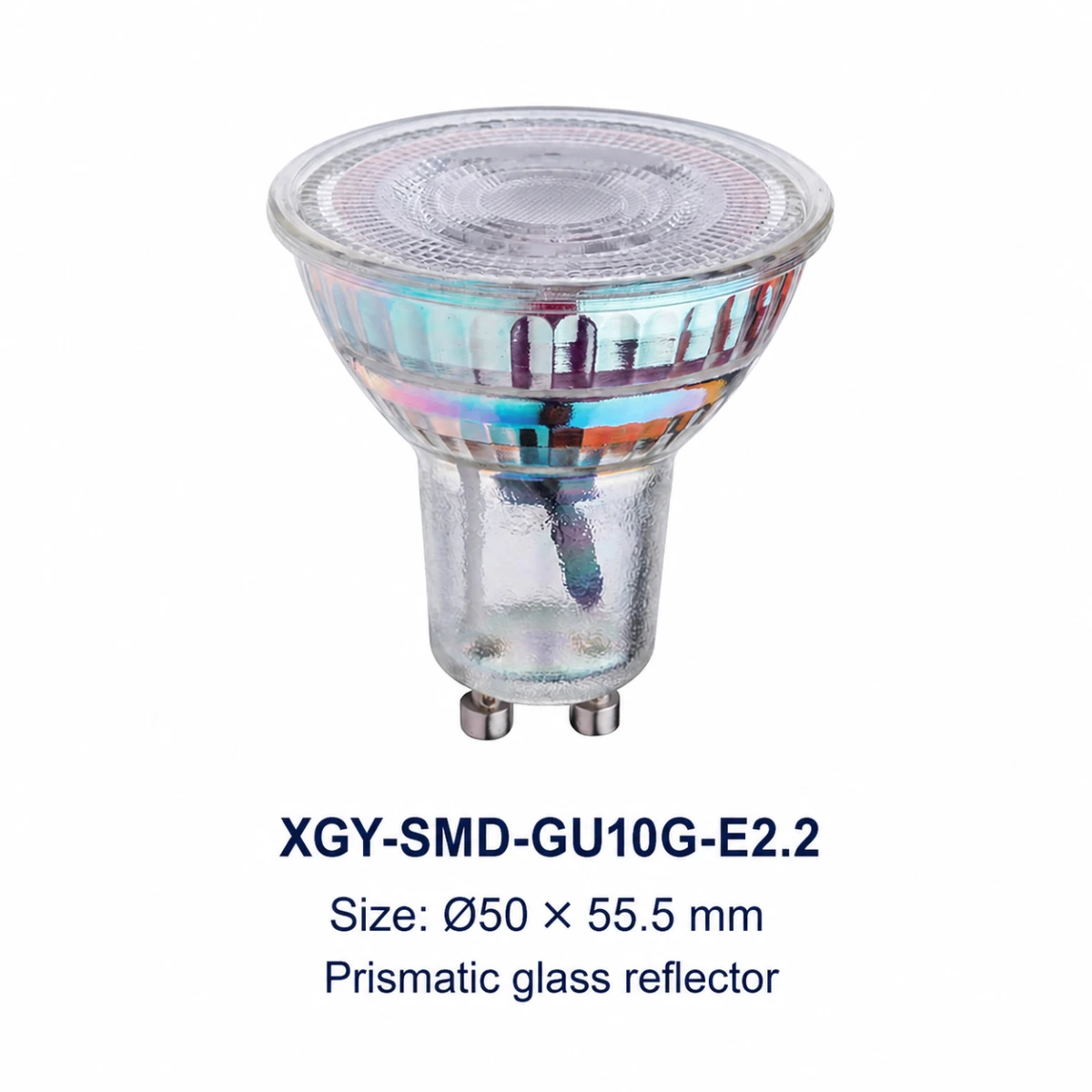

| XGY-SMD-GU10G-E2.2 | ErP Class B / LC Dim Opt. | Ø50 × 55.5 mm | 2.2 W (LCDIM) | 350 lm | 3000–6500 K | 36° |

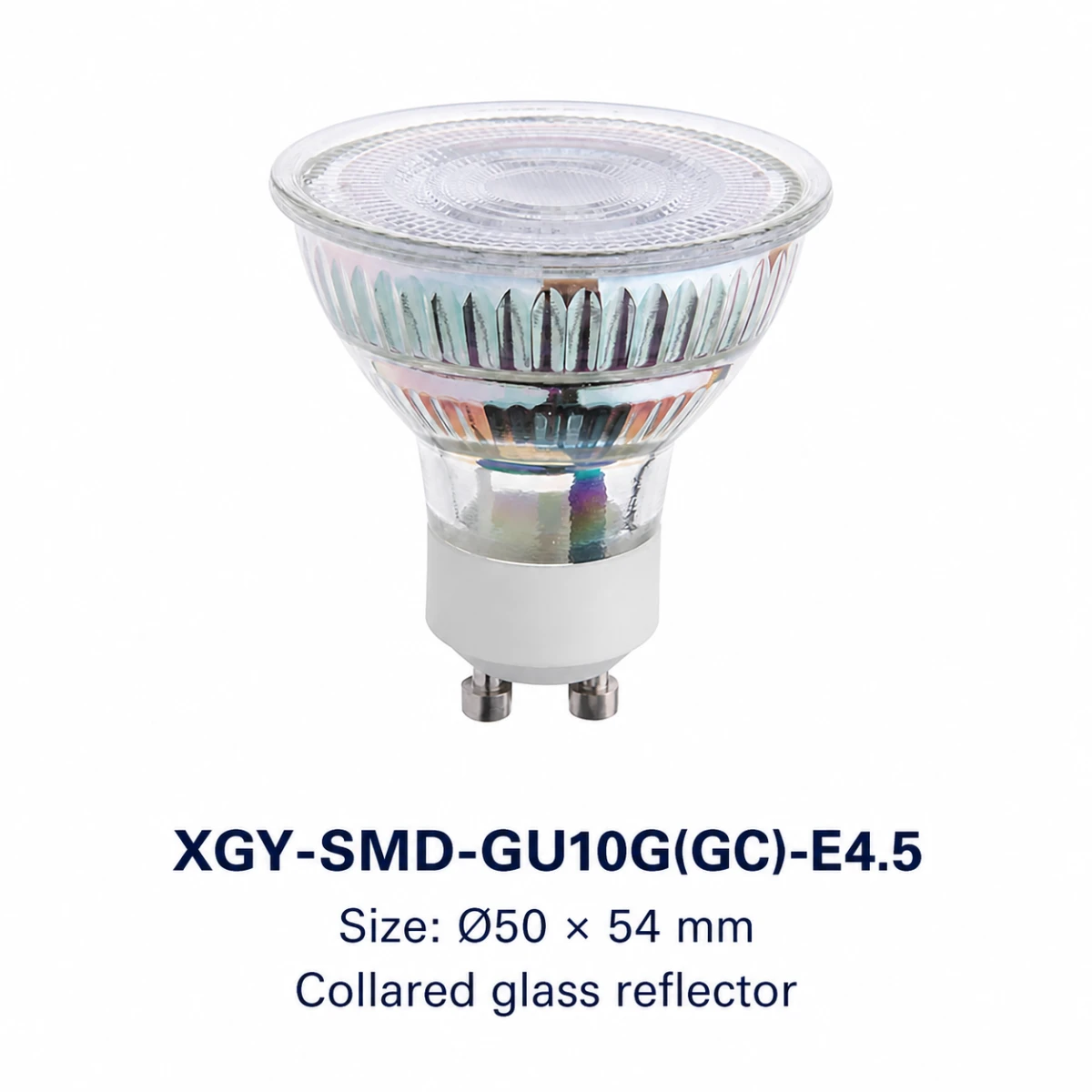

| XGY-SMD-GU10G(GC)-E4.5 | ErP Class F / LC Dim Opt. | Ø50 × 54 mm | 4.5 W (LCDIM) | 400 lm | 3000–6500 K | 36° |
| XGY-SMD-GU10G(GC)-E4.5 | ErP Class F / Dim To Warm | Ø50 × 54 mm | 4.5 W (DTW) | 400 lm | 2200–3000 K (DTW) | 36° |
| XGY-SMD-GU10G(GC)-E4.5 | ErP Class F / S3D&CCTM | Ø50 × 54 mm | 4.5 W (100% / 50% / 10%) | 400 lm | 2700 K @ 100% / 2500 K @ 50% / 2200 K @ 10% | 36° |

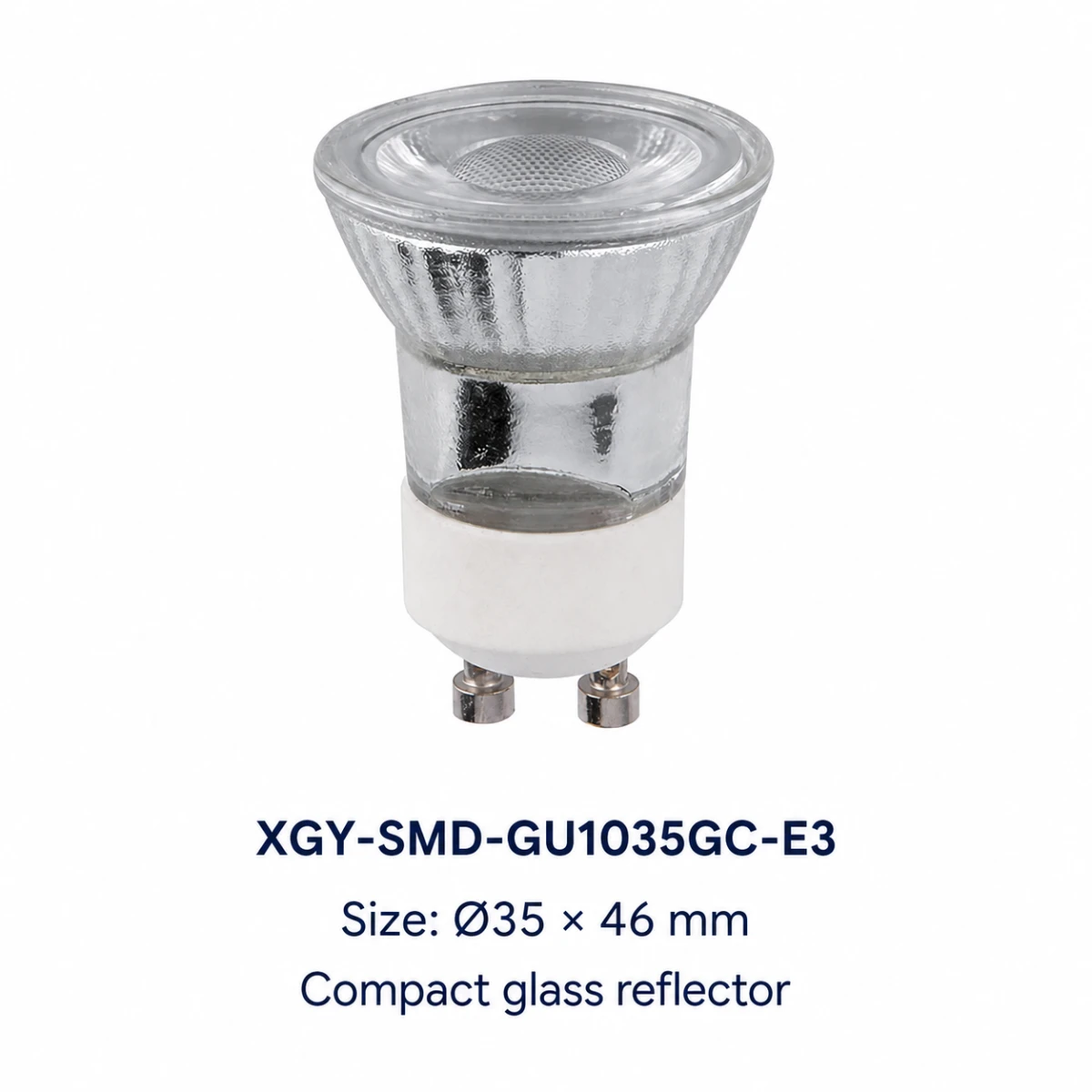

| XGY-SMD-GU1035GC-E3 | ErP Class F / LC Dim Opt. | Ø35 × 46 mm | 3 W (LCDIM) | 220 lm | 3000–6500 K | 36° |
| XGY-SMD-GU1035GC-E3 | ErP Class F / S3DIMM | Ø35 × 46 mm | 3 W (100% / 50% / 10%) | 220 lm | 3000–6500 K | 36° |
Product Description
Product Details
Product Construction
The visible glass lamp face, internal light source and operating electronics form one compact replacement bulb. The holder, trim, wiring and complete spotlight fixture are separate.
Selection & Installation Notes
Choose the Ø35 or Ø50 body by fixture clearance, then match the required output and CCT behavior. Confirm socket type, electrical supply and the intended dimmer or switching interface for the selected version. Compare adjacent formats in our GU10, MR16 and AR111 LED bulb range.
Recommended Application
Applications

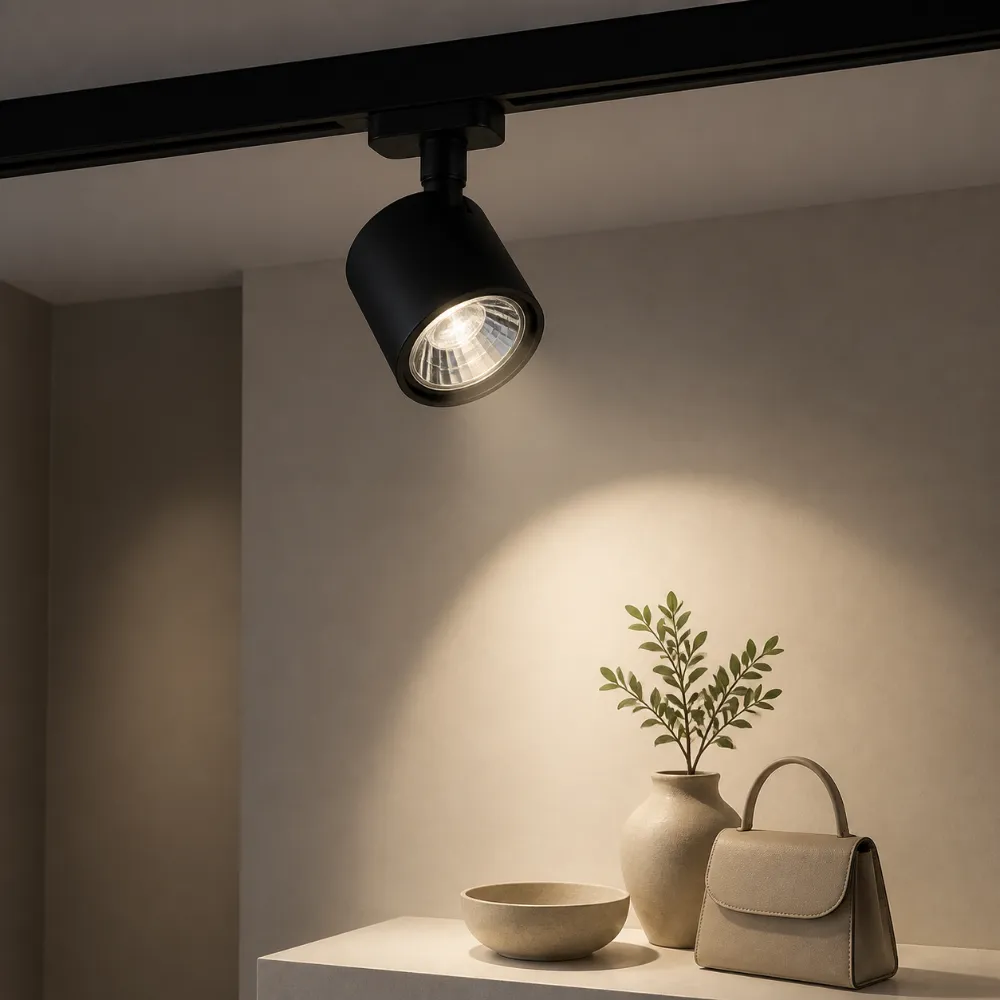

- Retail Display Spots: The 36-degree beam provides focused merchandise and shelf lighting in compatible GU10 fixtures.
- Hospitality Downlights: Fixed, LC-dimming or dim-to-warm versions support compatible hotel and restaurant downlights.
- Residential Accent Lighting: Selected output and control configurations serve compatible kitchen, hallway and living-room spotlights.
- Gallery Display Lighting: The selected CCT and output support focused lighting for artworks and display surfaces.
