Patterned-Cover Surface-Mounted Ceiling Light
This round surface-mounted ceiling light uses a patterned white cover as a decorative element for dry indoor rooms. The TW family offers several housing groups, with the selected model and control behavior defined for each order.
- Patterned White Cover: The decorative surface adds visible texture without relying on colored or animated light effects.
- Three Housing Groups: The TW family provides separate ceiling footprints for compact and larger indoor rooms.
- Surface-Mounted Installation: The fitting mounts directly to a finished ceiling without a recessed cutout.
- Dry-Interior Use: The IP20 series is intended for dry indoor locations rather than wet, washdown or exposed areas.
| Power range | 18–48 W |
|---|---|
| Diameter range | 280–520 mm |
| Rated efficacy | 90 lm/W |
|---|---|
| CCT range | 3000–6000 K |
Technical Specifications
Model Specifications
| Model No. | Outside ØxH | Inside Ø | Power | Efficacy | CCT | IP |
|---|---|---|---|---|---|---|
| XGYCL1-NLTWDS-E20/30 (BS) | 280×60 mm | 260 mm | 20/30 W | 90 lm/W | 3000–6500 K | IP20 |
| XGYCL1-NLTWDS-E50/55 (BS) | 470×110 mm | 450 mm | 50/55 W; NL 2.5 W | 90 lm/W | 3000–6500 K | IP20 |
| XGYCL1-NLTWDS-E60/65 (BS) | 520×120 mm | 500 mm | 60/65 W | 90 lm/W | 3000–6500 K | IP20 |
Product Description
Product Details
Product Construction

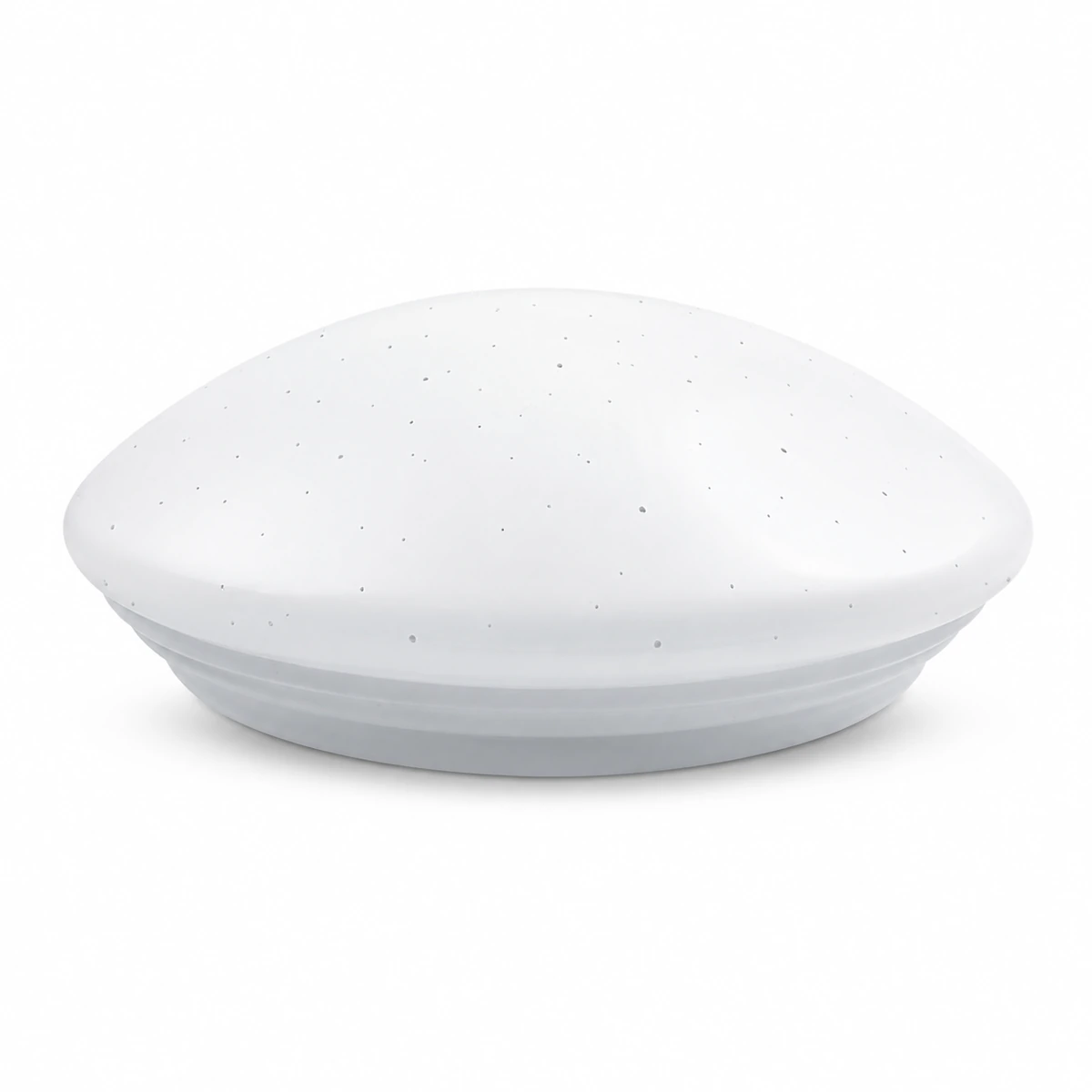

The visible face combines a patterned cover with a surrounding rim, while the rear base carries the ceiling interface and internal electrical assembly.
Selection & Installation Notes
Choose the housing group from the room scale, ceiling area and lighting plan. Confirm the exact slash-form model configuration, fixing substrate, junction space, supply and requested control behavior before sample approval. Compare related ceiling lights.
Recommended Application
Applications

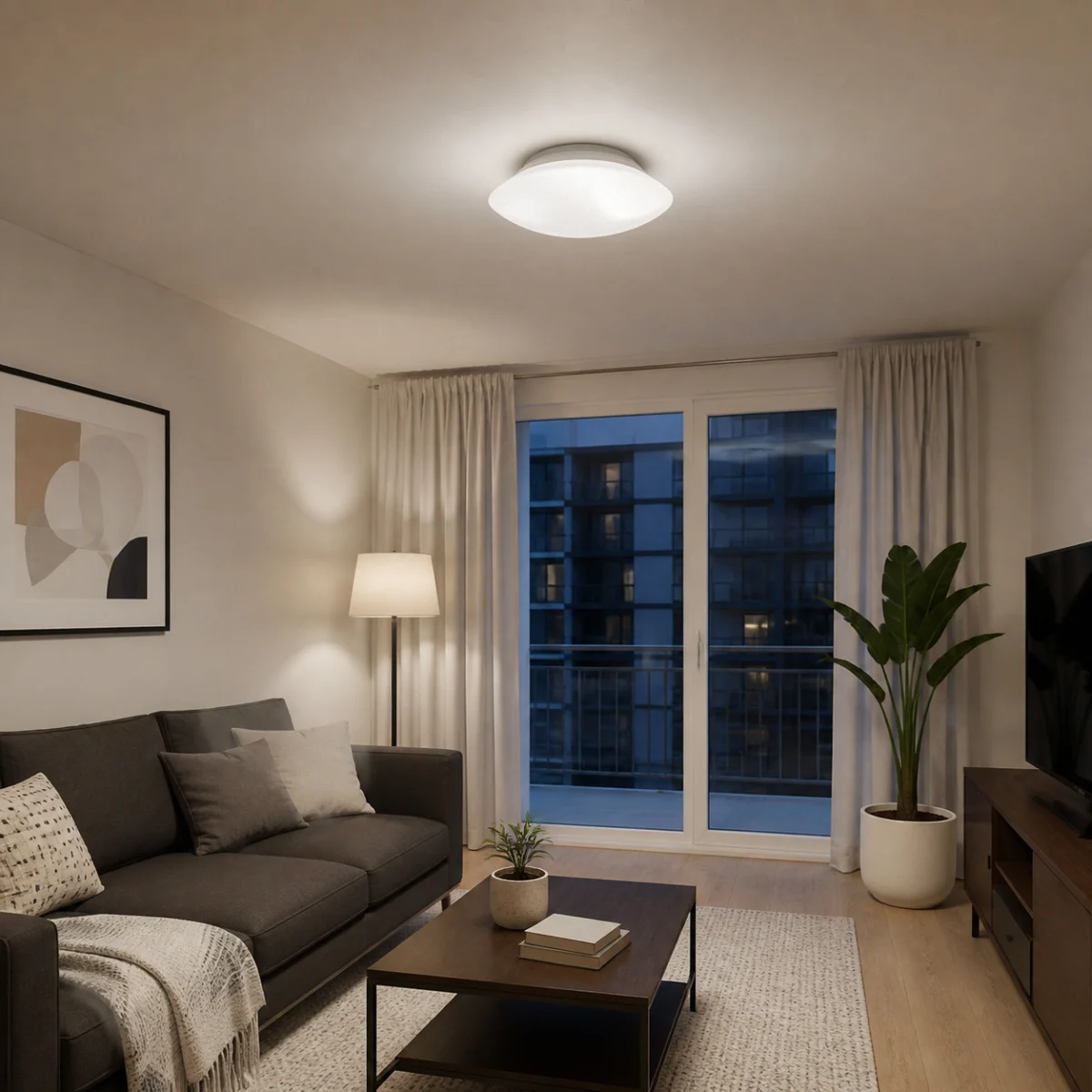

- Living Rooms: The patterned cover adds a decorative ceiling surface for general room lighting.
- Hotel Guest Rooms: Round fittings provide a coordinated ceiling feature across bedrooms and entrance zones.
- Indoor Lobbies: Larger housing groups serve broad ceiling areas in shared interior spaces.
- Reception Areas: The decorative white cover suits customer-facing waiting and welcome zones.
