Adjustable Surface-Mounted Die-Cast LED Downlights

The ITFT01M family combines die-cast aluminum housings, surface-mounted cylinders and tilting optical assemblies for directional indoor ceiling lighting. Four electrical configurations cover 10 W to 30 W, with body dimensions selected by exact model.
  • Surface-Mounted Cylinder: The exposed round body installs directly against the ceiling without a recessed housing.
  • Separate Face Appearance: The A, B and C face choices are selected independently from the electrical reference.
  • Directional Optical Adjustment: The tilting assembly lets installers refine the aiming direction after the body is secured.
  • Four Size-Specific Configurations: Each power option has its own cylinder diameter and height.
ConfigurationsFour ITFT01M electrical references
Power range10 W to 30 W
Body sizeD70 × H60 mm to D135 × H80 mm
Beam angle60 degrees
CCT range3000–6500 K
HousingDie-cast aluminum
Request a Quote

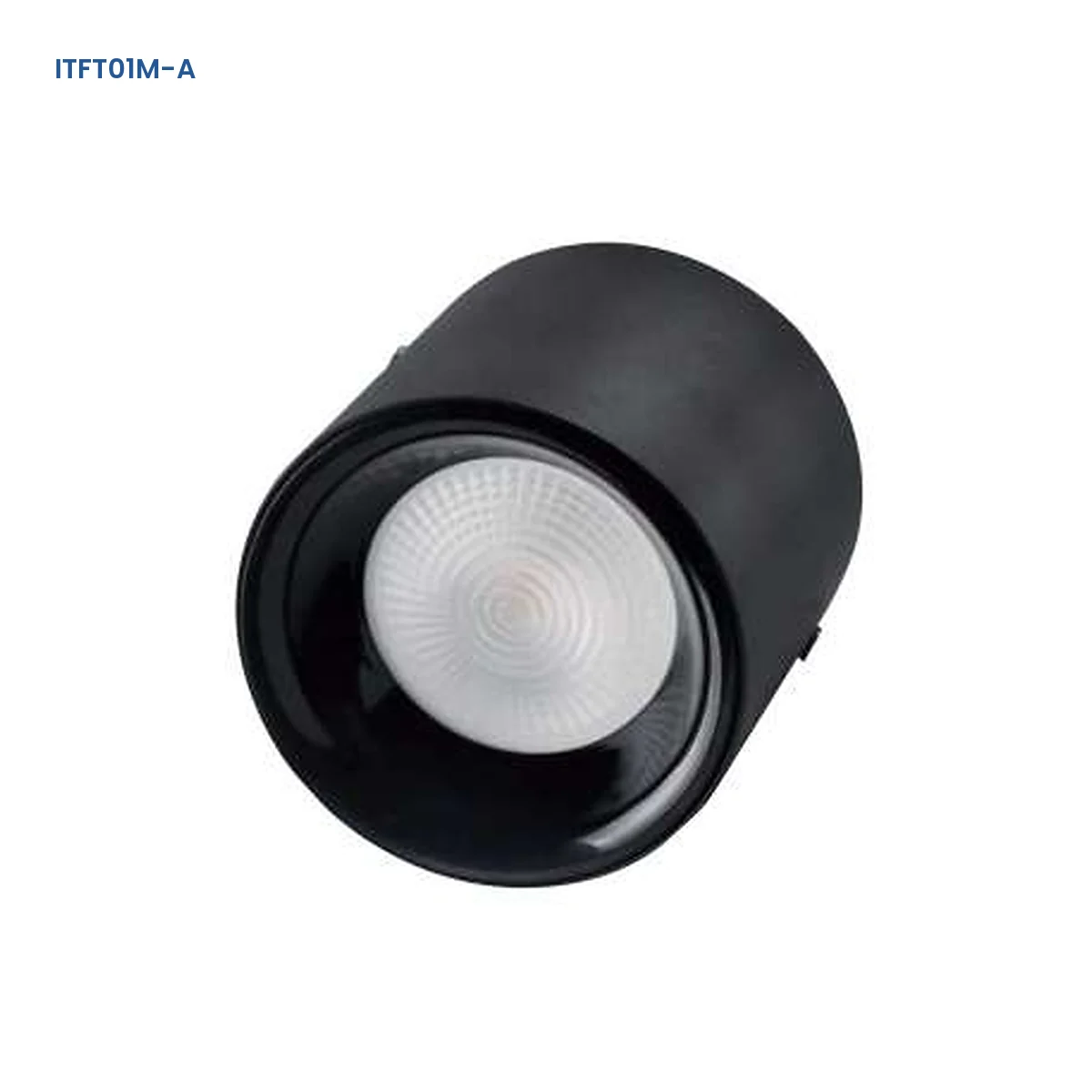

ITFT01M-A adjustable surface-mounted die-cast LED downlight with diffusing optic

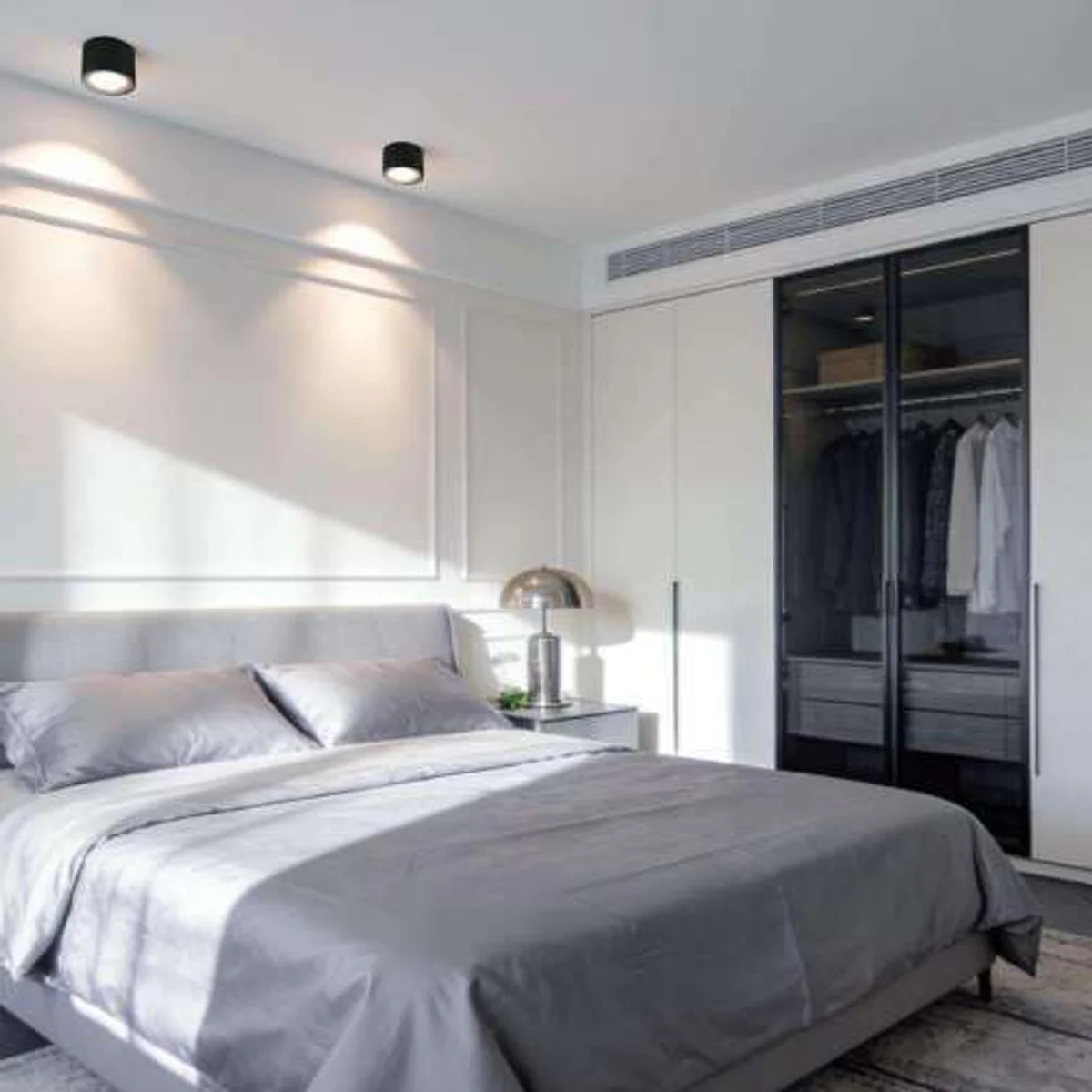

ITFT01M family adjustable surface-mounted LED downlights illuminating a bedroom wall

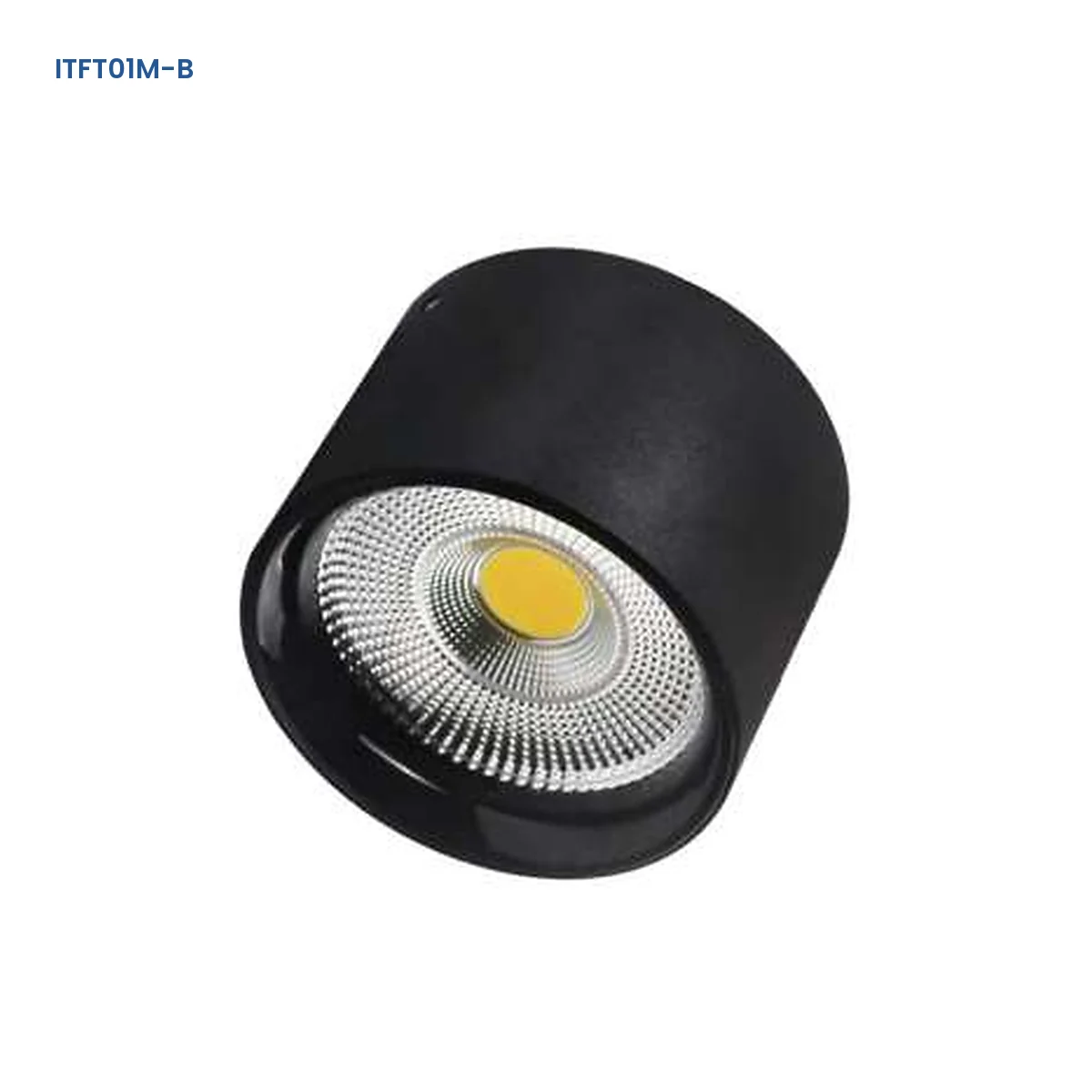

ITFT01M-B adjustable surface-mounted die-cast LED downlight with reflector optic

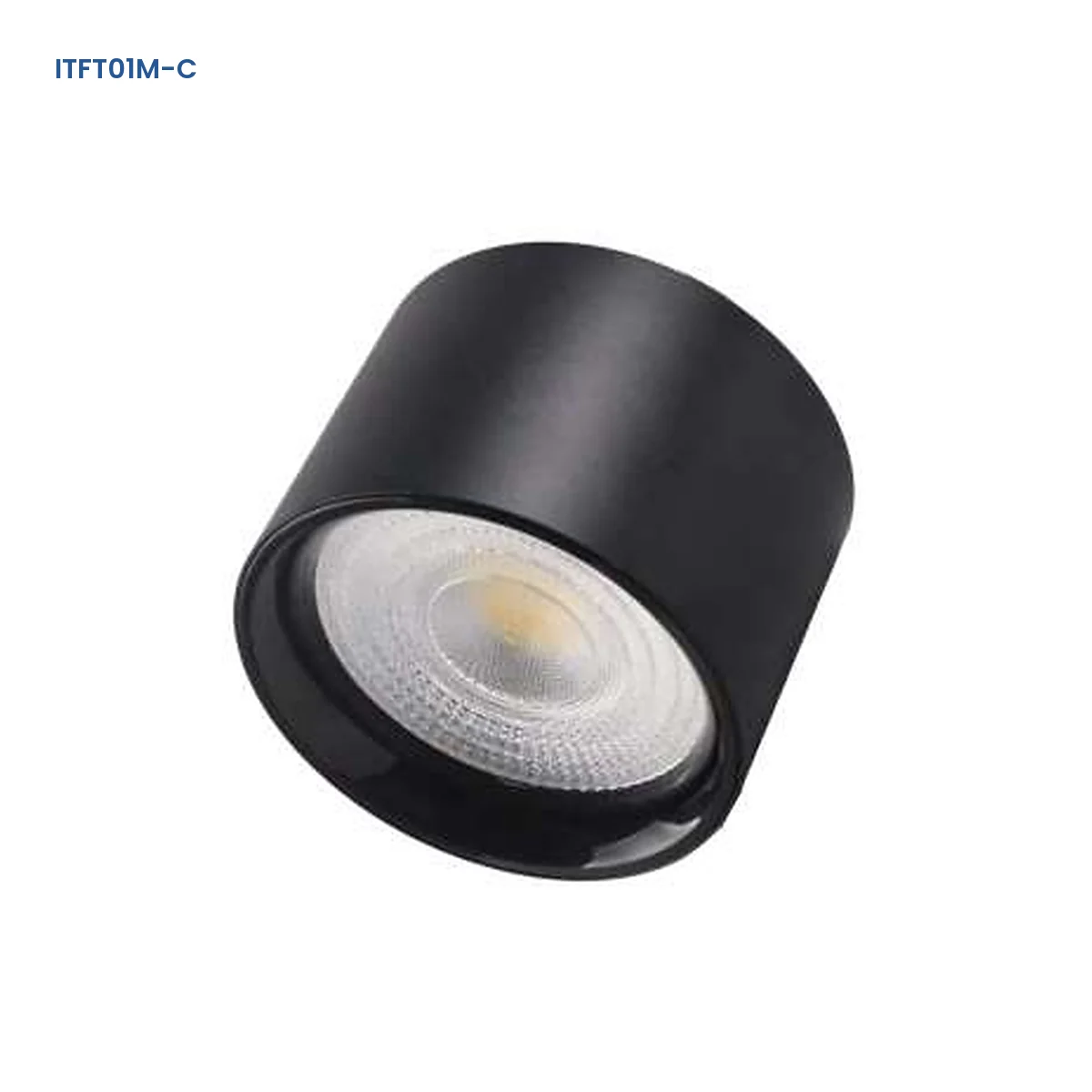

ITFT01M-C adjustable surface-mounted die-cast LED downlight with textured lens optic

Technical Specifications

Model Specifications

Model No.Size DxH (mm)PowerEfficacyCCTMaterial
XGYDL-ITFT01M-E10D70 x 6010 W80 lm/W3000-6500 KDiecasting Aluminum
XGYDL-ITFT01M-E15D85 x 7015 W80 lm/W3000-6500 KDiecasting Aluminum
XGYDL-ITFT01M-E20D105 x 7020 W80 lm/W3000-6500 KDiecasting Aluminum
XGYDL-ITFT01M-E30D135 x 8030 W80 lm/W3000-6500 KDiecasting Aluminum

Product Description

Product Details

Product Construction

The assembled ceiling unit houses its light engine, driver compartment and support components inside a round die-cast aluminum body.

Selection & Installation Notes

Specify the complete model code, required CCT arrangement and driver or dimming interface. Verify the supporting surface, available mounting space and wiring route before installation. Compare related products in our surface-mounted LED downlights range.

Recommended Application

Applications

  • Retail Display Lighting: Aims ceiling light toward merchandise, shelving and feature walls.
  • Hospitality Accent Lighting: Directs light toward reception details, seating areas and decorative surfaces.
  • Residential Feature Lighting: Focuses light on artwork, textured walls and selected furnishings.
  • Restaurant Accent Zones: Targets tables, wall features and circulation accents from an exposed ceiling-mounted body.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

When should a surface-mounted adjustable downlight be selected instead of a recessed type?

Select it when the ceiling layout calls for an exposed mounted body and the lighting plan needs directional aiming. Verify the supporting surface and wiring route before installation.

Can the light direction be adjusted after mounting?

Yes. The optical assembly tilts after the surface-mounted body is secured. Check the required direction and available movement on the approved sample.

Do ITFT01M-A, ITFT01M-B and ITFT01M-C correspond to fixed electrical models?

Treat ITFT01M-A, ITFT01M-B and ITFT01M-C as appearance choices, and record the selected face separately from the electrical reference and body size.

How should the fixture size be selected?

Use the diameter and height specified for the complete electrical reference. The four configurations use different body dimensions, so select the model from both power and available mounting space.

What should be specified for the driver and dimming setup?

Specify the required driver and dimming interface with the order, and verify compatibility with the project controls on the approved production configuration.

What information is needed before production?

Confirm the complete electrical reference, face choice, finish, CCT arrangement, driver or dimming interface, mounting details, label and packaging.
