Infrared Motion Sensor LED Flood Lights
Infrared motion sensor LED flood lights combine a bracket-mounted floodlight head with a dedicated detector below the housing. Select the ordered version by mounting fit, supply and required control behavior.
- Underbody Detector Position: The infrared sensing module sits below the lamp body as a distinct part of the fixture.
- Tilting U-Bracket: The support allows the floodlight body to be oriented after the attachment point is selected.
- Four Housing References: Separate E20, E30, E50 and E70 forms support selection against available mounting space.
- Integrated Automatic Control: Detection and light switching are combined within the complete floodlight assembly.
| Rated Power | 20 W / 30 W / 50 W / 70 W |
|---|---|
| Color Temperature | 3000K-6500K |
| Construction | Aluminium body with tempered-glass front |
| Ingress Protection | IP65 |
|---|---|
| Certifications | CB, CE, ErP and RoHS |
Technical Specifications
Model Specifications
| Model | Dimensions (L x W x H mm) | Rated Power | Lumen Efficacy | Color Temperature | IP Level |
|---|---|---|---|---|---|
| XGYFL-IR-E20 | 118 x 48 x 165 | 20 W | 80 lm/W | 3000K-6500K | IP65 |

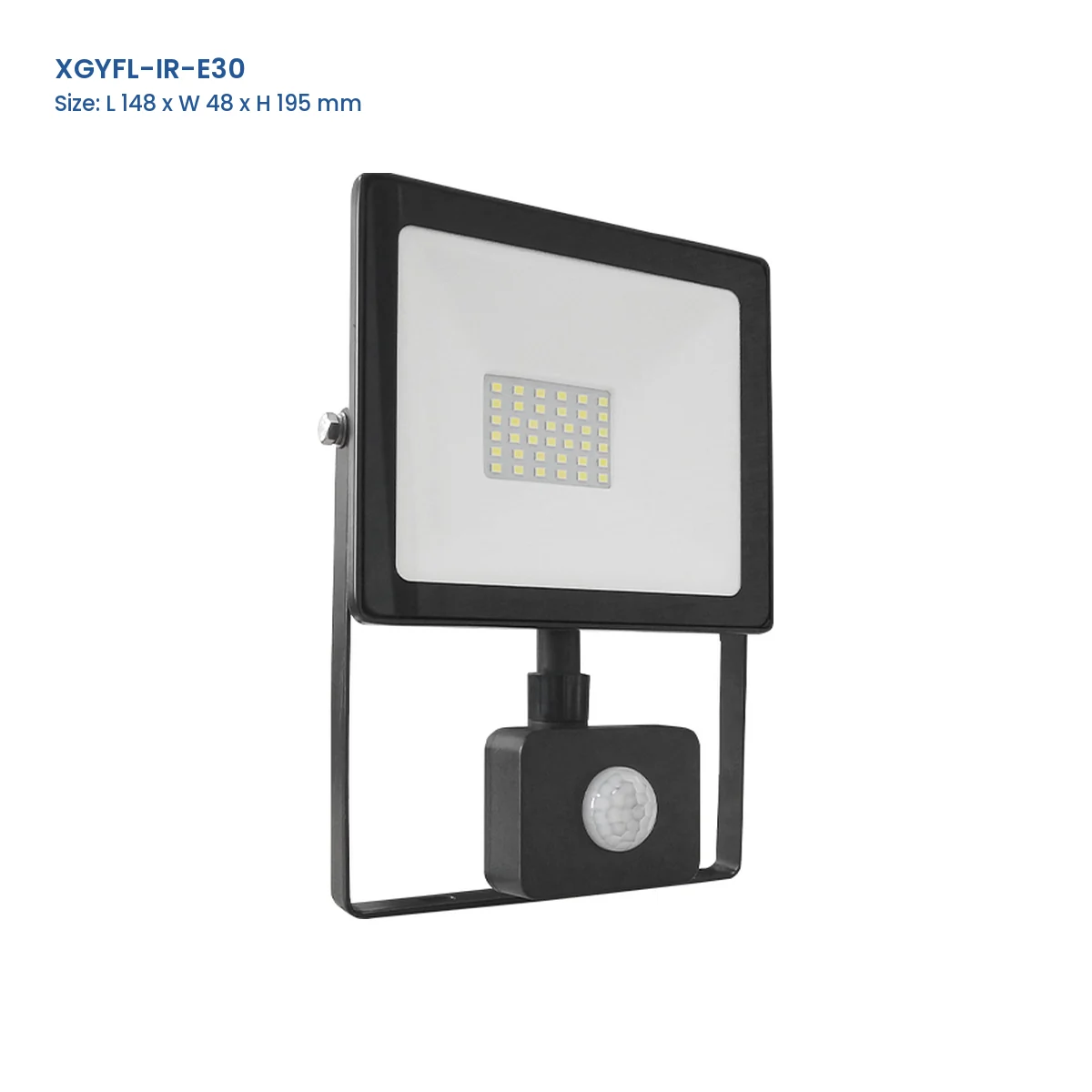

| XGYFL-IR-E30 | 148 x 48 x 195 | 30 W | 80 lm/W | 3000K-6500K | IP65 |
| XGYFL-IR-E50 | 178 x 48 x 225 | 50 W | 80 lm/W | 3000K-6500K | IP65 |
| XGYFL-IR-E70 | 218 x 48 x 255 | 70 W | 80 lm/W | 3000K-6500K | IP65 |
Product Description
Product Details
Product Construction
The finished unit groups its optical, electronic and switching parts inside one assembled body with a front light aperture.
Selection & Installation Notes
Before installation, verify substrate strength, cable entry, supply compatibility, service access and the exact control documentation for the ordered unit. Compare related sensor LED flood lights.
Recommended Application
Applications

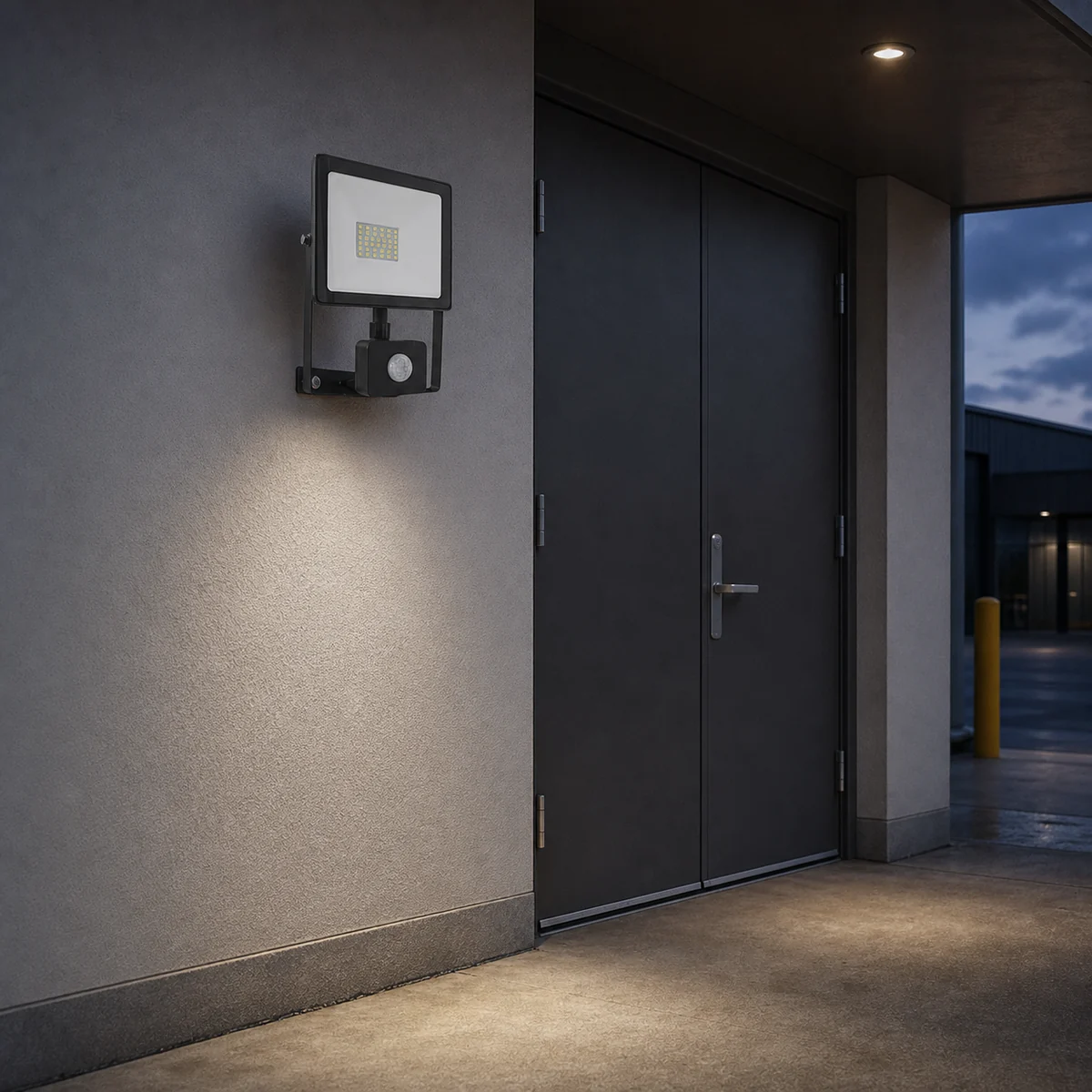

- Building Entrances: Position the unit beside an access door with the detector facing the expected approach route.
- Covered Service Areas: Mount the floodlight above sheltered loading or maintenance zones that need local responsive lighting.
- Perimeter Passages: Direct the fitting along a managed walkway while preserving mounting and service clearance.
- Gate Approaches: Install the bracketed unit near a controlled entrance with the detector oriented toward arriving traffic.
