2G11 H-Shaped LED Tubes

These single-ended 2G11 H-shaped LED tubes provide five lengths from 220 to 565 mm and rated powers from 10 to 20 W for compatible compact fluorescent-style fixtures. Select the ballast-compatible or direct-AC version to match the fixture circuit.

Broad Diffused Emitting Surface: Two slim illuminated faces distribute output along the lamp body for compatible general-lighting fixtures.
Remote-End Support Geometry: The joined far end provides a defined support point for the twin-bar lamp inside a compatible fixture.
Five Length Choices: The series spans compact 220 mm replacements through 565 mm long-format lamps.
Wide CCT Range: Available color temperatures extend from warm 3000 K to cool 6500 K.

Lamp Format	H-shaped LED lamp; 2G11 four-pin base
Dimensions	W 43 x H 29 x L 220 / 315 / 410 / 535 / 565 mm
Rated Power	10 / 12 / 15 / 18 / 20 W
Replacement Range	18 / 24 / 36 / 40-50 / 80 W

Luminous Efficacy	80-130 lm/W
CCT	3000-6500 K
Electrical Versions	Ballast-compatible or direct AC; order separately

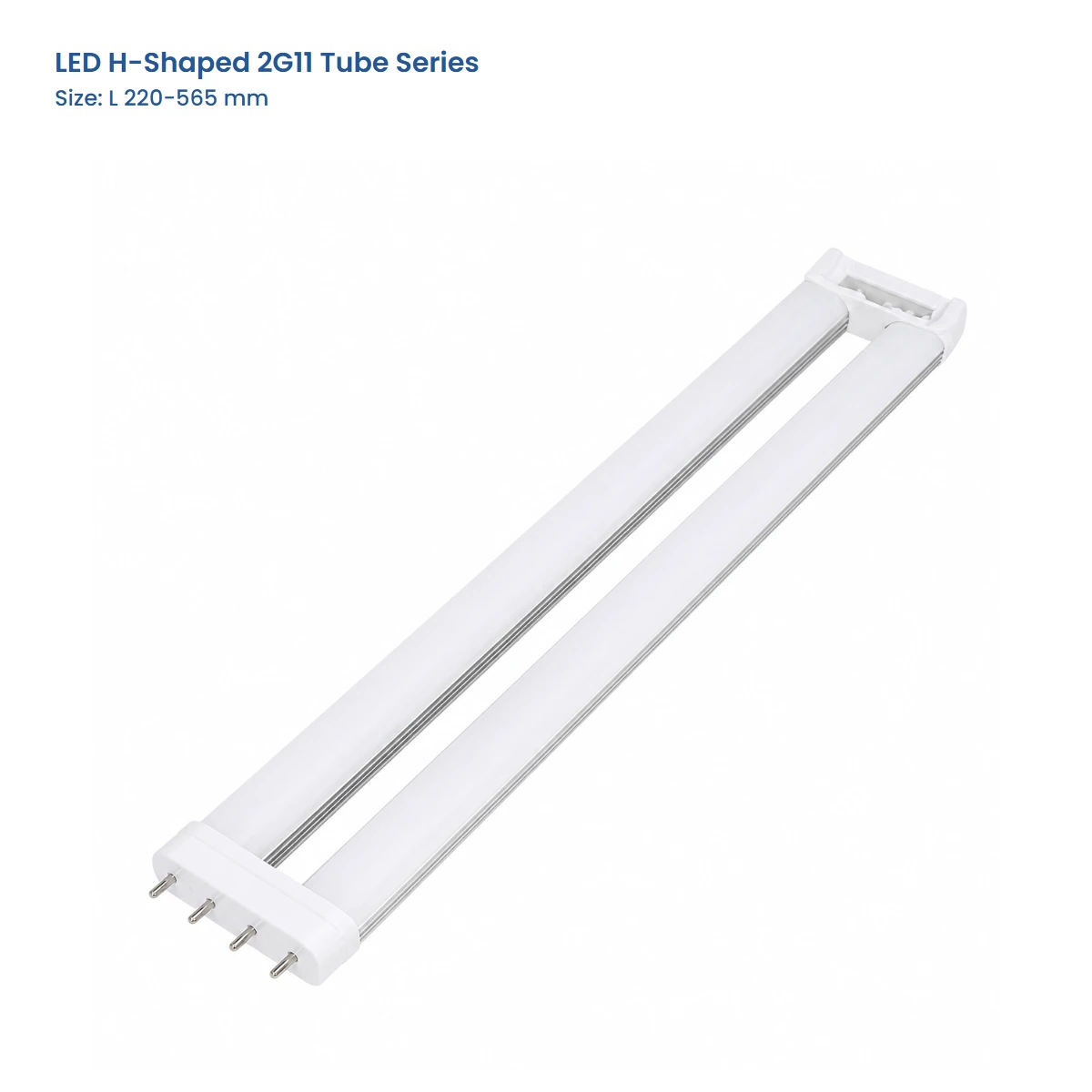

LED H-Shaped 2G11 Tube Series, L 220-565 mm, complete H-shaped four-pin lamp view

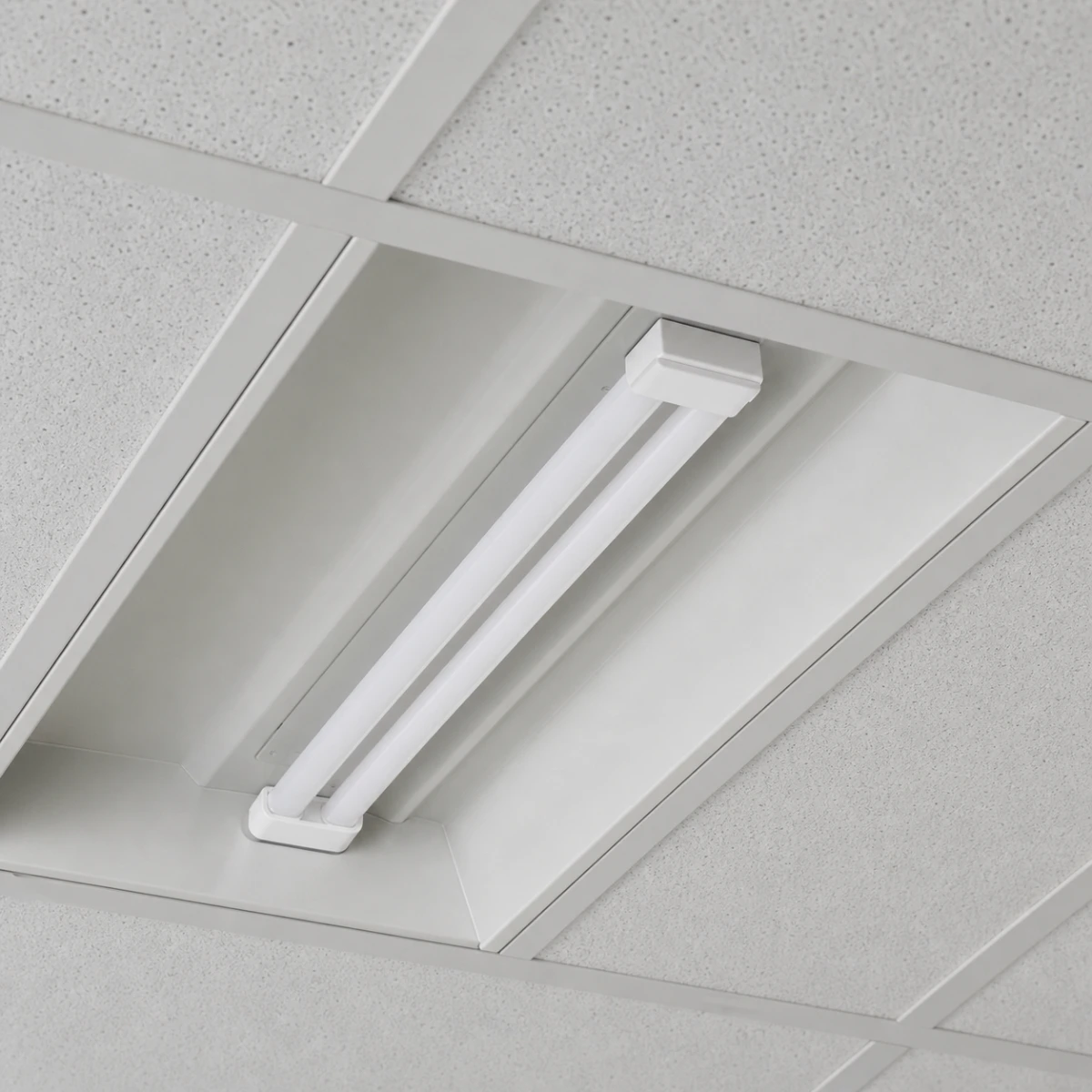

LED H-shaped 2G11 tube fully seated in a recessed office luminaire with no exposed pins

XGYHT202-E10, W 43 x H 29 x L 220 mm, 10 W / 18 W EqV., complete H-shaped four-pin lamp view

XGYHT202-E12, W 43 x H 29 x L 315 mm, 12 W / 24 W EqV., complete H-shaped four-pin lamp view

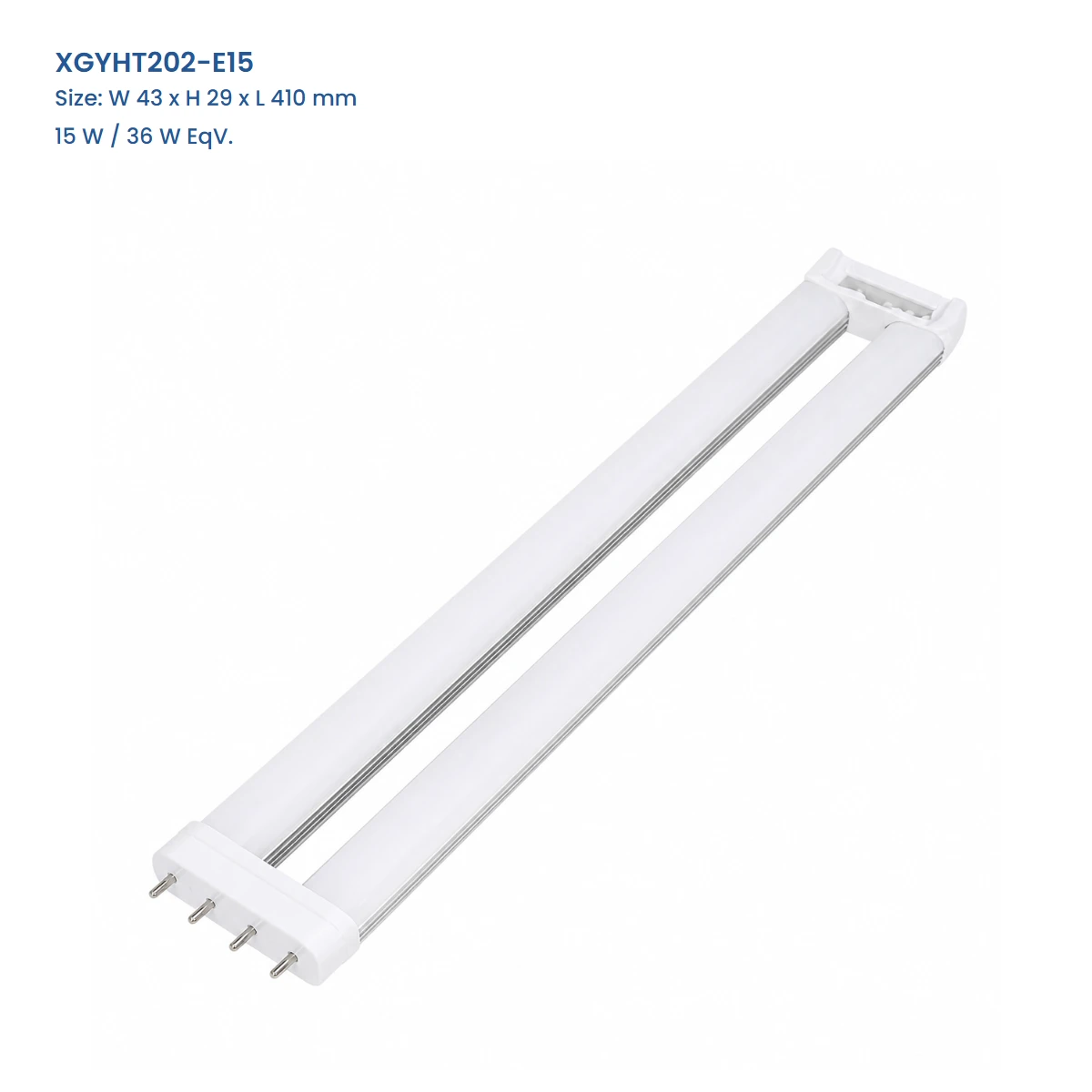

XGYHT202-E15, W 43 x H 29 x L 410 mm, 15 W / 36 W EqV., complete H-shaped four-pin lamp view

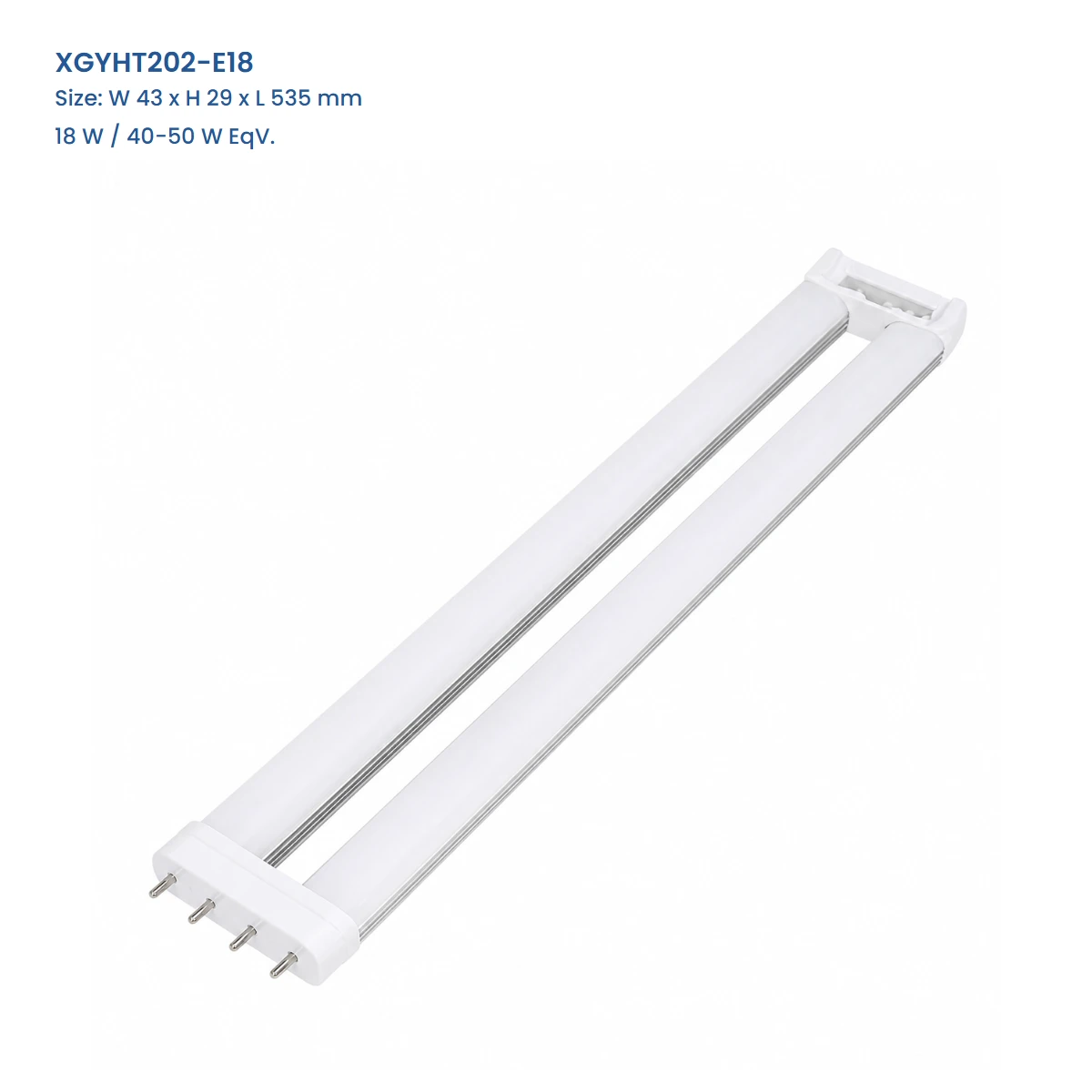

XGYHT202-E18, W 43 x H 29 x L 535 mm, 18 W / 40-50 W EqV., complete H-shaped four-pin lamp view

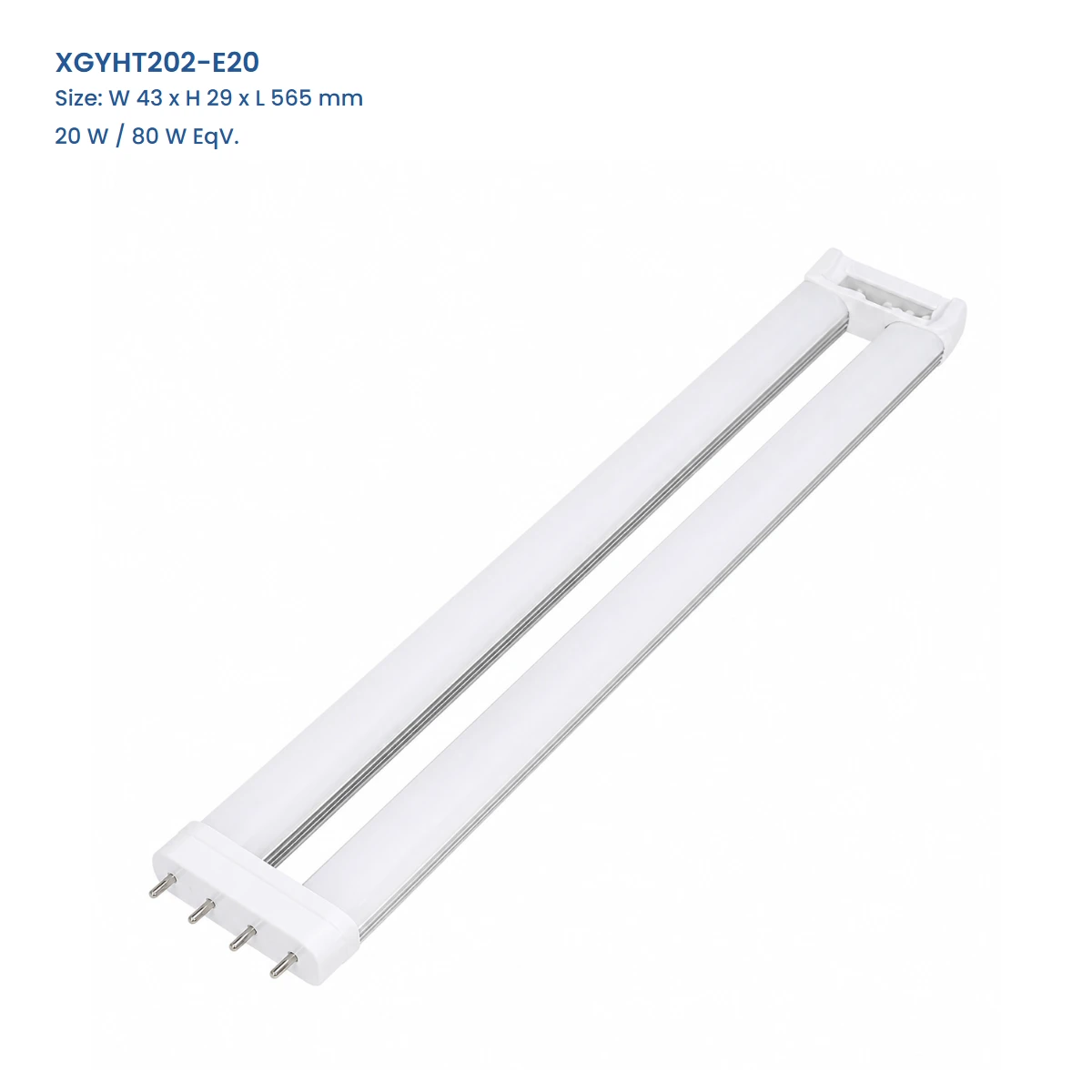

XGYHT202-E20, W 43 x H 29 x L 565 mm, 20 W / 80 W EqV., complete H-shaped four-pin lamp view

Technical Specifications

Model Specifications

Model No.	Dimensions W x H x L (mm)	Rated Power	Replacement	Efficacy	CCT
XGYHT202-E10	43 x 29 x 220	10 W	18 W	80-130 lm/W	3000-6500 K
XGYHT202-E12	43 x 29 x 315	12 W	24 W	80-130 lm/W	3000-6500 K
XGYHT202-E15	43 x 29 x 410	15 W	36 W	80-130 lm/W	3000-6500 K
XGYHT202-E18	43 x 29 x 535	18 W	40 W / 50 W	80-130 lm/W	3000-6500 K
XGYHT202-E20	43 x 29 x 565	20 W	80 W	80-130 lm/W	3000-6500 K

The ballast-compatible and direct-AC versions are separate electrical configurations. Confirm the exact circuit method for the selected model before installation.

Product Description

Product Details

Product Construction

The lamp combines two slim parallel LED light bars in one H-shaped envelope. A single-ended 2G11 base carries four contacts, while the remote bridge keeps both bars aligned and provides the far-end support point.

Selection & Installation Notes

Match the exact W x H x L dimensions, holder position and available fixture space before selecting a model. Order the ballast-compatible or direct-AC electrical version for the intended circuit; direct-AC conversion requires the specified wiring method and must not leave incompatible control gear active.

Recommended Application

Applications

Office Ceiling Fixtures: Replace compatible 2G11 compact fluorescent-style lamps in recessed and surface-mounted office luminaires.
Retail Interiors: Use the H-shaped lamp in compatible ceiling fixtures above sales floors, counters and circulation areas.
Hotel Corridors: Fit compatible 2G11 luminaires in indoor corridors, lift lobbies and service areas.
Residential Utility Areas: Use the lamp in compatible kitchen, laundry and storage-room fixtures with matching dimensions and holders.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Does every 2G11 fixture accept this H-shaped LED lamp?

No. Match the four-pin holder position, 43 x 29 mm body section, required lamp length and available fixture clearance before selection.

How do I choose among the five model lengths?

Match the existing lamp and fixture dimensions to the exact 220, 315, 410, 535 or 565 mm row rather than selecting by power alone.

What is the difference between ballast-compatible and direct-AC versions?

The ballast-compatible version operates only with a verified matching ballast. The direct-AC version uses the specified mains-input wiring after incompatible control gear is removed or bypassed.

Can the direct-AC version be installed without rewiring?

No. A qualified installer must follow the wiring method supplied for the ordered direct-AC configuration and must not leave incompatible ballast equipment active.

Which color temperatures are available?

The series covers 3000-6500 K options. Confirm the required CCT for the exact production model.

Which certification marks are available for this series?

Available marks include CE, CB, RoHS and ErP for applicable configurations. Supplied marks must match the confirmed production version and destination market.
