Rechargeable LED Work Lights
- Multiple LED Layouts: COB, SMD, XPE + SMD and XPG + SMD arrangements cover focused, area and combined light formats.
- Main and Auxiliary Outputs: Selected models provide more than one listed output for different close-range lighting tasks.
- Polymer Body Options: ABS combines with PC, TPR or both to suit the construction of each compact housing.
- Nine Compact Formats: Distinct body proportions support handheld, standing and close-access work-light selection.
| Listed output | 300–2000 lm by selected configuration and light mode |
|---|---|
| Battery options | 1, 2 or 5 × 2200 mAh cells, or a 4000 mAh pack |
| Listed use time | 4–25 hours by selected configuration and operating mode |
| Charge time | 3–7 hours |
|---|---|
| Color temperature | 3000 K or 3000/6500 K by selected configuration |
| Body materials | ABS with PC, TPR or both |
Technical Specifications
Model Specifications
| Model | W×H×L (mm) | LED Type | Output | Material | Battery | Use / Charge | CCT / Color |
|---|---|---|---|---|---|---|---|
| XGYWL-WS-W51 | 50×50×147 | COB | 500 + 1000 lm | ABS + PC | 1×2200 mAh | 10–18 h / 3 h | 3000 K |
| XGYWL-WS-X203 | 35×42×154 | XPE + SMD | 300 + 500 + 500 lm | ABS + PC | 1×2200 mAh | 4–8 h / 4 h | 3000/6500 K |
| XGYWL-WS-Y59 | 145×103×40 | 4AA / 30×LED + 8×LED | 1200 lm | ABS + TPR | 2×2200 mAh | 5–10 h / 7 h | 3000/6500 K; Purple |
| XGYWL-WS-Y36 | 34×66×111 | SMD | 1200 lm | ABS + TPR + PC | 2×2200 mAh | 5–10 h / 7 h | 3000 K |
| XGYWL-WS-Y37 | 22×58×116 | SMD | 1200 + 300 lm | ABS + TPR + PC | 2×2200 mAh | 5–10 h / 7 h | 3000/6500 K; Red |
| XGYWL-WS-Y40 | 20×74×142 | SMD | 500 + 1000 lm | ABS + TPR + PC | 4000 mAh | 5–10 h / 5 h | 3000 K |
| XGYWL-WS-X303 | 30×42×163 | XPG + SMD | 300 + 1000 + 500 lm | ABS + PC | 1×2200 mAh | 4–8 h / 4 h | 3000 K |
| XGYWL-WS-X678 | 40×40×180 | COB | 1200 lm | ABS + PC | 2×2200 mAh | 20–25 h / 7 h | 3000/6500 K; Red |
| XGYWL-WS-H08 | 45×135×145 | SMD + COB | 2000 lm | ABS + PC | 5×2200 mAh | 5–9 h / 7 h | 3000/6500 K; Red |
Product Description
Product Details
Product Construction
Each unit combines power storage, charging electronics and a task-light head inside one portable assembly. Controls and supports belong to the chosen assembly rather than serving as shared accessories across the range.
Selection & Installation Notes
Start with the working position and required beam direction. Then compare the exact model for brightness steps, operating duration, recharge interval, light color and physical fit; batteries and chargers are not interchangeable across the nine models. For tripod, carry-frame and corded alternatives, compare our portable work lights.
Recommended Application
Applications

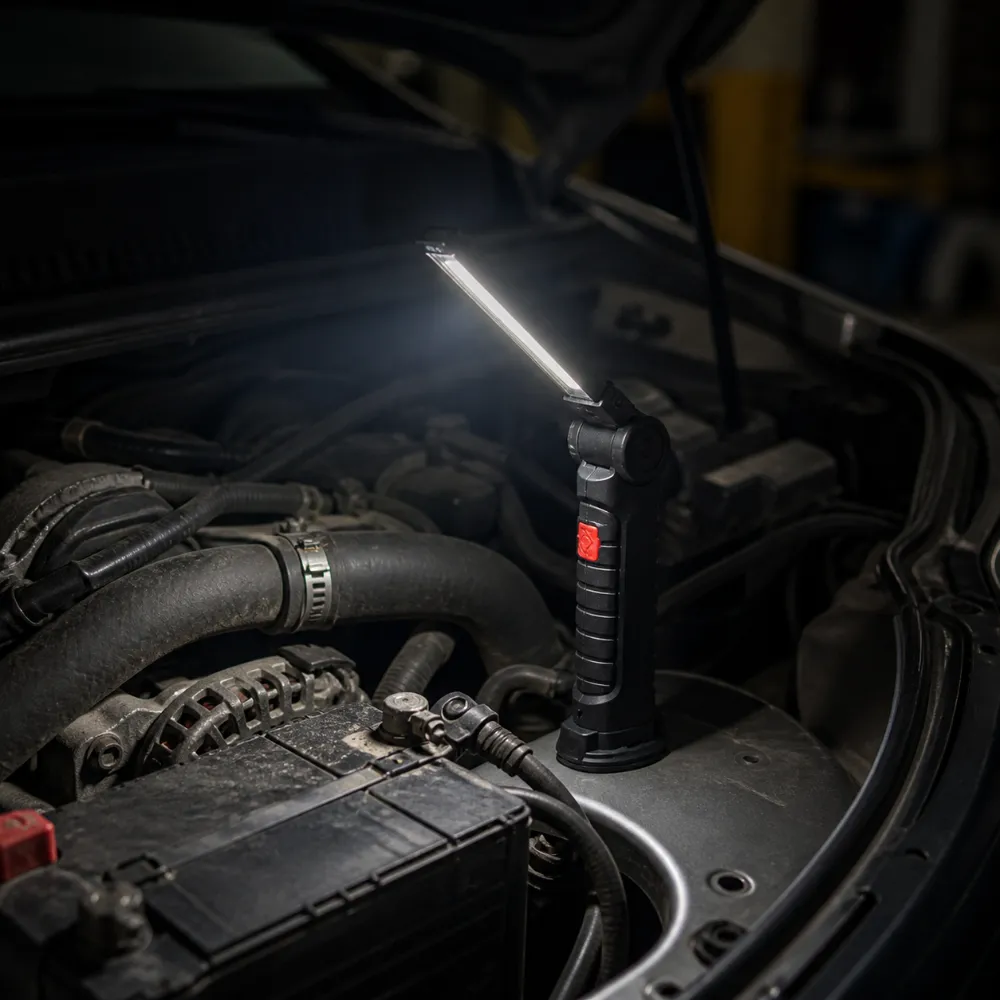

- Automotive Repair: Illuminates engine bays and undercarriage areas during inspection and servicing.
- Construction Maintenance: Provides portable task lighting during installation, repair and site maintenance work.
- Workshop Repairs: Supports bench work and close-range maintenance where a movable light source is needed.
- Emergency Service Kits: Adds rechargeable task lighting to service vehicles and maintenance response kits.
