Separate-Panel Solar Flood Light Series
- Shaded-Wall Flexibility: Place the light on a shaded facade while locating the charger in a sunnier nearby position.
- Project-Scale Housing Choice: Related heads and panels increase together across the family instead of using one enclosure for every output level.
- Nightly Schedule Management: Dimming and timed operation allocate stored charge across the required operating window.
- Panel Maintenance Access: The split arrangement keeps the collection surface separately reachable for cleaning and inspection.
| Family Size | Four matched lamp-and-panel configurations |
|---|---|
| Grade / Actual Power | 50-300 W grade / 5-30 W actual |
| Output | 600-3300 lm |
| Solar Panel | 6 V / 12-25 W polysilicon |
| Control | Light control, timer, remote, brightness, power display |
|---|---|
| Operating / Charging | 12 h / 6-8 h; 2-3 rainy days listed |
| Construction / Protection | Die-cast aluminum / IP67 |
Technical Specifications
Model Specifications
| Model | Grade / Actual Power | Lamp Dimensions | Output | Panel Spec / Size | Body / Protection | CCT / CRI / Beam | Runtime / Charge / Battery |
|---|---|---|---|---|---|---|---|

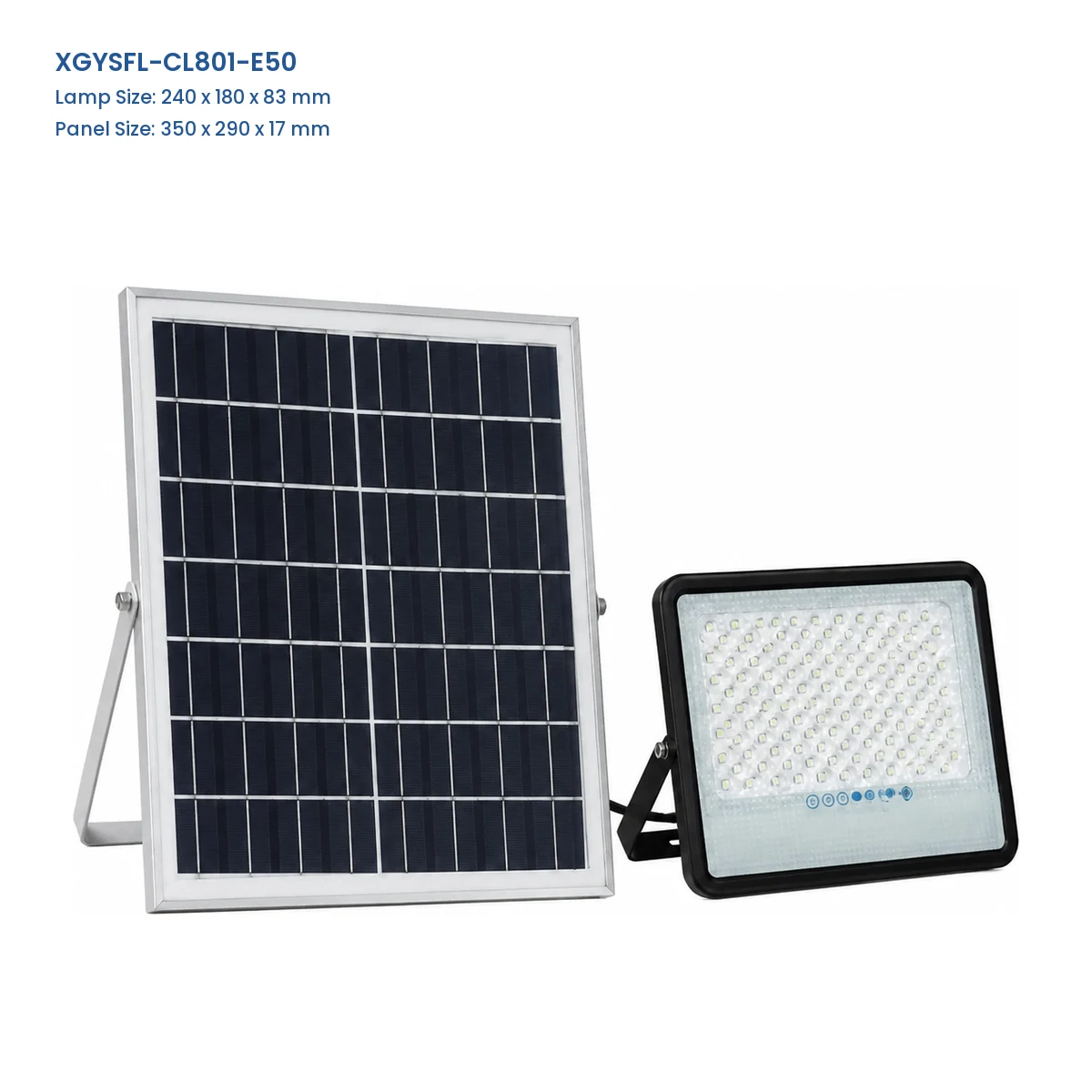

| XGYSFL-CL801-E50 | 50 W / 5 W | 240 x 180 x 83 mm | 600 lm | 6 V / 12 W polysilicon / 350 x 290 x 17 mm | Die-cast aluminum / IP67 | 3000-6500 K / Ra70 or Ra80 / 180° | 12 h / 6-8 h / 32650 |

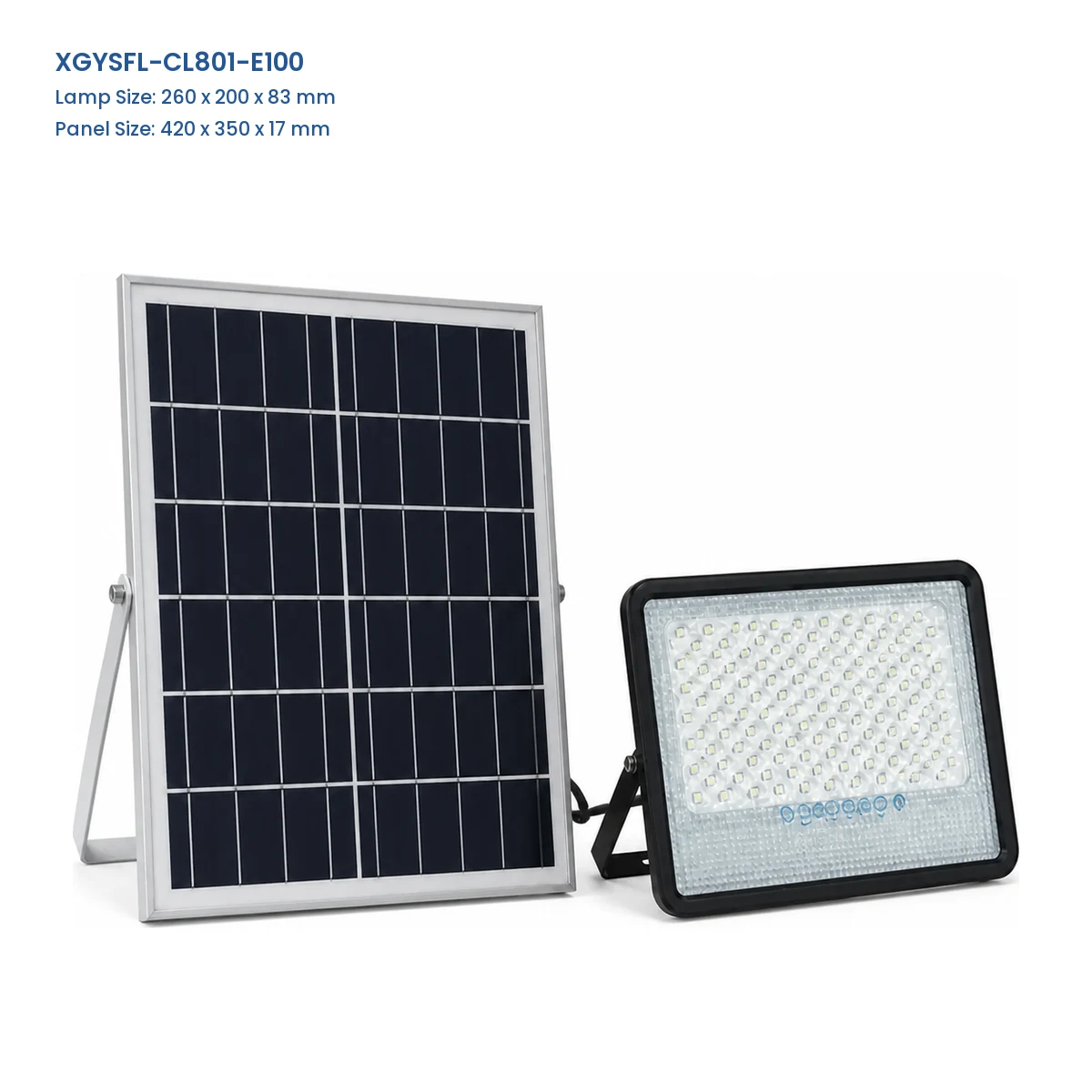

| XGYSFL-CL801-E100 | 100 W / 10 W | 260 x 200 x 83 mm | 1200 lm | 6 V / 18 W polysilicon / 420 x 350 x 17 mm | Die-cast aluminum / IP67 | 3000-6500 K / Ra70 or Ra80 / 180° | 12 h / 6-8 h / 32650 |

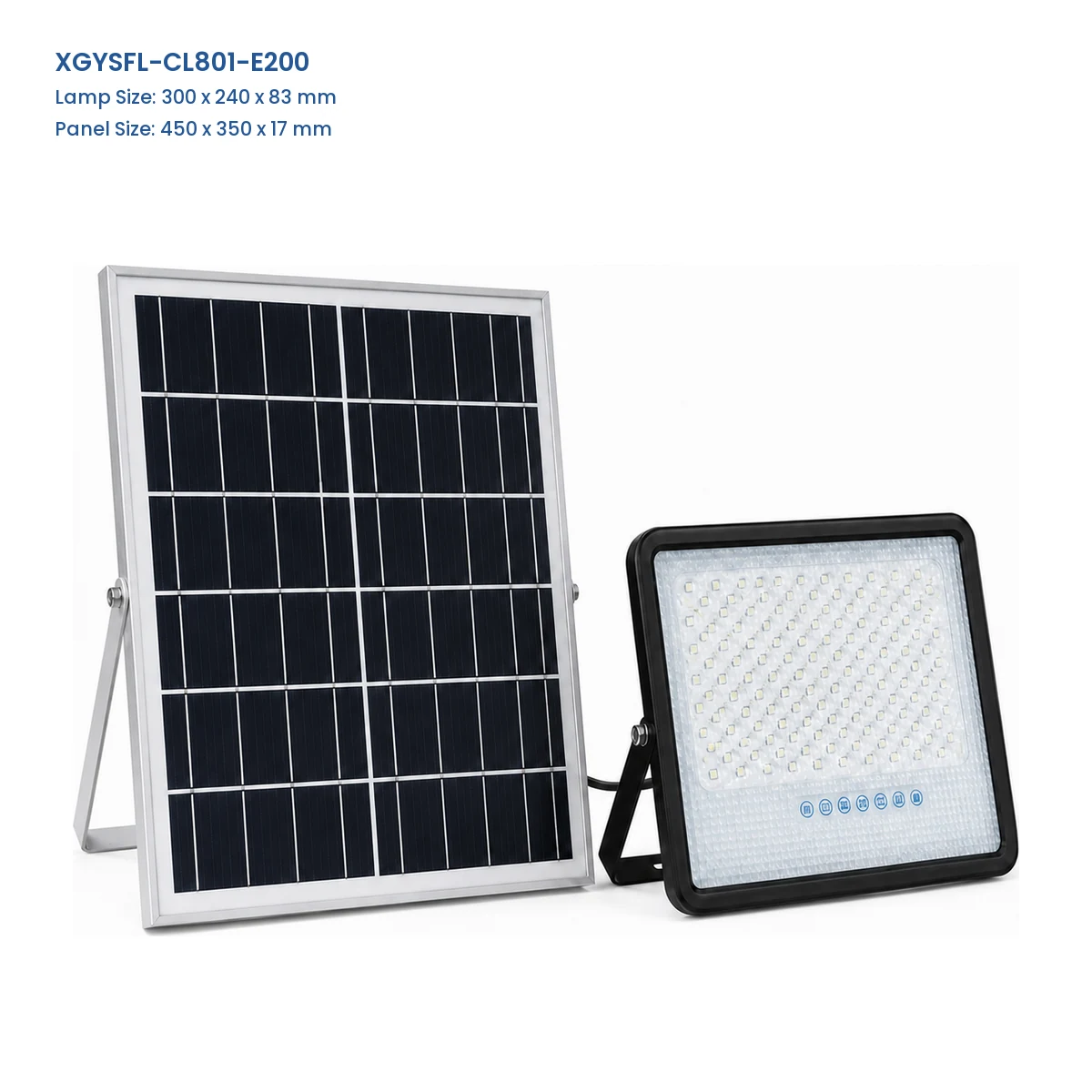

| XGYSFL-CL801-E200 | 200 W / 20 W | 300 x 240 x 83 mm | 2200 lm | 6 V / 20 W polysilicon / 450 x 350 x 17 mm | Die-cast aluminum / IP67 | 3000-6500 K / Ra70 or Ra80 / 180° | 12 h / 6-8 h / 32650 |

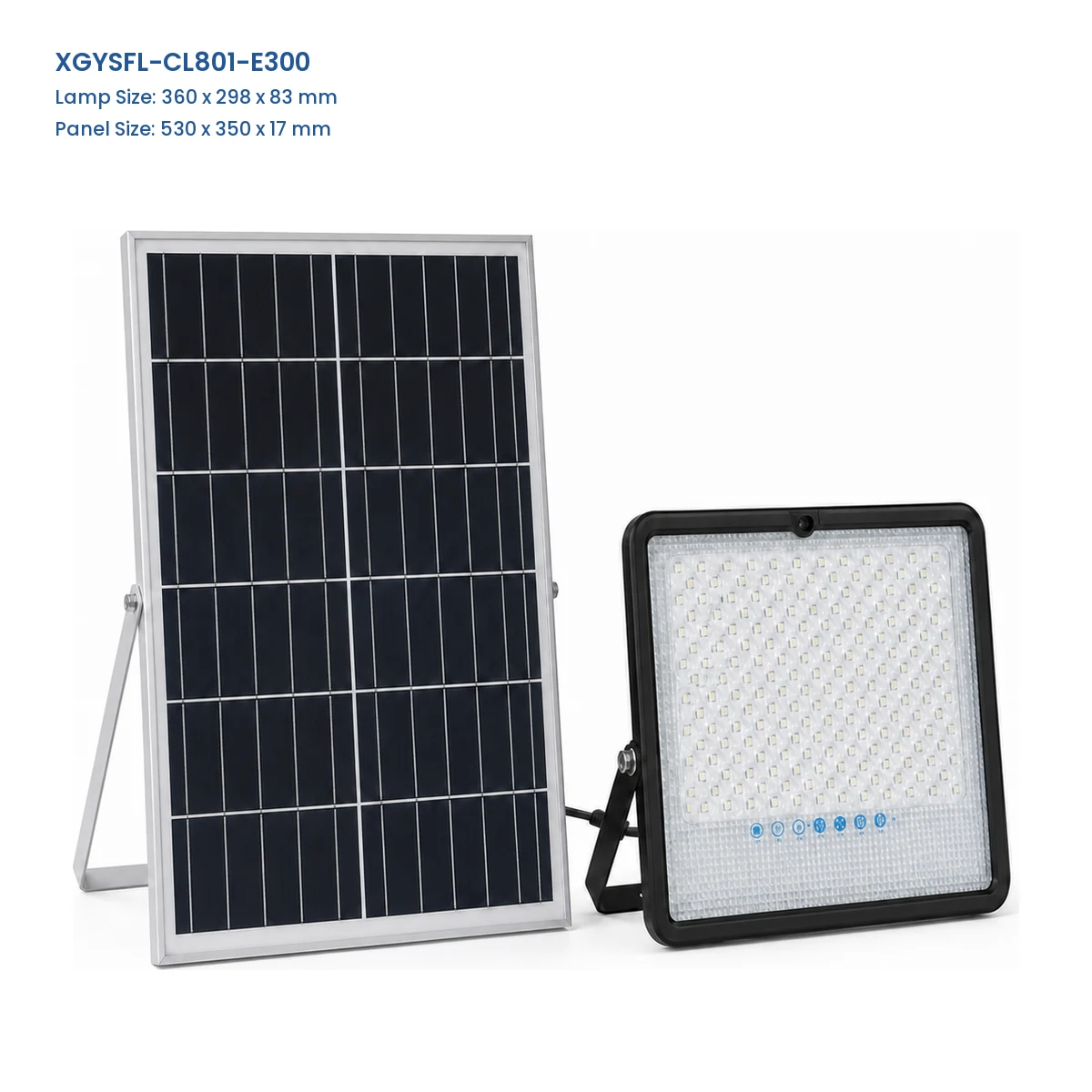

| XGYSFL-CL801-E300 | 300 W / 30 W | 360 x 298 x 83 mm | 3300 lm | 6 V / 25 W polysilicon / 530 x 350 x 17 mm | Die-cast aluminum / IP67 | 3000-6500 K / Ra70 or Ra80 / 180° | 12 h / 6-8 h / 32650 |
Product Description
Product Details
Product Construction
The CL801 assembly uses an aluminum flood enclosure linked to a 6 V polysilicon collection module and 32650-format energy storage. The four configurations scale physical envelopes and electrical ratings without changing the split-system architecture.
Selection & Installation Notes
Use Actual Power and lumen output for electrical and lighting selection; 50 W, 100 W, 200 W and 300 W are grade labels. Confirm both mounting surfaces, cable routing, drainage, aiming and remote settings. The listed 12-hour operation and 2-3 rainy days depend on charging conditions, season, battery condition and operating settings. For related off-grid area lighting, compare our solar flood lights.
Recommended Application
Applications

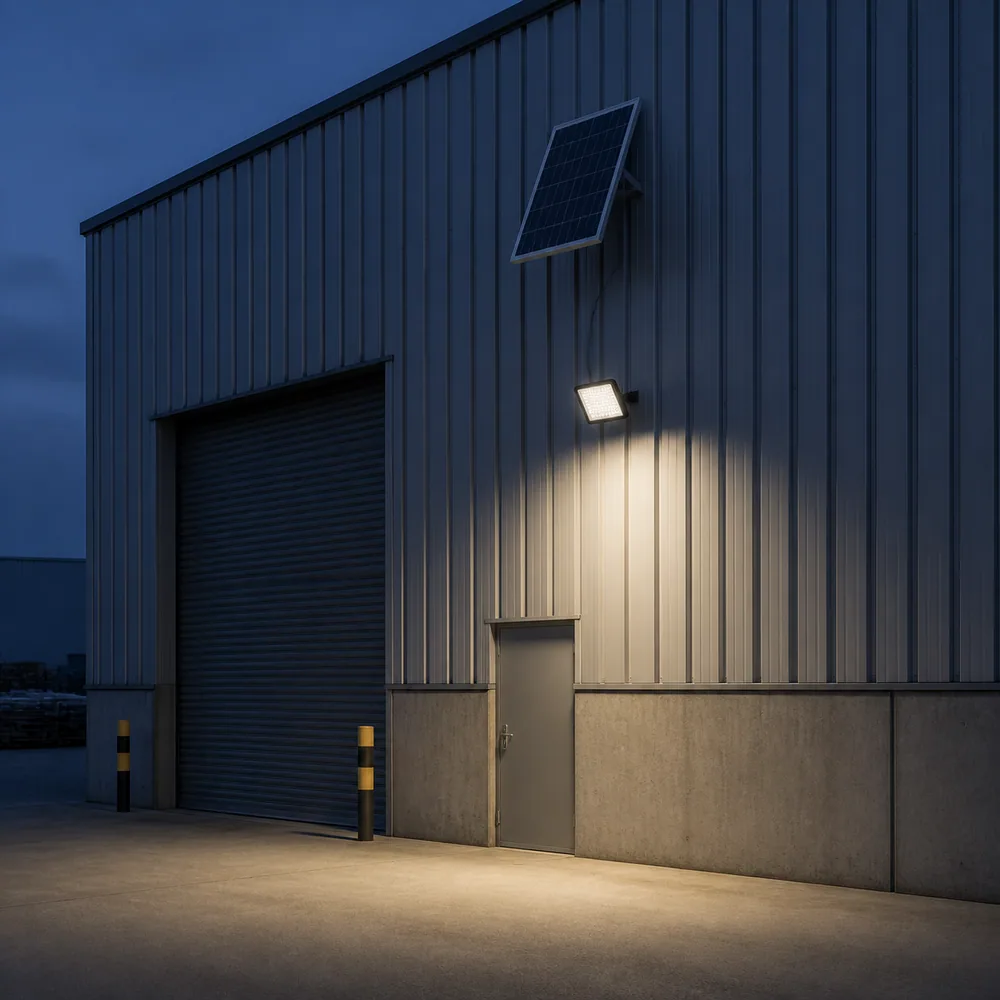

- Service Yards: Mount the flood head above the work edge while placing the separate panel beyond roof or equipment shade.
- Remote Entrances: Aim the selected output at gates and thresholds while locating the panel for unobstructed daylight.
- Farm Outbuildings: Separate the charging and lighting positions around barns, sheds and equipment areas.
- Perimeter Lighting Points: Aim the selected flood output along walls, fences and site edges while placing the panel in open daylight.
