Four-Mount Solar Garden Light

XGYSGL-YD087-E4 is a 4 W multi-mount solar garden light offered in low-base, tall-base, wall and 800 mm post forms. Its circular aluminum and PC head combines a monocrystalline solar panel, 4000 mAh battery, 360 lm output and IP54 protection.

Flexible Placement Heights: Four body arrangements cover near-surface markers through a full-height landscape column.
Consistent Circular Profile: The same disc-shaped head gives mixed installations a coordinated appearance.
Top-Surface Charging: The photovoltaic surface remains exposed above the light head in every configuration.
Independent Fixture Placement: Integrated energy storage allows separate fittings to be positioned without branch wiring between them.

Mounting Forms	Low base / tall base / wall mount / post mount
Power / Output	4 W / 360 lm
Solar Panel / Battery	5 V / 3.7 W monocrystalline / 18650 3.7 V / 4000 mAh

Light Head / Heights	Ø235 mm / 220, 280 or 800 mm by form
Base Sizes	Ø160 mm low/tall / 250 mm wall / Ø135 mm post
Construction / Protection	Aluminum + PC / IP54

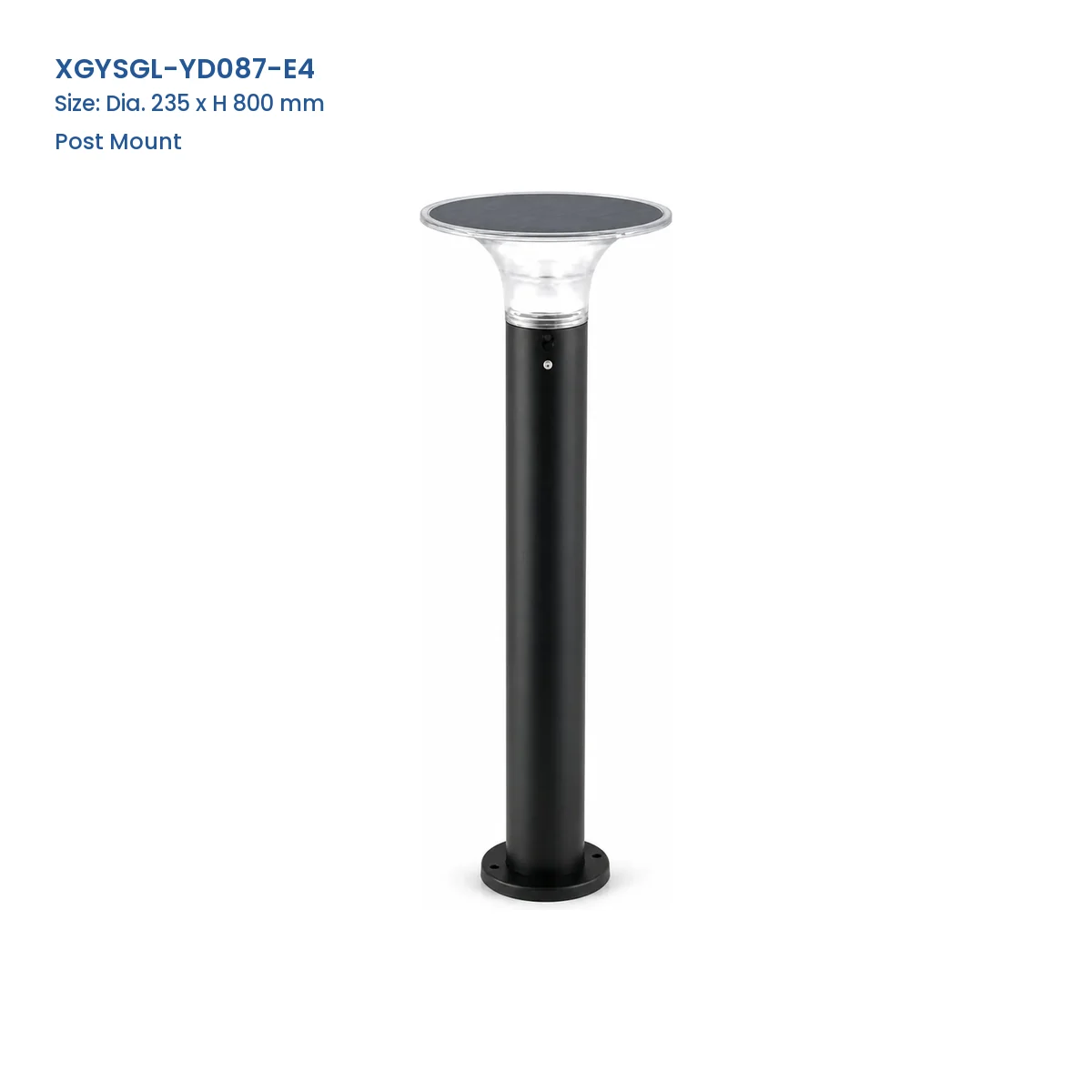

XGYSGL-YD087-E4 post-mount solar garden light, 235 mm diameter and 800 mm high

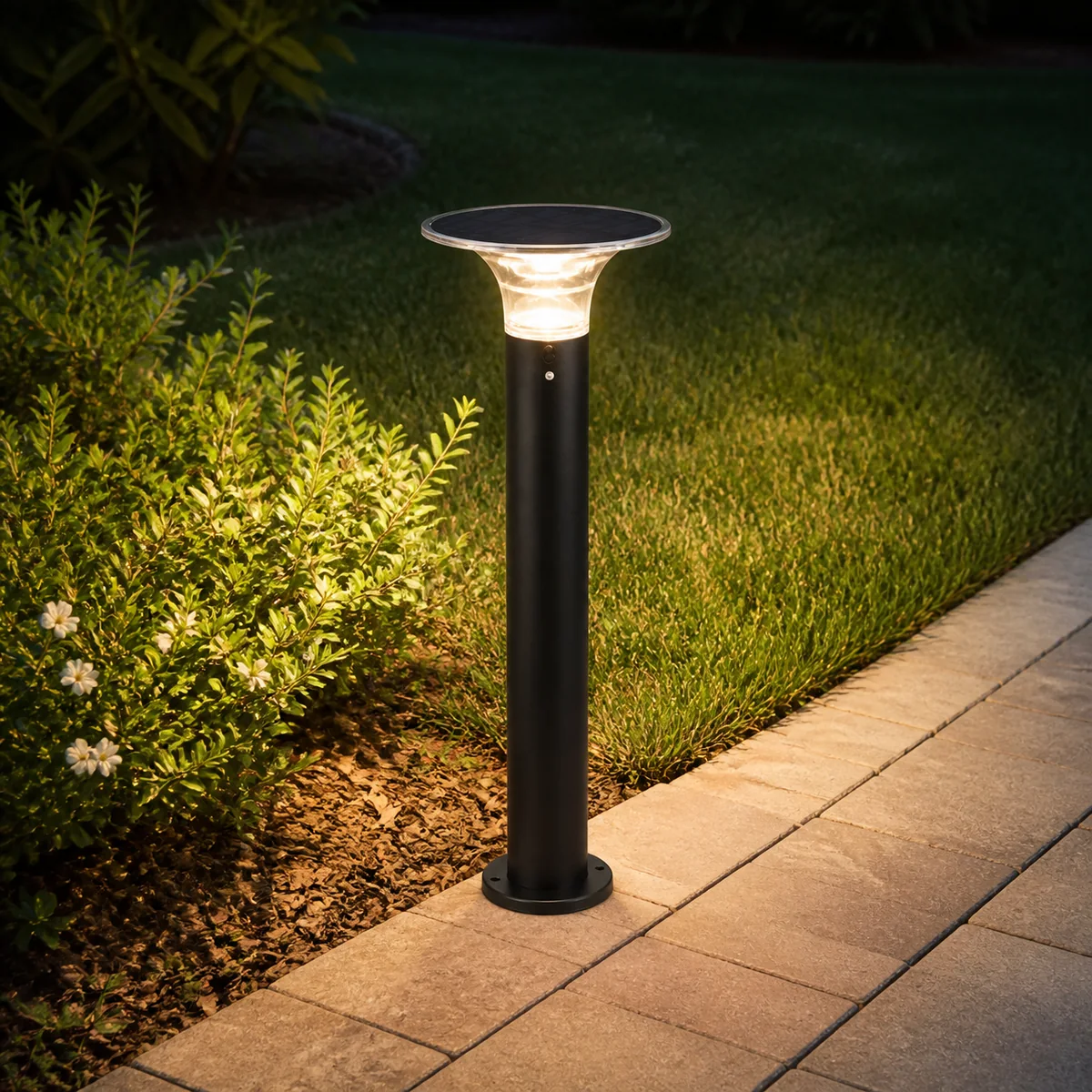

XGYSGL-YD087-E4 post-mount solar garden light beside a landscaped path

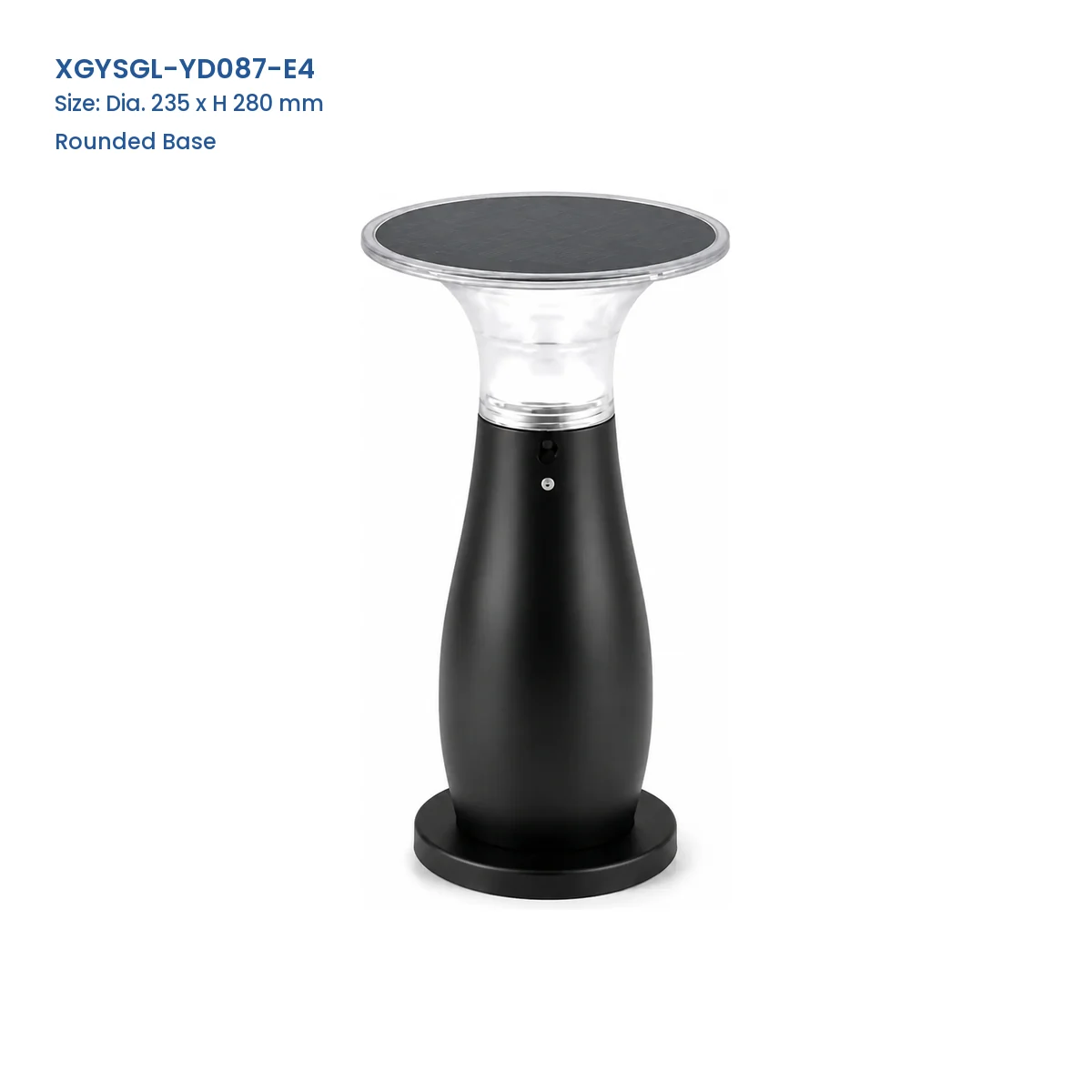

XGYSGL-YD087-E4 rounded-base solar garden light, 235 mm diameter and 280 mm high

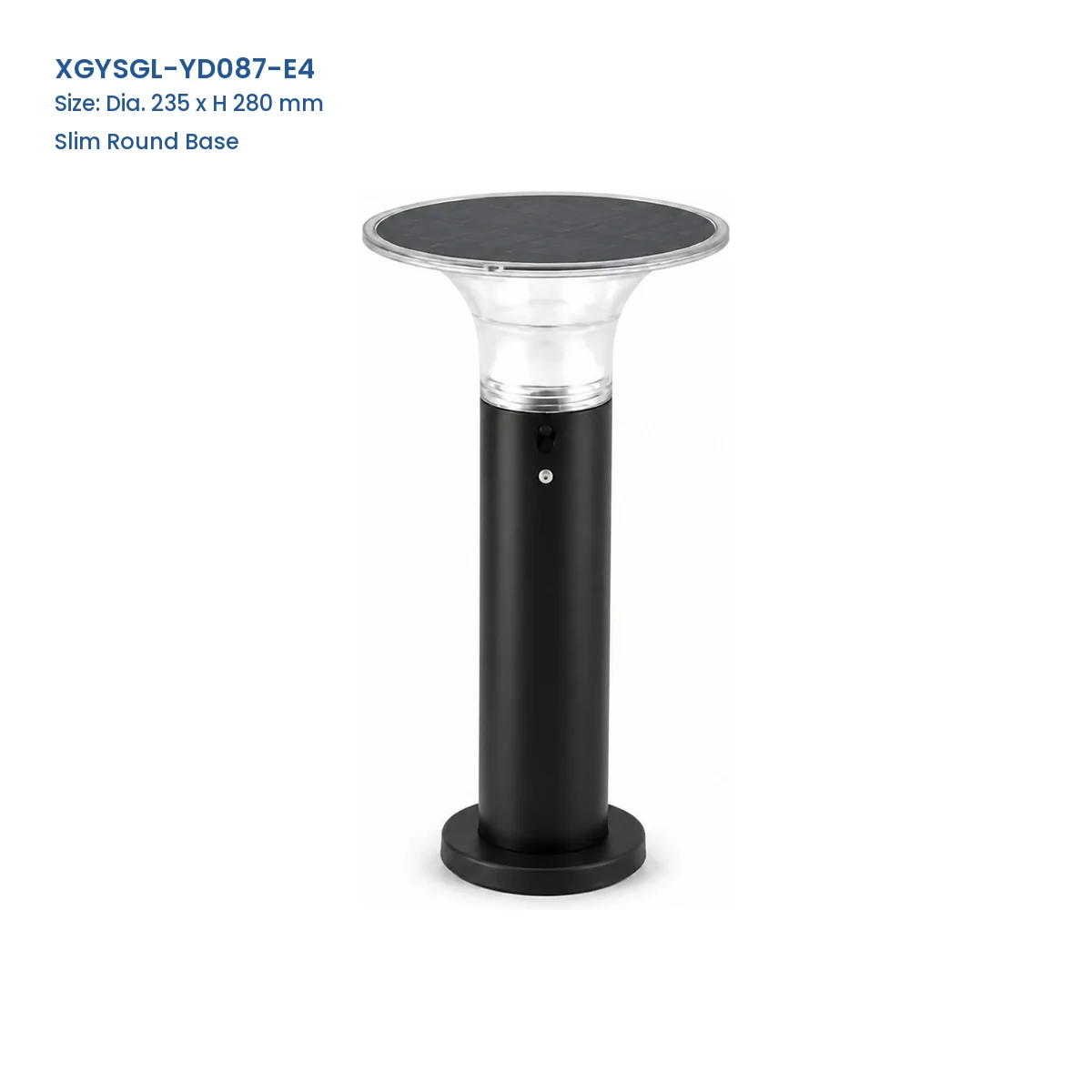

XGYSGL-YD087-E4 slim-base solar garden light, 235 mm diameter and 280 mm high

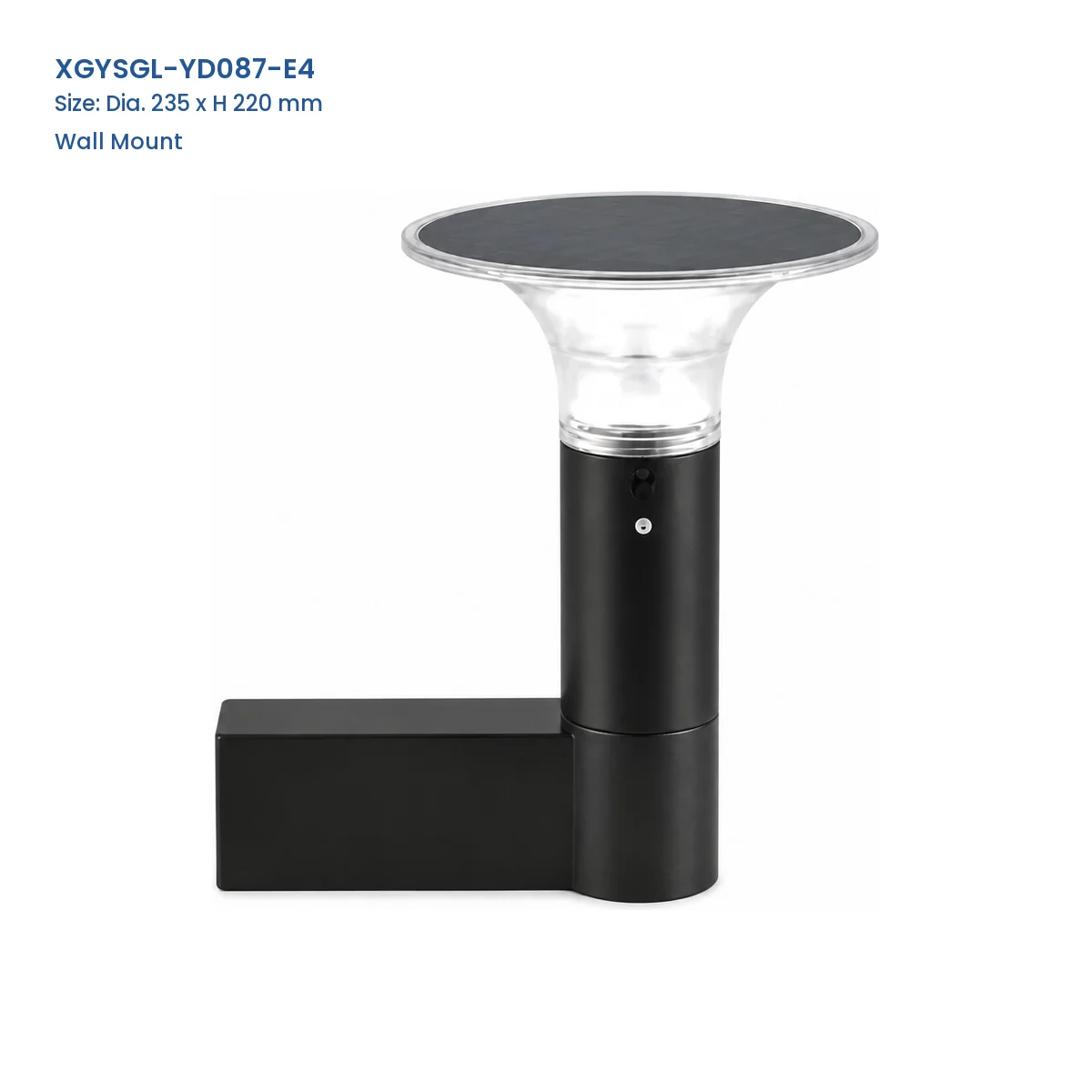

XGYSGL-YD087-E4 wall-mount solar garden light, 235 mm diameter with 250 mm base

Technical Specifications

Model Specifications

Model No.	Mounting Form	Dimensions	Power / Output	Solar Panel	Battery	Construction	Protection
XGYSGL-YD087-E4	Low base	Ø235 x H220 mm; Ø160 mm base	4 W / 360 lm	5 V / 3.7 W monocrystalline	18650 / 3.7 V / 4000 mAh	Aluminum + PC	IP54
XGYSGL-YD087-E4	Tall base	Ø235 x H280 mm; Ø160 mm base	4 W / 360 lm	5 V / 3.7 W monocrystalline	18650 / 3.7 V / 4000 mAh	Aluminum + PC	IP54
XGYSGL-YD087-E4	Wall mount	Ø235 x H220 mm; 250 mm base	4 W / 360 lm	5 V / 3.7 W monocrystalline	18650 / 3.7 V / 4000 mAh	Aluminum + PC	IP54
XGYSGL-YD087-E4	Post mount	Ø235 x H800 mm; Ø135 mm base	4 W / 360 lm	5 V / 3.7 W monocrystalline	18650 / 3.7 V / 4000 mAh	Aluminum + PC	IP54

Product Description

Product Details

Product Construction

The aluminum housing carries a PC optical cover, LED module, photovoltaic module and rechargeable 18650 cell. Its round upper assembly measures Ø235 mm and is paired with dedicated pedestal, bracket or column supports.

Selection & Installation Notes

Choose by fixing position and finished height. The two pedestal versions use a Ø160 mm footprint and finish at H220 or H280 mm; the wall version finishes at H220 with a 250 mm mounting base; the column version finishes at H800 with a Ø135 mm base. Define the support in the order, verify the substrate, drainage and pedestrian clearance, and protect the collection surface from permanent shade. Compare related options in our solar garden lights range.

Recommended Application

Applications

Path Edges: Use the 800 mm post configuration to mark pedestrian routes and planted borders.
Pillars And Low Walls: Use either base-mounted configuration on stable masonry or prepared landscape surfaces.
Exterior Walls: Use the wall-mounted form beside entrances, terraces and garden circulation points.
Coordinated Landscape Zones: Specify matching light heads across wall, base and post positions within one project.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What are the four mounting forms?

XGYSGL-YD087-E4 is offered as a 220 mm low base, 280 mm tall base, 220 mm wall mount or 800 mm post mount, all with the same 235 mm circular light head.

Are all four mounting supports included in one package?

The four forms are order configurations rather than a stated conversion kit. Specify the required support, base and fixing hardware for each position before production.

Does the light need a mains cable?

No mains connection is listed for the self-contained solar assembly. The top panel charges the integrated 18650 battery for the LED light head.

Where should the solar panel be positioned?

Place the top of the light head where it receives unobstructed daylight, and keep foliage, dirt and nearby structures from shading the charging surface.

Does the 360 lm output determine fixture spacing?

No. The output is 360 lm, while spacing also depends on mounting height, route geometry, ambient conditions and the project light-level requirement.

Can the IP54 light be installed where water pools?

No. The IP54 enclosure rating applies to a correctly assembled fitting; the base still needs a stable, drained installation position and is not intended for immersion.
