Wide-Diffuser Rechargeable Sensor Cabinet Light

The XGYUCL-Z0-CAJGYD SS series is a wide-diffuser rechargeable sensor cabinet light in 200, 300, 400 and 600 mm lengths with 600–1500 mAh batteries. Its 40 × 11 mm aluminum, PC and ABS housing uses Type-C charging, magnetic mounting, stepless dimming and M1/M2 operating modes.

Black or White Finish: Two housing colors coordinate with light and dark cabinet interiors.
Continuous Diffused Face: The full-width PC cover forms a broad light-emitting band across the bar.
Low-Ambient Sensor Logic: M2 combines night detection with infrared triggering for approach-activated use.
Magnetic Charging Access: Two adhesive magnetic plates retain the bar while allowing removal for Type-C charging.

Series Lengths	200 / 300 / 400 / 600 mm
Rated Power	1.6–3 W
Battery Range	600–1500 mAh

Luminous Efficacy	100 lm/W
White-Light Range	3000–6500 K
Operating Modes	M1 always on / M2 night + IR sensor

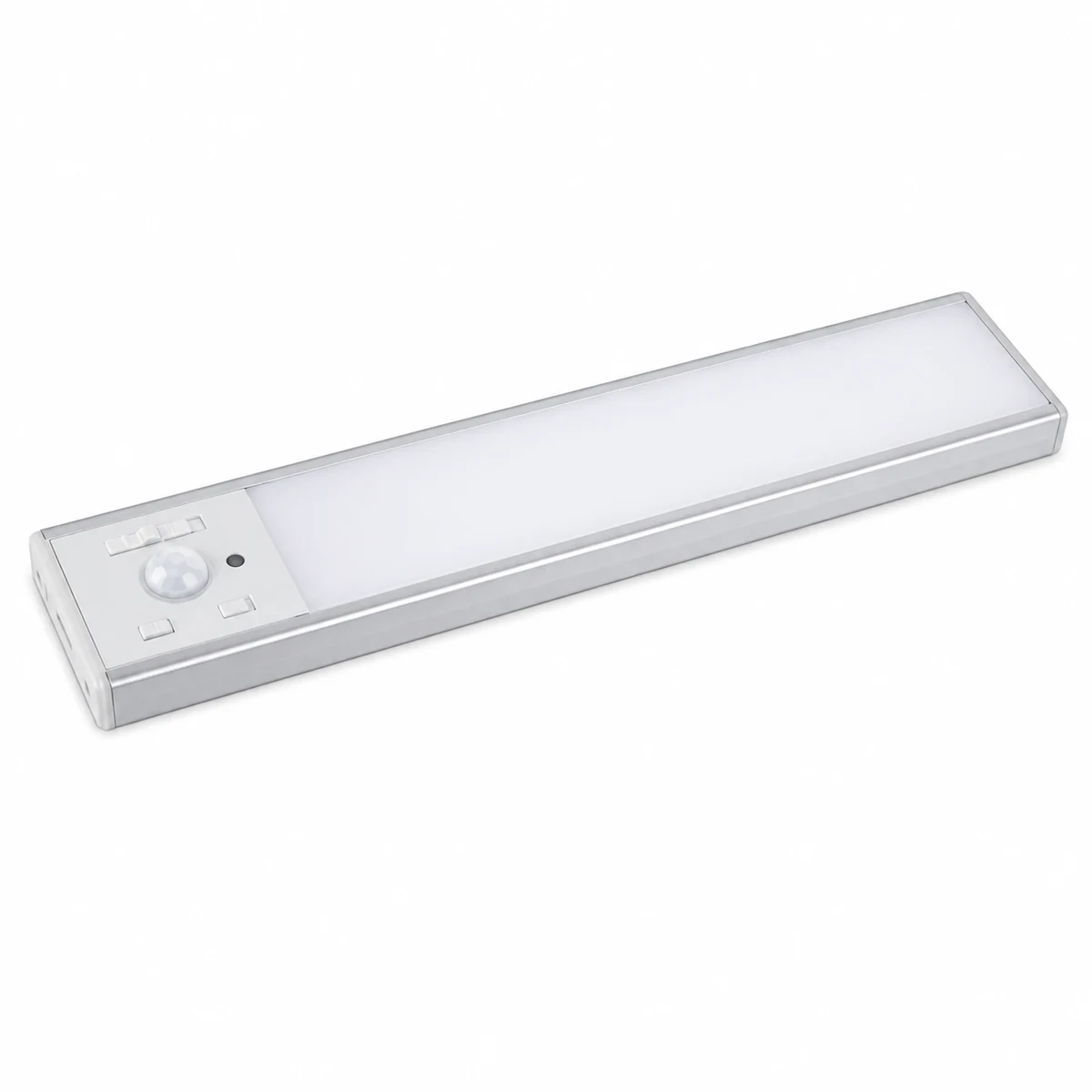

White wide-diffuser rechargeable sensor cabinet light

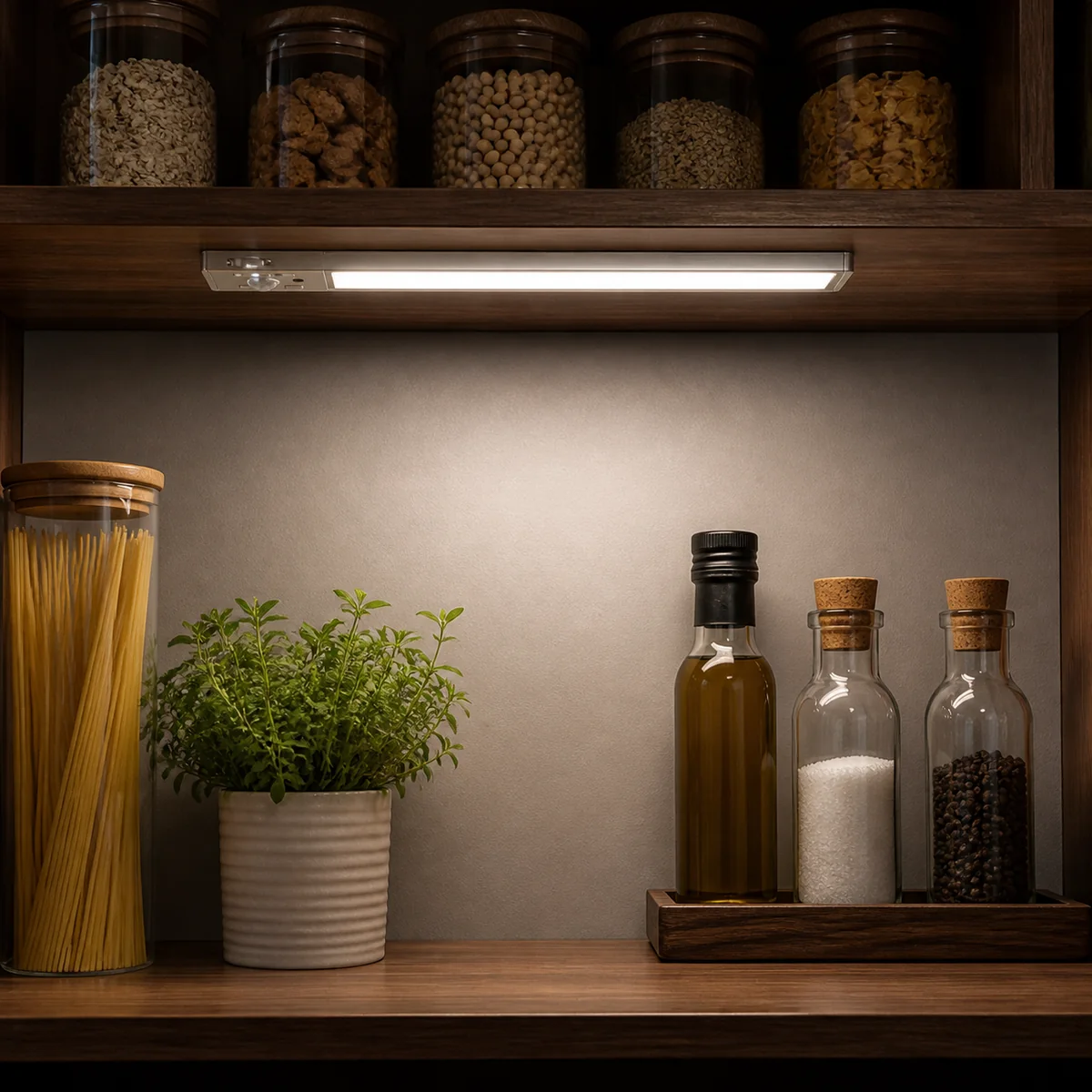

White wide-diffuser rechargeable cabinet light beneath a pantry shelf

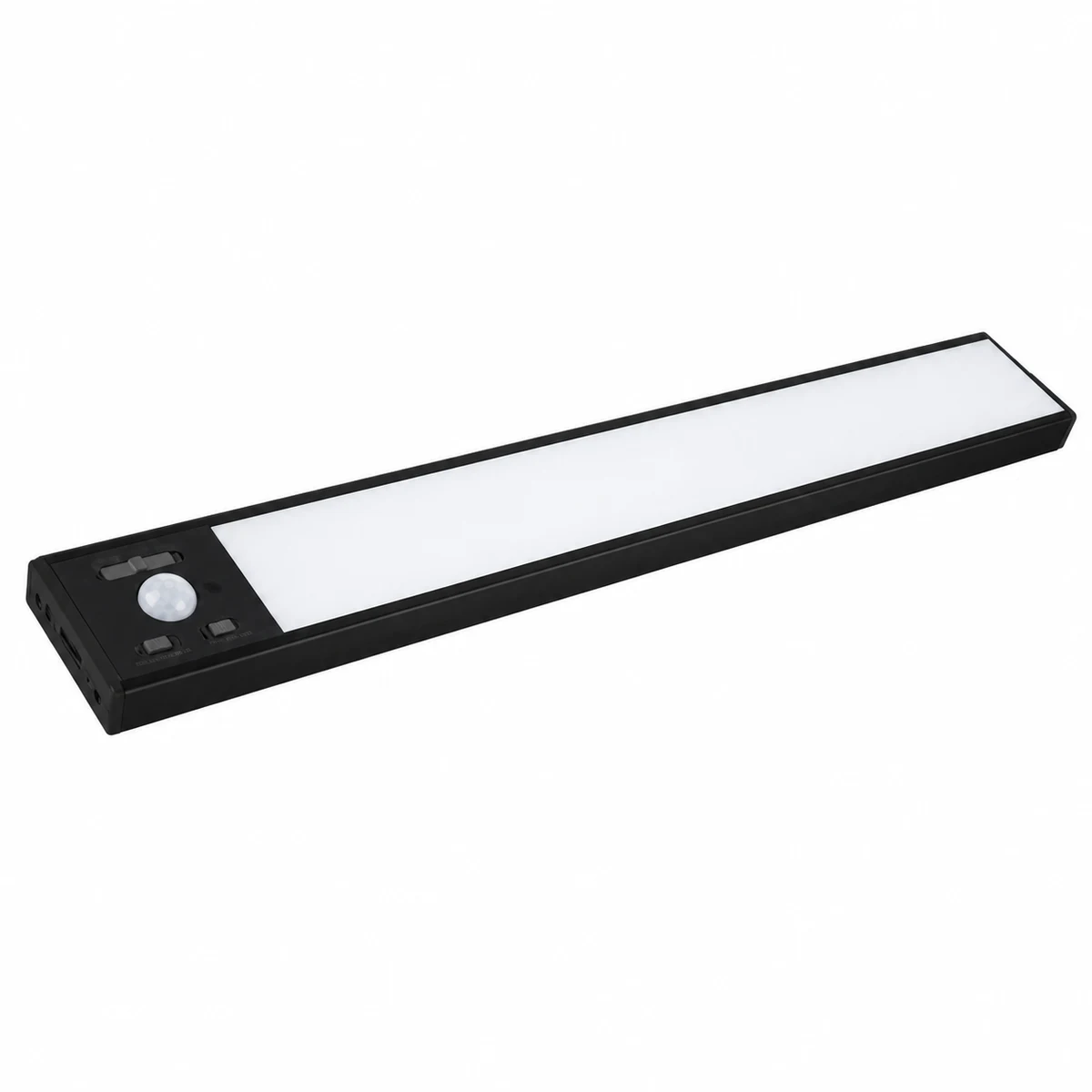

Black XGYUCL-Z0-CAJGYD-SS wide-diffuser sensor cabinet light on white

Technical Specifications

Model Specifications

Model No.	Dimensions (L x W x H)	Rated Power	Battery	Efficacy	CCT
XGYUCL-Z0-CAJGYD-200-SS-E2	200 x 40 x 11 mm	1.6 W	600 mAh	100 lm/W	3000-6500 K
XGYUCL-Z0-CAJGYD-300-SS-E2	300 x 40 x 11 mm	2.1 W	900 mAh	100 lm/W	3000-6500 K
XGYUCL-Z0-CAJGYD-400-SS-E3	400 x 40 x 11 mm	2.6 W	1200 mAh	100 lm/W	3000-6500 K
XGYUCL-Z0-CAJGYD-600-SS-E3	600 x 40 x 11 mm	3 W	1500 mAh	100 lm/W	3000-6500 K

All four SS models support stepless dimming. M1 is 100% Always On; M2 is Night & IR Sensor Trigger.

Product Description

Product Details

Product Construction

An aluminum casing supports the PC cover, while ABS parts close both ends of the rechargeable assembly. An integrated Type-C inlet provides the charging connection.

Selection & Installation Notes

Measure the clear cabinet surface before choosing the 200, 300, 400 or 600 mm version, then compare the corresponding power and battery row. Keep cabinet lips, hinges and stored items clear of the light path, and leave the local controls accessible. Compare related products in our under-cabinet lights range.

Recommended Application

Applications

Kitchen Worktops: Place the wide diffuser beneath wall cabinets for a continuous illuminated band above preparation surfaces.
Wardrobe Shelves: Position the sensor end toward the opening for convenient interior shelf lighting.
Pantry Shelving: Mount the slim bar beneath shelves to illuminate stored food and containers.
Display Shelving: Use the long diffused aperture across merchandise or collection shelves.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How do the four models differ?

They differ in length, rated power and battery capacity. The range covers 200 to 600 mm, 1.6 to 3 W and 600 to 1500 mAh.

What do the M1 and M2 modes do?

M1 provides continuous light at full output. M2 combines low-ambient-light operation with infrared sensor triggering.

Does every SS model support brightness adjustment?

Yes. All four SS configurations support stepless dimming.

How is the cabinet light mounted and charged?

Two magnetic adhesive plates hold the bar, which removes for charging through Type-C. Leave the sensor end unobstructed.

Which light colors and finishes are available?

The available white-light settings are 3000 K, 4000 K and 6500 K, with black and white housing finishes. Confirm the selected combination on the approved order sample.

What should be confirmed for an OEM/ODM order?

Confirm the model length, finish, CCT, control sequence, labeling and packaging against the approved sample before production.
