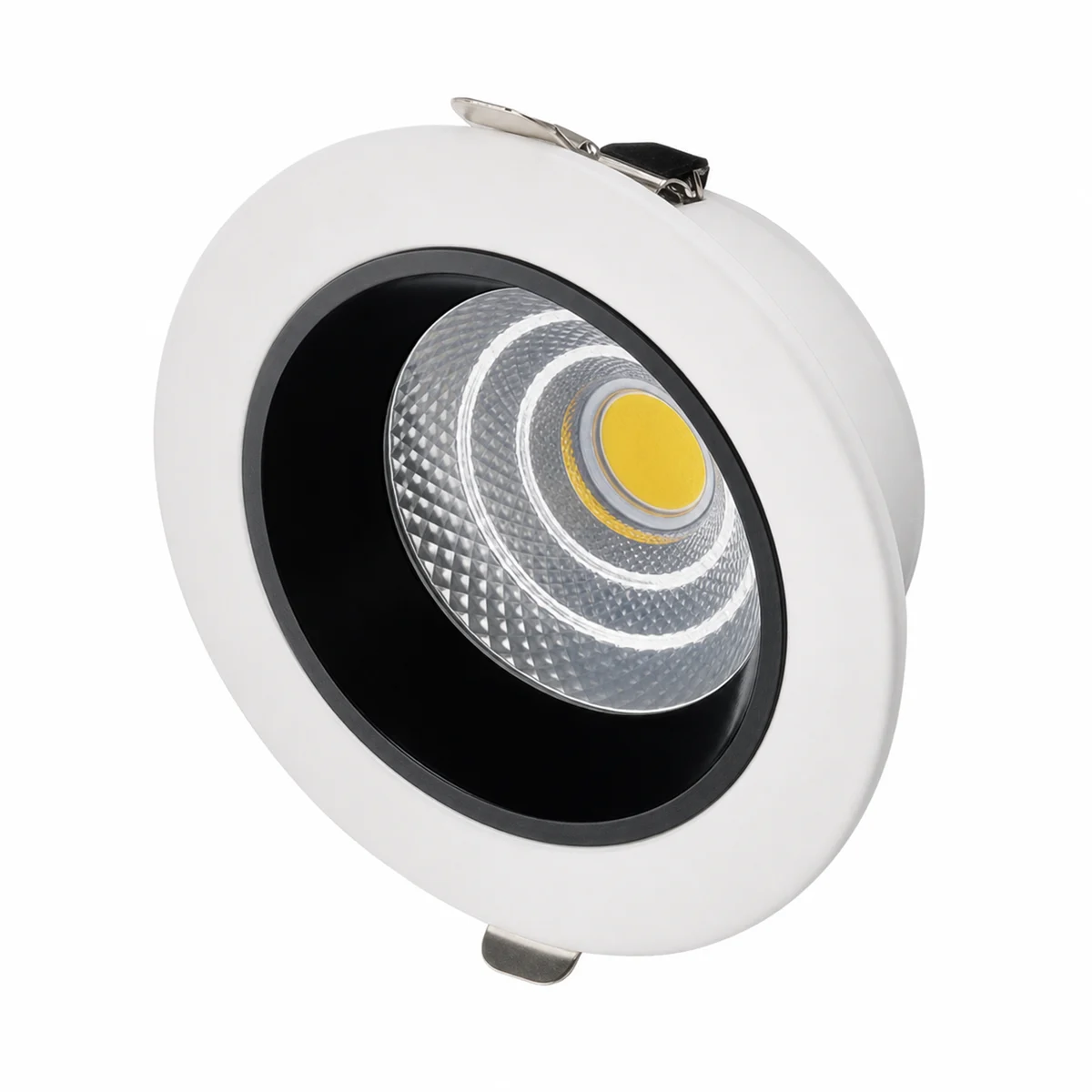

Fixed Reflector Downlight
- Faceted Reflector Face: A faceted reflector surrounds the centered light source.
- Fixed Lighting Direction: The luminaire maintains its installed orientation without an adjustable head.
- Spring Retainers: Integrated spring retainers secure the recessed body at its ceiling position.
| Selection document | Complete signed item reference |
|---|---|
| Manufacturing authority | Approved bill of materials |
| Ceiling record | Approved aperture and void clearance |
| Optical record | Approved reflector configuration |
|---|---|
| Operating record | Approved project schedule |
| Installation record | Intended room and ceiling location |
Technical Specifications
Model Specifications
| Model | Appearance | Dimensions | Power | Efficacy | CCT | Cutout |
|---|---|---|---|---|---|---|
| XGY-ITFT18-E8 | ITFT18-2 Reflector | D90 x 45 mm | 8 W | 80 lm/W | 3000-6500 K | D75 mm |
| XGY-ITFT18-E15 | ITFT18-2 Reflector | D125 x 45 mm | 15 W | 80 lm/W | 3000-6500 K | D95 mm |
| XGY-ITFT18-E24 | ITFT18-2 Reflector | D170 x 49.5 mm | 24 W | 80 lm/W | 3000-6500 K | D145 mm |
| XGY-ITFT18-E30 | ITFT18-2 Reflector | D220 x 56 mm | 30 W | 80 lm/W | 3000-6500 K | D200 mm |
The ITFT18 family shows a combined 120° / 60–90° beam notation without an appearance-level mapping. Confirm the ordered optical distribution on the approved drawing and sample.
Product Description
Product Details
Product Construction
The signed bill of materials and production drawing govern each purchase reference. Release only the revision authorized for manufacture.
Selection & Installation Notes
Start with the reflected ceiling plan. Document the required aperture, available void, site interface, access route and item reference before installation. Compare related products in our recessed downlight range.
Recommended Application
Applications

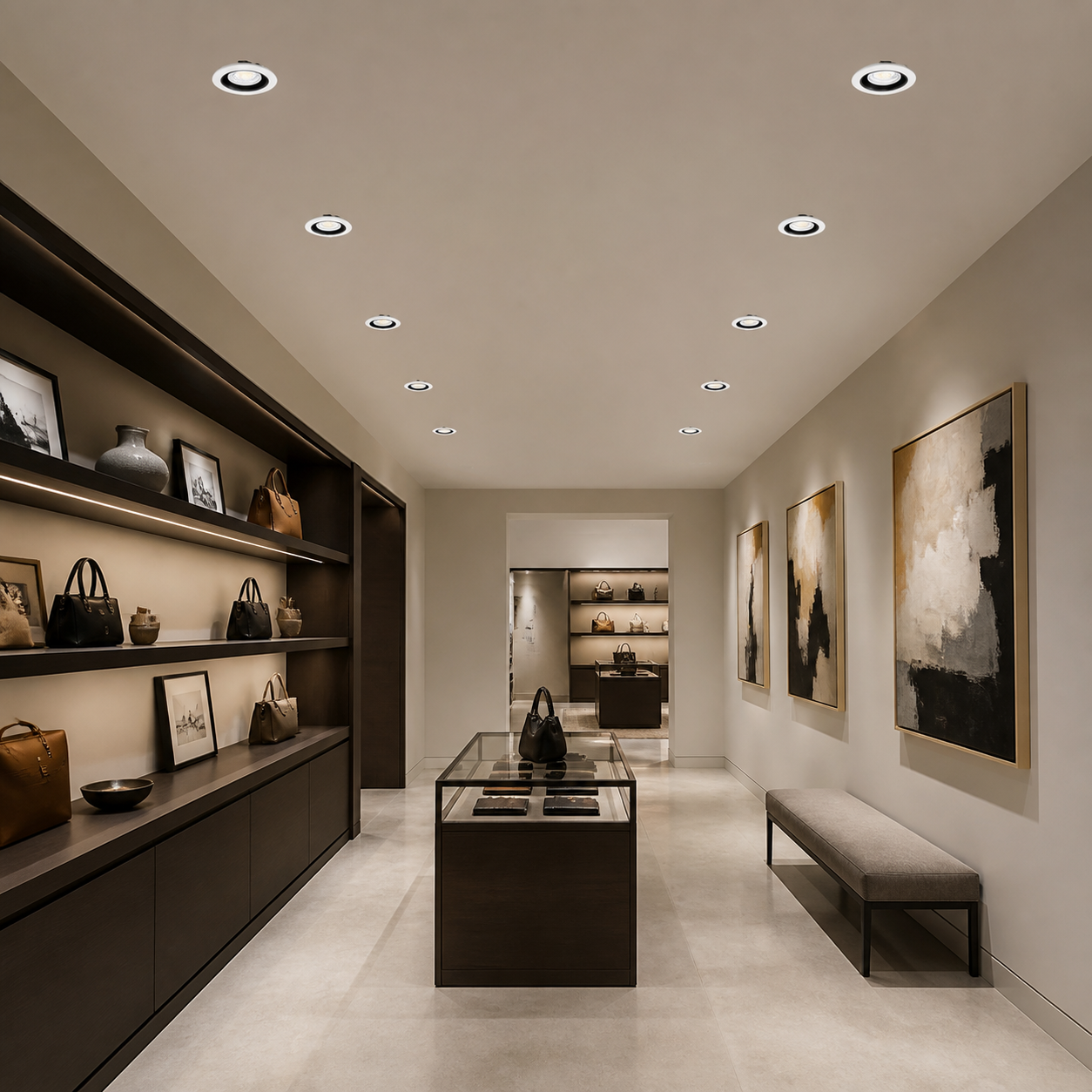

- Retail Display Areas: Places fixed reflector downlights above merchandise and wall displays.
- Gallery Corridors: Uses recessed reflector lighting along artwork and circulation routes.
- Hospitality Lobbies: Places fixed reflector downlights in reception and shared lounge ceilings.
- Residential Feature Zones: Uses recessed reflector lighting above tables, artwork and circulation areas.
