Selectable-CCT Recessed LED Downlight

This recessed LED downlight family combines selectable CCT with three optical distributions for indoor lighting layouts. D60, D75 and D90 share a 90 mm cutout while using different trim dimensions, body depths and beam patterns.
  • Three Beam Distributions: The D60, D75 and D90 options provide progressively wider fixed beams for different lighting layouts.
  • Selectable-CCT Boundary: The project can specify selectable color temperature without assuming undocumented settings or control behavior.
  • IP20 Indoor Format: The recessed assembly is intended for dry indoor ceiling applications.
  • White or Silver Trim: Two stated frame finishes support coordination with different ceiling palettes.
Power8 / 9 W
Output720 / 820 lm
CCT3000 / 4000 / 6500 K
Cutout90 mm
Request a Quote

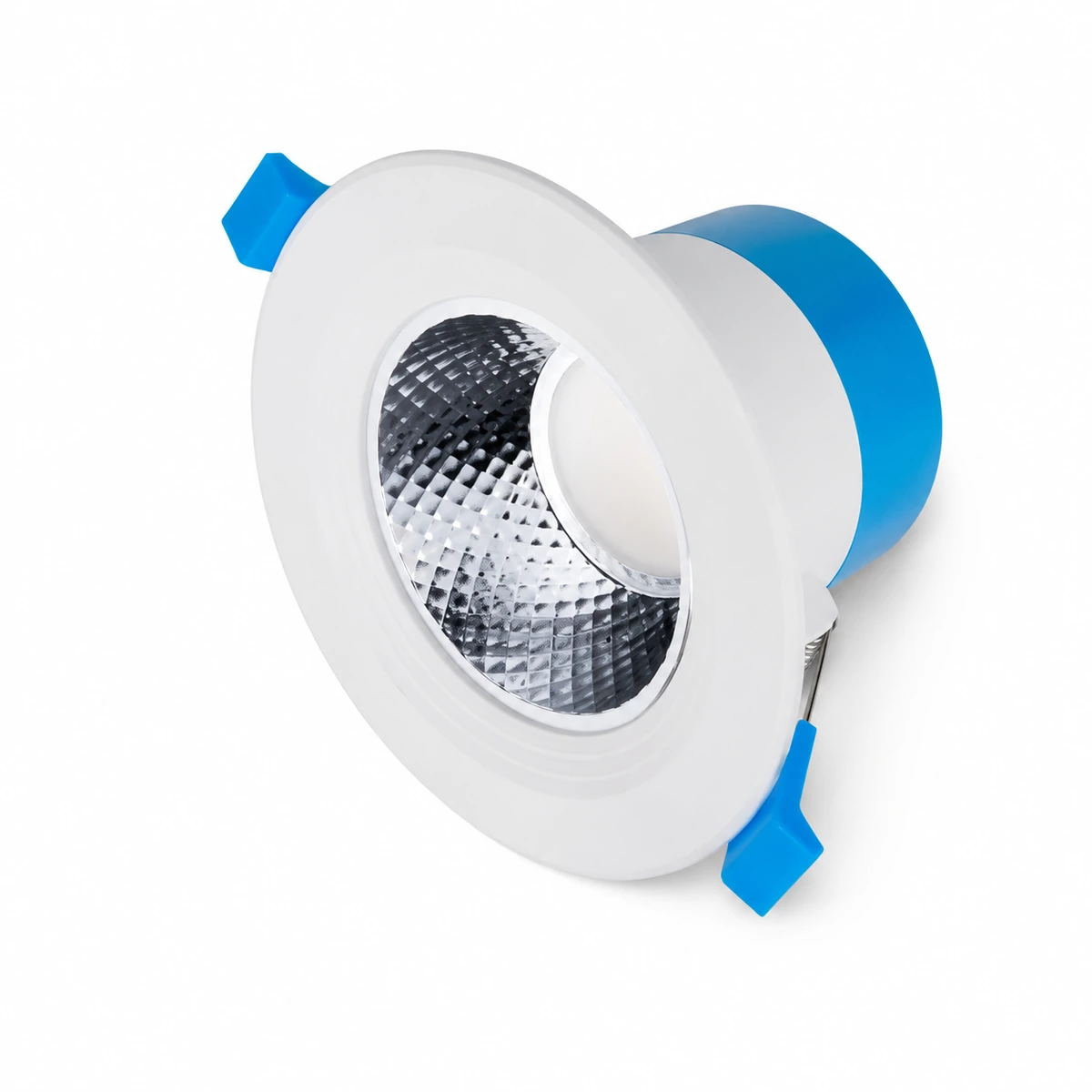

D75 selectable-CCT recessed LED downlight with faceted reflector and blue spring clips

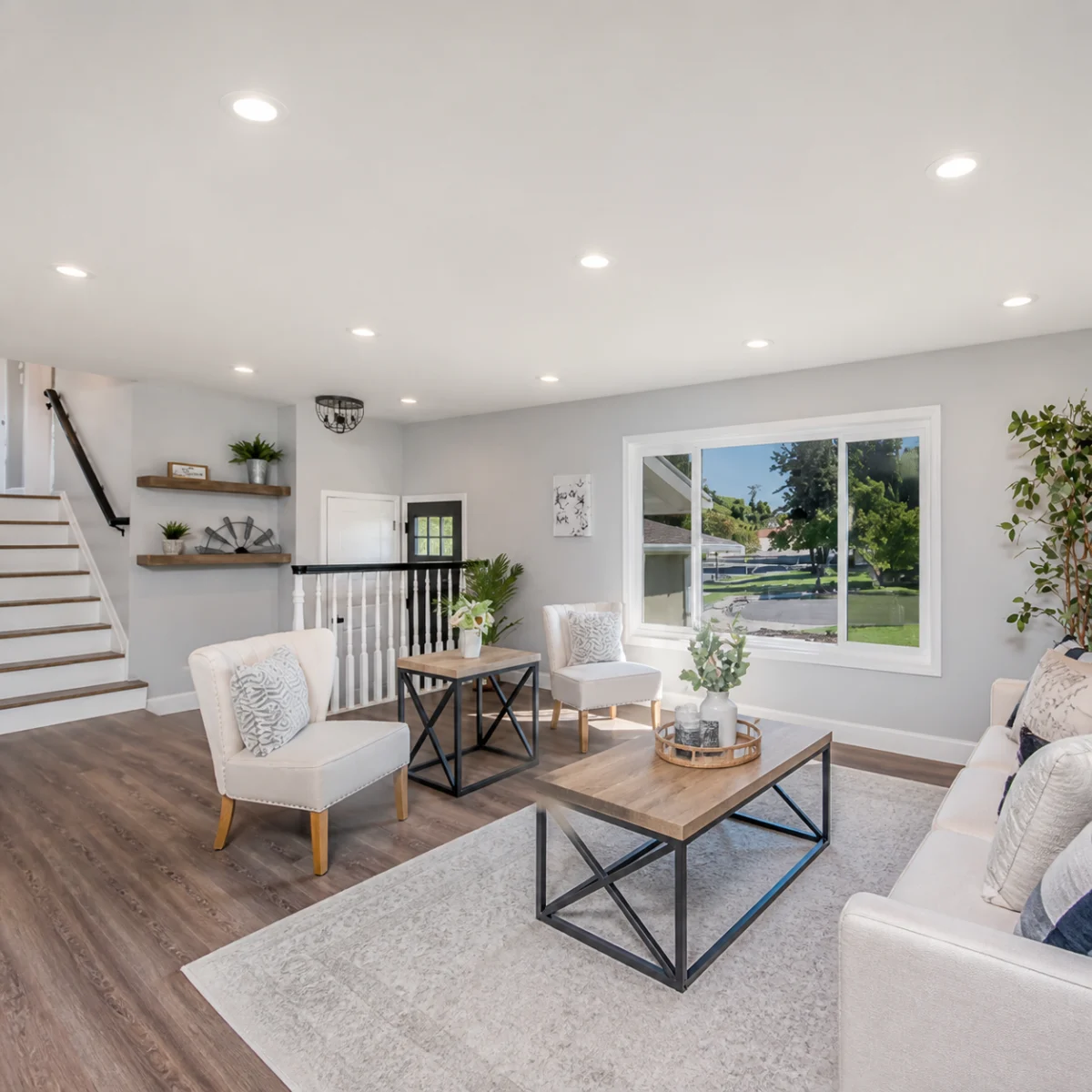

Selectable-CCT recessed LED downlights installed in a residential living room ceiling

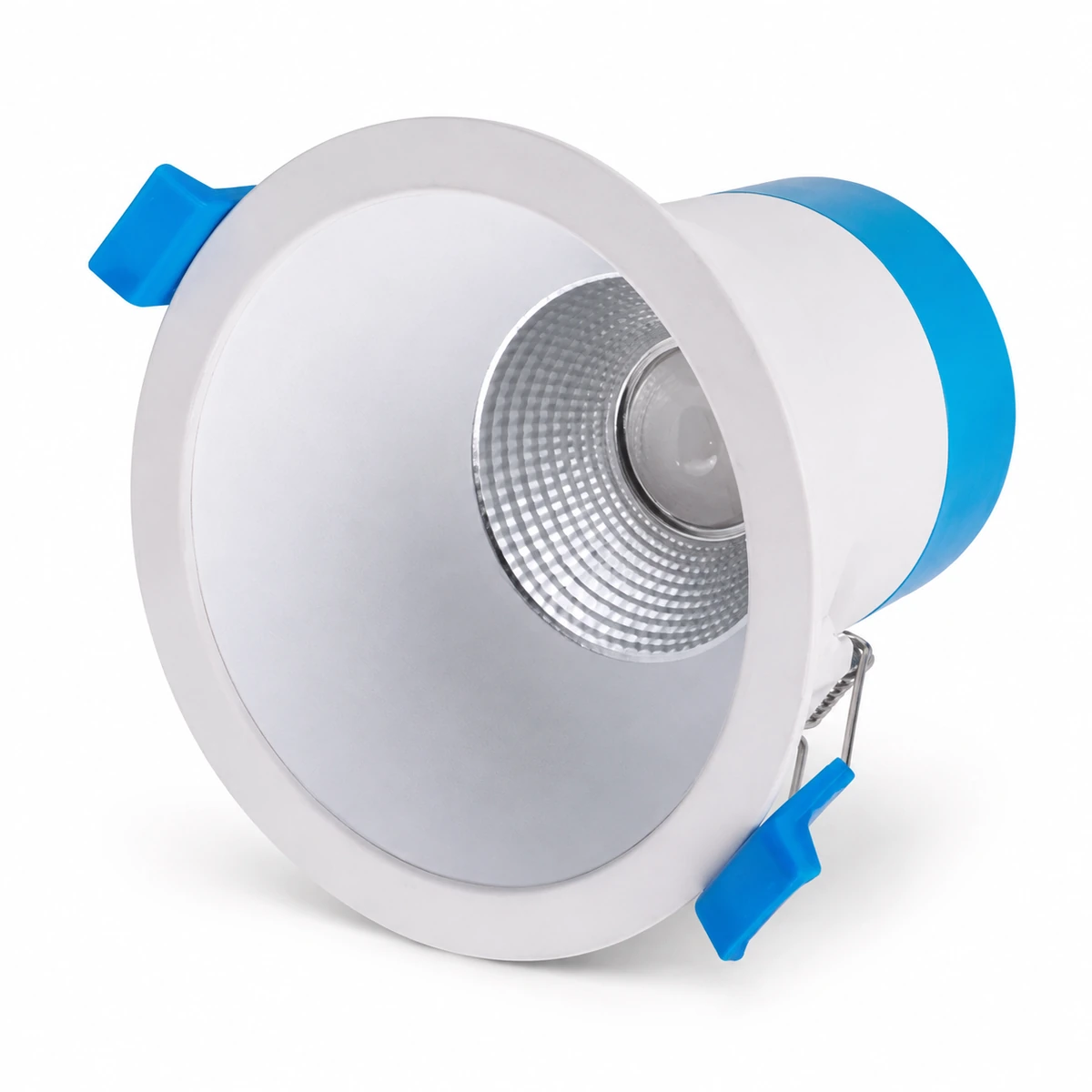

D60 selectable-CCT recessed LED downlight with deep reflector and blue spring clips

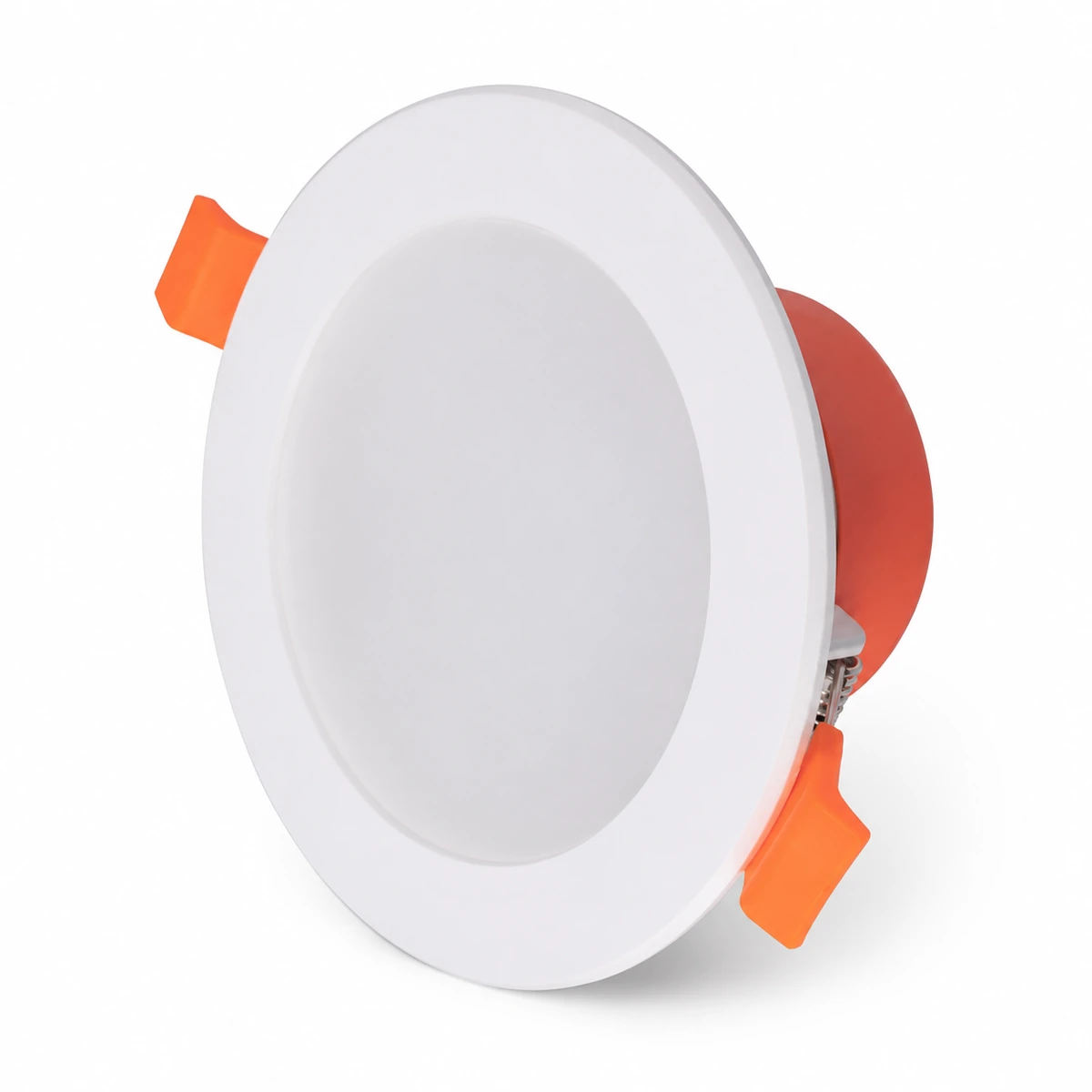

D90 selectable-CCT recessed LED downlight with opal diffuser and orange spring clips

Technical Specifications

Model Specifications

Model No.Trim ØxHPowerOutputCCTBeamCutout
XGYDL-D60-E8-CCT104×97 mm8 W720 lm3000/4000/6500 K60°Ø90 mm
XGYDL-D75-E9-CCT112×70 mm9 W820 lm3000/4000/6500 K75°Ø90 mm
XGYDL-D90-E9-CCT115×60 mm9 W820 lm3000/4000/6500 K90°Ø90 mm

Product Description

Product Details

Product Construction

The fixed recessed housing positions the light source above a circular trim. Each model fits the same ceiling opening, while its outer diameter and body depth remain specific to the chosen design.

Selection & Installation Notes

Choose the required light spread from the model table, then verify trim clearance, recess depth, driver space and the ceiling opening. Record the required color-temperature configuration and any dimming driver package in the approved sample and order. Compare related products in our recessed LED downlight range.

Recommended Application

Applications

  • Hotel Lobbies: The selected beam distribution balances ambient coverage with emphasis on reception and circulation areas.
  • Retail Displays: A narrower fixed beam provides controlled illumination across merchandise and feature zones.
  • Offices and Meeting Rooms: Wider distributions support general ceiling lighting across work and discussion areas.
  • Guest Rooms: Selectable CCT and an approved dimming package coordinate the downlight with the room-control plan.
  • Restaurants and Cafes: Mixed beam selections shape ambient and table-area lighting within one recessed family.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Do all three downlights use the same cutout?

Yes. D60, D75 and D90 all use a Ø90 mm cutout, but their trim diameter and body depth differ.

What is the difference between D60, D75 and D90?

The primary difference is beam angle: 60°, 75° or 90°. Each option also has its own trim dimensions and body depth.

Which beam options are rated at 9 W?

D75 and D90 are rated at 9 W and 820 lm. D60 is rated at 8 W and 720 lm.

Is the downlight dimmable?

Dimming is available as a driver configuration. Confirm the dimming method, minimum level and control compatibility before sampling.

What must be checked above the ceiling?

Verify the stated cutout, model-specific body depth, driver location, insulation clearance and applicable local installation requirements.

Can one project mix the three beams?

Yes. Assign the required beam option to each location and verify the intended distribution, output and ceiling clearance in the lighting layout.
