Connectable T5 Integrated LED Fixture
- Integrated Light Engine: The LEDs and driver are built into the slim fixture, removing the need to match a separate tube and housing.
- Direct Linear Linking: Compatible ends join several fixtures into a continuous dry-indoor light line from one planned supply point.
- Local Control Options: On/off and CCT button switches place basic control directly on the selected fixture.
- Low-Profile Clip Mounting: The narrow body attaches close to shelves, cabinets, walls, ceilings or work surfaces with metal clips.
| Body Options | Aluminium + PC or full PC |
|---|---|
| Profile & Length | 23 x 34 mm; 300-1478 mm |
| Rated Power | 5-26 W; configuration-dependent |
| Luminous Efficacy | 80-160 lm/W; customizable |
| CCT & CRI | 3000-8000 K; Ra80 |
|---|---|
| Input & PF | AC 180-265 V or AC 85-265 V; PF 0.5 / 0.9 |
| Optics & Use | 120-degree beam; no flicker; 25,000 hours; dry indoor |
Technical Specifications
Model Specifications
| Model No. | Body | Dimensions W x H x L | Rated Power | Luminous Efficacy | CCT | CRI |
|---|---|---|---|---|---|---|

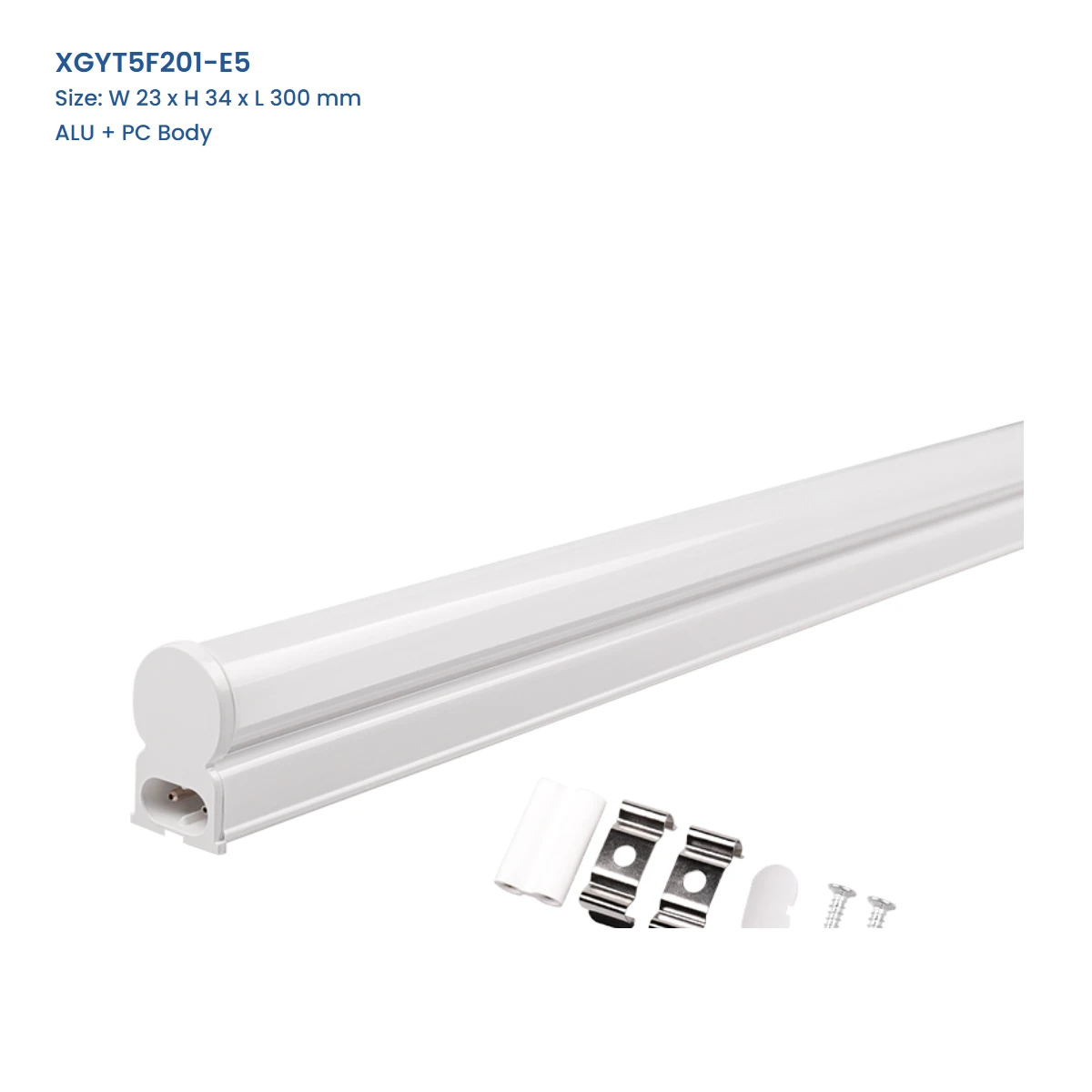

| XGYT5F201-E5 | ALU+PC | 23 x 34 x 300 mm | 5 W | 80-160 lm/W | 3000-8000 K | Ra80 |

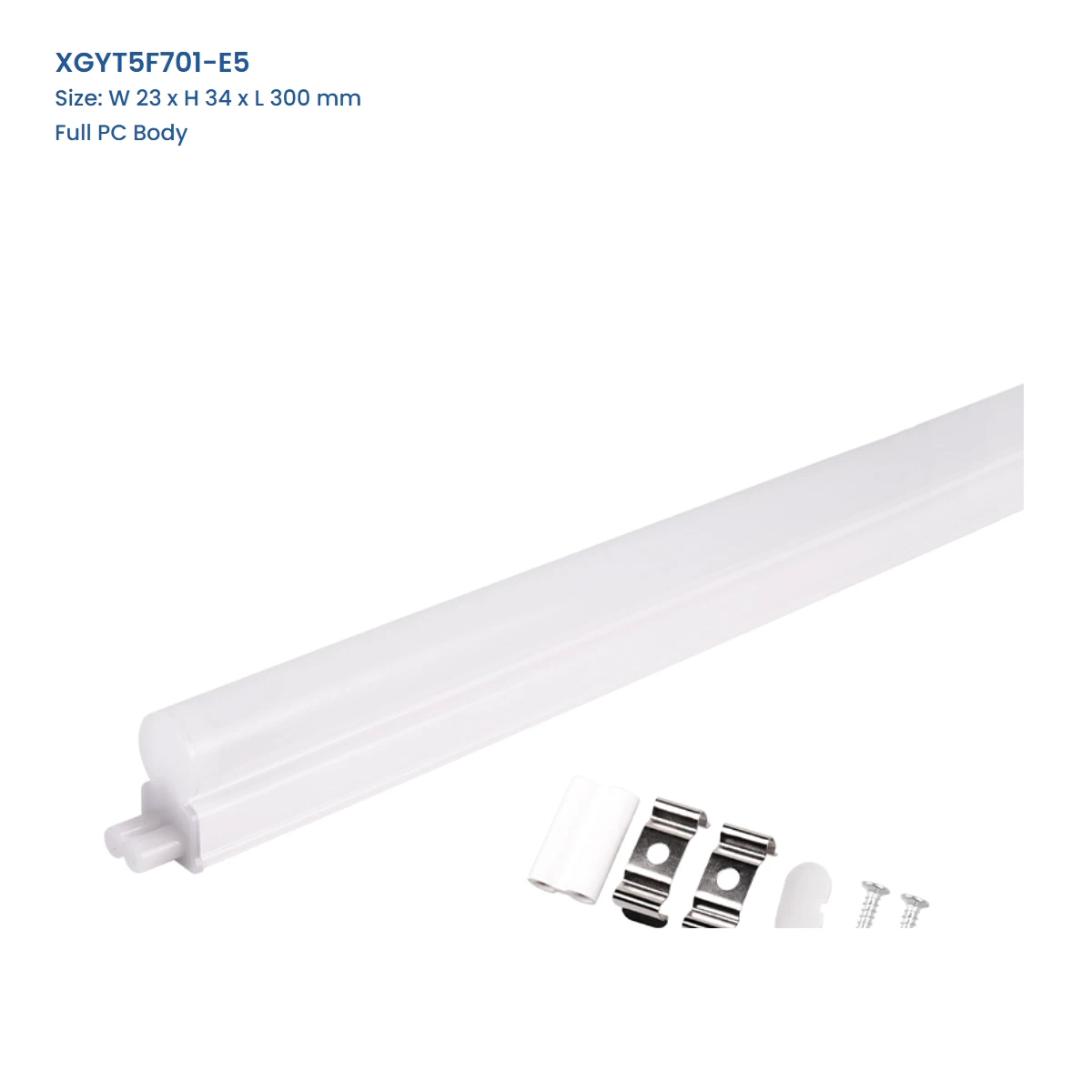

| XGYT5F701-E5 | Full PC | 23 x 34 x 300 mm | 5 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F202-E9 | ALU+PC | 23 x 34 x 572 mm | 9 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F702-E9 | Full PC | 23 x 34 x 572 mm | 9 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F203-E12 | ALU+PC | 23 x 34 x 880 mm | 12 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F703-E12 | Full PC | 23 x 34 x 880 mm | 12 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F204-E18 | ALU+PC | 23 x 34 x 1178 mm | 18 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F704-E18 | Full PC | 23 x 34 x 1178 mm | 18 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F205-E22 | ALU+PC | 23 x 34 x 1478 mm | 22 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F205-E22 | ALU+PC | 23 x 34 x 1478 mm | 26 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F705-E22 | Full PC | 23 x 34 x 1478 mm | 22 W | 80-160 lm/W | 3000-8000 K | Ra80 |
| XGYT5F705-E22 | Full PC | 23 x 34 x 1478 mm | 26 W | 80-160 lm/W | 3000-8000 K | Ra80 |
Shared series specifications: single-end input, 120-degree beam, no-flicker operation, 25,000-hour rated life and dry-indoor use. Each 1478 mm model reference is available in separate 22 W and 26 W rated-power configurations; select the required power.
Product Description
Product Details
Product Construction
The 2xx family uses an aluminium housing with a PC light cover, while the 7xx family uses a full-PC body. Both share a 23 x 34 mm profile with connector ends and a mounting channel for the metal clips.
Selection & Installation Notes
Select the body construction, exact length and rated-power row first, then specify either double-female ends with a double-plug cable or male/female coupling ends. Confirm the permitted connected load for the chosen cable, connector and supply circuit before assembling a multi-fixture run.
Recommended Application
Applications

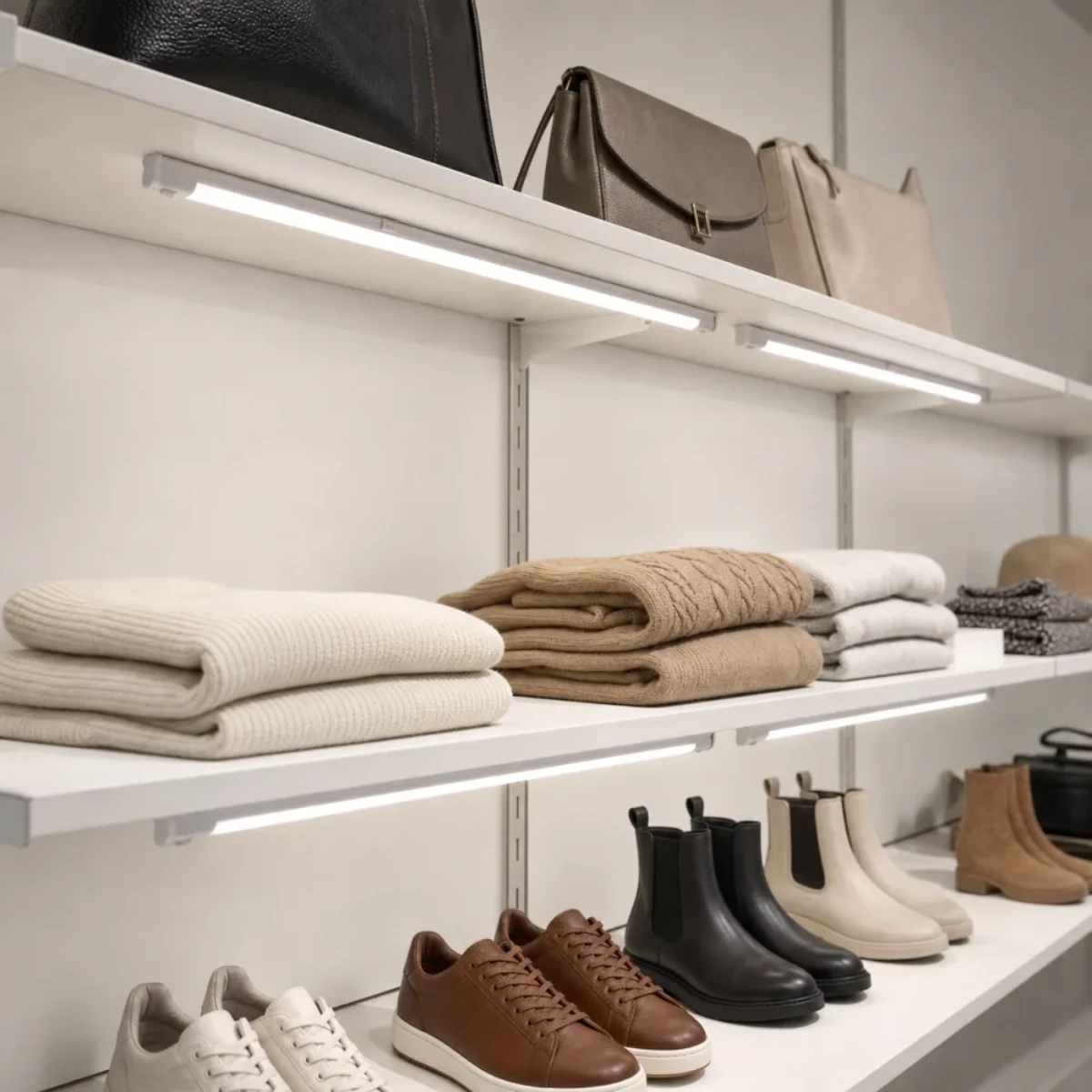

- Retail Shelves: Mount linked fixtures beneath merchandise shelves for continuous close-range display lighting.
- Display Cabinets: Fit the slim body inside dry indoor cases and join suitable lengths around the cabinet layout.
- Office Task Lighting: Install the fixtures above desks, counters or work surfaces for broad local illumination.
- Indoor Signage: Arrange selected lengths inside protected advertisement boxes and lightbox structures.
