Metallic-Rim GU10/MR16 Spotlight Housings

The CK004 metallic-rim spotlight housing series includes a track-mounted single-head version and surface-mounted round, linear and square configurations with one to six heads. Specify the lamp, holder, track interface and installation hardware for the selected model before production.
  • Scalable Composition: Single and grouped options support focused or repeated accent plans.
  • Balanced Grouping: Symmetrical and straight arrangements let designers organize multiple light points.
  • Contrast Trim: The rim finish adds a visible edge around every aperture.
  • Variant Separation: Individual product codes distinguish each physical layout.
Product TypeSpotlight housing bodies
Mounting FormatsTrack-mounted / surface-mounted
Head Counts1, 2, 3, 4 or 6
Base LayoutsTrack adapter / round / linear / square
Lamp and HolderOrder-specific; specify separately
Installation HardwareConfirm for the track or ceiling interface
Request a Quote

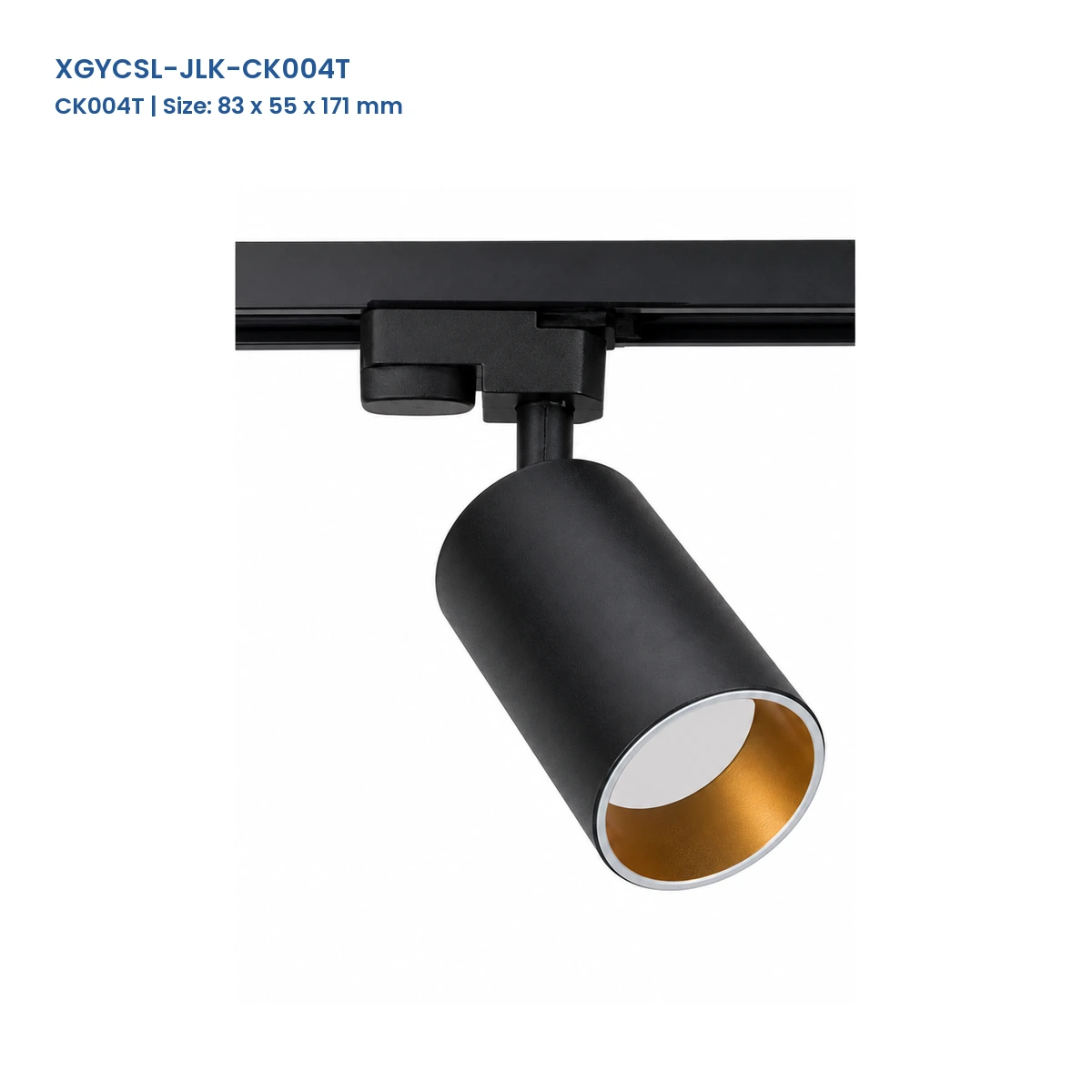

CK004T track-mounted CK004 spotlight housing with 1 adjustable head

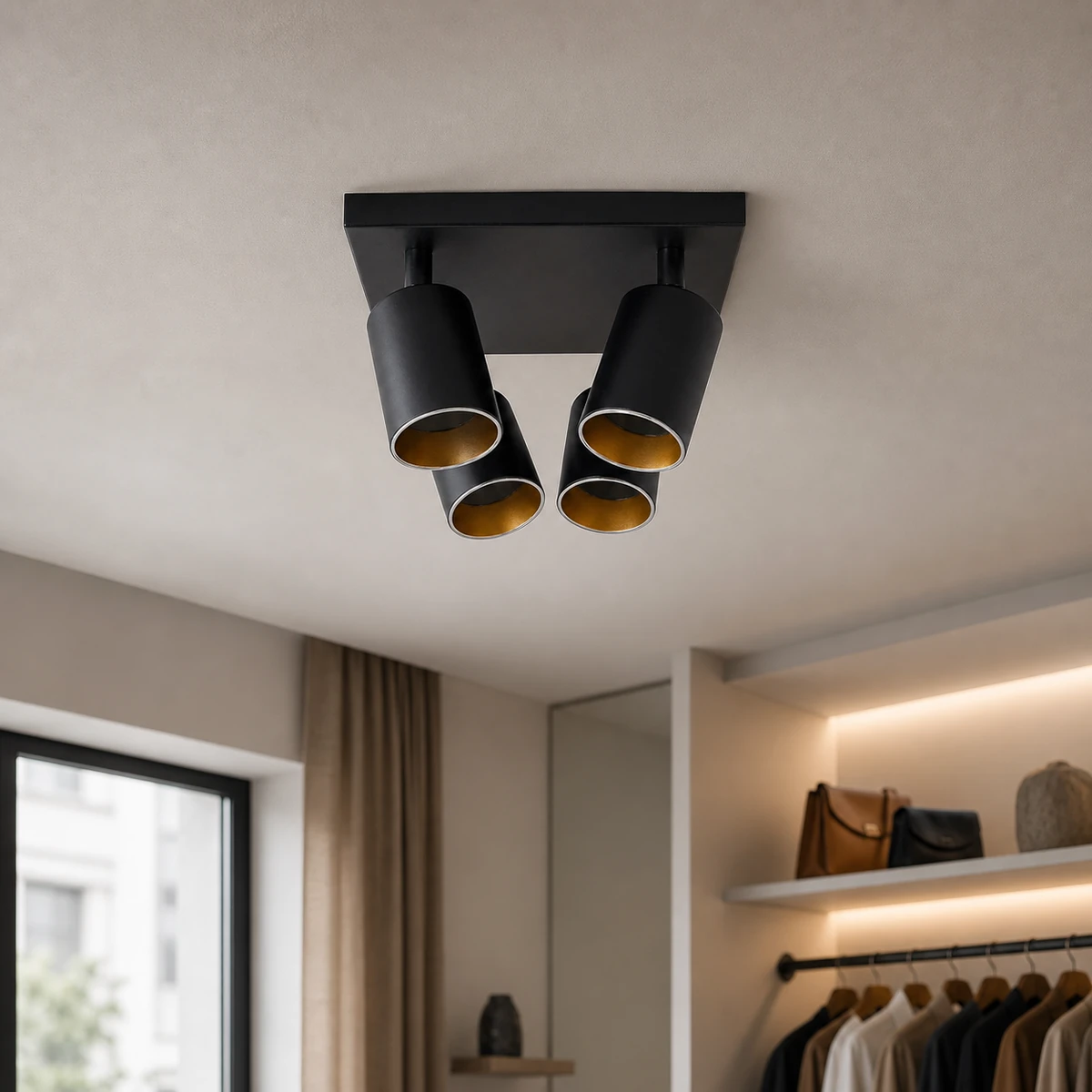

CK004 four-head surface-mounted spotlight housing installed on a dry indoor showroom ceiling

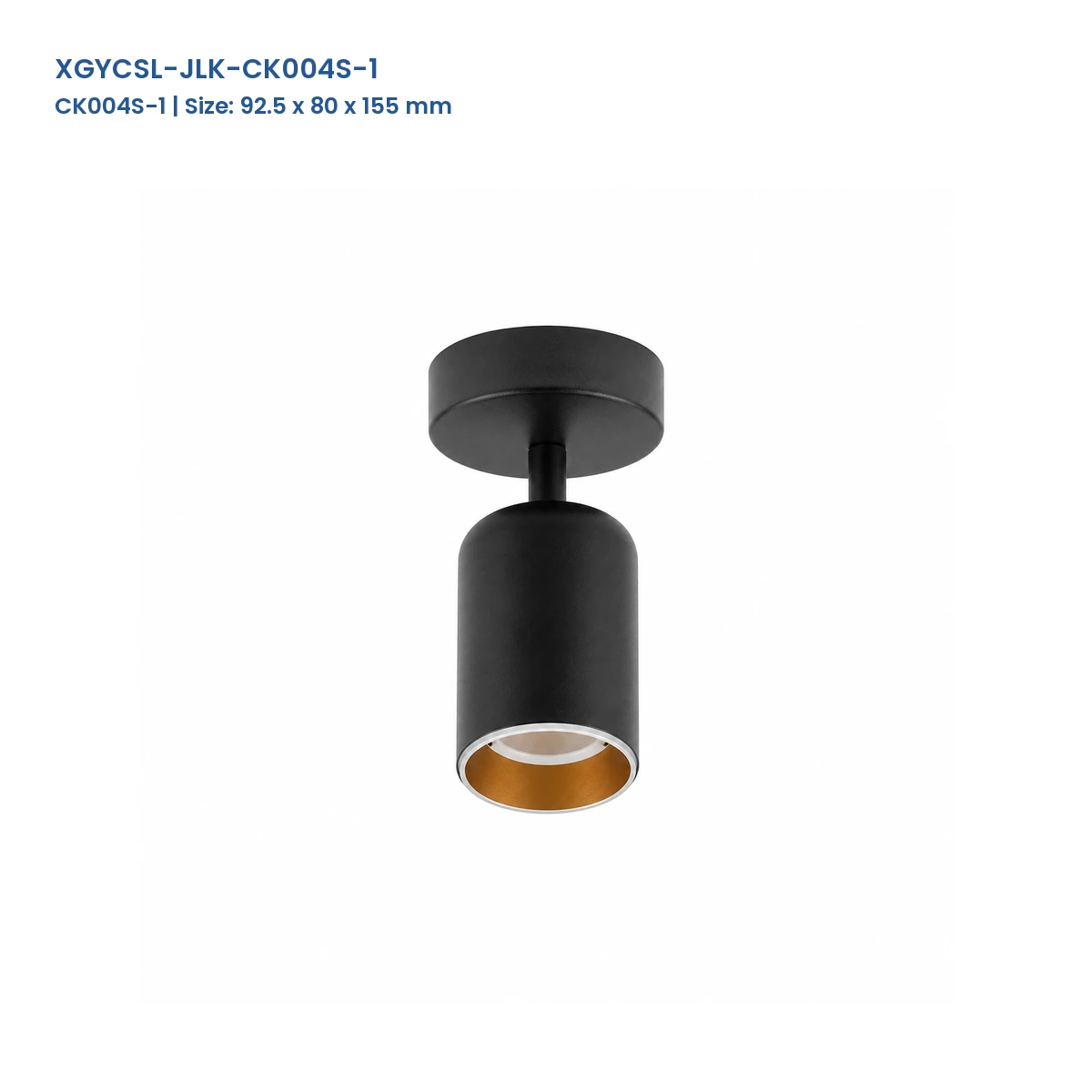

CK004S-1 surface-mounted round base CK004 spotlight housing with 1 adjustable head

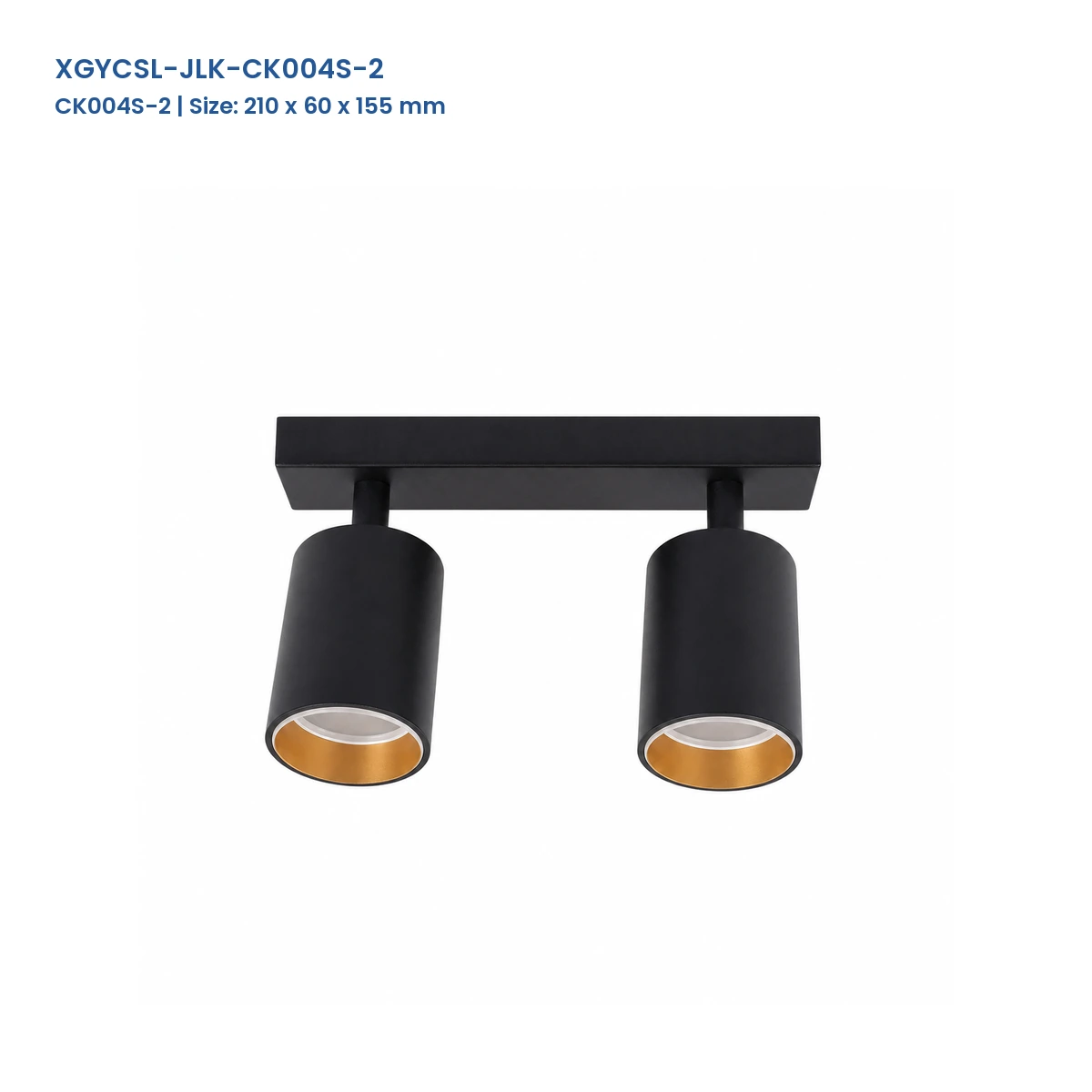

CK004S-2 surface-mounted linear base CK004 spotlight housing with 2 adjustable heads

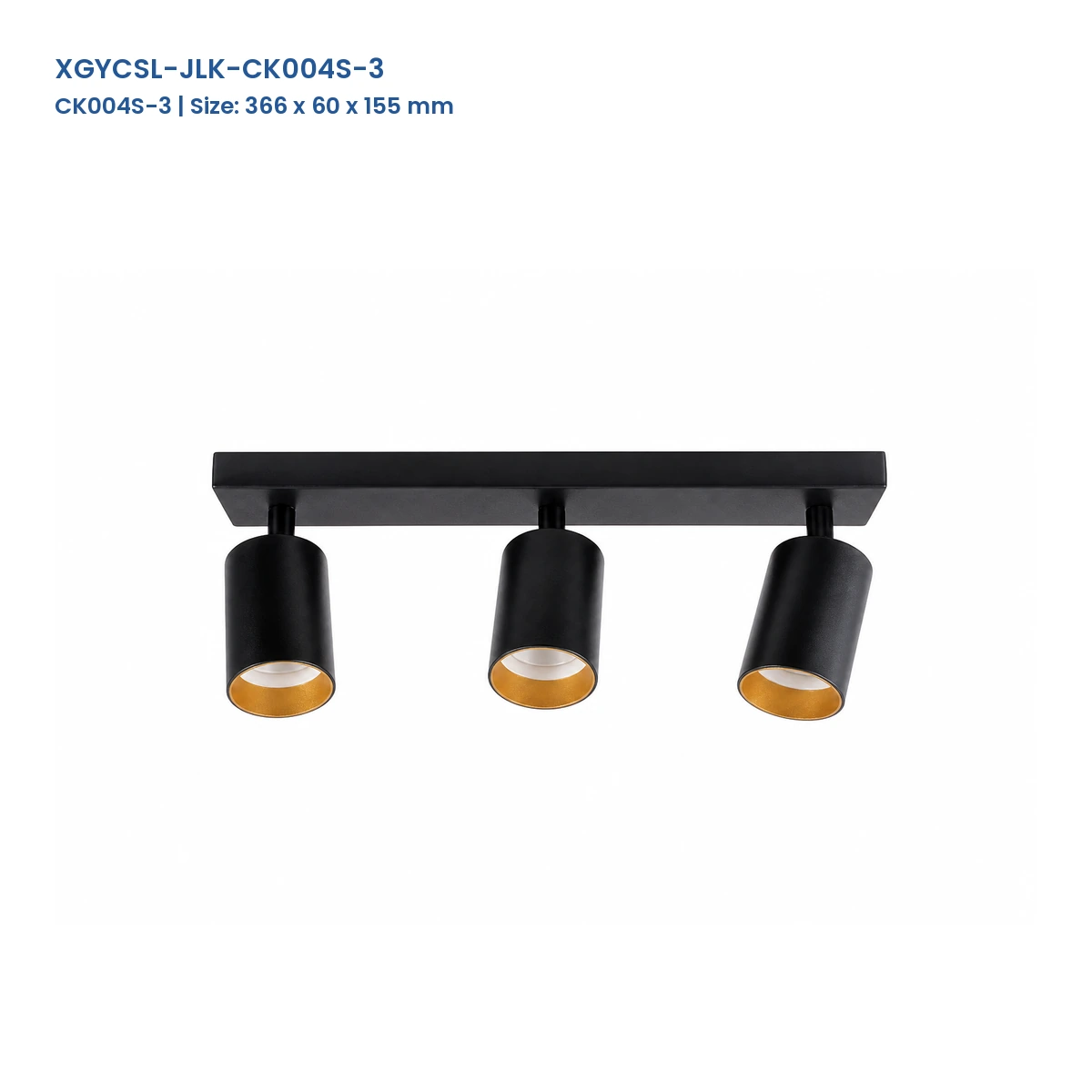

CK004S-3 surface-mounted linear base CK004 spotlight housing with 3 adjustable heads

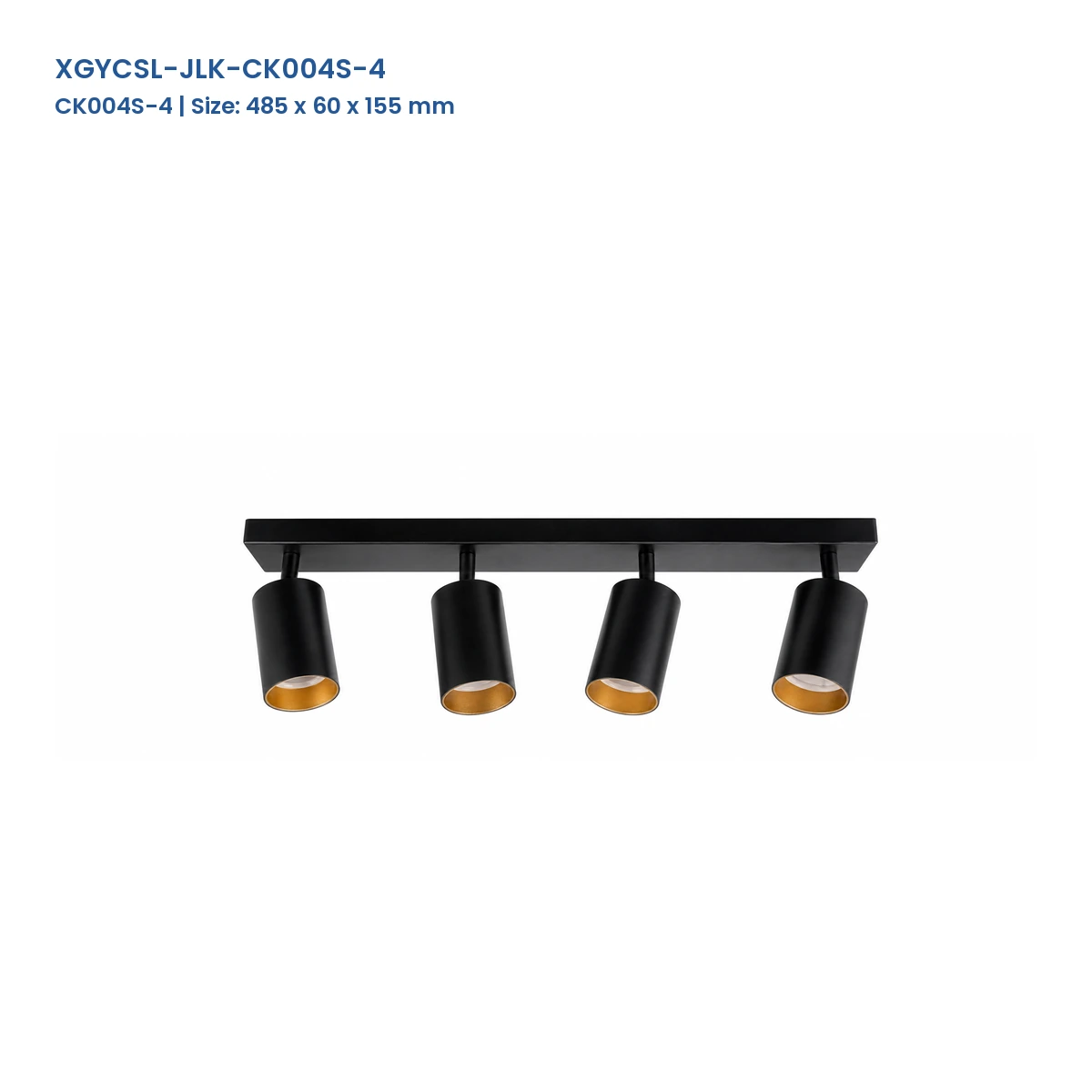

CK004S-4 surface-mounted linear base CK004 spotlight housing with 4 adjustable heads

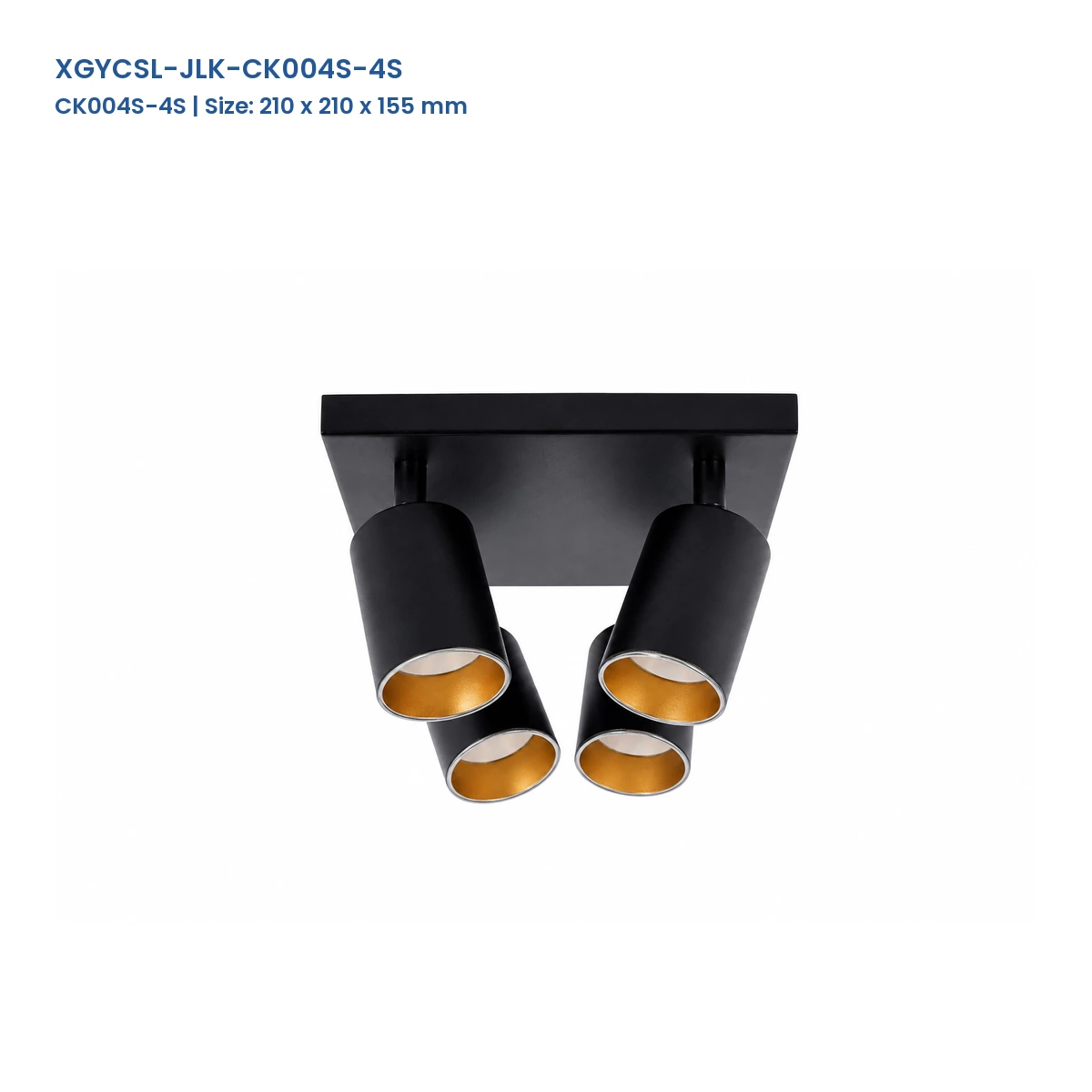

CK004S-4S surface-mounted square base CK004 spotlight housing with 4 adjustable heads

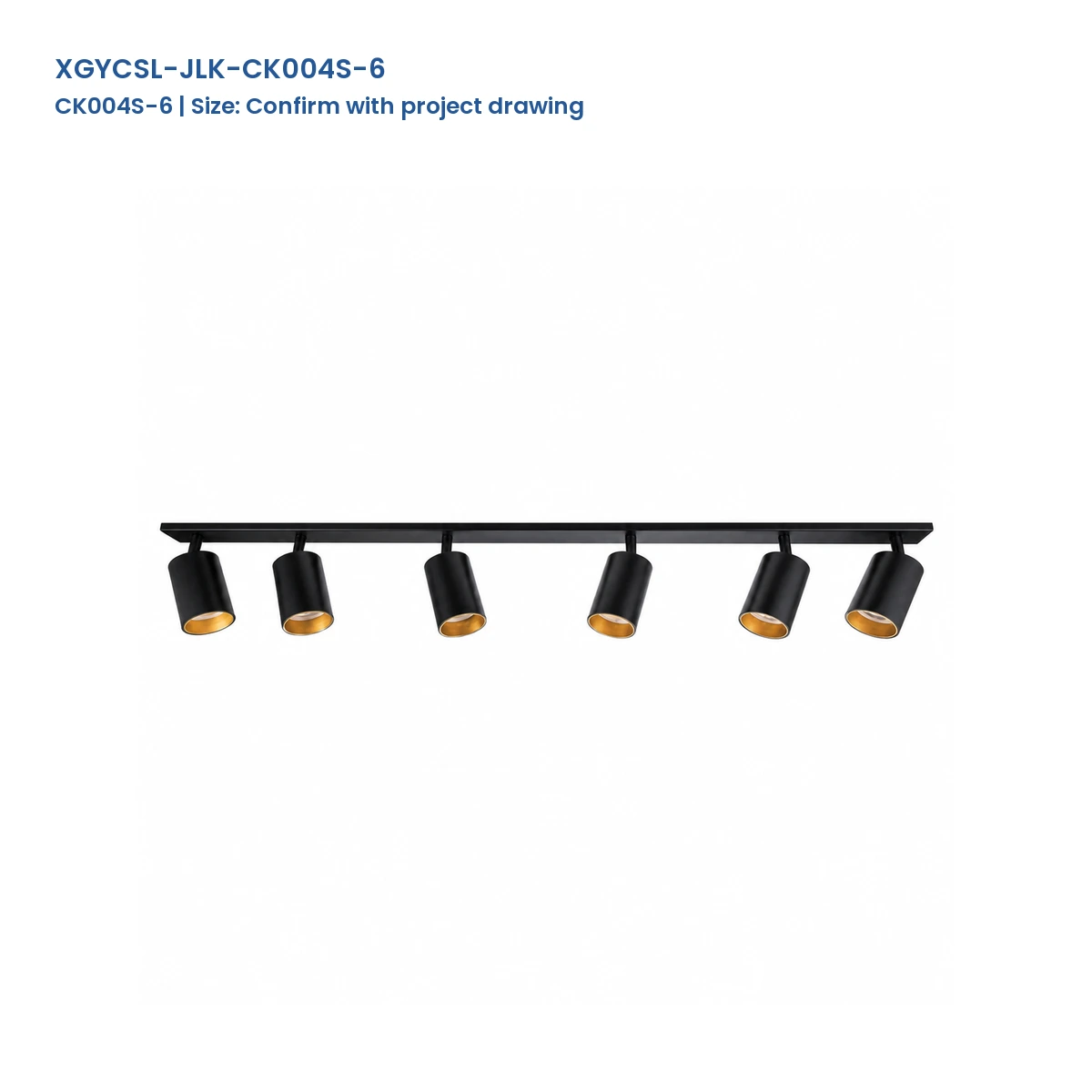

CK004S-6 surface-mounted long linear base CK004 spotlight housing with 6 adjustable heads

Technical Specifications

Model Specifications

Model No.Spec NameMountingDimensions (mm)HeadsConstruction
XGYCSL-JLK-CK004TCK004TTrack-mounted83 x 55 x 1711Black/white aluminum + steel
XGYCSL-JLK-CK004S-1CK004S-1Surface-mounted round base92.5 x 80 x 1551Black/white aluminum + steel
XGYCSL-JLK-CK004S-2CK004S-2Surface-mounted linear base210 x 60 x 1552Black/white aluminum + steel
XGYCSL-JLK-CK004S-3CK004S-3Surface-mounted linear base366 x 60 x 1553Black/white aluminum + steel
XGYCSL-JLK-CK004S-4CK004S-4Surface-mounted linear base485 x 60 x 1554Black/white aluminum + steel
XGYCSL-JLK-CK004S-4SCK004S-4SSurface-mounted square base210 x 210 x 1554Black/white aluminum + steel
XGYCSL-JLK-CK004S-6CK004S-6Surface-mounted long linear baseConfirm with project drawing6Black/white aluminum + steel

Product Description

Product Details

Product Construction

The finished body uses a track adapter, round base, linear base or square base according to the CK004 variant. Head count and dimensions remain tied to the complete code shown in the specification table.

Selection & Installation Notes

Select the complete model reference from the specification table rather than combining a base and head count independently. Confirm the track profile or ceiling mounting point, the lamp and holder package, required installation hardware and all model dimensions before production; use the approved project drawing for CK004S-6. Compare related formats in our GU10, MR16 and E27 housing range.

Recommended Application

Applications

  • Retail Display Accents: Arrange single or grouped housing positions above merchandise displays and feature areas.
  • Showroom Feature Lighting: Coordinate track-mounted or surface-mounted housings with the planned display layout.
  • Hospitality Accent Areas: Use grouped ceiling positions around counters, seating areas and decorative features.
  • Residential Feature Zones: Place selected housing formats above artwork, shelves or interior focal points.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Which CK004 model uses a track-mounted format?

CK004T is the listed track-mounted single-head reference. Confirm the track profile, adapter and supply scope before ordering.

How do the CK004S base layouts differ?

CK004S-1 uses a round base, CK004S-2, CK004S-3, CK004S-4 and CK004S-6 use linear base layouts, and CK004S-4S uses a square base. Select the complete reference for the required arrangement.

Are the lamp and holder included with every housing?

Specify the lamp and holder package separately for the selected model. Their inclusion and interface must be stated on the approved order.

What dimensions should be used for CK004S-6?

Use the approved project drawing for CK004S-6. Do not use an assumed numeric size for production or ceiling coordination.

How should a grouped CK004 housing be selected?

Choose the base layout and head count together under one complete model reference, then confirm the mounting point, spacing and required hardware.

What should be confirmed for an OEM/ODM order?

Confirm the exact model, finish sample, lamp and holder package, mounting interface, dimensions, labeling and packaging before production.
