Up-and-Down Wall-Mounted GU10/MR16 Spotlight Housing

This vertical wall spotlight housing uses a slender cylindrical profile with two opposed apertures, recessed silver-white end rings and a compact central rear block. The lamp and holder package remains a separate project selection.
  • Balanced Architectural Rhythm: Symmetrical proportions support orderly repetition along interior elevations.
  • Reduced Visual Depth: The fixture reads as a concise wall accent without an extended arm.
  • Twin-End Detailing: Matching inset borders give the top and bottom a consistent appearance.
FormatOpposed-end wall housing
MountingVertical wall mounted
Openings2 opposed ends
Overall Size181 x 55 x 98 mm
BodyBlack/white aluminum + PC
Supply BoundaryHousing only; light source not included
Request a Quote

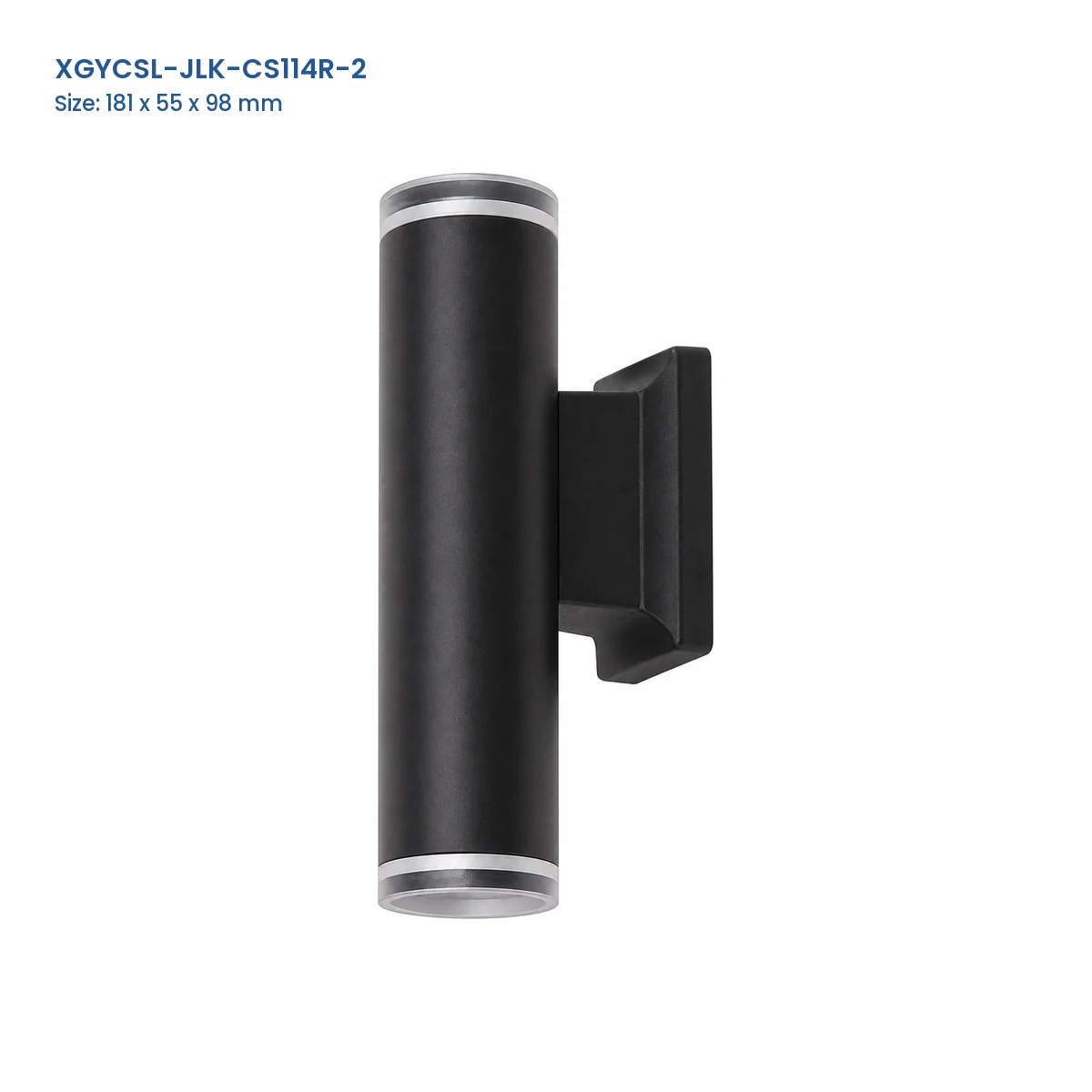

XGYCSL-JLK-CS114R-2 spotlight housing with Model and Size labels

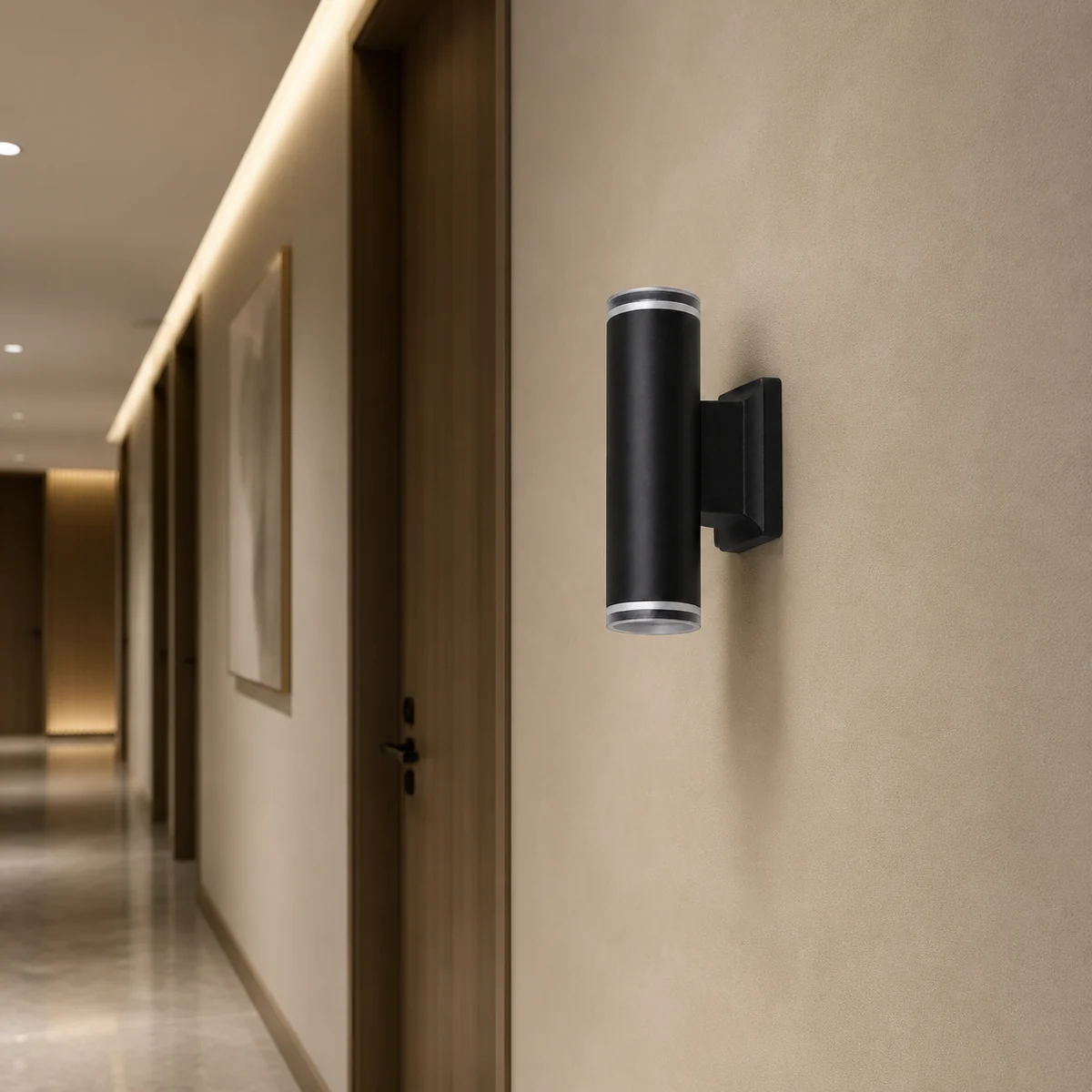

CS114R-2 up-and-down spotlight housing mounted vertically on an indoor corridor wall

Technical Specifications

Model Specifications

ModelSpec NameMountingOpeningsDimensions (mm)Body Material
XGYCSL-JLK-CS114R-2CS114R-2Vertical wall mounted2 opposed ends181 x 55 x 98Black/white aluminum + PC

Product Description

Product Details

Product Construction

A slim cylindrical enclosure places recessed silver-white rings at both ends. A short central bridge connects the body to a rectangular rear block.

Selection & Installation Notes

Use the complete reference and project drawing to confirm the body envelope, wall interface and required clearances. Specify the lamp and holder package separately because no holder assignment is established for this housing. Compare related formats in our GU10/MR16 housing range.

Recommended Application

Applications

  • Hotel Corridors: Arrange vertical housings at repeated positions along interior passage walls.
  • Residential Hallways: Use the compact profile beside entries, corridors and stair landings.
  • Lobby Feature Walls: Coordinate the balanced cylindrical form with reception and waiting-area elevations.
  • Retail Display Walls: Position the housing beside merchandise bays and branded interior features.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What is supplied with this spotlight housing?

The external housing is supplied without a light source. Specify the lamp and holder package separately.

What defines the visible housing shape?

A slender cylindrical body has opposed end apertures, matching recessed rings and a compact central rear block.

Do the opposed apertures prove an up-and-down light effect?

No. They describe the visible housing geometry only; the final optical result depends on the separately specified lamp and project configuration.

Which lamp holder fits this housing?

No holder assignment is established for the housing. Confirm the required holder interface and lamp dimensions before ordering.

How should the wall position be coordinated?

Check the complete reference and body envelope against the project elevation, wall interface and required access clearances.

What should be confirmed before sampling or production?

Confirm the complete reference, visible finish, lamp and holder package, lamp dimensions, wall interface, required clearances and final orientation.
