IP54 E27 Lantern Wall Light

XGYWL-5931 is an IP54 Class I lantern wall light with one visible, replaceable E27 lamp position. Its compact 245 × 140 × 110 mm housing combines an aluminum frame with a clear PC enclosure.
  • Visible Lantern Form: The clear PC enclosure keeps the selected E27 lamp visible within a rectangular frame.
  • Replaceable E27 Lamp: Lamp selection and servicing remain separate from the wall-light housing.
  • Compact Wall Projection: The vertical lantern body provides a defined entrance-lighting silhouette.
  • Protected Exterior Housing: Aluminum and PC construction supports the specified IP54 Class I configuration.
Lamp HolderE27 × 1
Lamp SupplyConfirm inclusion and electrical rating per order
Housing Dimensions245 × 140 × 110 mm
Specified CCT / PF3000 K / 0.5
Body MaterialAluminum + PC
Protection / Electrical ClassIP54 / Class I
Request a Quote

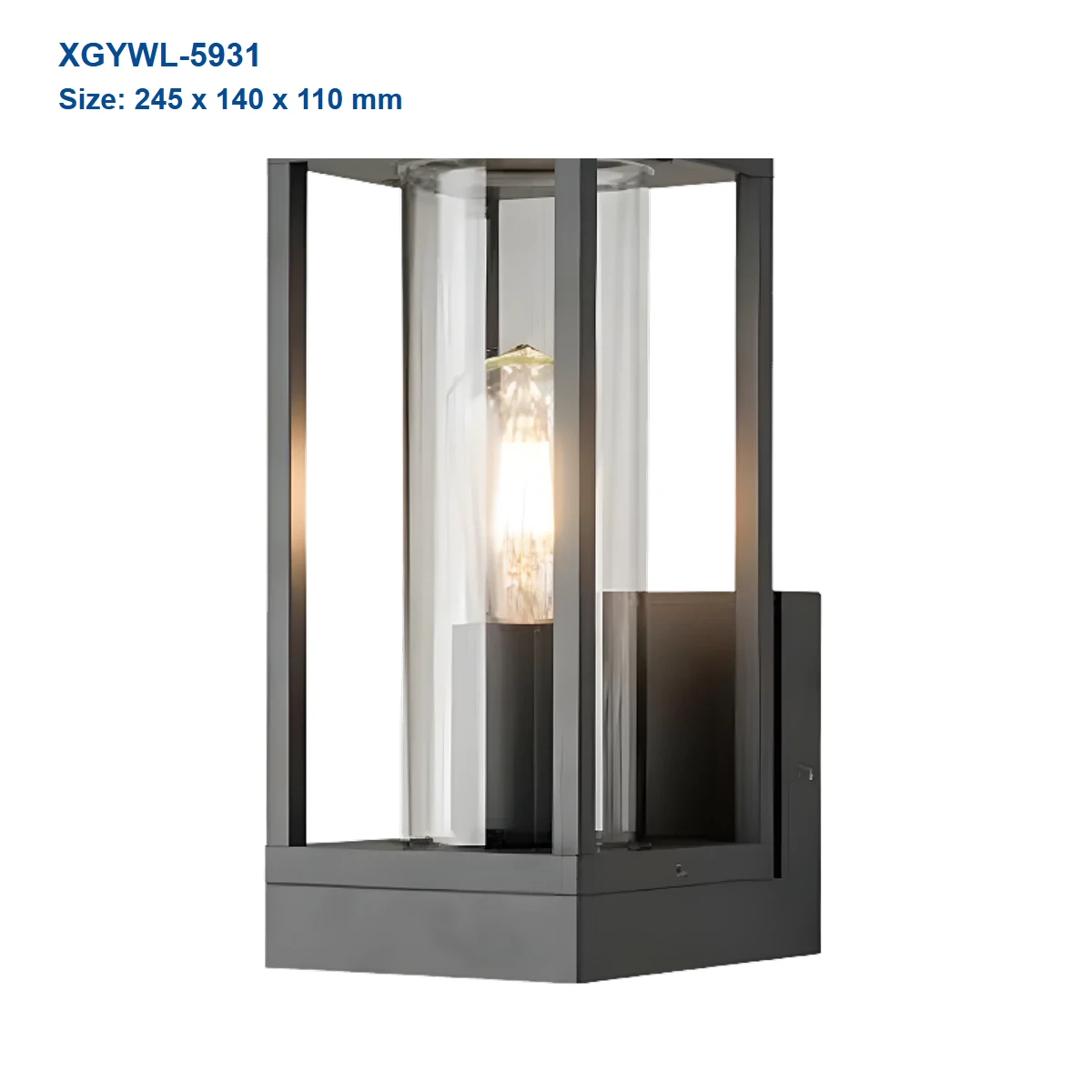

XGYWL-5931 IP54 E27 lantern wall light, 245 x 140 x 110 mm

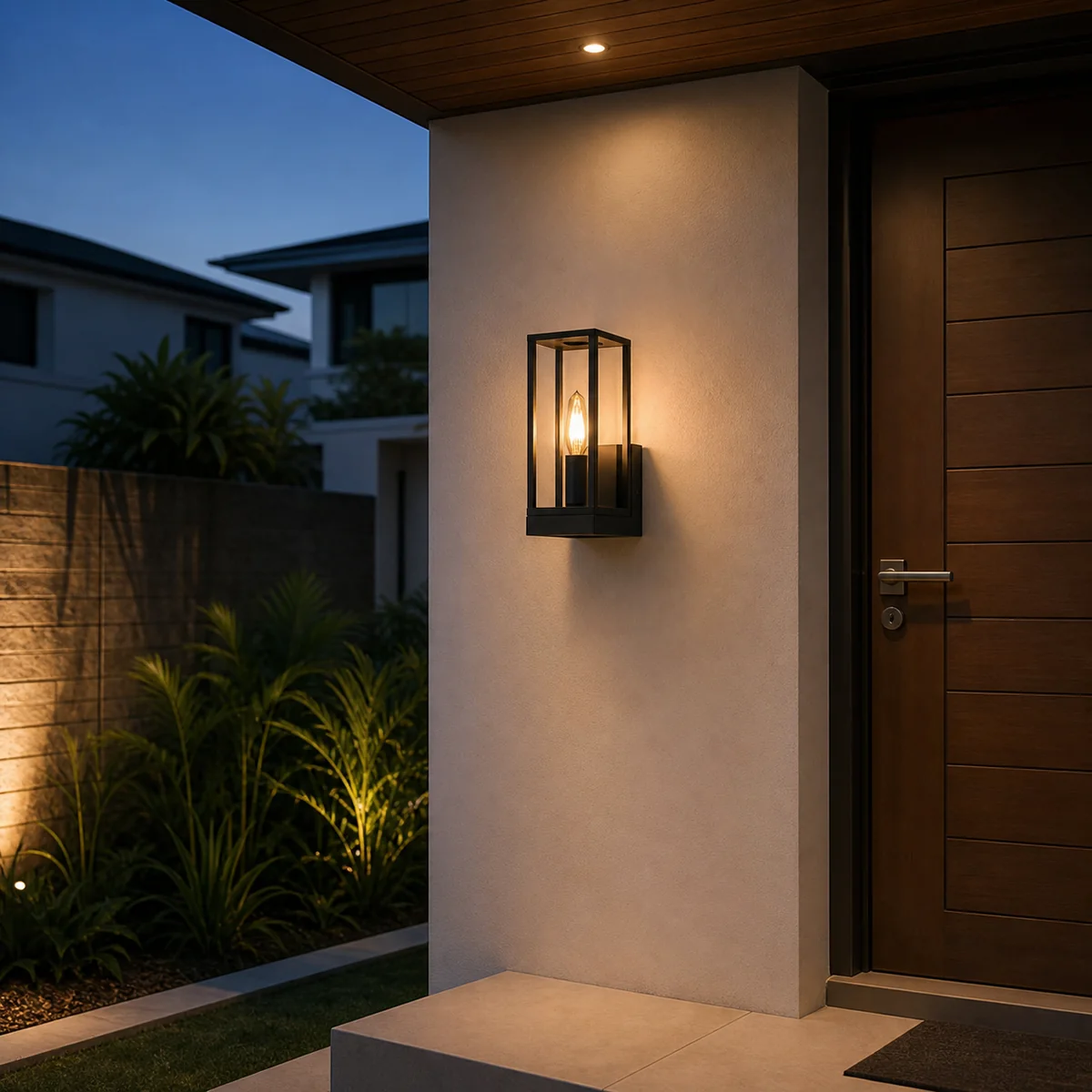

XGYWL-5931 E27 lantern wall light installed beside a residential entrance

Technical Specifications

Model Specifications

ModelDimensionsLamp HolderSpecified CCTBody MaterialPFProtection
XGYWL-5931245 x 140 x 110 mmE27 x 13000 KAluminum + PC0.5IP54, Class I

Product Description

Product Details

Product Construction

The assembled fitting has a power factor of 0.5 and a specified 3000 K lamp schedule.

Selection & Installation Notes

Confirm lamp inclusion, voltage, wattage, shape, beam and output before ordering. Check the available wall area, door swing, nearby glazing and cable route at the site, and leave enough clearance for inspection. Compare related products in our wall light housings range.

Recommended Application

Applications

  • Residential Entrances: Provides visible-lamp wall lighting beside exterior doorways.
  • Covered Terraces: Supports serviceable wall lighting in sheltered outdoor seating areas.
  • Hospitality Approaches: Adds a lantern-style wall accent along guest arrival routes.
  • Exterior Service Areas: Provides replaceable-lamp illumination on suitable IP54 wall positions.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Is the E27 lamp included?

Lamp inclusion is an order choice. Specify whether an E27 lamp is required and approve its electrical rating, shape, beam and output before production.

Can the E27 lamp be replaced?

Yes. The housing uses one serviceable E27 lamp position; allow enough access to remove the clear cover and replace the lamp.

Can a decorative filament-style lamp be used?

A compatible decorative lamp can be evaluated. Check its dimensions, wattage, heat, glare and appearance inside the clear enclosure on the complete sample.

Does the housing have a fixed lumen output?

No. The selected E27 lamp determines the final lumen output, wattage and beam, within the approved housing and thermal limits.

What is required for the Class I installation?

Provide protective earth and follow the approved local wiring, wall-interface and cable-entry method for Class I equipment.

Can the IP54 lantern be installed where water pools?

No. Keep the intended wall orientation, cable-entry seal and enclosure joints intact, and do not use the fitting for immersion or persistent high-pressure water exposure.
