PIR Wall-Mounted E27 Lamp

This PIR wall-mounted E27 lamp combines an upright cylindrical body with a translucent upper enclosure and a sensor positioned on the lower front. Its compact wall profile suits interior approach and circulation areas where local motion-responsive switching is part of the brief.
  • Route-Facing Response: The front sensor area supports intentional orientation toward an interior approach path.
  • Slender Wall Presence: The upright profile occupies a compact horizontal visual footprint.
  • Layered Material Expression: Translucent and opaque areas create clear contrast across the visible form.
  • Separate Lamp Specification: The E27 format keeps lamp selection tied to the project brief.
Product FormatWall-mounted E27 lamp with front PIR detector
Lamp BoundaryE27 x1 Rating; lamp inclusion not stated
ControlPIR; numerical settings not published
Material / ClassAlu+PC; Class I
CCT / PF3000K; PF 0.5
Overall Size240 x 160 x 105 mm, L x W x H
Request a Quote

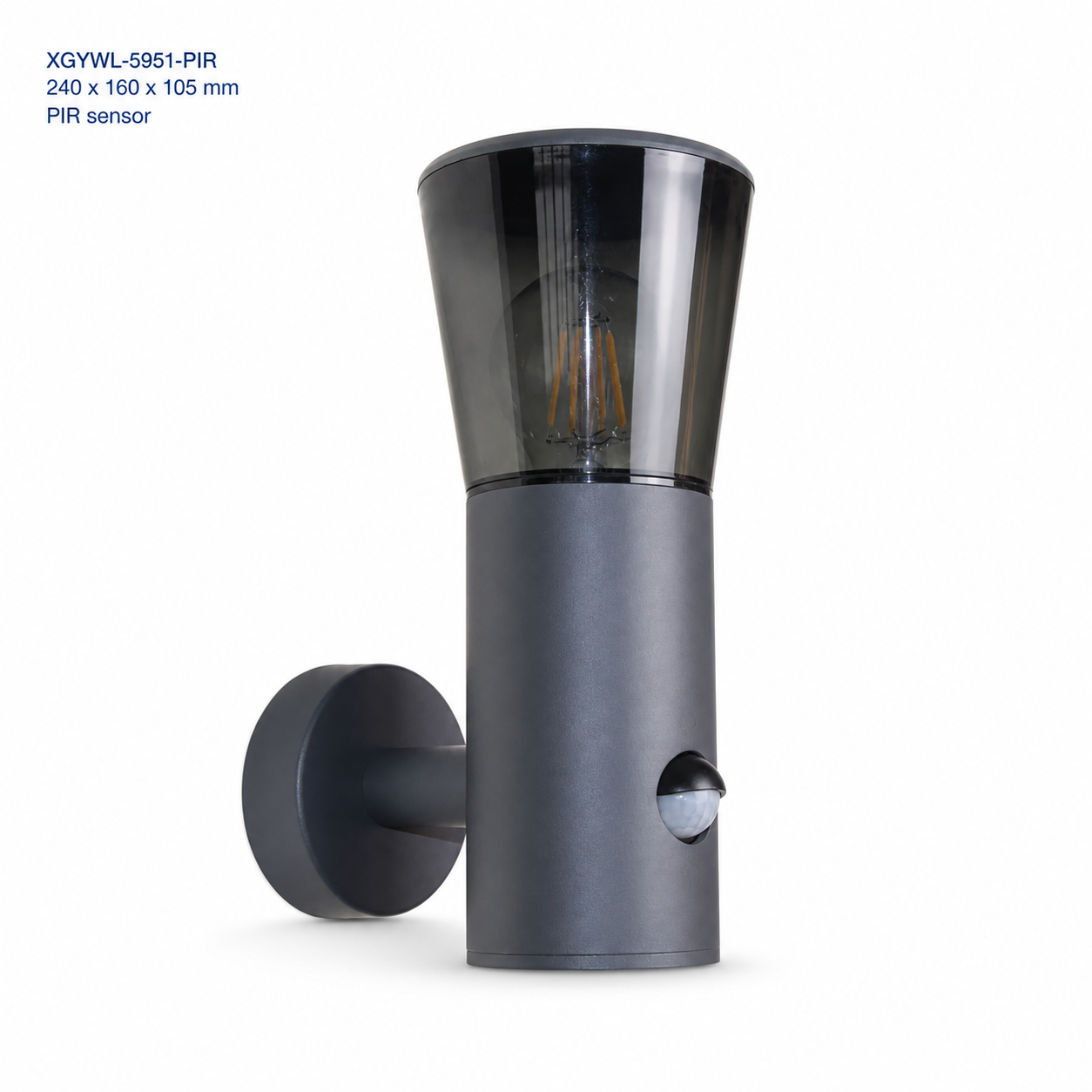

XGYWL-5951-PIR PIR wall-mounted E27 lamp, 240 x 160 x 105 mm L x W x H

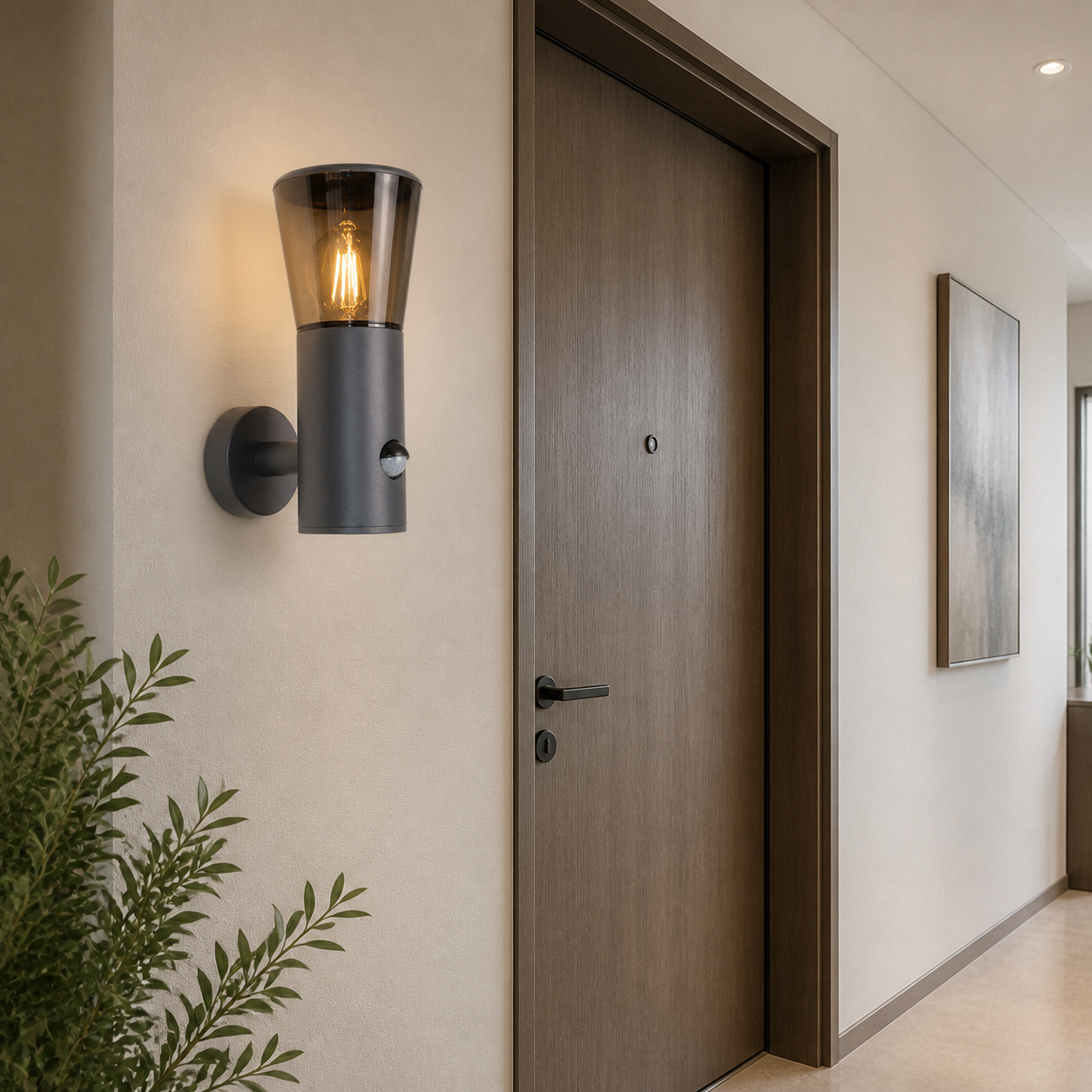

XGYWL-5951-PIR PIR wall-mounted E27 lamp beside an interior entrance

Technical Specifications

Model Specifications

ModelLamp FormatControlEquipment ClassBody MaterialCCTPFDimensions (L x W x H)
XGYWL-5951-PIRE27 x1 RatingPIRClass IAlu+PC3000K0.5240 x 160 x 105 mm

Lamp inclusion is not stated. No IP rating, outdoor suitability or numerical PIR settings are published for this model.

Product Description

Product Details

Product Construction

A circular wall plate supports a short offset arm and an upright main body. The lamp chamber and detector window are incorporated within the finished assembly.

Selection & Installation Notes

Plan the wall location around the approach direction, service access and complete product envelope. Specify the E27 lamp separately because inclusion is not established, then confirm PIR settings and project wiring in the approved submittal. Compare related formats in our wall light housing range.

Recommended Application

Applications

  • Interior Entrances: Position the lamp beside an interior doorway with the detector facing the normal approach route.
  • Residential Corridors: Use the upright wall format along indoor circulation paths and shared access areas.
  • Apartment Landings: Place the fixture on an interior landing wall near the expected pedestrian route.
  • Indoor Service Areas: Coordinate the compact wall profile with back-of-house passages and access points.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Is an E27 lamp included with this fixture?

Lamp inclusion is not established by the available product evidence. Confirm the required E27 lamp and its supply status in the project order.

What does the PIR designation indicate?

It identifies detector-based control at the wall-light position. Numerical detection settings are not established, so confirm the required response on the approved sample.

How should the detector face the approach route?

Orient the visible front detector toward the intended interior approach path, then verify the required response and surrounding clearances on the project sample.

How does this differ from a wall lamp without PIR control?

This product includes a visible PIR detector as part of the fixture identity. Confirm the exact control behavior and settings required for the project.

Is outdoor suitability established for this wall lamp?

No outdoor suitability is established by the available product evidence. Use it only where the project documentation confirms the required environmental protection.

What should be confirmed before sampling or production?

Confirm the complete reference, E27 lamp package, PIR behavior, visible finish, wall interface, wiring documentation and physical sample.
