IP65 Horizontal Edge-Lit Solar Wall Light with Motion Sensor
- Wide Edge-Lit Face: A horizontal luminous band spreads the visible light across the front of the compact wall-mounted body.
- Separated Working Surfaces: The upper collection plane and front luminous plane remain visually and functionally distinct.
- Cable-Free Wall Format: Self-contained energy collection and storage allow placement without a fixed mains supply.
- Sensor-Assisted Operation: Ambient-light and movement inputs support automatic outdoor use without a separate wired control.
| Rated power / output | 2.4 W / 280 lm maximum |
|---|---|
| Solar panel | 3.7 V / 1.7 W |
| Battery | 18650 / 1800 mAh |
| Dimensions | 212 × 80 × 82 mm |
|---|---|
| Housing / protection | ABS + PC / IP65 |
| Sensor | Light and motion sensor |
Technical Specifications
Model Specifications
| Model | Dimensions | Light Output | Solar Panel | Battery | Housing / Sensor |
|---|---|---|---|---|---|

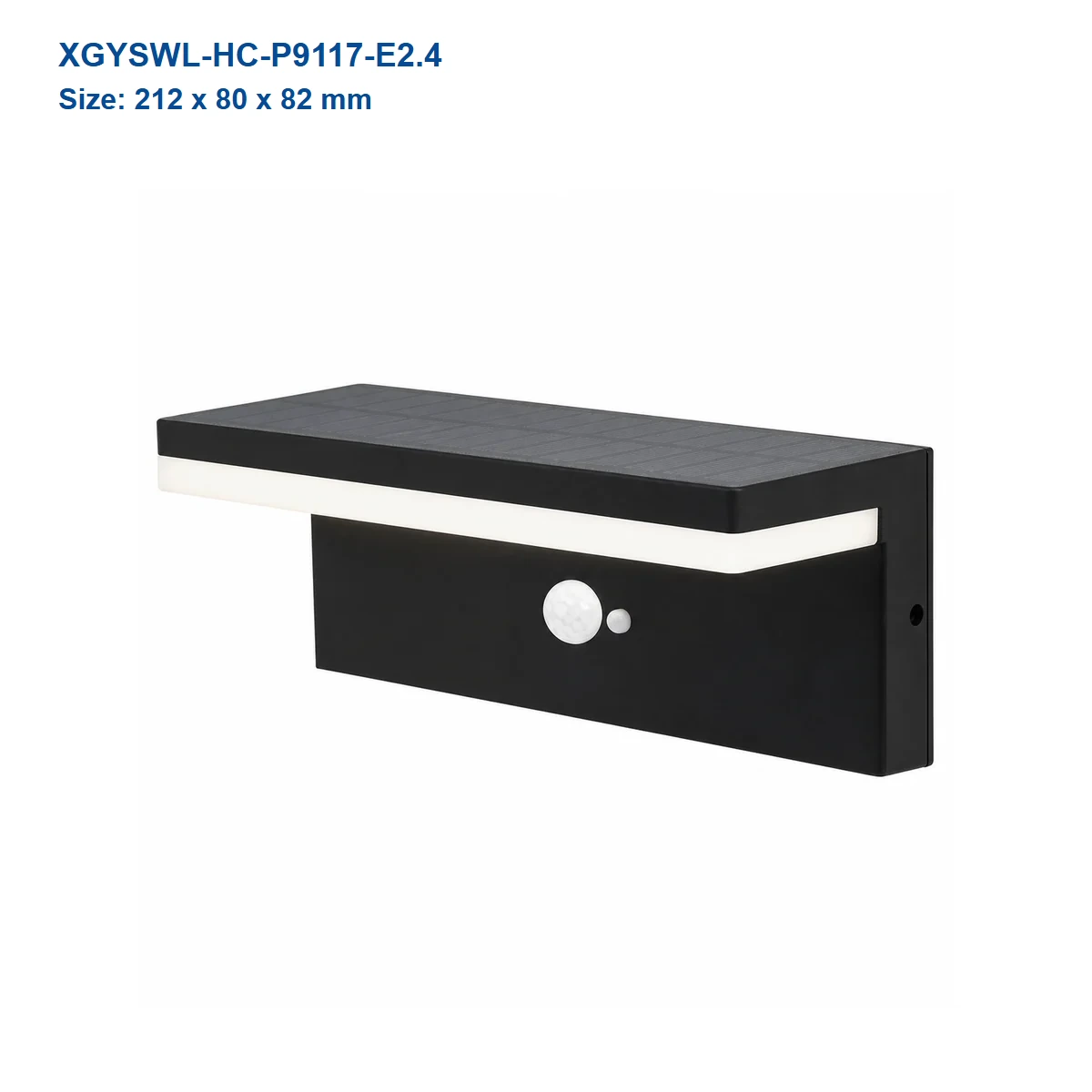

| XGYSWL-HC-P9117-E2.4 | 212 × 80 × 82 mm | 2.4 W / 280 lm max. | 3.7 V / 1.7 W | 18650 / 1800 mAh | ABS + PC / IP65 / light + motion |
Product Description
Product Details
Product Construction
The ABS and PC enclosure forms a fixed 212 × 80 × 82 mm horizontal assembly containing the solar charging, battery and LED components.
Selection & Installation Notes
Choose a stable exterior position that receives useful daylight and leaves the front detection area unobstructed. Preserve the enclosure seals, avoid drilling through protected parts and allow access for inspection and cleaning. Define the required detection range, hold time and operating sequence in the order specification. Compare related products in our solar wall lights range.
Recommended Application
Applications

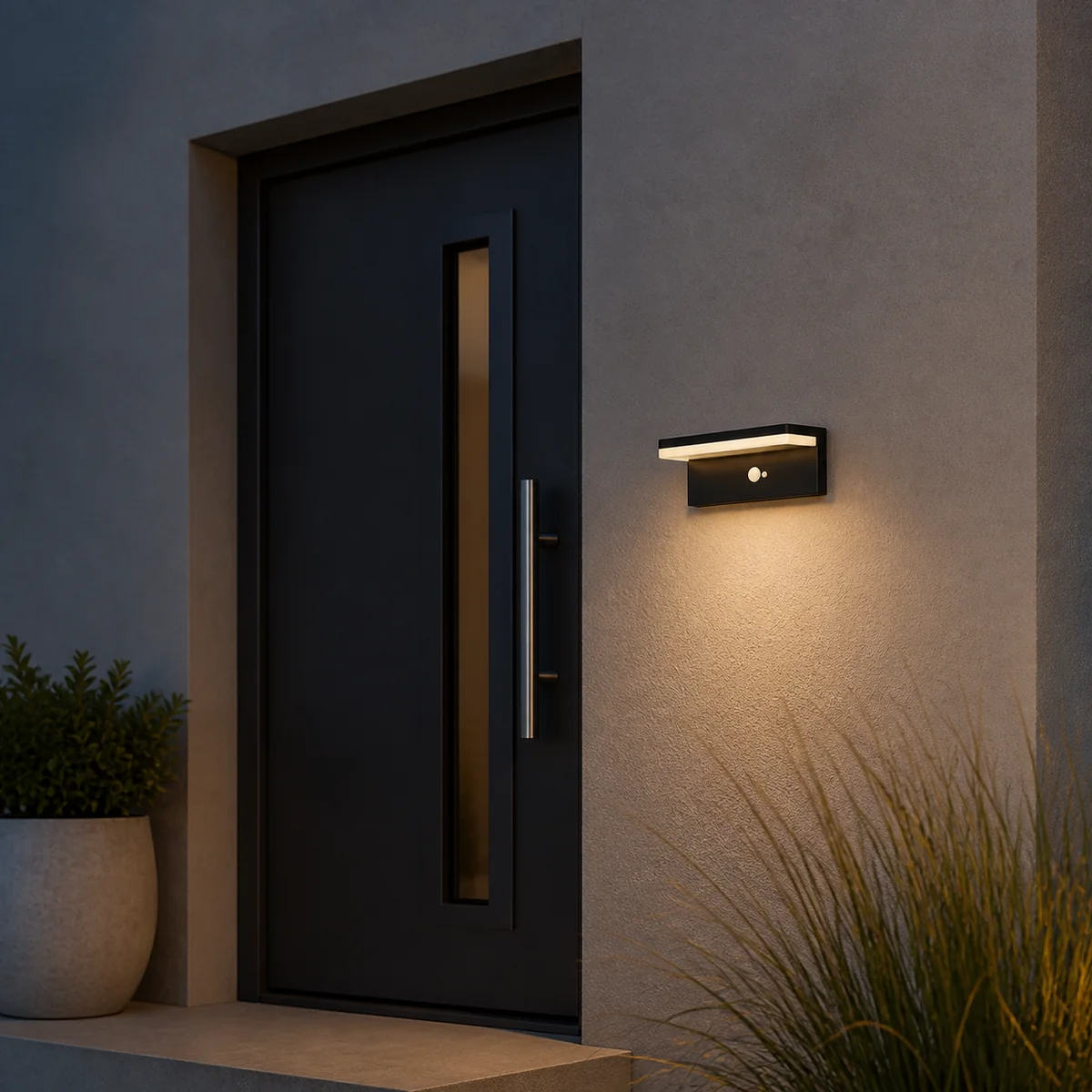

- Residential Entrances: Adds sensor-assisted solar lighting beside exterior doors and arrival points.
- Garden Walls: Provides local horizontal wall lighting beside planting and circulation areas.
- Side Passages: Supports movement-responsive illumination along narrow exterior passages.
- Courtyard Paths: Adds fixed solar lighting beside courtyard circulation routes.
