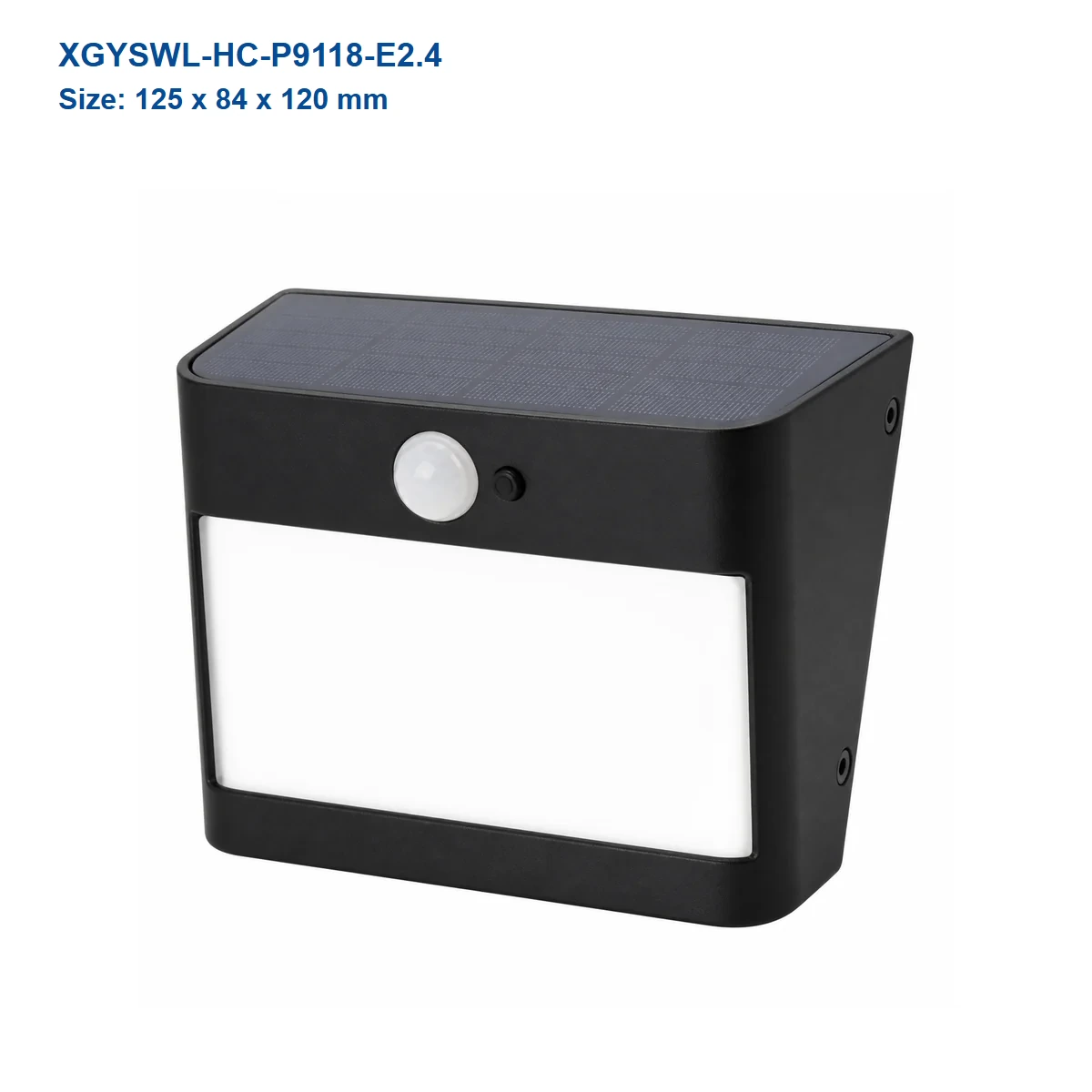

IP65 Full-Diffuser Solar Wall Light with Motion Sensor
This compact IP65 solar wall light combines a broad front diffuser, integrated solar charging, and light and motion sensing for fixed exterior wall mounting.
- Raised Collection Face: The upper energy-collection plane remains exposed when the lamp is mounted upright.
- Wide Luminous Window: The rectangular front lens occupies most of the visible lower face.
- Centered Approach Detector: The circular detector faces forward above the luminous window.
- Rounded Rectangular Housing: Soft corners and a shallow projecting body distinguish this compact wall-mounted form.
| Dimensions | 125 × 84 × 120 mm |
|---|---|
| Rated Power / Maximum Output | 2.4 W / 280 lm |
| Solar Panel | 3.7 V / 1 W |
| Battery | 18650 1200 mAh |
|---|---|
| Housing / Protection | ABS + PC / IP65 |
| Sensor | Light / motion sensor |
Technical Specifications
Model Specifications
| Model | Dimensions | Rated Power | Maximum Output | Solar Panel | Battery | Housing / Protection | Sensor |
|---|---|---|---|---|---|---|---|
| XGYSWL-HC-P9118-E2.4 | 125 × 84 × 120 mm | 2.4 W | 280 lm | 3.7 V / 1 W | 18650 1200 mAh | ABS + PC / IP65 | Light / motion sensor |
Product Description
Product Details
Product Construction
This fixed assembly houses the operating components behind a single exterior enclosure.
Selection & Installation Notes
Choose a stable exterior wall position with useful daylight exposure and keep the front detection area unobstructed. Preserve the IP65 enclosure arrangement during mounting and define the required detection range, hold time and operating sequence in the order specification. Compare related products in our solar wall lights range.
Recommended Application
Applications
- Residential Entrances: Adds sensor-assisted solar lighting beside exterior doors and arrival routes.
- Garden Walls: Provides fixed solar lighting from a wall beside garden access routes.
- Outdoor Steps: Adds approach-responsive lighting beside exterior steps and level changes.
- Side Passages: Supports movement-responsive lighting along narrow exterior walkways.
