D Series Recessed Artificial Skylights
- Oblique Illumination: The angled optical path creates a directional ceiling-and-wall lighting effect instead of a flat panel appearance.
- Blue Optical Surface: The visible blue panel creates a defined sky-like ceiling feature within the recessed opening.
- Five Ceiling Formats: Square and rectangular bodies support different ceiling modules and room layouts.
- Adjustable White Scenes: The specified CCT range supports warmer and cooler interior lighting scenes.
| Installation | Recessed / spring clamp or slider by format |
|---|---|
| Formats | 300 x 300 to 600 x 1200 mm |
| Power / Output | 25-150 W / 1000-6000 lm |
| CCT / CRI | 2100-7800 K / Ra93 |
|---|---|
| Electrical | 100-240 V / PF 0.5 |
| Operation | No flicker / 30,000 h rated life |
Technical Specifications
Model Specifications
| Model No. | Body Size (W x H x T) | Opening | Light Surface | Power | Output | CCT | CRI |
|---|---|---|---|---|---|---|---|

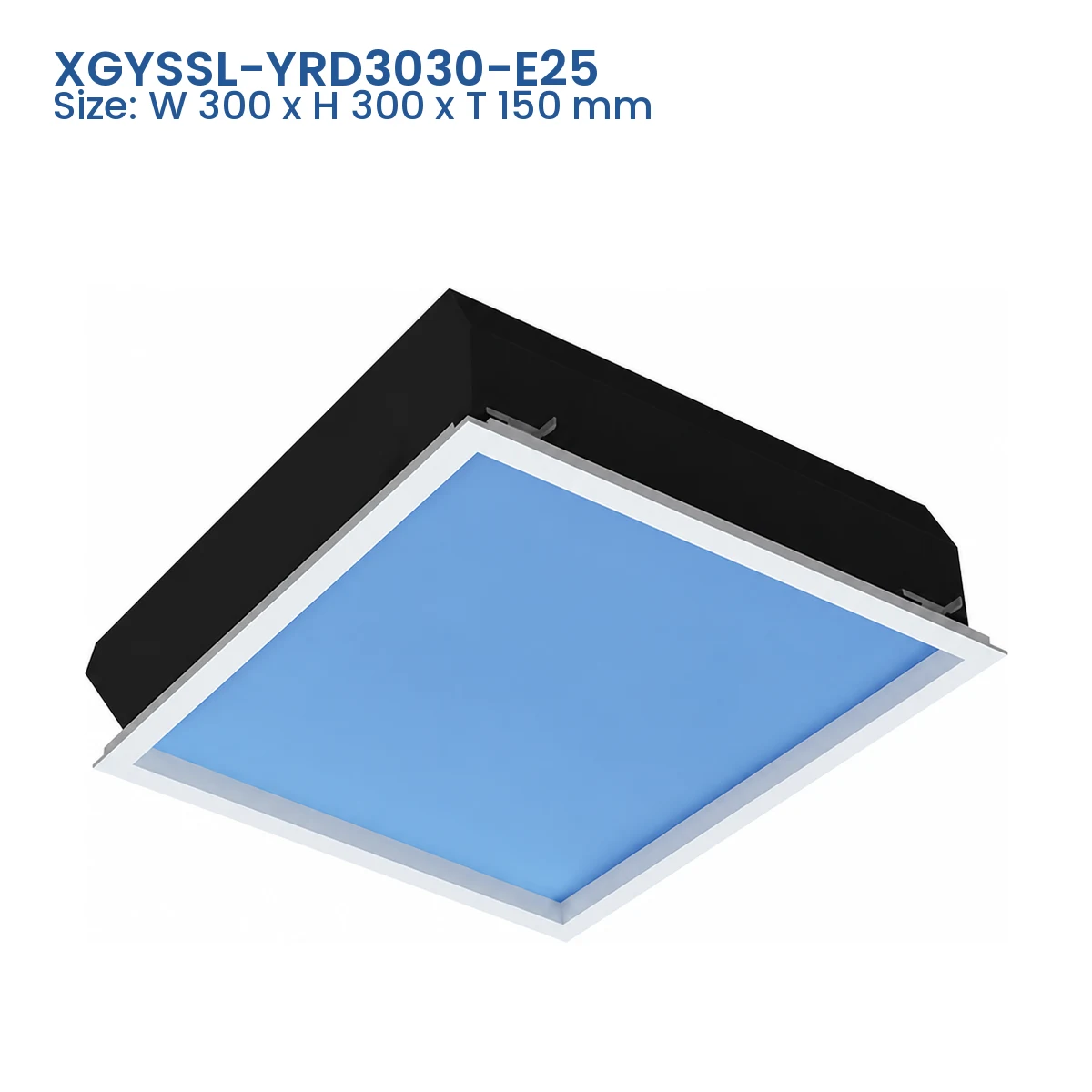

| XGYSSL-YRD3030-E25 | 300 x 300 x 150 mm | 285 x 285 mm | 244 x 244 mm | 25 W | 1000 lm | 2100-7800 K | Ra93 |

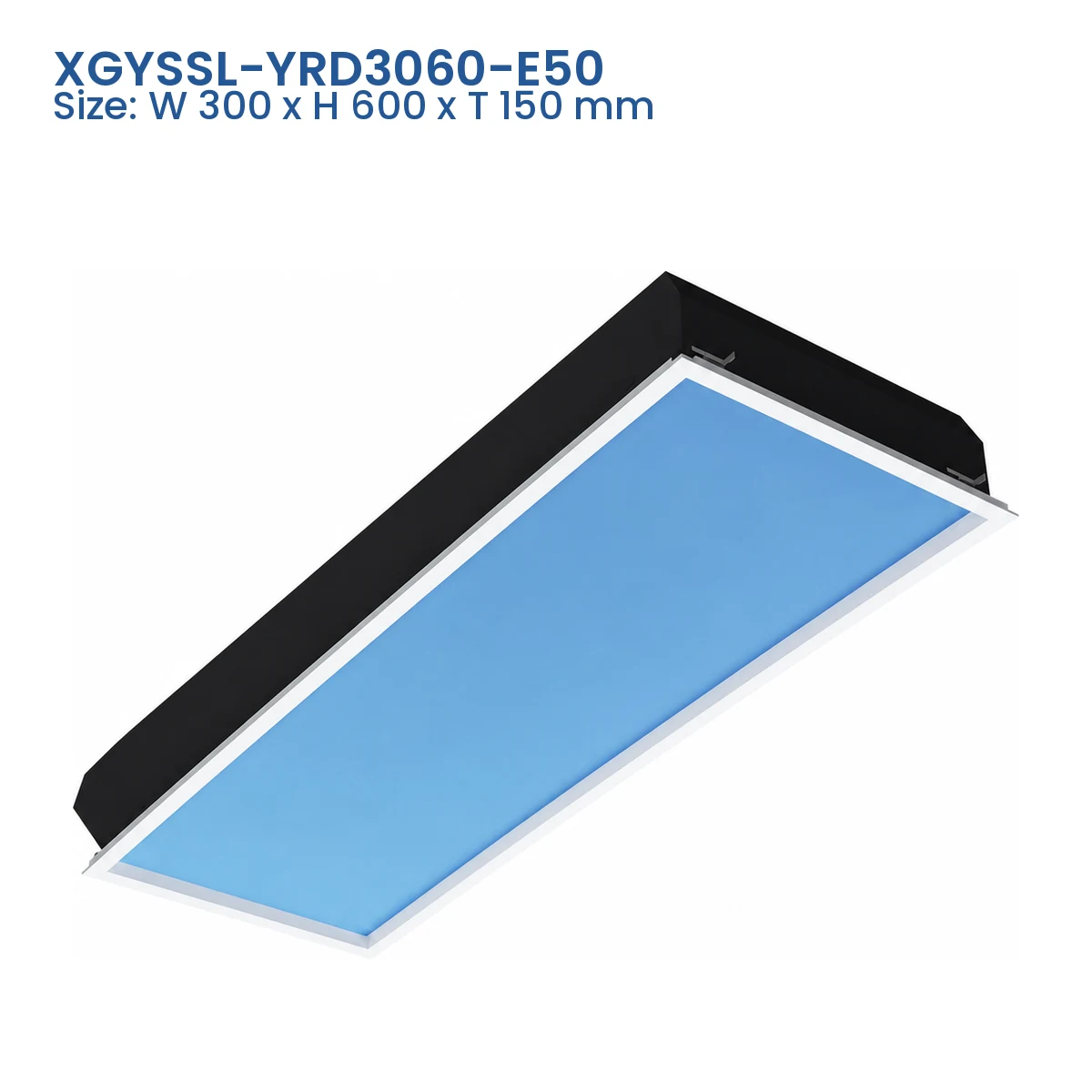

| XGYSSL-YRD3060-E50 | 300 x 600 x 150 mm | 285 x 585 mm | 244 x 544 mm | 50 W | 2000 lm | 2100-7800 K | Ra93 |
| XGYSSL-YRD30120-E100 | 300 x 1200 x 150 mm | 285 x 1185 mm | 244 x 1144 mm | 100 W | 4000 lm | 2100-7800 K | Ra93 |

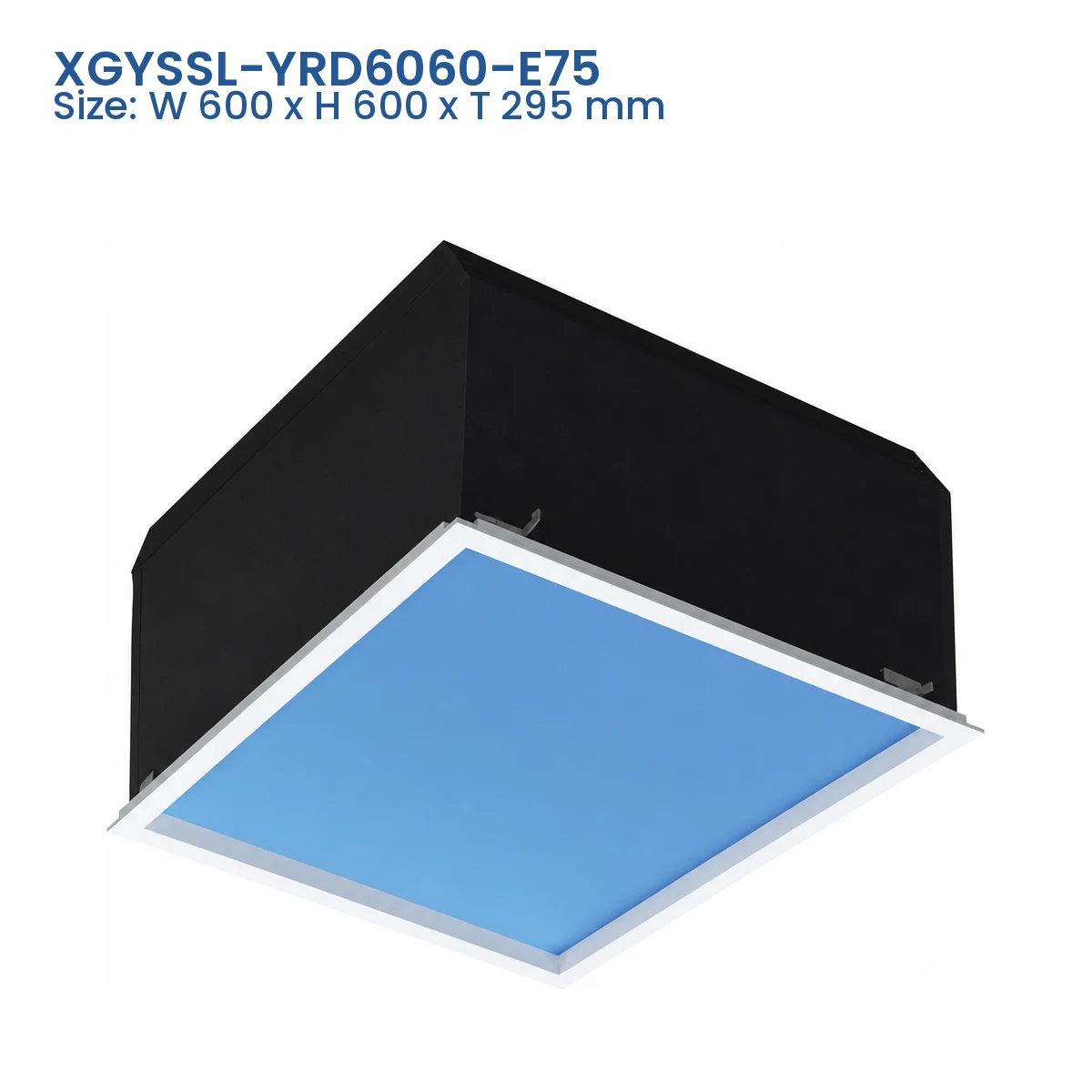

| XGYSSL-YRD6060-E75 | 600 x 600 x 295 mm | 585 x 585 mm | 500 x 500 mm | 75 W | 3000 lm | 2100-7800 K | Ra93 |

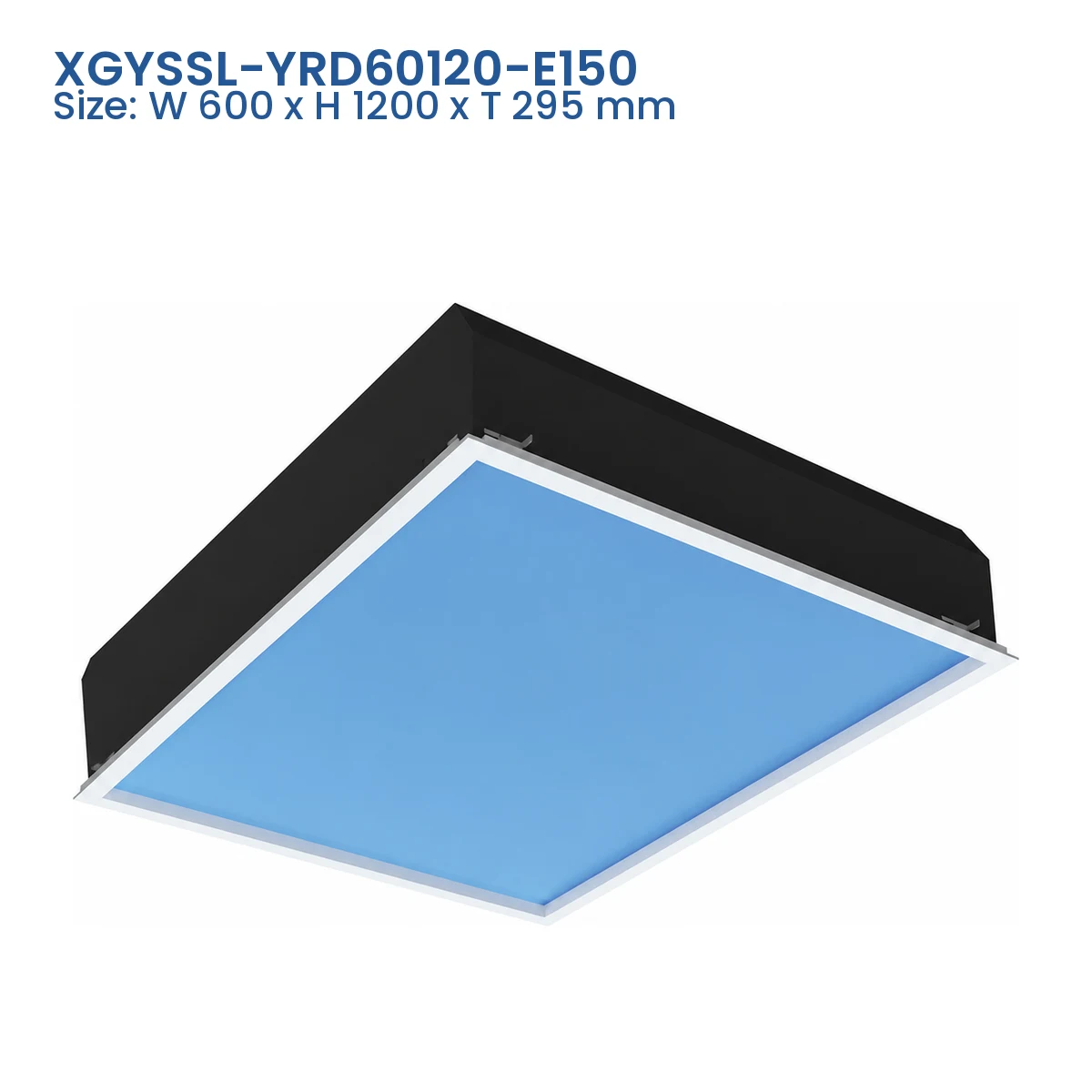

| XGYSSL-YRD60120-E150 | 600 x 1200 x 295 mm | 585 x 1185 mm | 500 x 1100 mm | 150 W | 6000 lm | 2100-7800 K | Ra93 |
Shared series data: 100-240 V input, PF 0.5, no flicker and 30,000 h rated life.
Product Description
Product Details
Product Construction

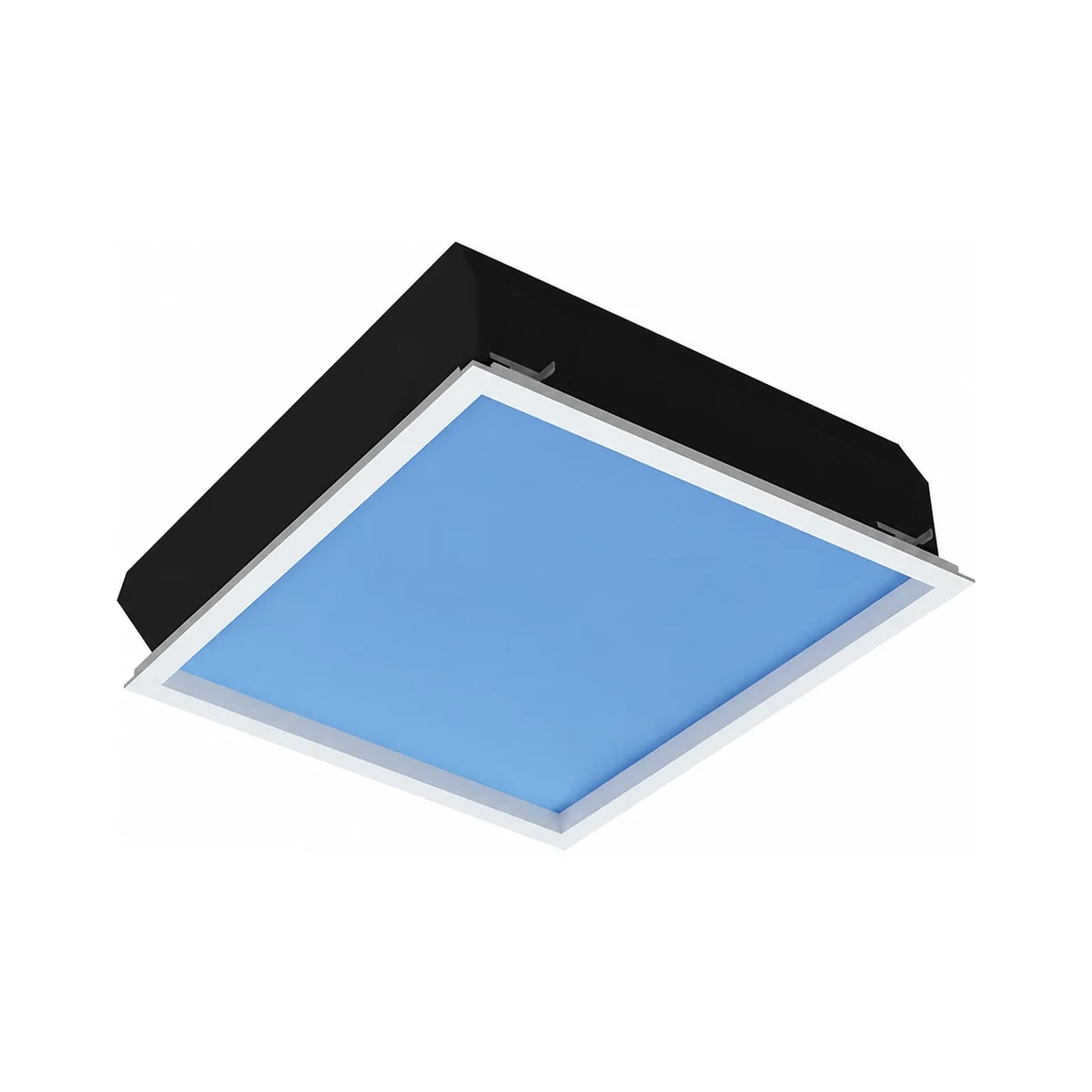

Each D Series luminaire combines an enclosed black cabinet above the ceiling with a slim white trim at the finished plane. The driver, controller and safety retention remain within the above-ceiling assembly.
Selection & Installation Notes
Select the exact row by ceiling module, opening, plenum depth and required output. Match the specified spring clamps or slider hardware to the chosen format, install the safety rope and preserve service access. Define the control interface, scene behavior and restart setting with the ordered control package. Compare related products in our artificial skylight range.
Recommended Application
Applications

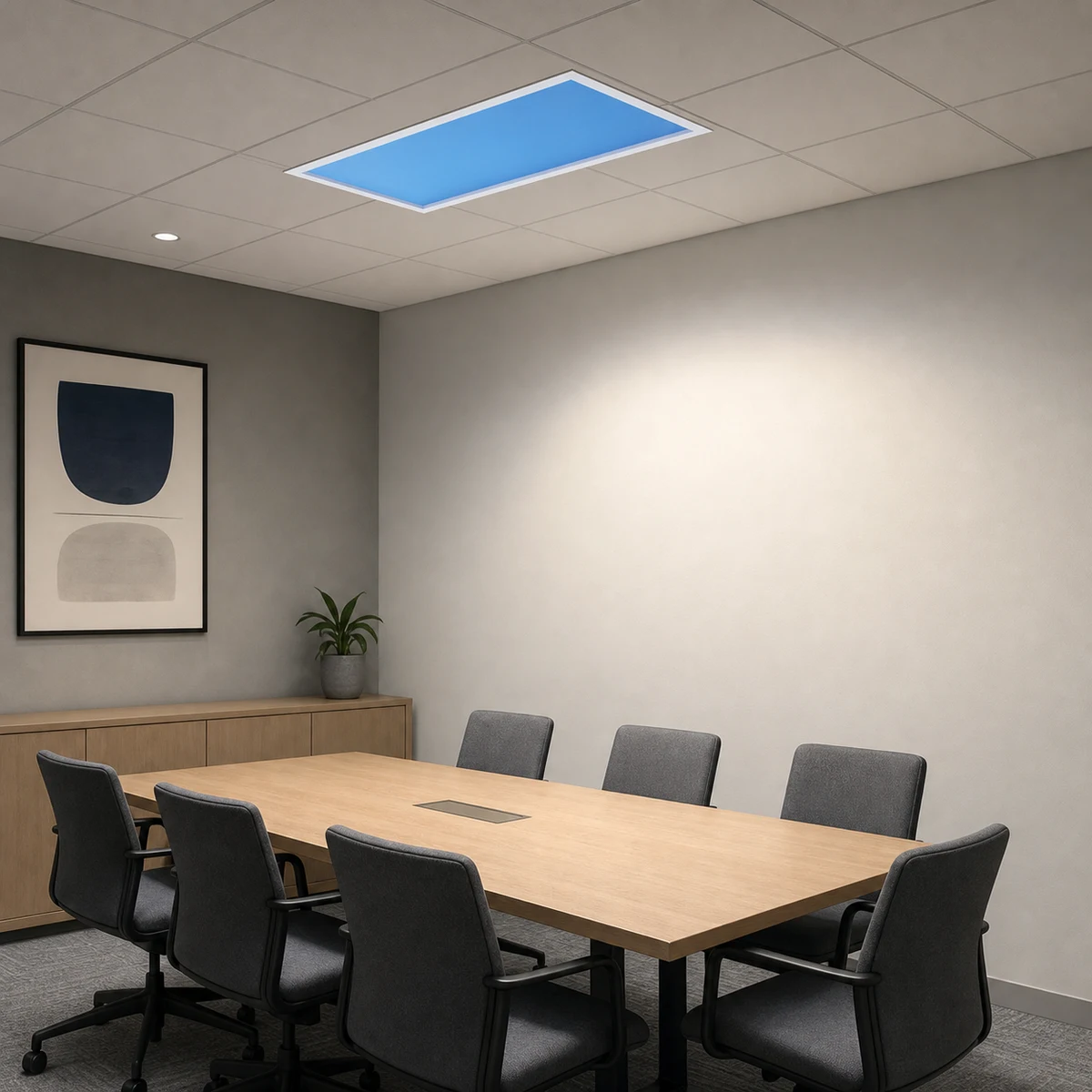

- Windowless Meeting Rooms: A recessed blue ceiling feature adds directional ambient light across conference areas and nearby walls.
- Healthcare Circulation Areas: Artificial skylight panels create a distinct ceiling feature in waiting rooms, corridors and interior circulation spaces.
- Hospitality Ceiling Features: Square and rectangular formats integrate with hotel, lounge and restaurant ceiling layouts.
- Retail Experience Zones: Oblique illumination shapes ambient light around displays and customer circulation areas.
