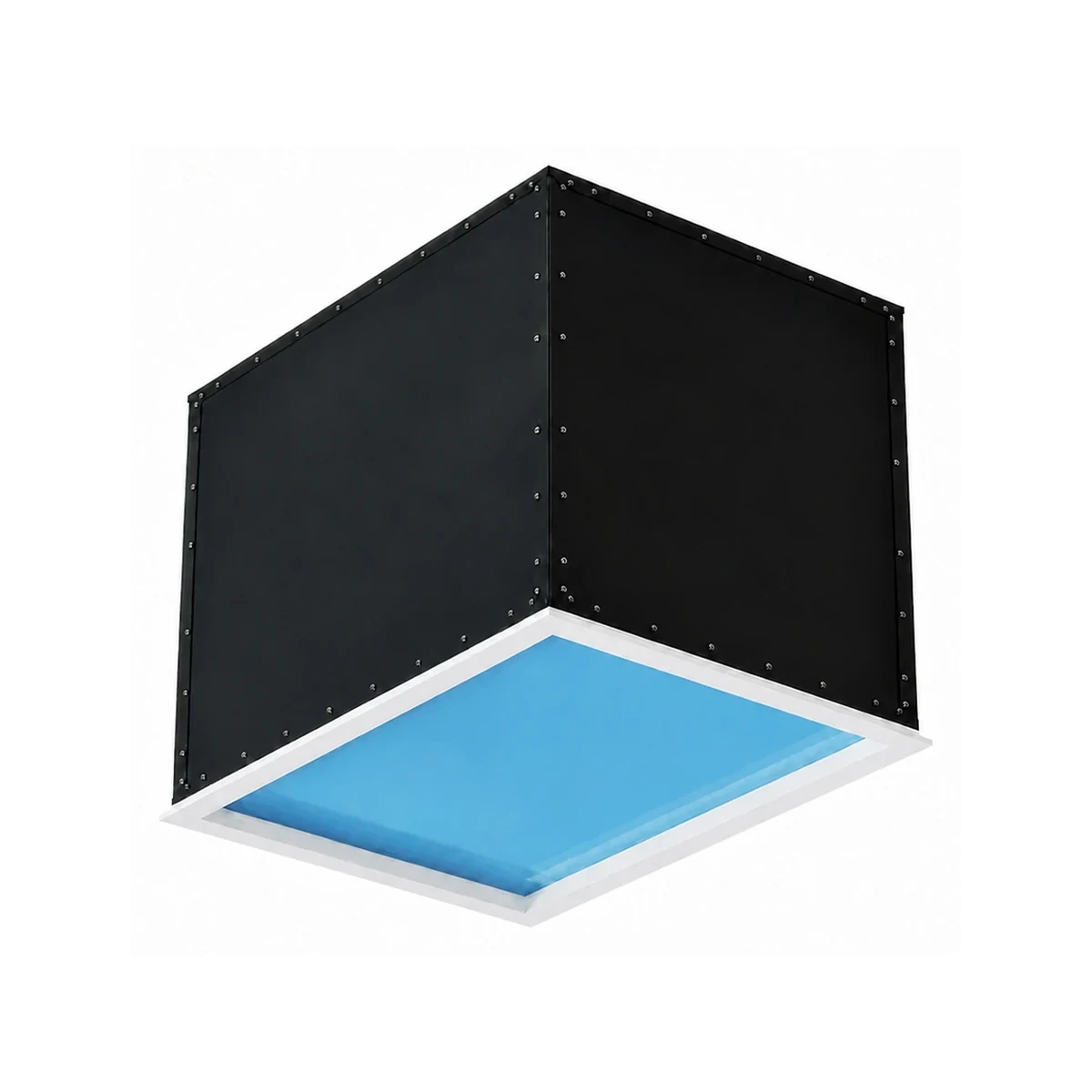

T Series High-Output Artificial Skylights
- Integrated Optical Ceiling Feature: The illuminated blue field and narrow white border present as one continuous overhead element.
- Two Output Classes: The series pairs 300 W bodies with 10000 lm and 500 W bodies with 20000 lm for different ceiling scales.
- Stable Visual Setting: Fixed 6500 K, Ra95 and no-flicker operation provide a consistent cool-sky presentation.
- Large Indoor Ceiling Use: The four formats suit spacious interior ceiling compositions where a prominent electric sky feature is required.
| Body Size Range | 600 × 600 × 450 mm to Dia. 1200 × 680 mm |
|---|---|
| Opening Range | 580 × 580 mm to Dia. 1185 mm |
| Power / Output | 300–500 W / 10000–20000 lm |
| CCT / CRI | 6500 K / Ra95 |
|---|---|
| Input / PF | 100–240 V / 0.5 |
| Rated Life | 30000 h |
Technical Specifications
Model Specifications
| Model | Format | Body Size | Opening | Light Surface | Rated Power | Output | CCT / CRI |
|---|---|---|---|---|---|---|---|

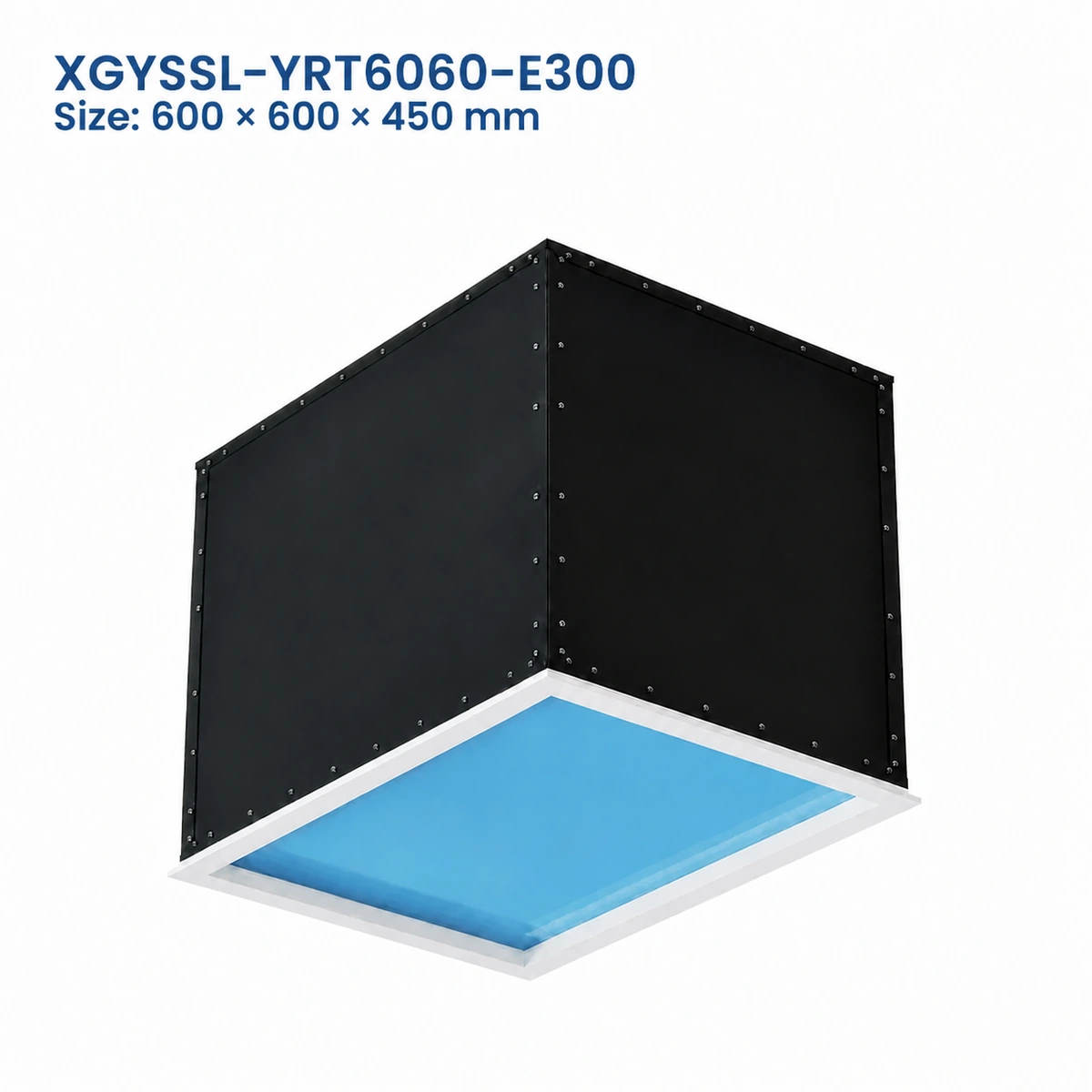

| XGYSSL-YRT6060-E300 | Square | 600 × 600 × 450 mm | 580 × 580 mm | 500 × 500 mm | 300 W | 10000 lm | 6500 K / Ra95 |

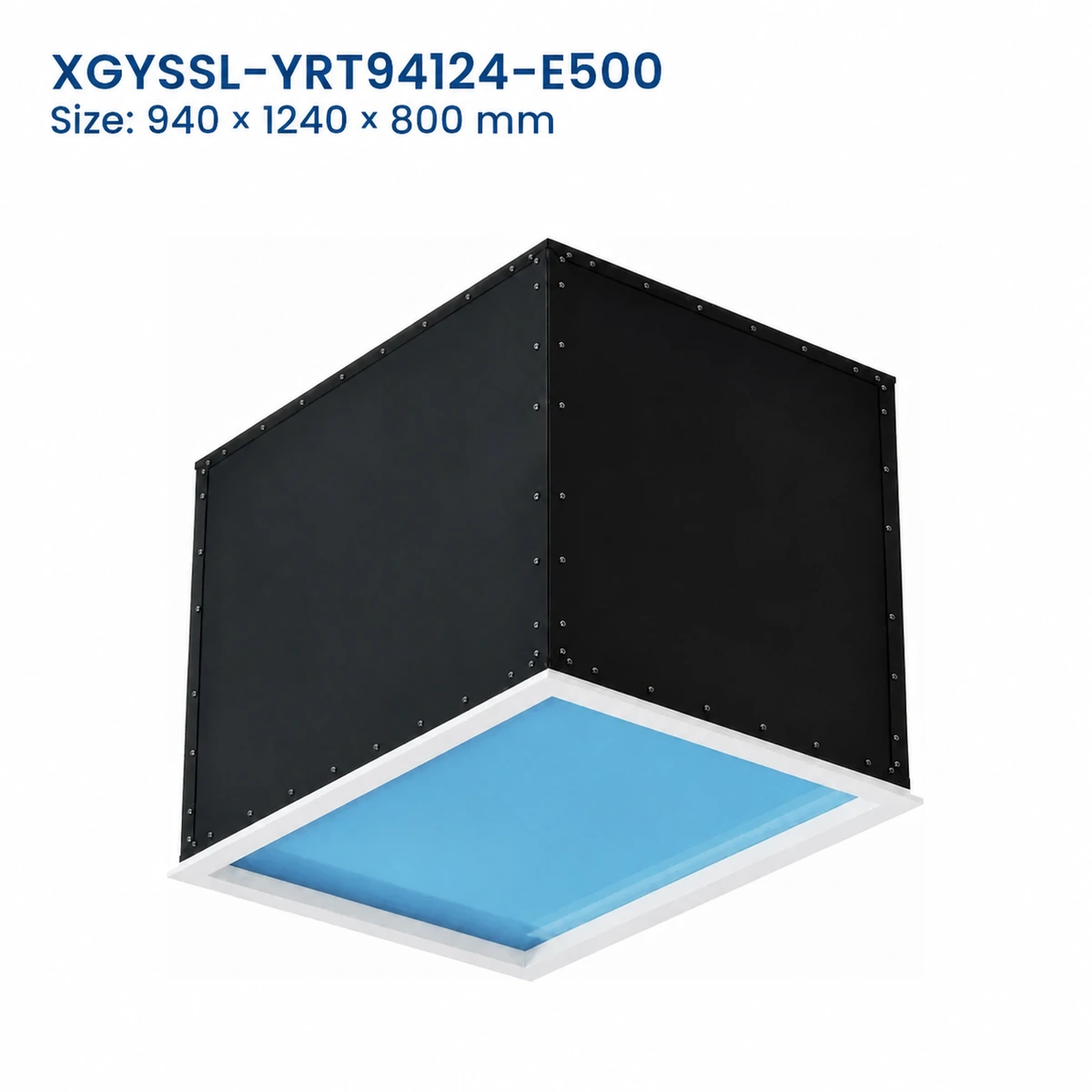

| XGYSSL-YRT94124-E500 | Rectangular | 940 × 1240 × 800 mm | 1220 × 920 mm | 1120 × 820 mm | 500 W | 20000 lm | 6500 K / Ra95 |

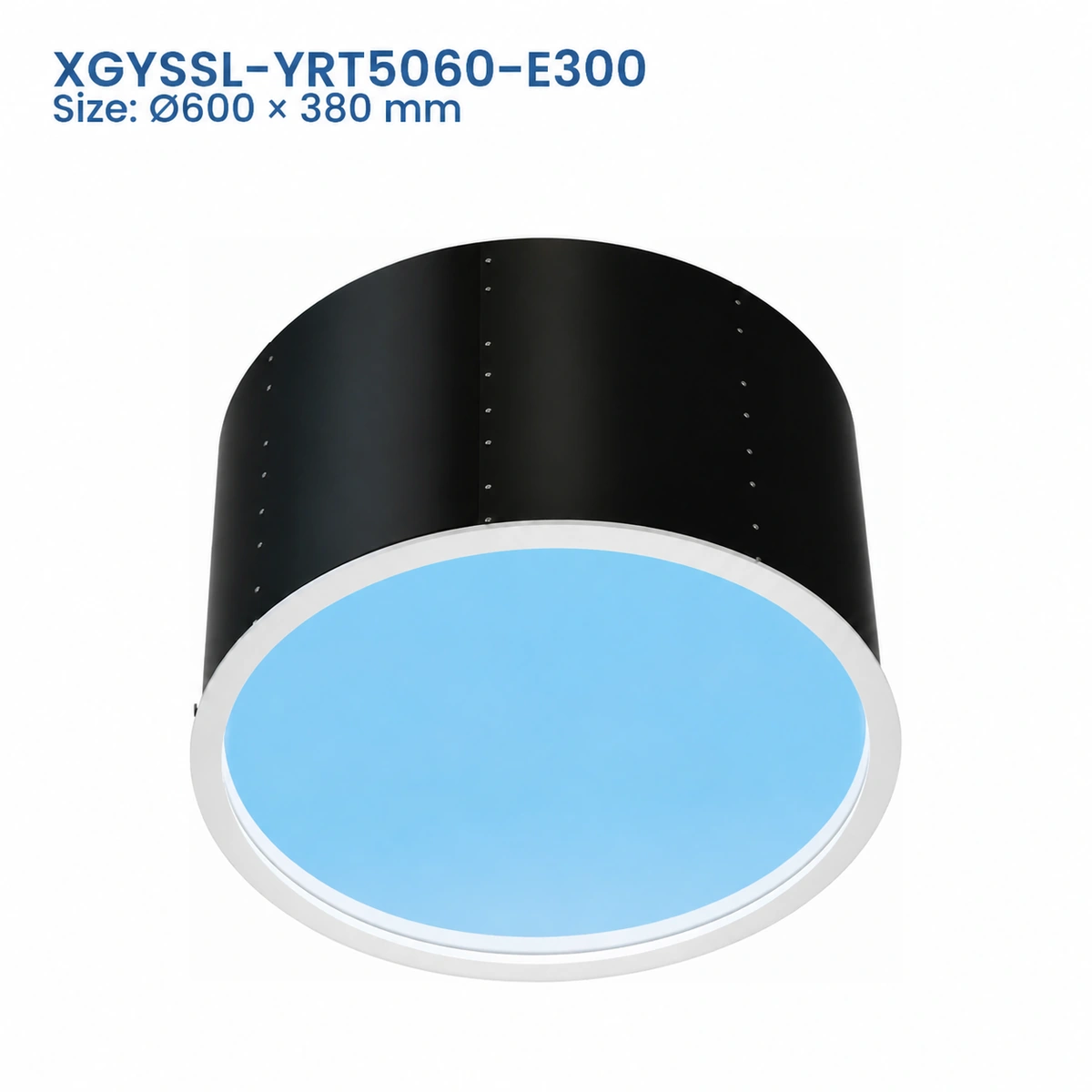

| XGYSSL-YRT5060-E300 | Round | Dia. 600 × 380 mm | Dia. 585 mm | Dia. 500 mm | 300 W | 10000 lm | 6500 K / Ra95 |

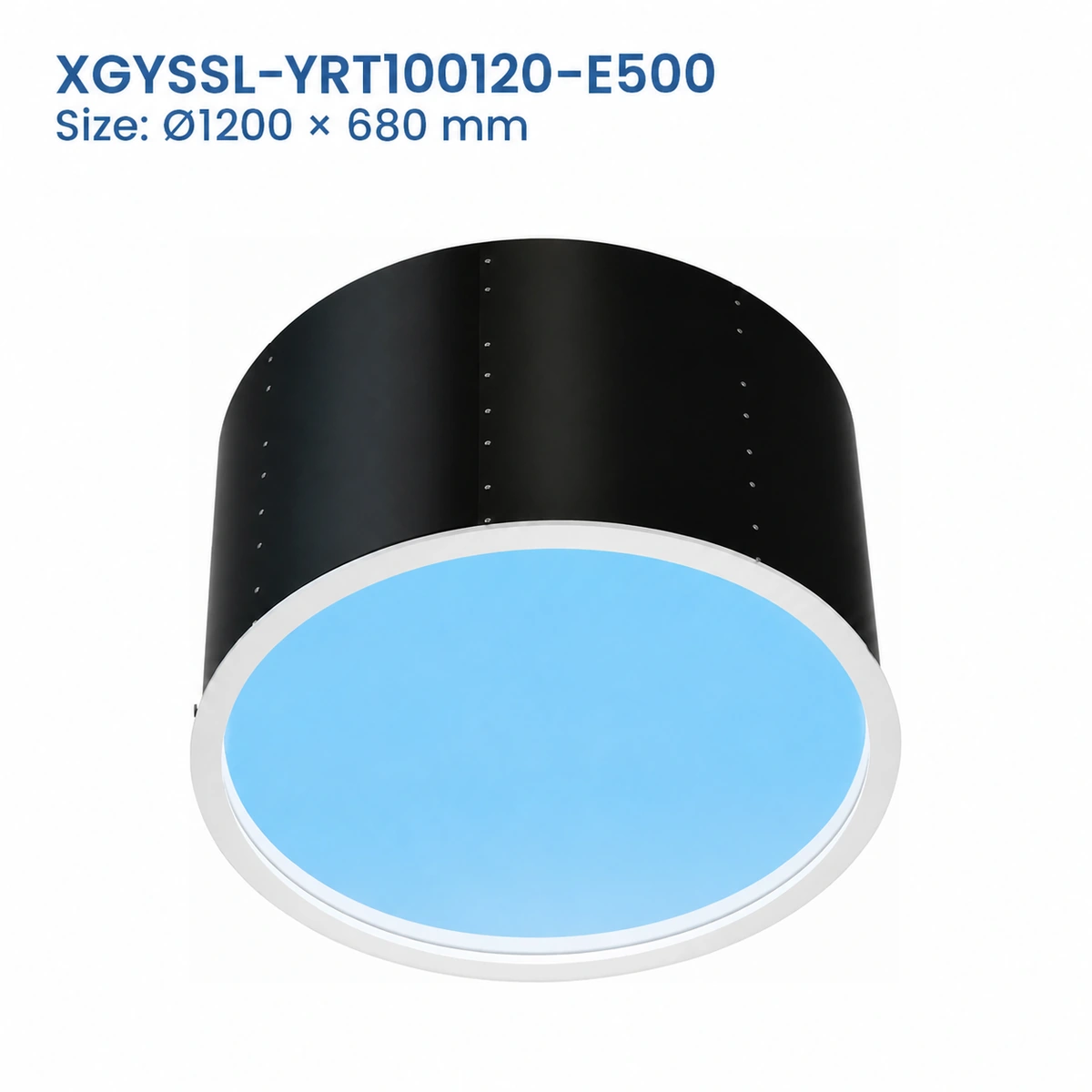

| XGYSSL-YRT100120-E500 | Round | Dia. 1200 × 680 mm | Dia. 1185 mm | Dia. 1100 mm | 500 W | 20000 lm | 6500 K / Ra95 |
Shared data: 100–240 V input, PF 0.5, no flicker, indoor use and 30000 h rated life. Rectangular opening and light-surface values follow the catalogue orientation. Structural load, ceiling clearance and service access must be confirmed for the selected model.
Product Description
Product Details
Product Construction
The light engine and optical assembly sit within a deep enclosure whose footprint and depth vary by configuration. The visible aperture and illuminated surface are separately dimensioned for each geometry.
Selection & Installation Notes
Choose the exact model using the approved opening, available cavity and visible-surface dimensions. Provide an independent load-bearing frame, a suitable lifting or traction method, four safety slings and a maintenance opening. The installation warning states a 50 kg product net weight and more than 1.2 m reserved ceiling height; confirm the applicable project load and structural design before installation.
Recommended Application
Applications
- Conference Rooms: The recessed sky surface forms a large overhead feature above meeting tables and presentation zones.
- Reception Halls: Square or rectangular formats provide a defined ceiling focal point in spacious entrance and waiting areas.
- Experience Centers: The oblique 6500 K sky effect supports large visitor and product-display interiors.
- Architectural Interiors: Round, square and rectangular bodies integrate with custom load-bearing ceiling compositions.
