PAR20, PAR30 & PAR38 LED SMD Bulbs

These PAR20, PAR30 and PAR38 LED SMD bulbs combine E26 bases with directional optics for compatible indoor fixtures. The three reflector sizes cover separate 8, 12 and 18 W selections, with 24-degree and 38-degree beam options.
  • Three Reflector Sizes: PAR20, PAR30 and PAR38 provide distinct bodies for different fixture clearances and target areas.
  • Two Beam Options: The 24-degree and 38-degree choices support narrower or broader indoor directional lighting.
  • Ra80 or Ra90 Options: Color-rendering configurations are available for different project requirements.
  • No-Flicker with Optional Dimming: Stable operation is specified for the series, while dimming remains an order option.
Body RangeThree reflector sizes
Rated Power8 / 12 / 18 W
BaseE26
Input110–130 V
CCT3000–6500 K
Beam Angle24° / 38°
Request a Quote

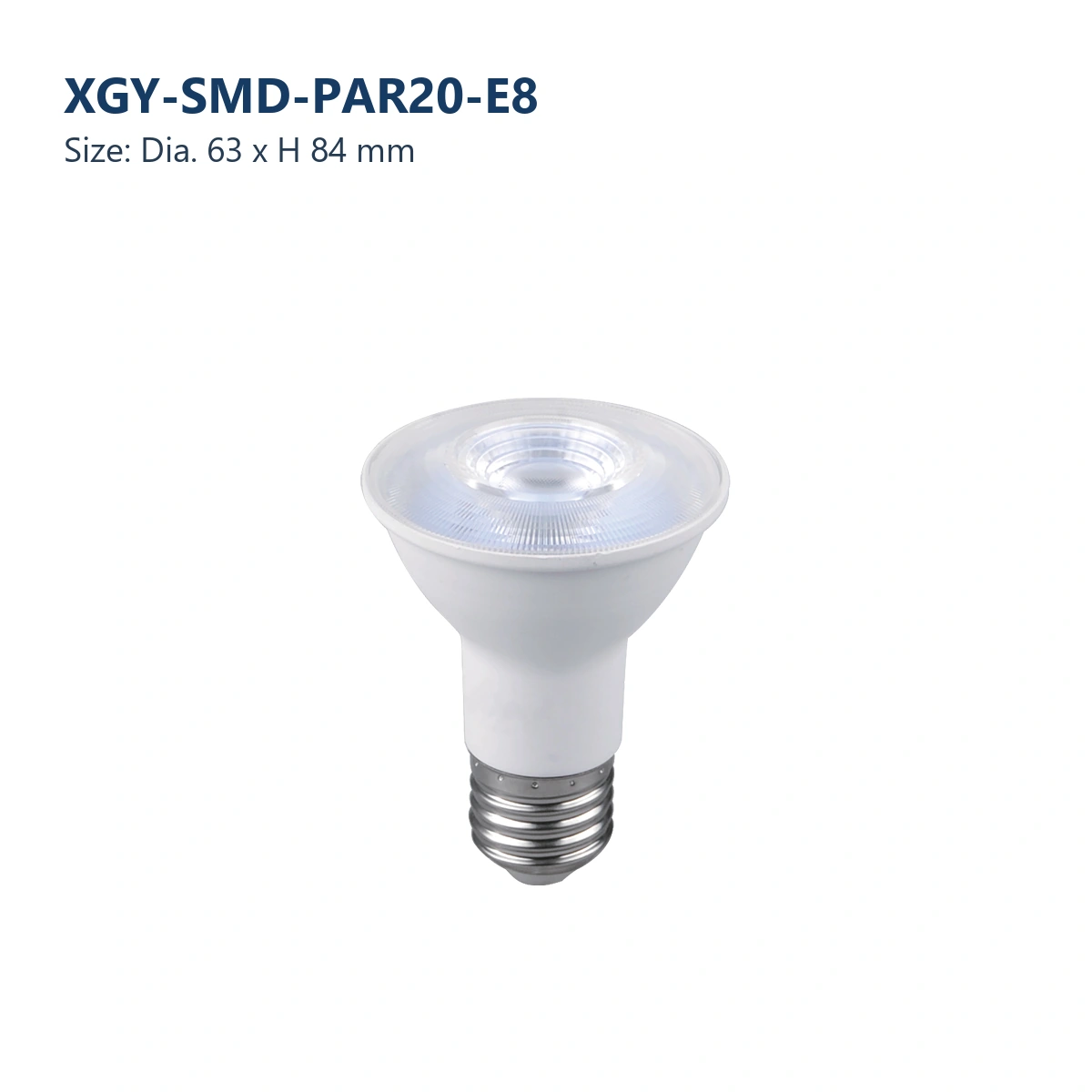

XGY-SMD-PAR20-E8 PAR LED SMD bulb, size Dia. 63 x H 84 mm
PAR LED SMD bulb installed in an indoor retail track light

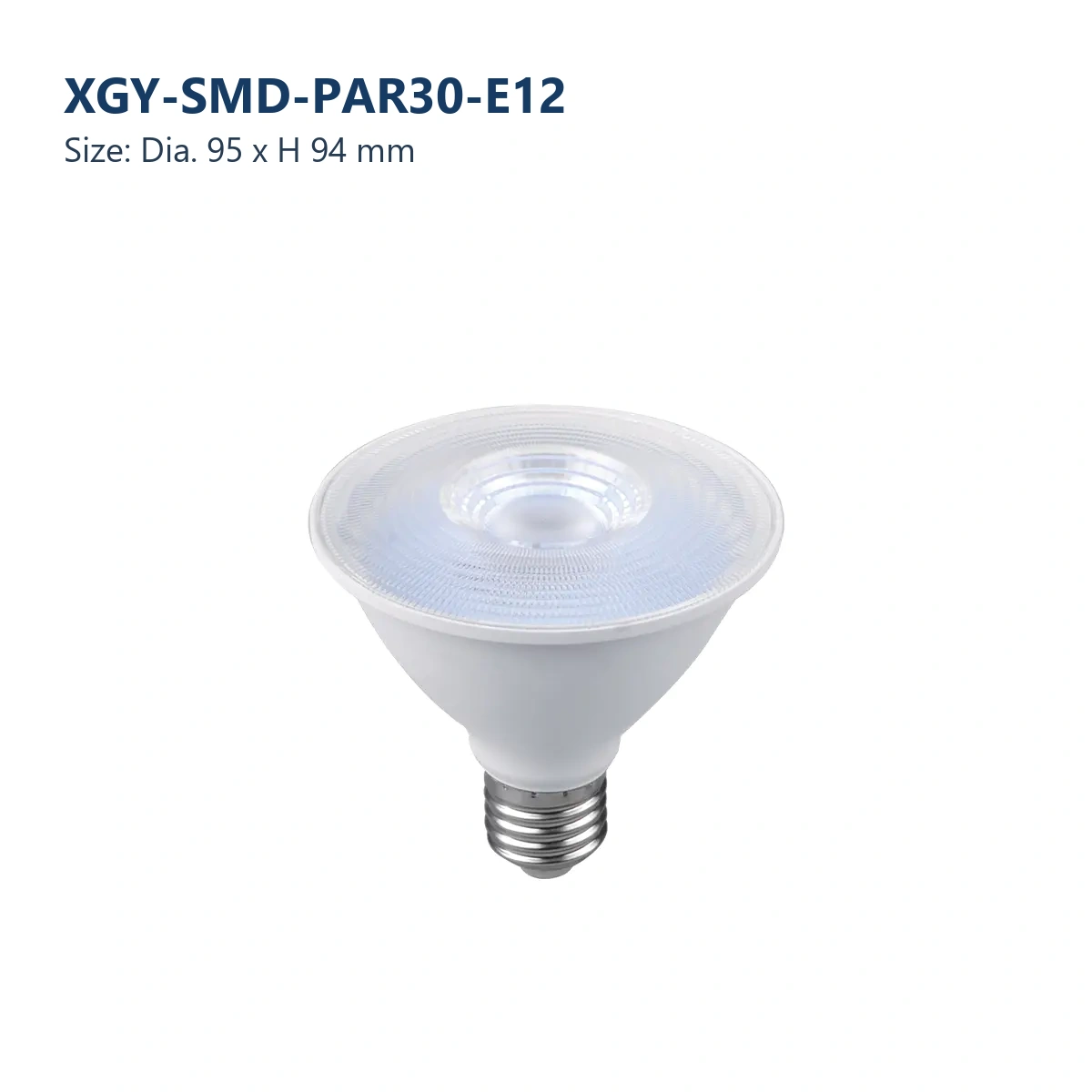

XGY-SMD-PAR30-E12 PAR LED SMD bulb, size Dia. 95 x H 94 mm

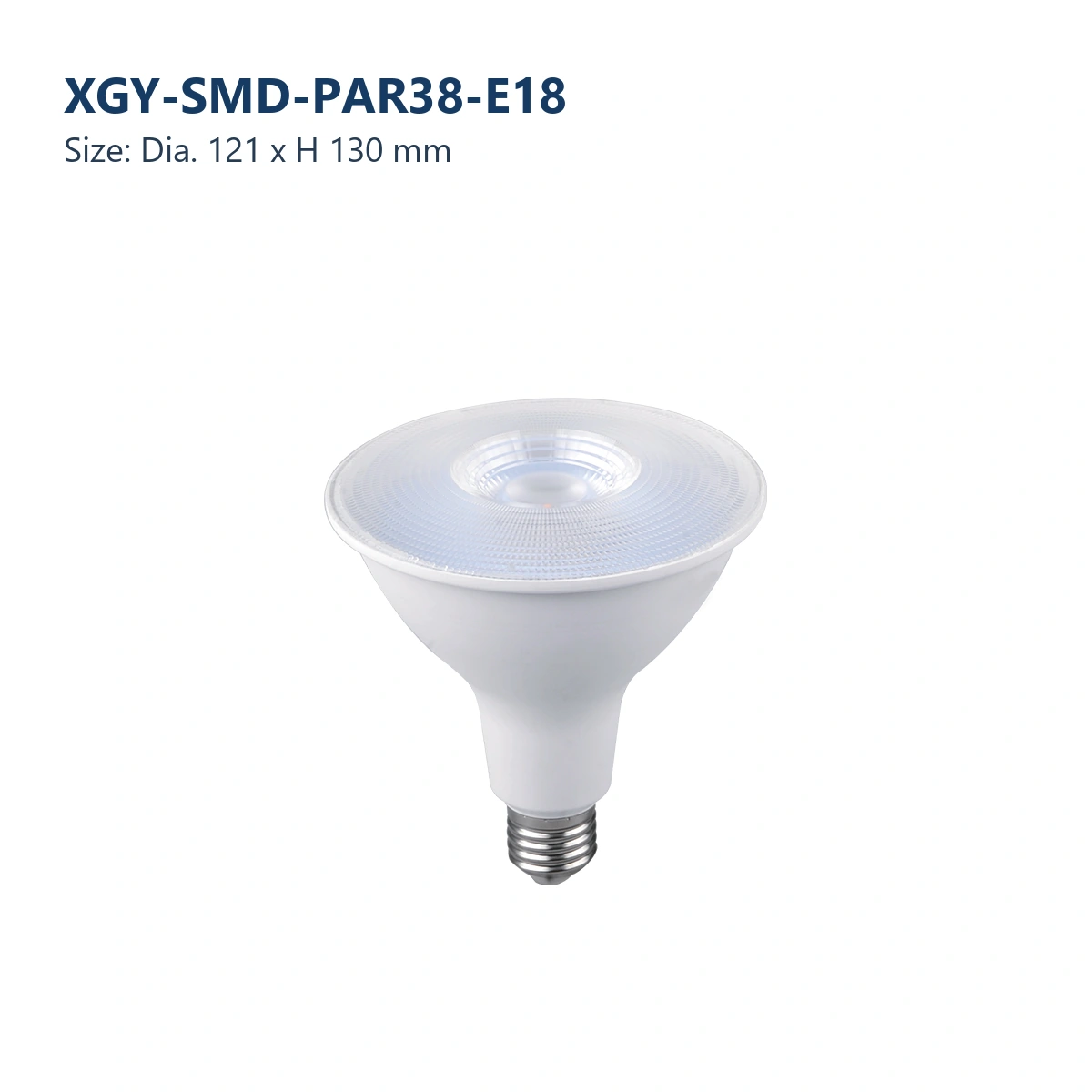

XGY-SMD-PAR38-E18 PAR LED SMD bulb, size Dia. 121 x H 130 mm

Technical Specifications

Model Specifications

ModelDimensionsPowerEfficacyCCTCRIInputBeam
XGY-SMD-PAR20-E8Dia. 63 x H 84 mm8 W80–180 lm/W3000–6500 KRa80 / Ra90110–130 V24° / 38°
XGY-SMD-PAR30-E12Dia. 95 x H 94 mm12 W80–180 lm/W3000–6500 KRa80 / Ra90110–130 V24° / 38°
XGY-SMD-PAR38-E18Dia. 121 x H 130 mm18 W80–180 lm/W3000–6500 KRa80 / Ra90110–130 V24° / 38°

Product Description

Product Details

Product Construction

A clear prismatic optical face sits above a tapered white body and an E26 screw base. Each size forms a replaceable reflector lamp for a compatible indoor fixture.

Selection & Installation Notes

Confirm that the bulb fits inside the host luminaire, then verify the holder, supply and control compatibility before installation. Use the model table to select the required dimensions and optical spread. Compare related products in our general LED bulb range.

Recommended Application

Applications

  • Retail Displays: Focused beams illuminate merchandise, shelving and feature displays from compatible E26 fixtures.
  • Hospitality Accents: Controlled beams highlight restaurant tables, reception details and selected interior features.
  • Gallery Lighting: The selected beam angle and mounting distance define illumination for artwork and exhibit zones.
  • Residential Spotlights: Directional light serves living areas, kitchens and display niches from compatible indoor fixtures.
  • Office Features: Focused light highlights reception areas, presentation walls and shared interior features.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What is the difference between PAR20, PAR30 and PAR38?

They are separate lamp sizes with different dimensions and rated powers. PAR20 is 63 x 84 mm at 8 W, PAR30 is 95 x 94 mm at 12 W, and PAR38 is 121 x 130 mm at 18 W.

Should I choose a 24-degree or 38-degree beam?

Choose 24° for a narrower beam and 38° for broader coverage. Confirm the choice against the mounting distance and target area.

Which base and input range does this series use?

This PAR series uses an E26 screw base and 110–130 V input. Match both the holder and supply before installation.

Is dimming standard on every PAR lamp?

No. Dimming is an order option rather than standard on every lamp. Specify the required dimming configuration and confirm control compatibility before ordering.

Can these PAR LED bulbs be used outdoors?

No. This series is intended for indoor use and has no stated ingress-protection rating. Do not install it in an exposed outdoor location.

Which certification marks are shown for the series?

The series is associated with CB, CE, ErP, UL and RoHS marks. Confirm the exact ordered model and destination-market documentation before approval.
