R39, R50, R63, R80 & R90 LED SMD Bulbs

R39, R50, R63, R80 and R90 LED SMD reflector bulbs provide ten 3–15 W choices with a broad 120° distribution for indoor lighting. We manufacture the series for OEM/ODM programs with E12 or E26 base options and Ra80 or Ra90 configurations.

Five reflector sizes: R39 through R90 provide distinct body diameters for different fixture openings and clearances.
Broad 120° distribution: the series supports local general lighting rather than a narrow accent beam.
Ra80 or Ra90 options: color-rendering configurations can be selected for the project requirement.
No-flicker operation with optional dimming: stable operation is listed for the series, while dimming must be specified as an option.

Rated Power	3–15 W
Base Options	E12 / E26
Input	110–130 V

CCT	3000–6500 K
Beam Angle	120°
Rated Life	15,000–25,000 h

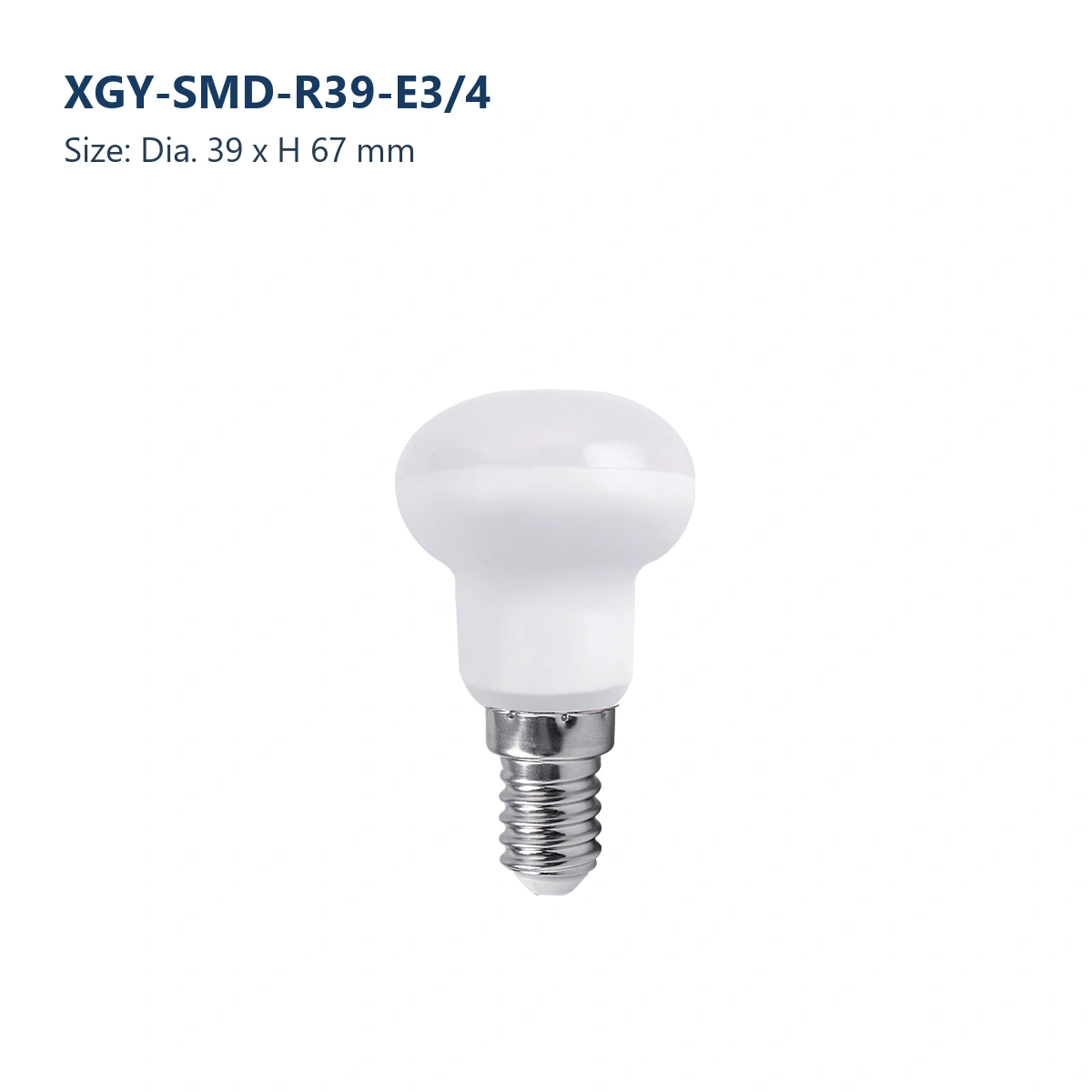

XGY-SMD-R39-E3/4 R Series LED SMD bulb, size Dia. 39 x H 67 mm

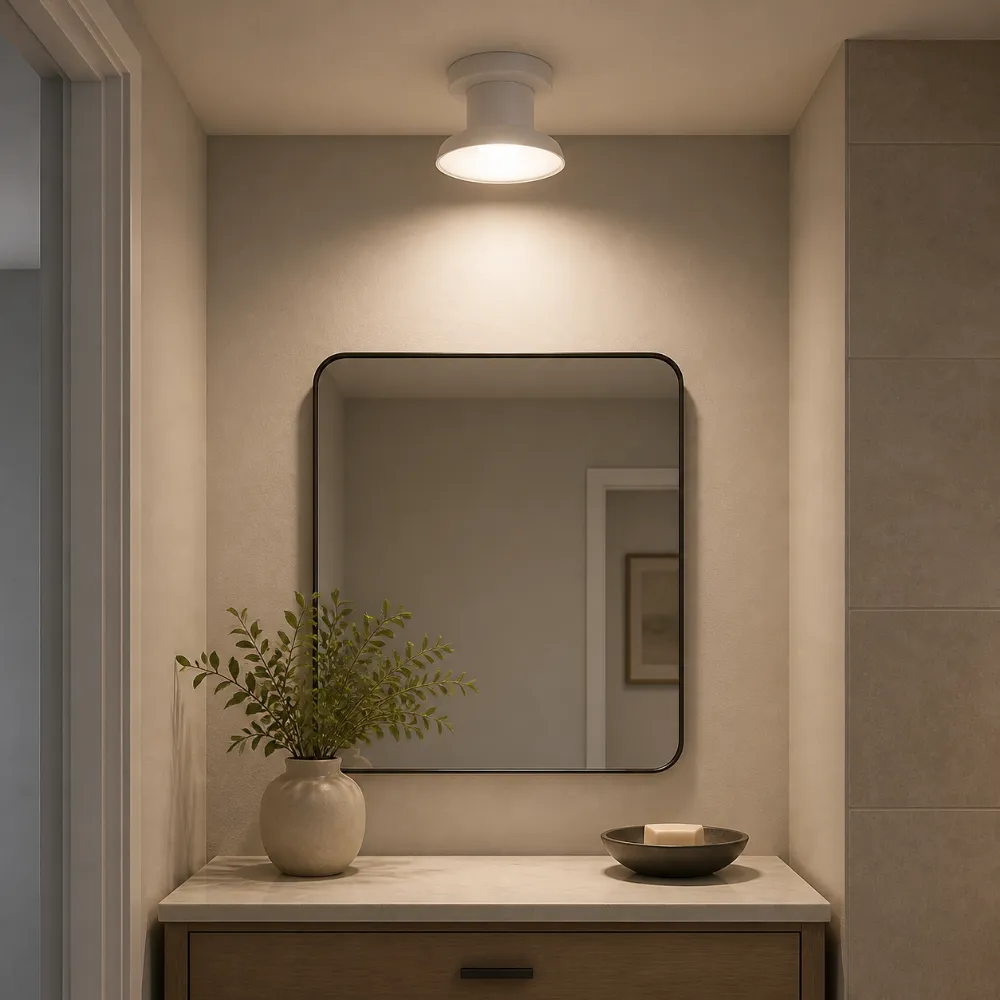

R Series LED SMD bulb used in an indoor ceiling fixture near a vanity

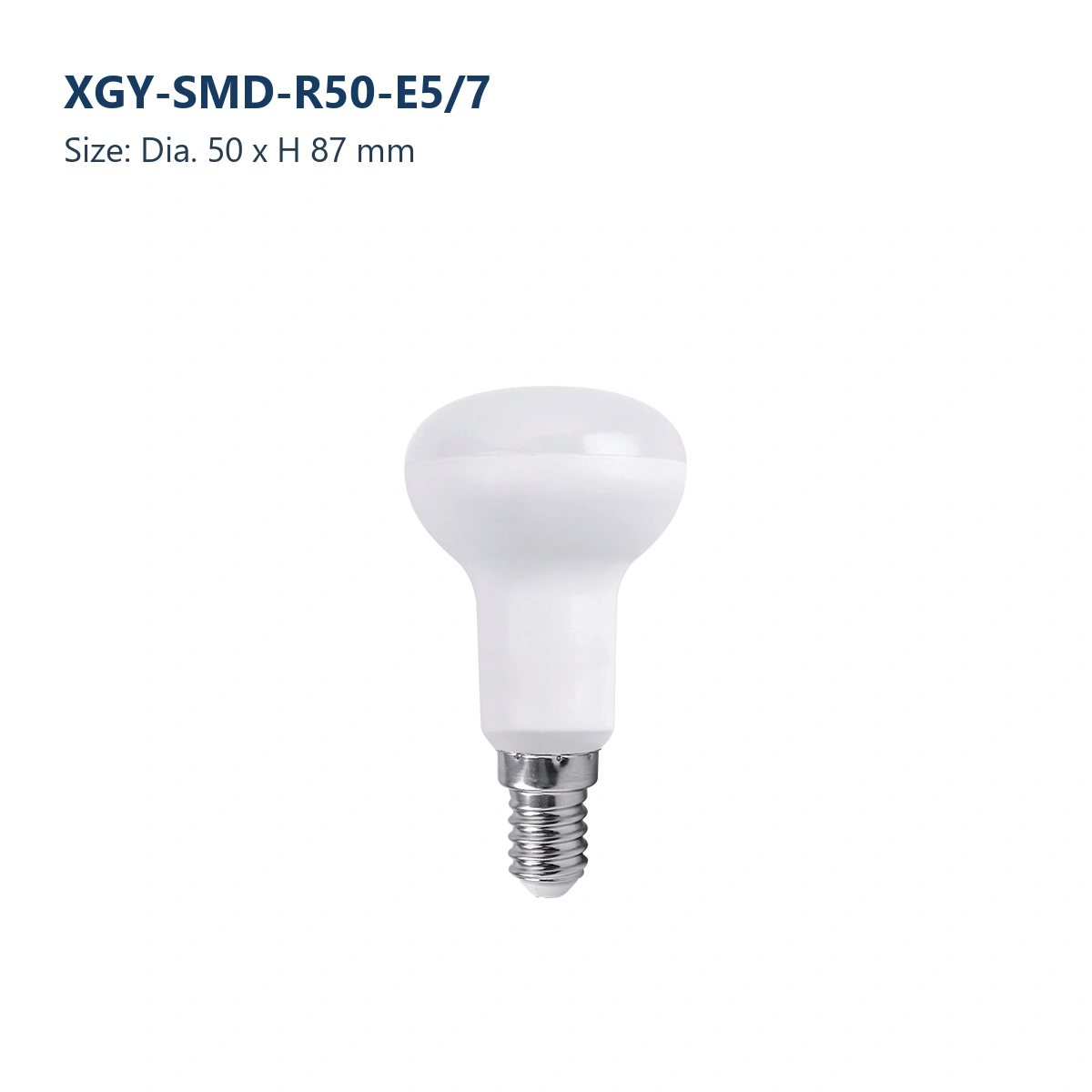

XGY-SMD-R50-E5/7 R Series LED SMD bulb, size Dia. 50 x H 87 mm

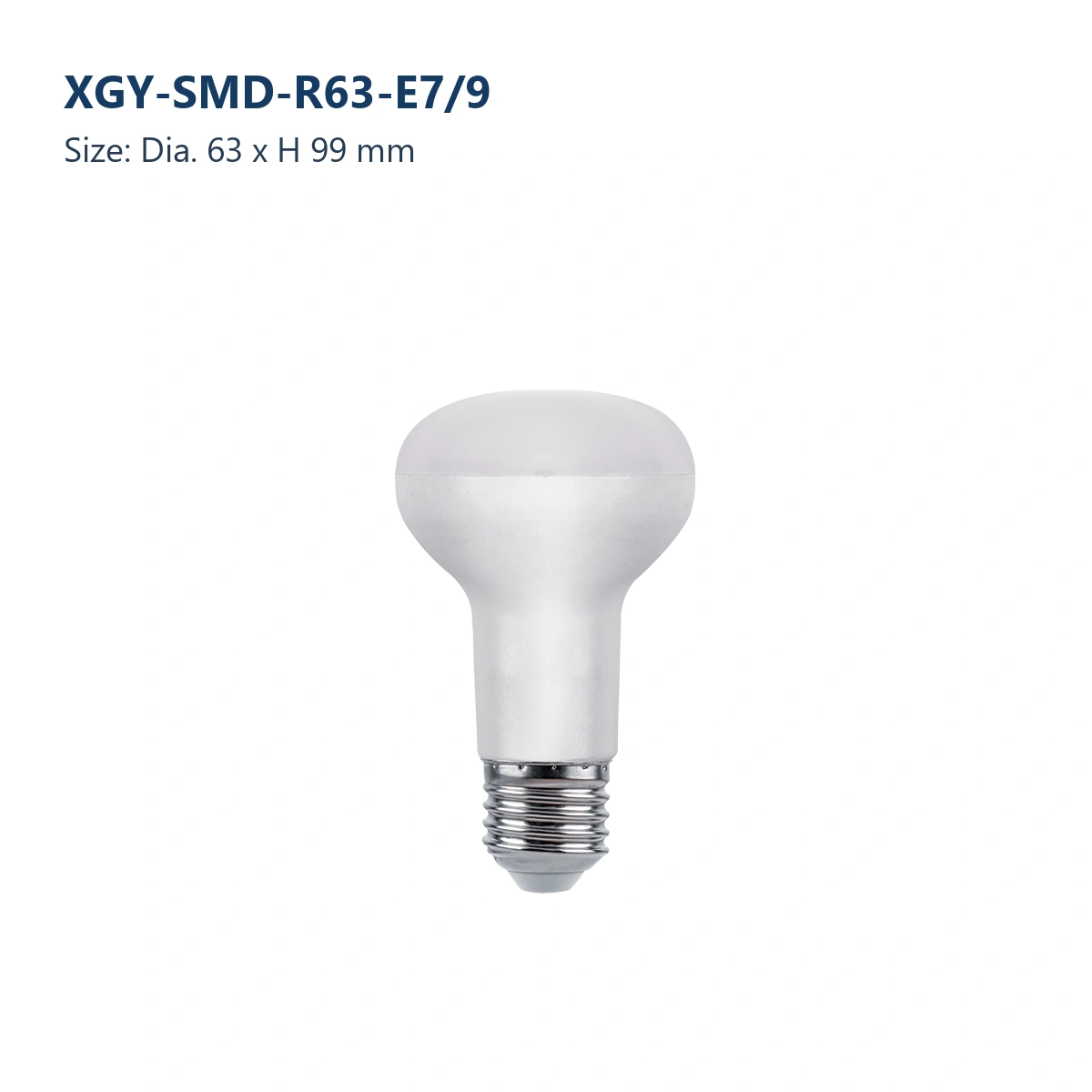

XGY-SMD-R63-E7/9 R Series LED SMD bulb, size Dia. 63 x H 99 mm

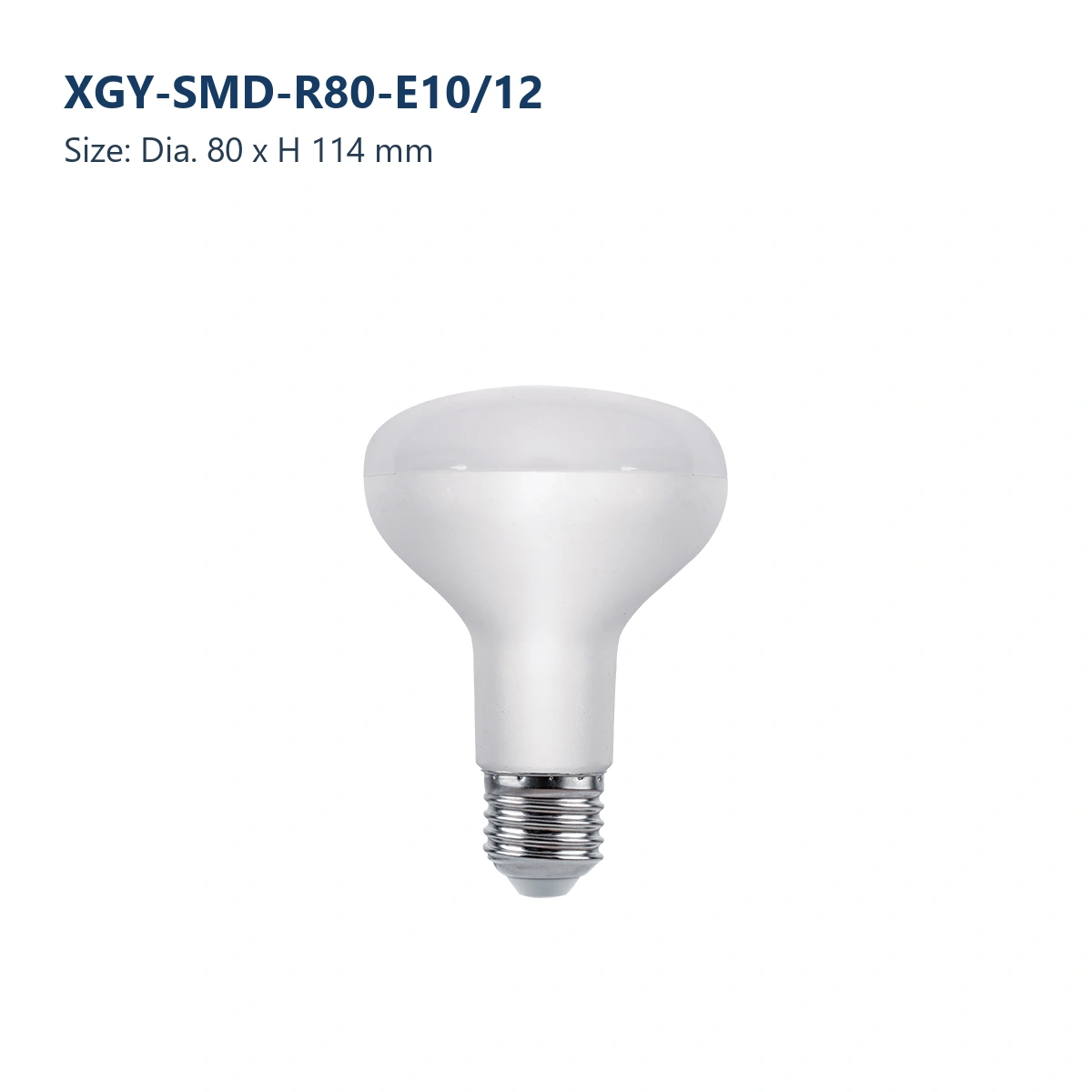

XGY-SMD-R80-E10/12 R Series LED SMD bulb, size Dia. 80 x H 114 mm

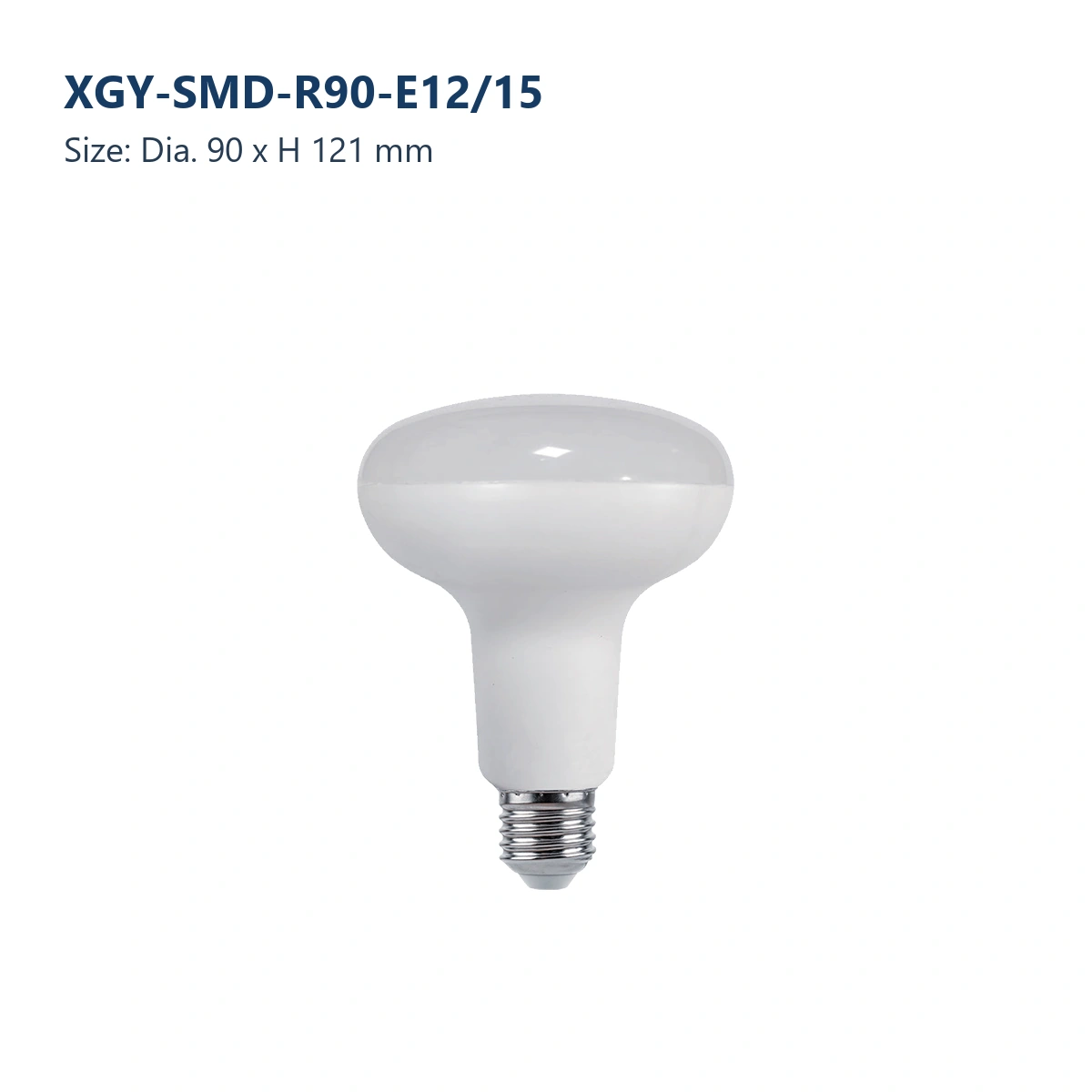

XGY-SMD-R90-E12/15 R Series LED SMD bulb, size Dia. 90 x H 121 mm

Technical Specifications

Model Specifications

Model / Power	Dimensions	Power	Efficacy	CCT	CRI	Input	Beam
XGY-SMD-R39-E3/4 (3 W)	Dia. 39 x H 67 mm	3 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R39-E3/4 (4 W)	Dia. 39 x H 67 mm	4 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R50-E5/7 (5 W)	Dia. 50 x H 87 mm	5 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R50-E5/7 (7 W)	Dia. 50 x H 87 mm	7 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R63-E7/9 (7 W)	Dia. 63 x H 99 mm	7 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R63-E7/9 (9 W)	Dia. 63 x H 99 mm	9 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R80-E10/12 (10 W)	Dia. 80 x H 114 mm	10 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R80-E10/12 (12 W)	Dia. 80 x H 114 mm	12 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R90-E12/15 (12 W)	Dia. 90 x H 121 mm	12 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°
XGY-SMD-R90-E12/15 (15 W)	Dia. 90 x H 121 mm	15 W	80–180 lm/W	3000–6500 K	Ra80 / Ra90	110–130 V	120°

Product Description

Product Details

Product Construction

Each lamp combines a diffusing reflector face, a tapered opaque body and a replaceable screw base in one indoor light source.

Selection & Installation Notes

Match the selected body to the fixture opening, overall clearance, holder and 110–130 V supply. Specify E12 or E26, the required rated power and any dimming requirement before order approval.

Recommended Application

Applications

Residential Ceiling Spots: Use the selected reflector size in compatible indoor ceiling and surface fixtures.
Bathroom Vanity Lighting: Provide broad local light from a shielded indoor fixture near mirrors and counters.
Hospitality Corridors: Coordinate the 120° distribution across compatible ceiling fixtures in indoor circulation areas.
Display Alcoves: Use the broad reflector distribution for shelves, niches and compact feature areas.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What is the difference between R39, R50, R63, R80 and R90?

The five bodies have different diameters, overall lengths and rated-power choices. Match the exact size row to the fixture opening and internal clearance.

Are the two wattages in each model family separate choices?

Yes. Each listed wattage is a separate rated-power configuration and must be selected independently for the order.

Which model uses an E12 or E26 base?

E12 and E26 are series base options, but the source does not state a complete model-to-base matrix. Specify the required base with the selected body and wattage before order approval.

What does the 120-degree beam mean for fixture selection?

It provides broad local distribution rather than a narrow spotlight beam. Check fixture shielding, spacing and the intended illuminated area.

Is dimming standard on every R Series lamp?

No. Dimming is an option, so the required lamp configuration and project dimmer must be confirmed together.

Which certification marks are shown for the series?

The series is associated with CB, CE, ErP, UL and RoHS marks. Confirm the exact ordered model and destination-market documentation before approval.
