Recessed Backlit LED Small Panel Lights

Recessed backlit LED small panel lights are ceiling luminaires offered with round or square faces and spring-clip retention. Select the exact configuration from the approved ceiling opening, recess clearance, supply and control requirements.
  • Backlit Recessed Format: The light-producing assembly sits behind the visible panel face within a recessed ceiling luminaire.
  • Round or Square Faces: Two visible geometries support coordinated ceiling layouts.
  • Spring-Clip Retention: Opposed clips secure the selected unit at its prepared ceiling position.
  • Opening Verification Boundary: Product dimensions do not substitute for an approved cutout drawing.
Rated Power6 / 12 / 15 / 18 / 24 / 30 W
Face OptionsRound or square
MountingRecessed ceiling installation with spring clips
Color Temperature3000K-6500K
Beam Angle120 degrees
DriverExternal IC driver
Request a Quote
XGYSPL-BE-RI-E15R/S round recessed backlit LED small panel, 15 W, D190 × H22 mm

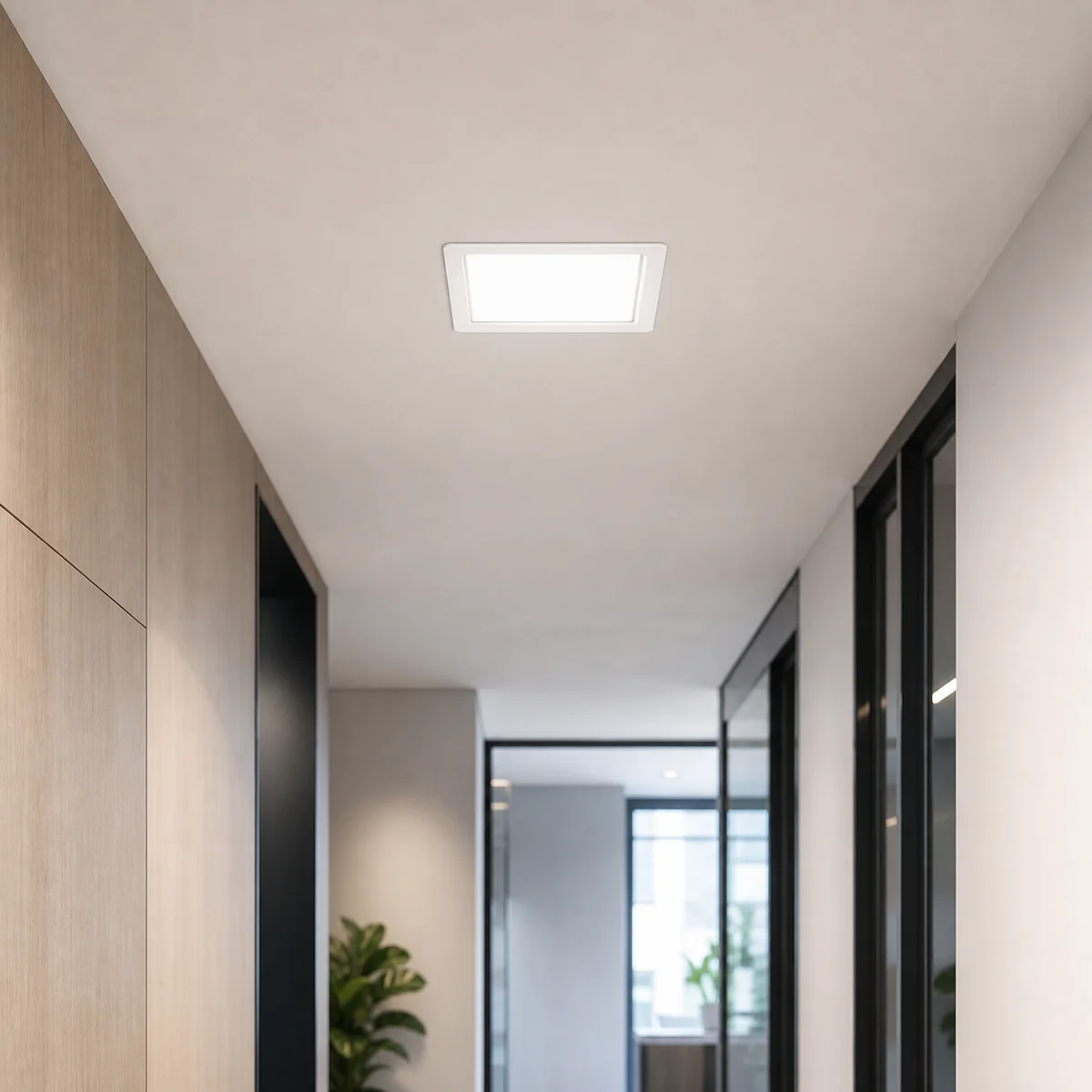

Square recessed backlit LED small panel installed flush in a dry office corridor ceiling

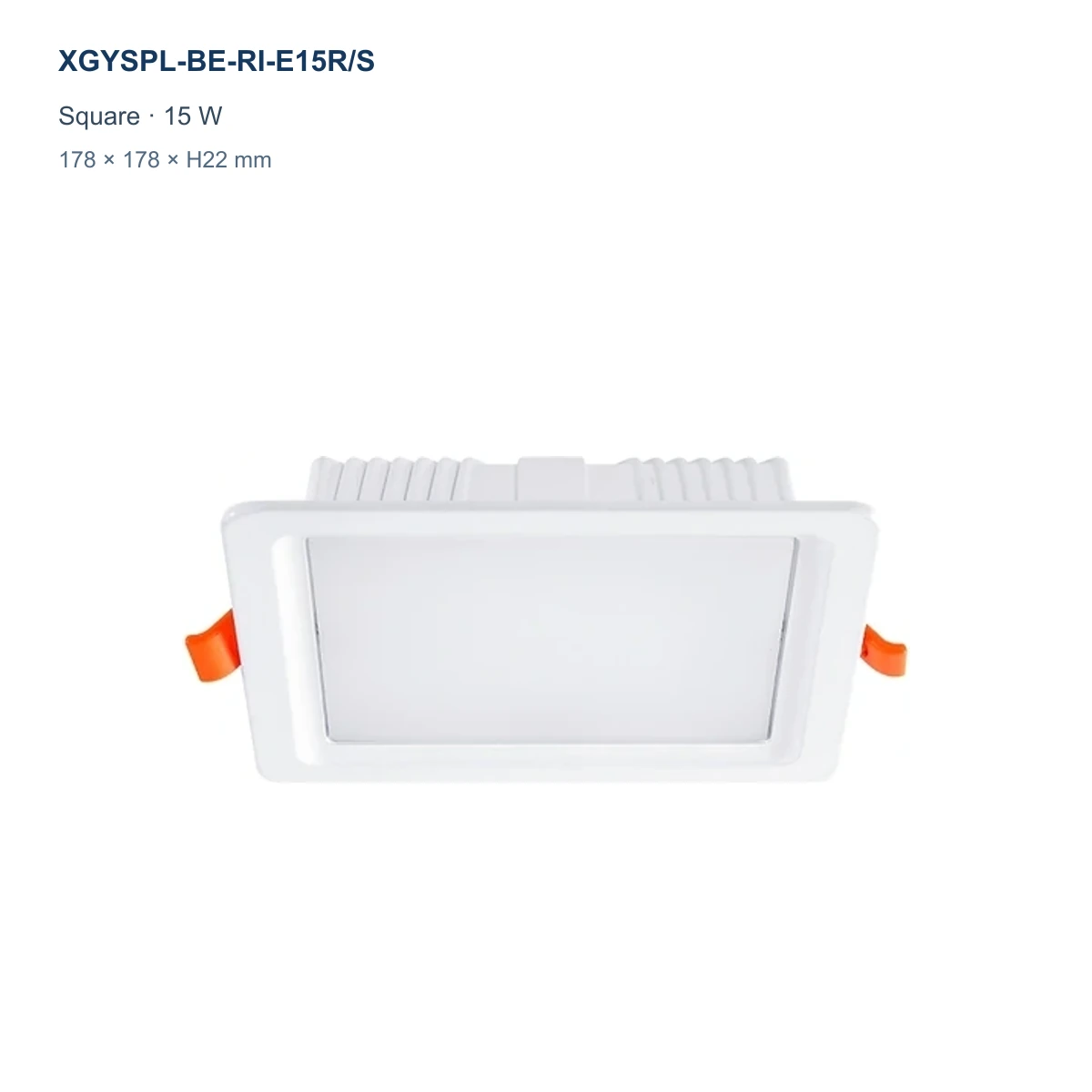

XGYSPL-BE-RI-E15R/S square recessed backlit LED small panel, 15 W, 178 × 178 × H22 mm
XGYSPL-BE-RI-E12R/S round recessed backlit LED small panel, 12 W, D175 × H22 mm
XGYSPL-BE-RI-E12R/S square recessed backlit LED small panel, 12 W, 155 × 155 × H22 mm
XGYSPL-BE-RI-E18R/S round recessed backlit LED small panel, 18 W, D225 × H22 mm
XGYSPL-BE-RI-E18R/S square recessed backlit LED small panel, 18 W, 205 × 205 × H22 mm
XGYSPL-BE-RI-E24R/S round recessed backlit LED small panel, 24 W, D300 × H22 mm
XGYSPL-BE-RI-E24R/S square recessed backlit LED small panel, 24 W, 280 × 280 × H22 mm

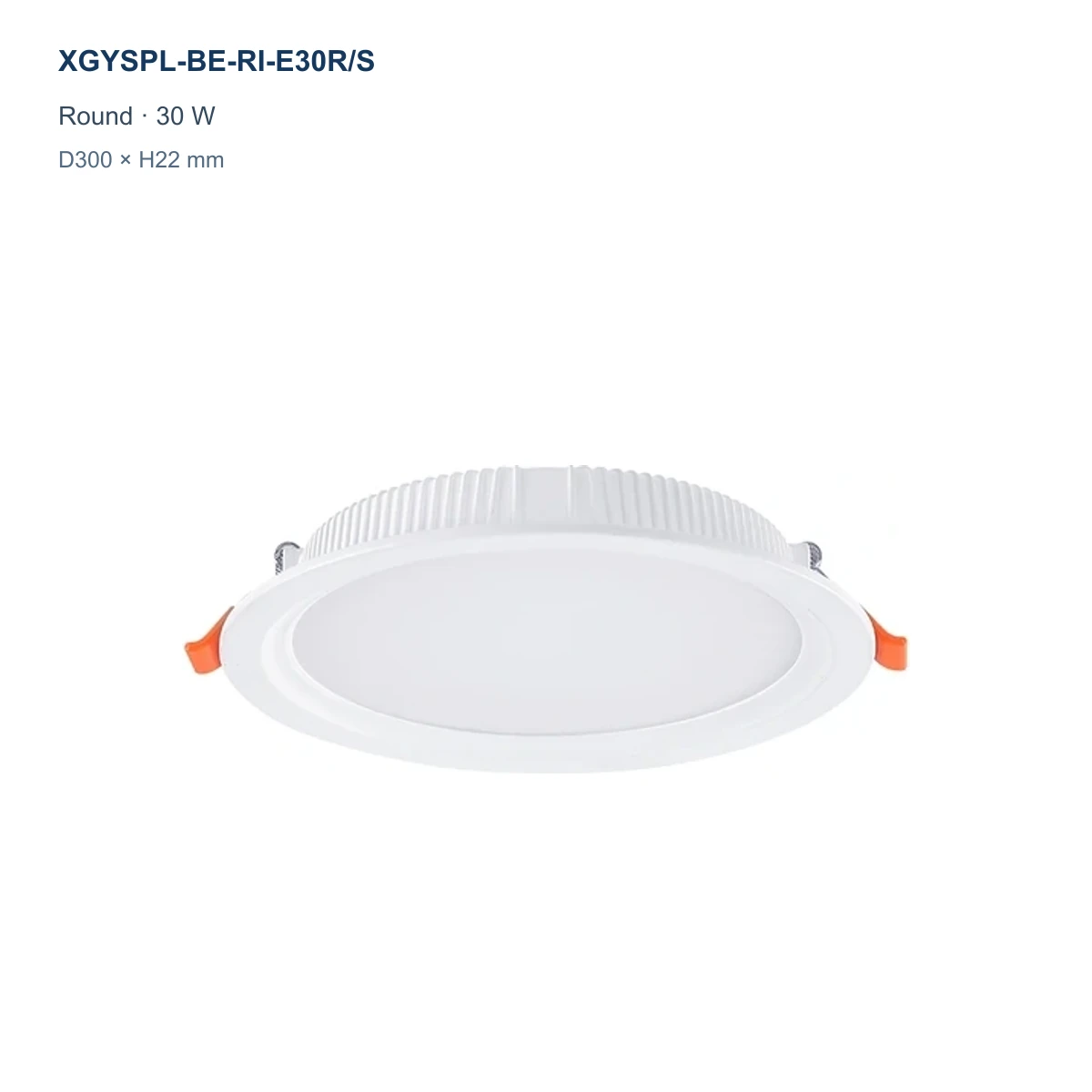

XGYSPL-BE-RI-E30R/S round recessed backlit LED small panel, 30 W, D300 × H22 mm
XGYSPL-BE-RI-E30R/S square recessed backlit LED small panel, 30 W, 280 × 280 × H22 mm

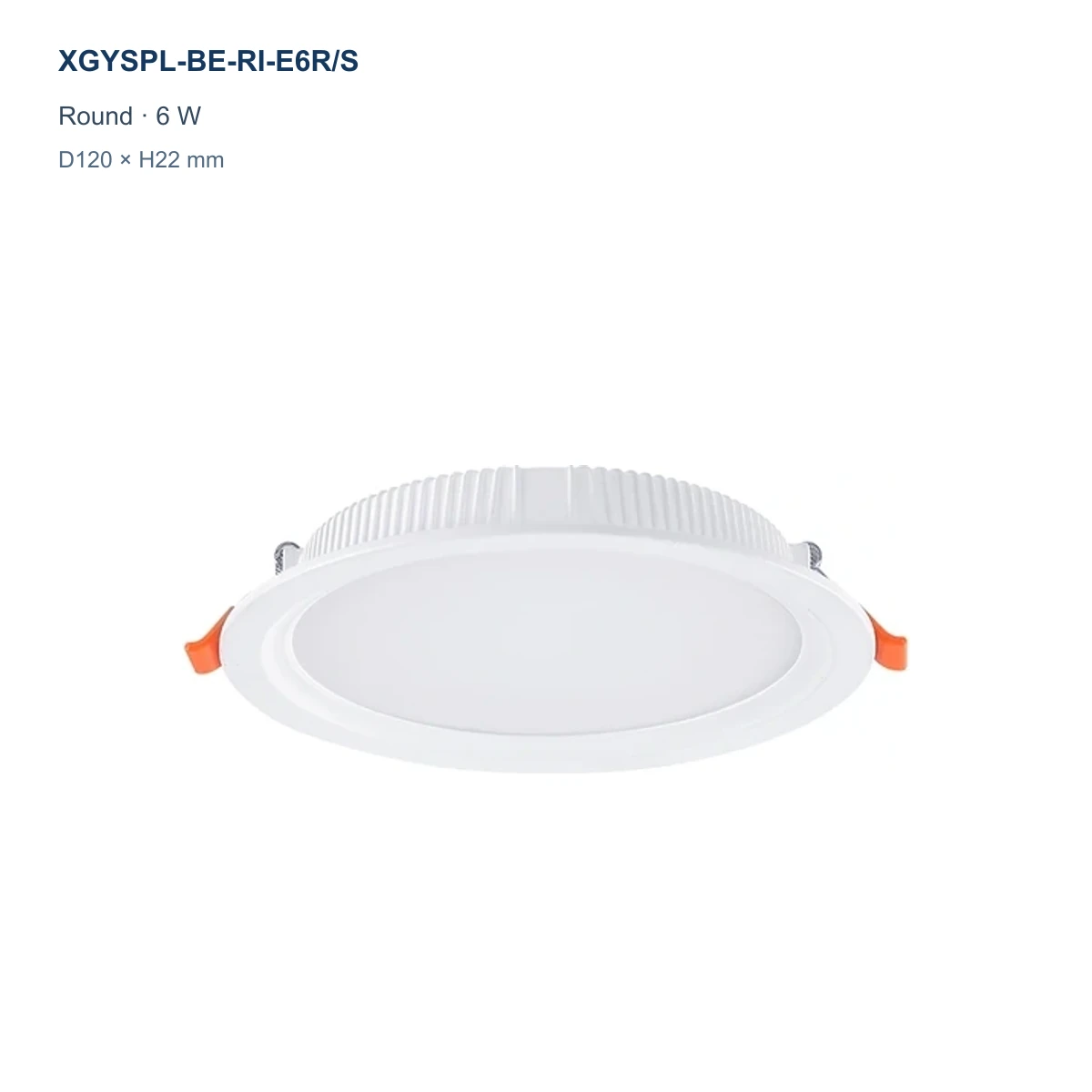

XGYSPL-BE-RI-E6R/S round recessed backlit LED small panel, 6 W, D120 × H22 mm

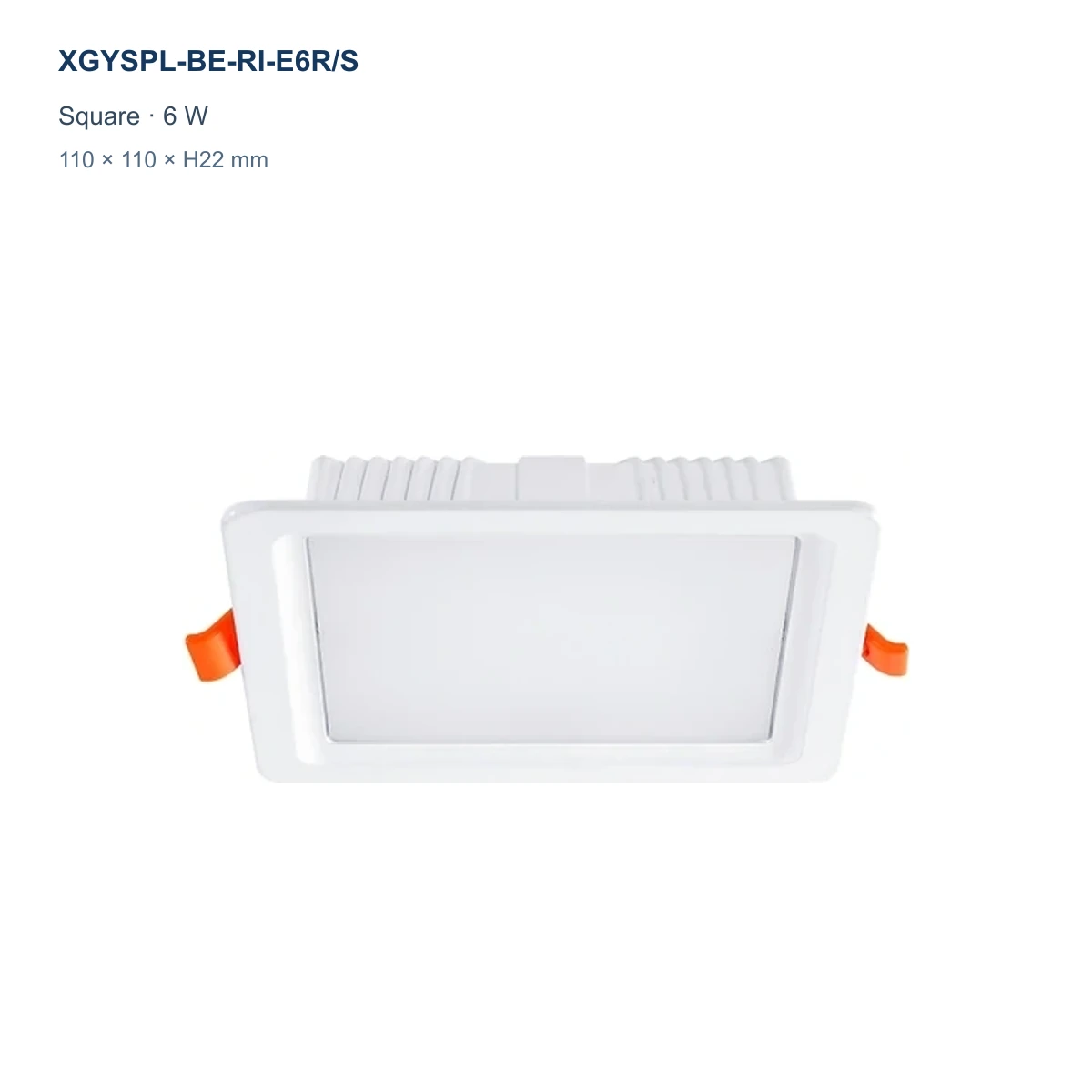

XGYSPL-BE-RI-E6R/S square recessed backlit LED small panel, 6 W, 110 × 110 × H22 mm

Technical Specifications

Model Specifications

ModelRound Size (D x H mm)Square Size (L x W x H mm)Rated PowerLumen EfficacyColor TemperatureFrame Color
XGYSPL-BE-RI-E6R/SD120 x H22110 x 110 x H226 W70 lm/W3000K-6500KWhite
XGYSPL-BE-RI-E12R/SD175 x H22155 x 155 x H2212 W70 lm/W3000K-6500KWhite
XGYSPL-BE-RI-E15R/SD190 x H22178 x 178 x H2215 W75 lm/W3000K-6500KWhite
XGYSPL-BE-RI-E18R/SD225 x H22205 x 205 x H2218 W75 lm/W3000K-6500KWhite
XGYSPL-BE-RI-E24R/SD300 x H22280 x 280 x H2224 W75 lm/W3000K-6500KWhite
XGYSPL-BE-RI-E30R/SD300 x H22280 x 280 x H2230 W75 lm/W3000K-6500KWhite

Product Description

Product Details

Product Construction

The luminaire comprises a trim, emitting surface, rear housing and mounting hardware. Its internal optical material combination remains configuration-specific and must follow the approved production sample.

Selection & Installation Notes

Check the ceiling substrate and thickness, available cavity volume, electrical junction and maintenance access. Confirm the opening against the project drawing before site work, then coordinate the supply, connector and control requirements for the selected order reference. Compare related products in our compact LED panel range.

Recommended Application

Applications

  • Office Ceiling Zones: Use the selected recessed panel in indoor work areas with a verified opening, recess and electrical configuration.
  • Retail Circulation Areas: Coordinate round or square faces across indoor sales-floor and aisle ceiling plans.
  • Hospitality Corridors: Integrate the selected panel into prepared ceiling positions along corridors and reception routes.
  • Classroom Ceiling Layouts: Match each recessed panel position to the approved opening drawing and electrical plan.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What does backlit identify on this small panel?

It identifies a light-producing assembly positioned behind the visible panel face. The term does not establish a particular internal material stack, beam result or lighting performance.

Are the listed panel dimensions also the ceiling cutout sizes?

No. Overall product dimensions and ceiling cutout dimensions are separate values. Use the approved opening drawing for the selected configuration before cutting the ceiling.

How should round and square panel options be selected?

Choose the face geometry from the ceiling plan, then verify the complete order reference against the approved opening, available recess and mounting conditions.

Does the product name establish driver or dimming compatibility?

No. Confirm the required input, output, connector, control method and dimming function for the selected configuration before ordering.

Can the panel be installed in every ceiling construction?

No. Verify the ceiling material and thickness, cutout drawing, recess clearance, spring-clip engagement, electrical plan and surrounding conditions for each installation.

What can New Lights configure for an OEM/ODM project?

We can configure an approved face form, finish, driver and control arrangement, labels and packaging around the confirmed ceiling opening, electrical requirements, order reference and sample.
