Frameless Adjustable-Cutout Recessed LED Panel Lights

Frameless adjustable-cutout recessed LED panel lights provide round or square ceiling-facing formats with movable rear supports. Confirm opening compatibility, mounting clearance and electrical requirements for the ordered version.
  • Dual Face Geometry: Round and square formats support different ceiling layouts within the same product family.
  • Sliding Support Pair: Two movable spring supports provide a variable mounting arrangement for prepared ceiling openings.
  • Edge-to-Edge Appearance: The broad luminous face presents a clean ceiling surface without a separate visible trim ring.
  • Four Reference Sizes: Separate product forms allow the physical footprint to be selected for the available ceiling space.
InstallationRecessed mounting with two sliding spring clips
Face OptionsRound or square white
Rated Power12 / 18 / 24 / 36 W
Adjustable Cutout50-210 mm overall family range
Body Height20 mm
CCT3000K-6500K
Request a Quote
XGYSPL-FL-RI-E12R/S round frameless adjustable-cutout recessed LED panel, 12 W, Dia. 85 mm, cutout 50–85 mm

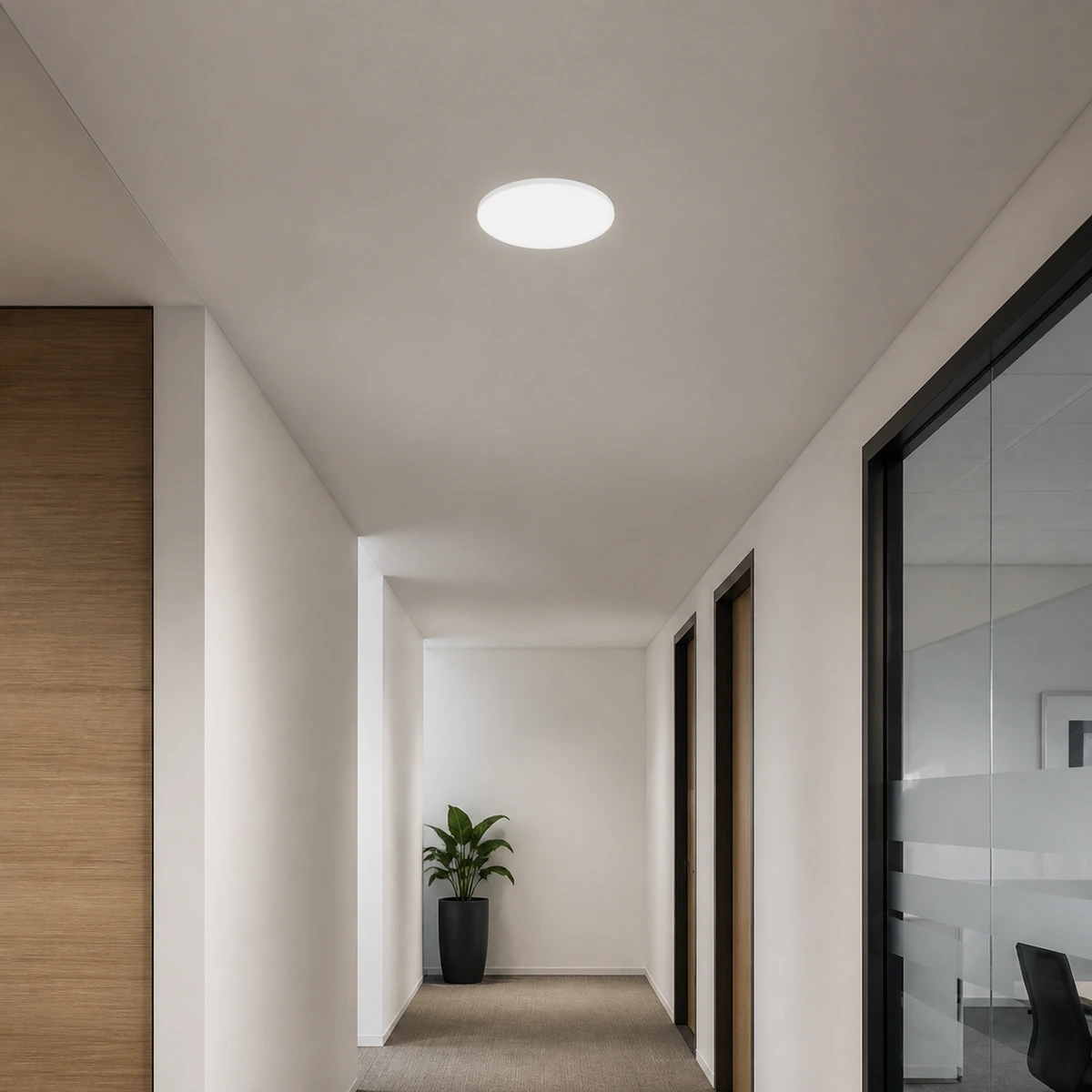

Round frameless recessed LED panel installed in an office corridor ceiling

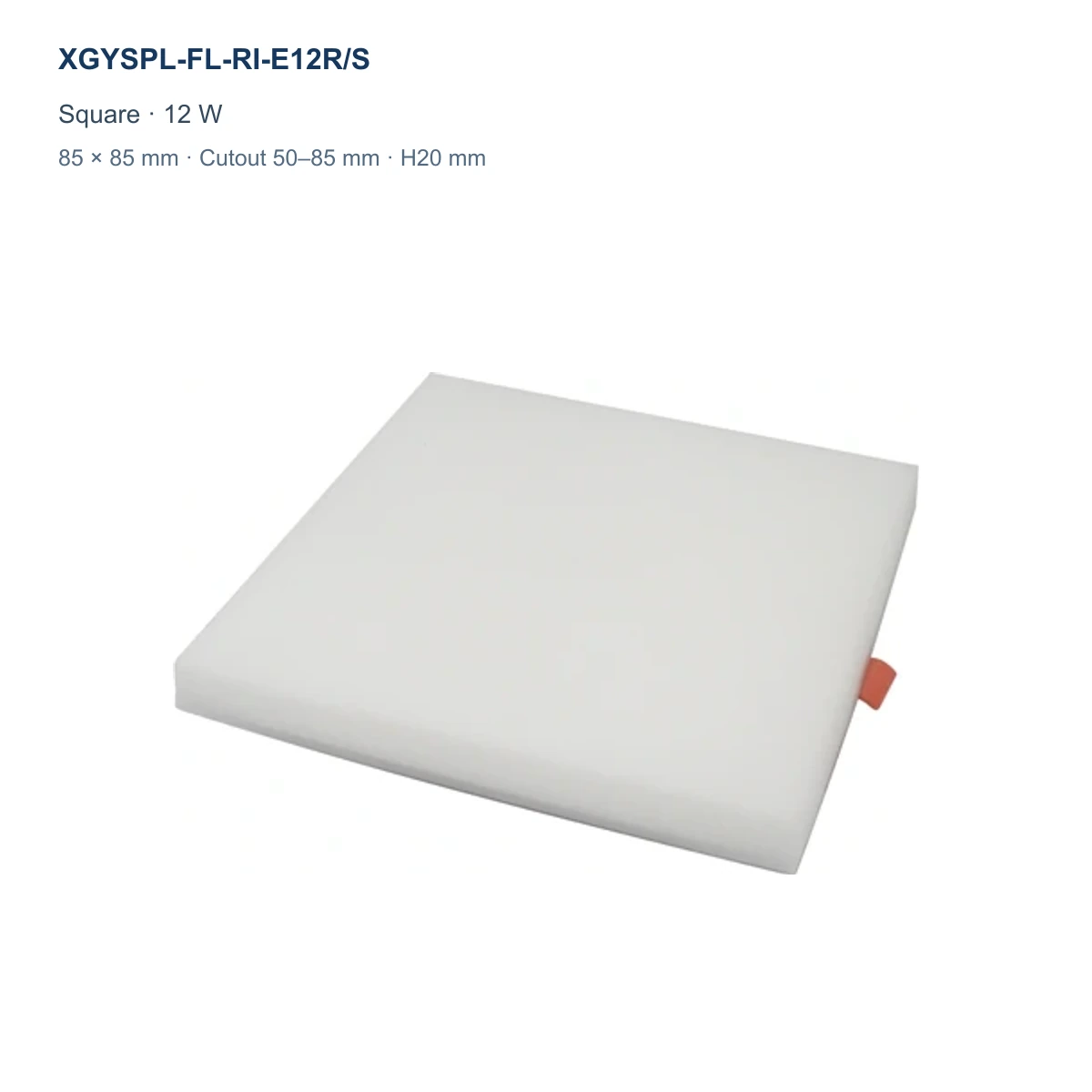

XGYSPL-FL-RI-E12R/S square frameless adjustable-cutout recessed LED panel, 12 W, 85 × 85 mm, cutout 50–85 mm
XGYSPL-FL-RI-E18R/S round frameless adjustable-cutout recessed LED panel, 18 W, Dia. 120 mm, cutout 50–100 mm
XGYSPL-FL-RI-E18R/S square frameless adjustable-cutout recessed LED panel, 18 W, 120 × 120 mm, cutout 50–100 mm
XGYSPL-FL-RI-E24R/S round frameless adjustable-cutout recessed LED panel, 24 W, Dia. 170 mm, cutout 50–160 mm
XGYSPL-FL-RI-E24R/S square frameless adjustable-cutout recessed LED panel, 24 W, 170 × 170 mm, cutout 50–160 mm

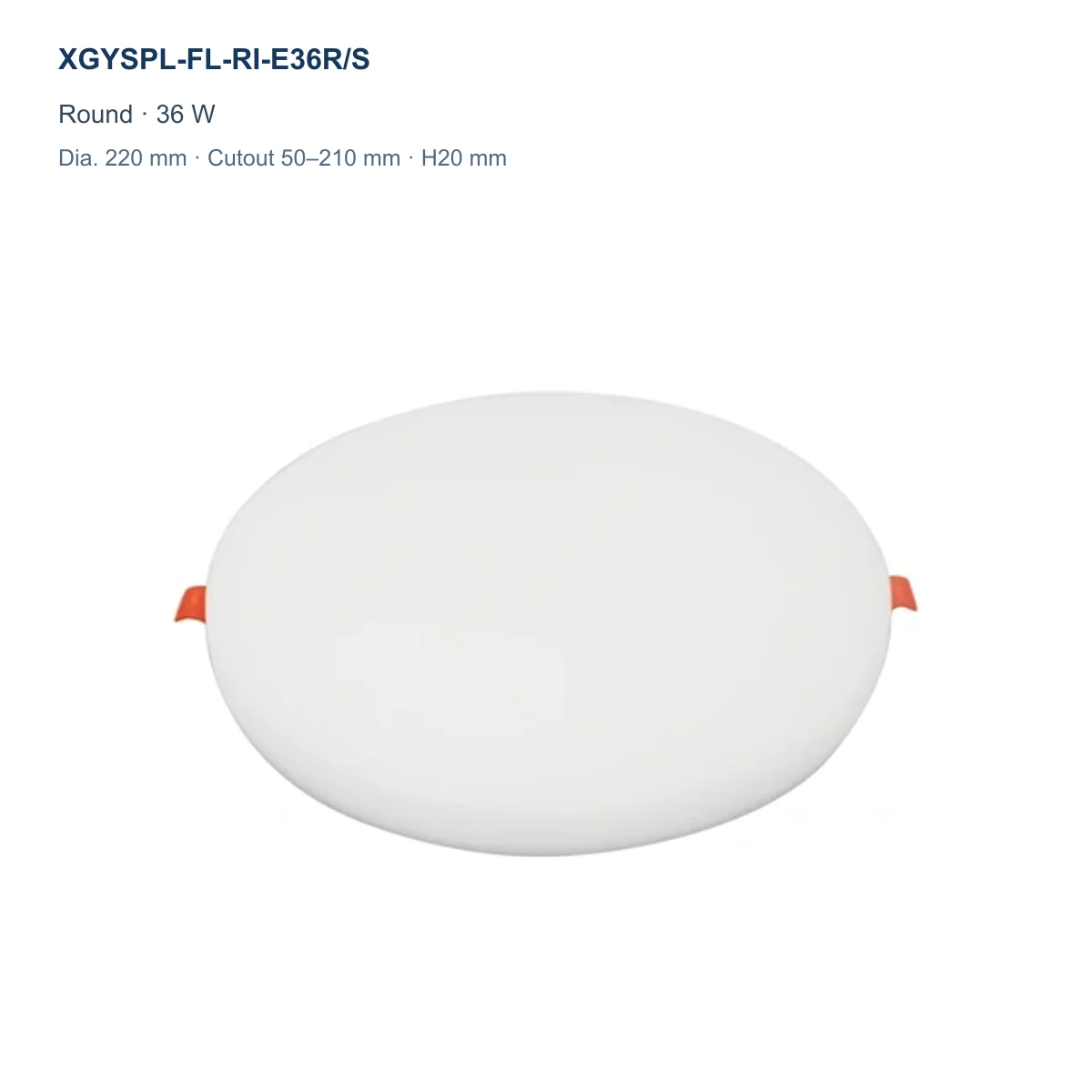

XGYSPL-FL-RI-E36R/S round frameless adjustable-cutout recessed LED panel, 36 W, Dia. 220 mm, cutout 50–210 mm

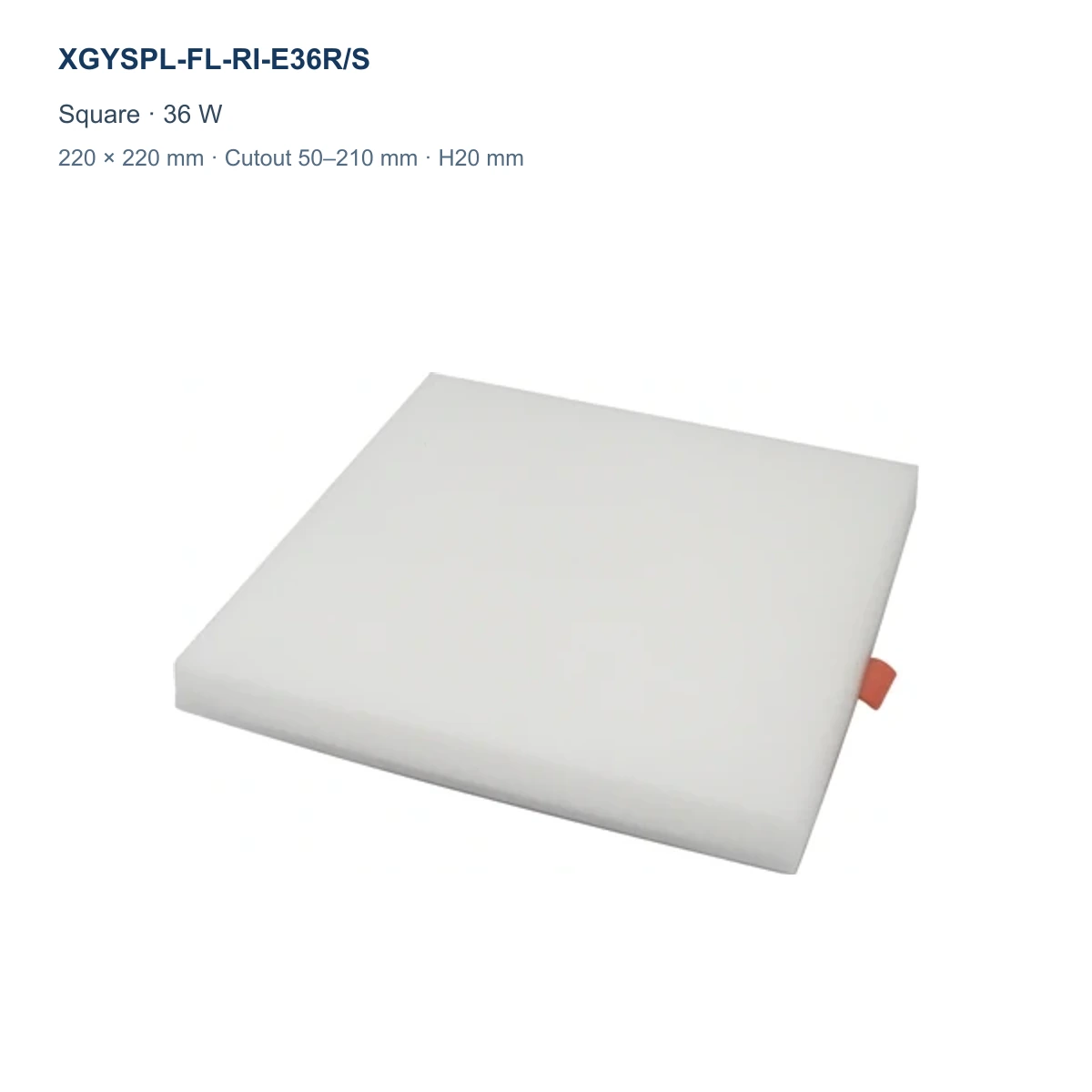

XGYSPL-FL-RI-E36R/S square frameless adjustable-cutout recessed LED panel, 36 W, 220 × 220 mm, cutout 50–210 mm

Technical Specifications

Model Specifications

ModelRound Dia. / Square Size (mm)Adjustable Cutout Range (mm)Body Height (mm)Rated Power (W)Lumen Efficacy (lm/W)CCT
XGYSPL-FL-RI-E12R/SDia. 85 / 85 x 8550-8520121003000K-6500K
XGYSPL-FL-RI-E18R/SDia. 120 / 120 x 12050-10020181003000K-6500K
XGYSPL-FL-RI-E24R/SDia. 170 / 170 x 17050-16020241003000K-6500K
XGYSPL-FL-RI-E36R/SDia. 220 / 220 x 22050-21020361003000K-6500K

Product Description

Product Details

Product Construction

A front luminous surface, rear carrier and electrical module form the assembled ceiling panel.

Selection & Installation Notes

Record the finished aperture, ceiling build-up, void depth, cable route and supply conditions, then match them to the approved drawing before installation. Confirm driver and control requirements for the ordered version. Compare related compact LED panels.

Recommended Application

Applications

  • Office Refurbishments: Use recessed panels in measured ceiling openings across workrooms and circulation spaces.
  • Retail Ceiling Layouts: Coordinate round or square faces with the ceiling pattern in shop-floor areas.
  • Apartment Common Areas: Install compact ceiling panels in internal lobbies, lift approaches and corridors.
  • Hospitality Circulation Areas: Apply recessed general lighting across reception zones, passages and shared indoor spaces.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How should the ceiling opening be matched to a panel?

Measure the finished opening and compare it with the approved installation drawing for the exact reference. Also verify ceiling build-up, void depth and cable clearance.

Are round and square faces available for every version?

Round and square are family-level face choices. Confirm availability for the exact ordered reference before sample approval.

Is a driver included with every panel?

Confirm the driver supply scope for the ordered version. The required input, isolation, power factor and control behavior must match the approved electrical specification.

Are all versions dimmable?

Do not assume a common dimming function across the family. Confirm the requested driver and compatible control method before production.

Does the panel body dimension define ceiling compatibility?

No. Ceiling compatibility also depends on the finished opening, material thickness, spring engagement, void depth and cable routing.

Which certification documents apply?

Request exact product and model documentation required for the destination market before production. No certification attribution is added in this copy.
