IP65 Slim LED Panel

The IP65 Slim LED Panel is a low-profile ceiling-lighting component for project installations. Confirm the exact model, mounting arrangement and specified ingress-protection scope for the complete installation.
  • Low Visual Mass: The slender silhouette keeps the ceiling composition restrained.
  • Plan-Format Choice: Related outlines address different grid and room-layout patterns.
  • Ceiling-Plane Continuity: The broad face reads as a single architectural element.
  • System-Boundary Discipline: Project records keep the product and surrounding installation provisions together.
Ingress protectionIP65 product construction
Construction9 mm side-emission housing
Panel formats595 x 595, 620 x 620, 295 x 1195 or 595 x 1195 mm
Rated power24-60 W for three formats; 50-60 W for 595 x 1195 mm
Luminous efficacy80-180 lm/W, configurable
CCT / CRI3000-6500K / Ra80 or Ra90
Input versionsS: 220-240 V; U: 100-240 V
Request a Quote

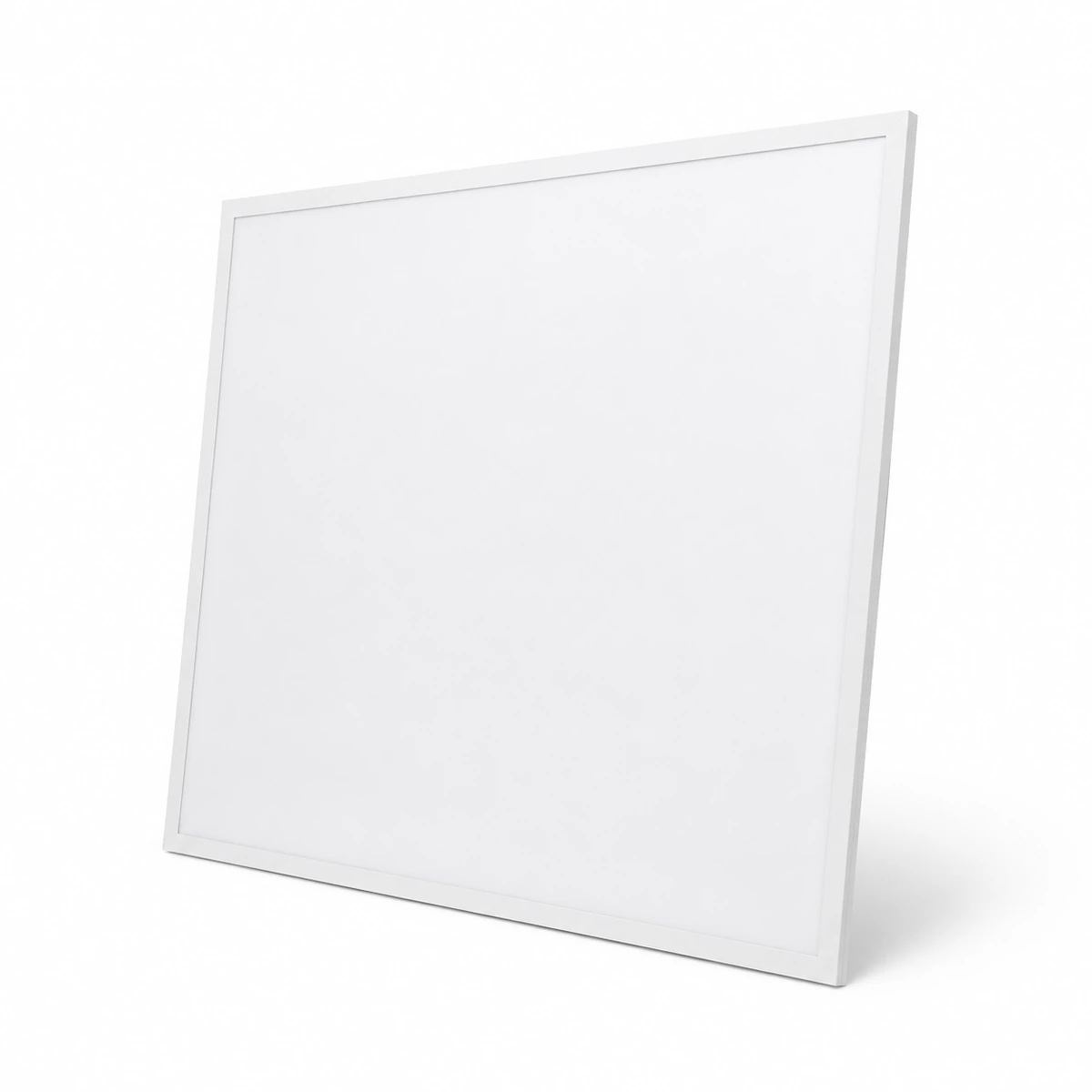

Square 9 mm slim side-emission LED panel with white frame
Square slim LED panel installed in an indoor commercial service corridor ceiling

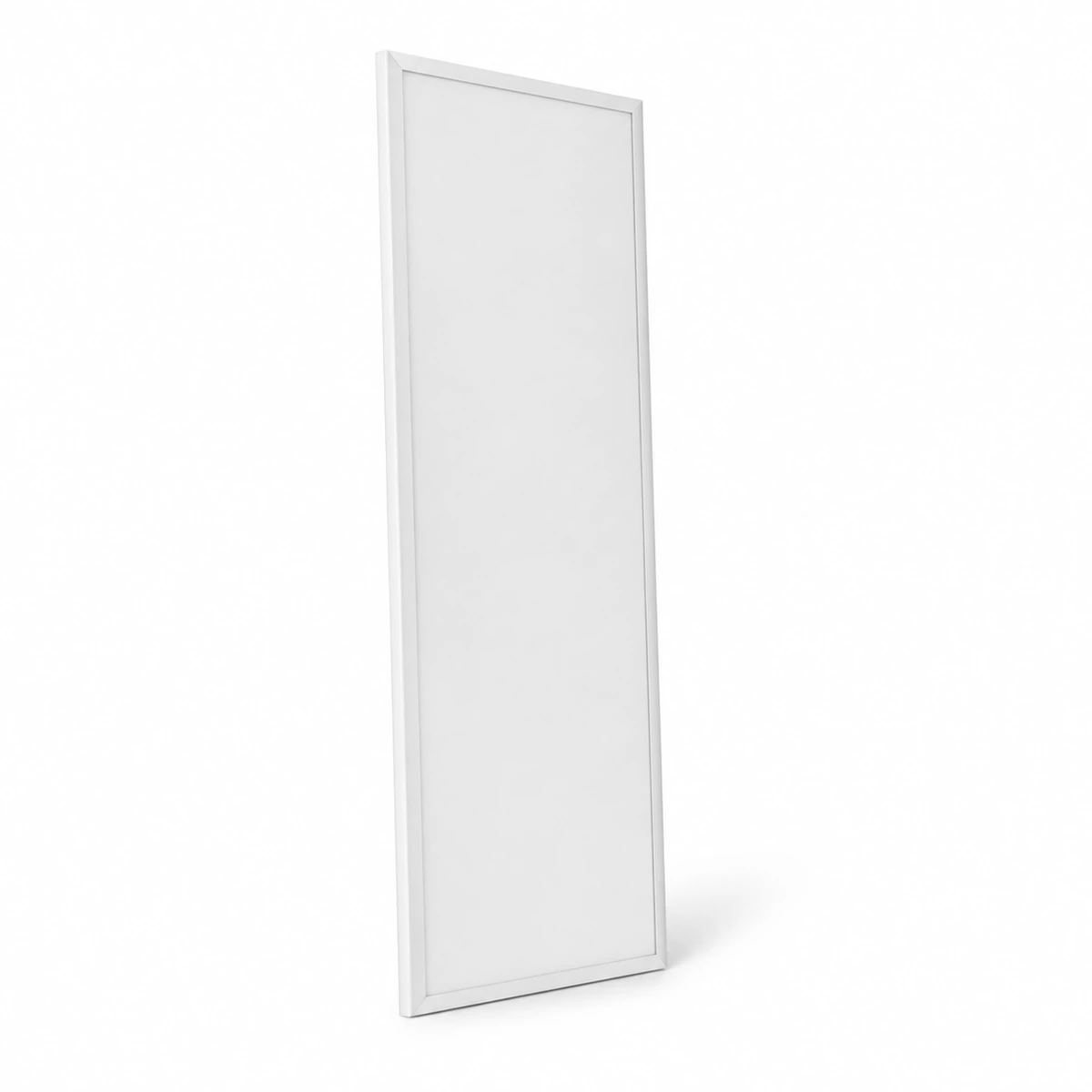

Narrow rectangular 295 x 1195 mm side-emission slim LED panel
Wide rectangular 595 x 1195 mm side-emission slim LED panel

Technical Specifications

Model Specifications

ModelDimensionsRated PowerEfficacyCCT RangeFrame ColorInput Versions
XGYPL-SE-6060-E40595 x 595 x 9 mm24-60 W (Isolated)80-180 lm/W3000-6500KWhiteS: 220-240 V / U: 100-240 V
XGYPL-SE-6262-E40620 x 620 x 9 mm24-60 W (Isolated)80-180 lm/W3000-6500KWhiteS: 220-240 V / U: 100-240 V
XGYPL-SE-30120-E40295 x 1195 x 9 mm24-60 W (Isolated)80-180 lm/W3000-6500KWhiteS: 220-240 V / U: 100-240 V
XGYPL-SE-60120-E60595 x 1195 x 9 mm50-60 W (Isolated)80-180 lm/W3000-6500KWhiteS: 220-240 V / U: 100-240 V

IP65 applies to the approved product construction. Confirm the selected model, driver arrangement, cable entry, sealing method, mounting accessories and cleaning conditions before project approval.

Product Description

Product Details

Product Construction

An outer frame supports a front lens and rear cover. These parts form a flat assembly; power and fixing components depend on the ordered system.

Selection & Installation Notes

Compare the catalogue code with the ceiling drawing. Record the opening or grid, cavity, supports, driver position, cable entry and sealing detail, then obtain the exact test scope before sample approval. Compare related options in our project-grade LED panel range.

Recommended Application

Applications

  • Indoor Ceiling Projects: Integrate the selected panel into an approved commercial ceiling design.
  • Service Corridors: Use the specified panel and installation assembly in indoor circulation areas.
  • Back-Of-House Rooms: Coordinate the panel with the approved ceiling, wiring and enclosure provisions.
  • Property Refurbishment: Replace ceiling panels only after matching the complete product and installation specification.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What does IP65 cover on this slim LED panel?

Confirm the applicable test report and ordered construction. The product name alone does not establish the protection of the driver, cable entry, accessories or complete installed ceiling system.

Can the panel be installed outdoors?

Do not infer outdoor suitability from IP65 alone. Outdoor use requires separate verification of the complete assembly, exposure conditions, materials, drainage, wiring and mounting.

Is the driver included in the ingress-protection scope?

Verify whether the selected driver arrangement falls within the exact scope of the applicable test documentation.

Can similar slim panels be interchanged?

Do not select by appearance alone. Match the complete reference, dimensions, support arrangement, driver, wiring and sealing details.

Does IP65 authorize pressure washing or chemical cleaning?

No such cleaning approval should be inferred. Define water pressure, direction, temperature, frequency, chemicals and the complete sealing arrangement separately.

What should be confirmed before project approval?

Confirm the exact model, ceiling interface, mounting accessories, driver location, cable entry, sealing method, cleaning conditions and applicable compliance documents.
