RGB+CCT Slim Side-Emission LED Panel
- Flexible Atmospheres: Colored accents and warm-to-cool scenes are supported by one luminaire family.
- Minimal Ceiling Intrusion: The very thin luminaire reduces obstruction within a shallow plenum.
- Unified Appearance Across Zones: Compact grid areas and elongated ceiling zones can share one product language.
| Housing | 9 mm side-emission |
|---|---|
| Available formats | 595 x 595 / 295 x 1195 / 595 x 1195 mm |
| Color and CRI | RGB + 2700-6500 K; Ra80/90 series options |
| Voltage marking | S:220-240 V / U:100-240 V |
| Optical data | 100 lm/W; 112 degrees |
|---|---|
| Operating marks | No Flicker; 50000 h; PF 0.5/0.9 |
| Environment and finish | Indoor; White |
Technical Specifications
Model Specifications
| Model No. | Dimensions | Rated Power | Efficacy | Color Output | CRI Options | Voltage Marking | Power Factor |
|---|---|---|---|---|---|---|---|

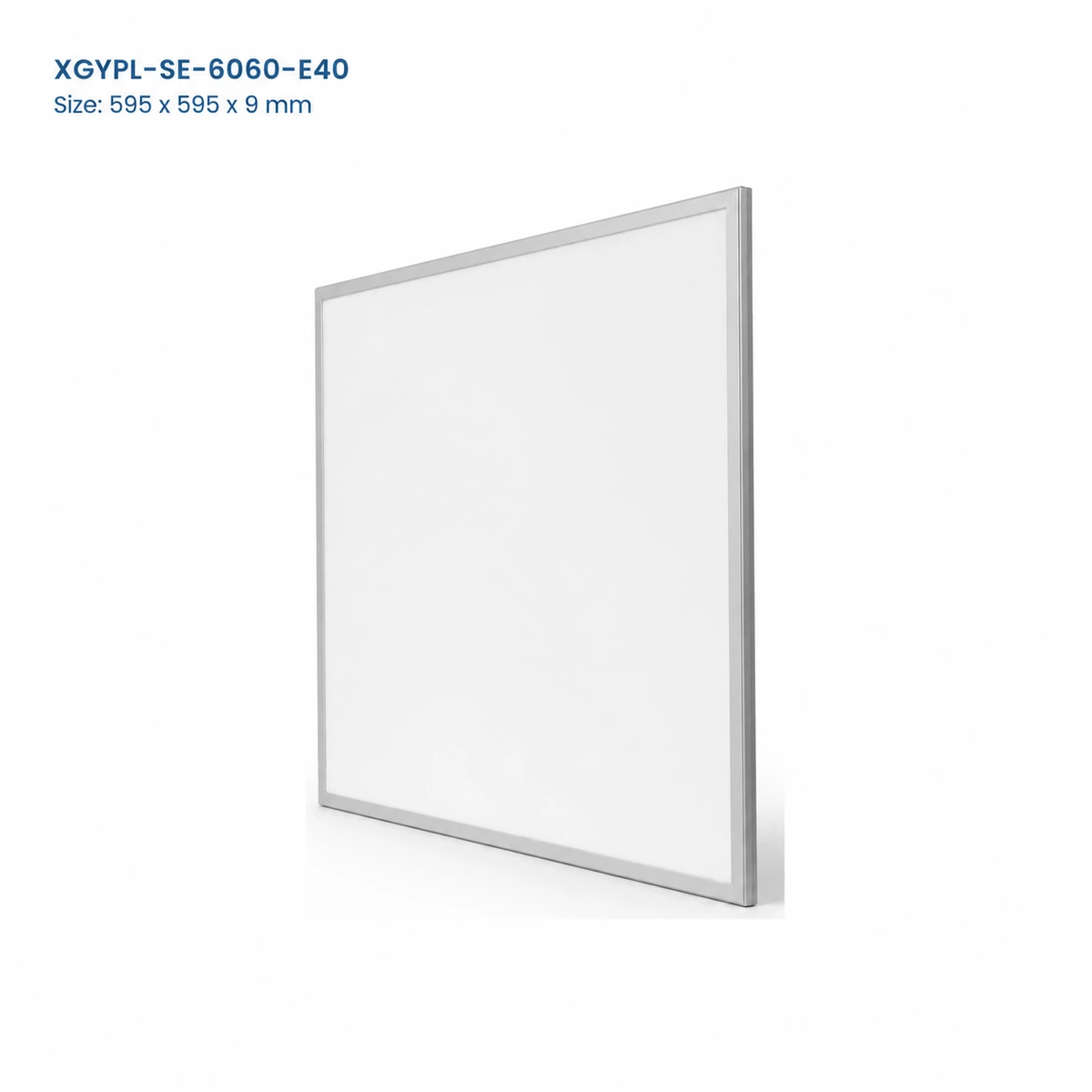

| XGYPL-SE-6060-E40 | 595 x 595 x 9 mm | 24-60 W (Isolated) | 100 lm/W | RGB + 2700-6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |
| XGYPL-SE-30120-E40 | 295 x 1195 x 9 mm | 24-60 W (Isolated) | 100 lm/W | RGB + 2700-6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |
| XGYPL-SE-60120-E60 | 595 x 1195 x 9 mm | 50-72 W (Isolated) | 100 lm/W | RGB + 2700-6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |
Product Description
Product Details
Product Construction
The XGYPL-SE assembly guides light from the panel edge through a broad diffuser inside a white finished frame. Series-level specifications include No Flicker, 50000 h lifetime, a 112-degree beam and PF 0.5/0.9. The standard specification is 100 lm/W, while luminous efficacy can be customized against an approved project specification.
Selection & Installation Notes
Match the order to the exact model code, ceiling grid or opening, structural support and selected driver input. Available voltage markings are S:220-240 V and U:100-240 V; confirm the required marking, driver configuration and compatible control interface before ordering. For related sensor and control configurations, compare our project-grade LED panels.
Recommended Application
Applications
- Office Ceilings: Low-profile color and adjustable white lighting for modular office ceilings.
- Retail Interiors: RGB accents and tunable white light for sales floors and display areas.
- Meeting Rooms: Adjustable ceiling illumination for meetings, presentations and events.
- Hospitality Spaces: Slim panel lighting for reception areas, lounges and function rooms.
