Microwave Sensor Backlit LED Panel
- Automatic Occupancy Response: Microwave sensing supports hands-free switching in intermittently used indoor spaces.
- Rear Sensor and Driver Assembly: The control hardware sits behind the luminous face within the ceiling void.
- Four Ceiling Formats: Square and rectangular sizes cover several common metric grid layouts.
- Project-Defined Sensor Settings: Detection range, hold time, daylight threshold and standby behavior are set for the selected configuration.
| Sensor | Microwave occupancy detection |
|---|---|
| Construction | 30 mm backlit housing |
| Panel formats | 595 x 595 / 620 x 620 / 295 x 1195 / 595 x 1195 mm |
| Rated power | 24-60 W; 50-60 W for 595 x 1195 mm |
| Luminous efficacy | 80-180 lm/W, customizable |
|---|---|
| CCT / CRI | 3000-6500K / Ra80 or Ra90 |
| Input versions | S: 220-240 V; U: 100-240 V |
Technical Specifications
Model Specifications
| Model | Dimensions | Rated Power | Efficacy | CCT Range | Frame Color | Input Versions |
|---|---|---|---|---|---|---|
| XGYPL-BE-6060-E40 | 595 x 595 x 30 mm | 24-60 W (Isolated) | 80-180 lm/W | 3000-6500K | White | S: 220-240 V / U: 100-240 V |
| XGYPL-BE-6262-E40 | 620 x 620 x 30 mm | 24-60 W (Isolated) | 80-180 lm/W | 3000-6500K | White | S: 220-240 V / U: 100-240 V |
| XGYPL-BE-30120-E40 | 295 x 1195 x 30 mm | 24-60 W (Isolated) | 80-180 lm/W | 3000-6500K | White | S: 220-240 V / U: 100-240 V |
| XGYPL-BE-60120-E60 | 595 x 1195 x 30 mm | 50-60 W (Isolated) | 80-180 lm/W | 3000-6500K | White | S: 220-240 V / U: 100-240 V |
Detection range, hold time, daylight threshold and standby sequence are project-defined settings. Confirm the selected sensor and driver behavior on the approved sample before production.
Product Description
Product Details
Product Construction

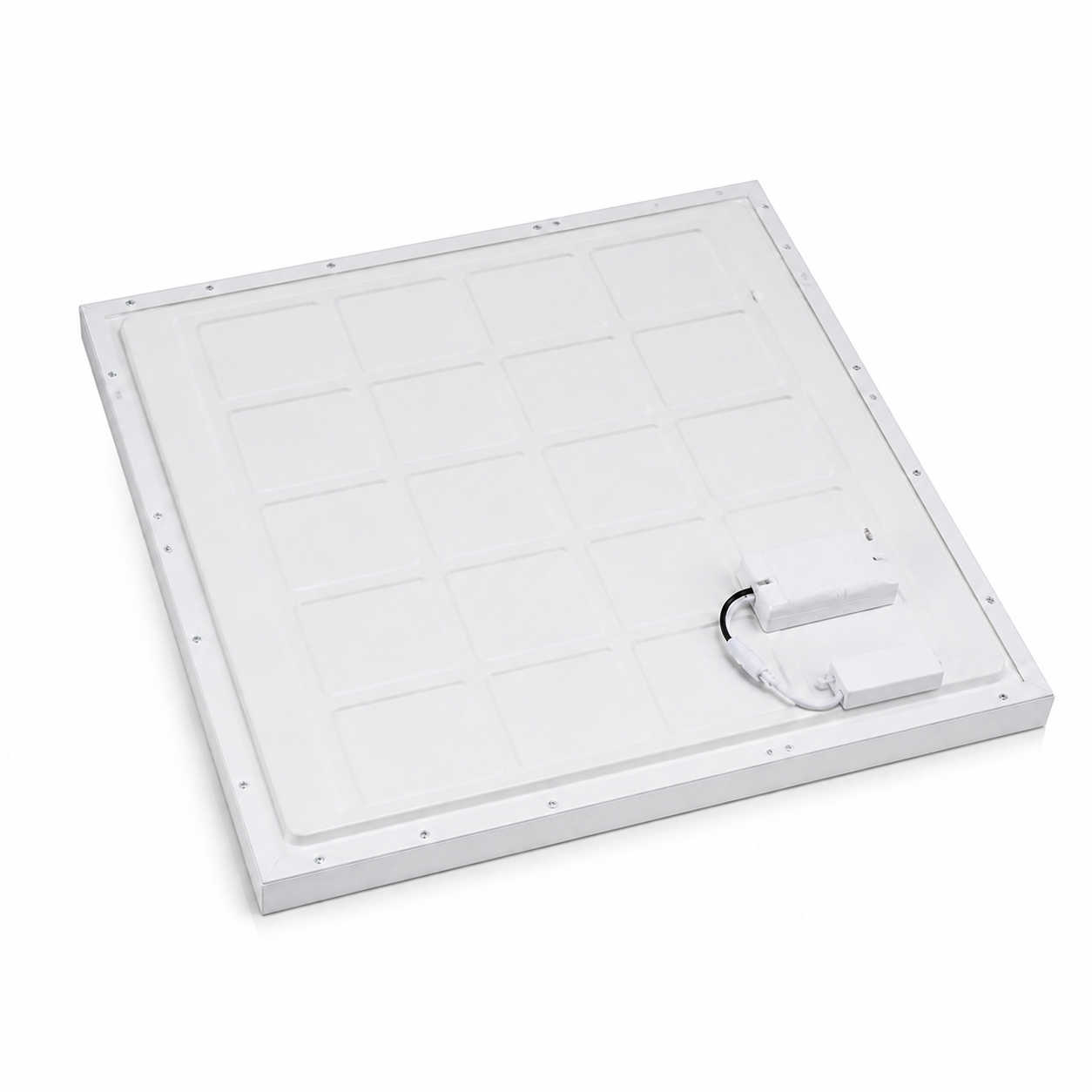

The BE family places the light source behind the diffuser in a 30 mm metal housing. The isolated driver and compact microwave module sit on the rear assembly, leaving a clean luminous front when the panel is installed.
Selection & Installation Notes
Select the exact model by ceiling format, available void depth and required power. Confirm clearance for the rear driver and sensor, detection zone, hold time, daylight threshold, standby sequence, input version and access for adjustment on the approved sample. Use the panel only in compatible indoor ceiling installations; no outdoor or IP-rated configuration is specified. For other sensor-ready ceiling formats, compare our project-grade LED panels.
Recommended Application
Applications

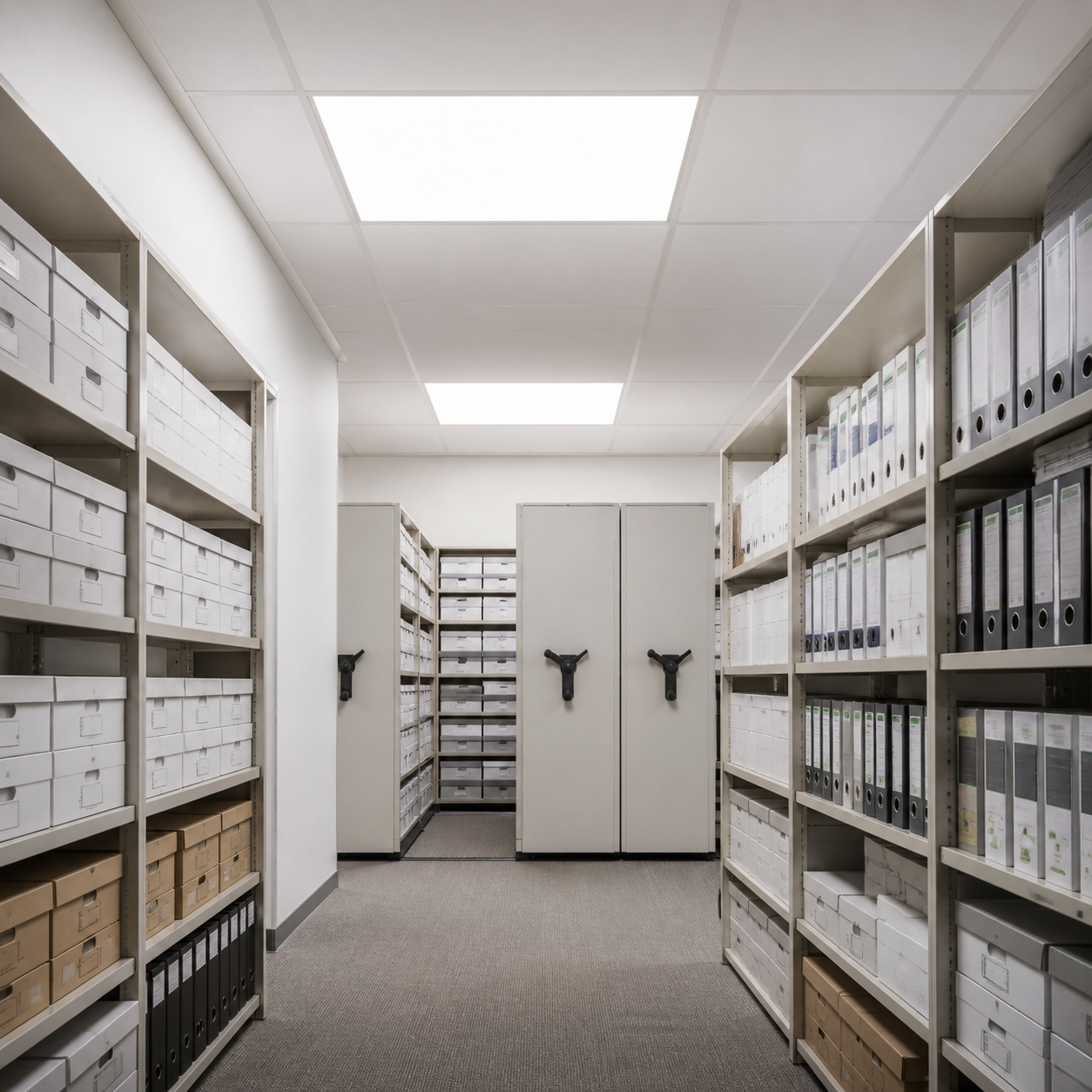

- Archive Aisles: Occupancy-responsive ceiling light for enclosed records storage with intermittent traffic.
- Back-Office Storage: Automatic indoor illumination for stock and document rooms used throughout the day.
- Service Corridors: Backlit sensor panels support circulation routes with project-tuned detection behavior.
- Utility Spaces: Square and rectangular panels cover intermittently occupied indoor support rooms.
