CCT Dip Switch Slim & Backlit LED Panel
- Two Construction Families: Separate SE and BE references distinguish side-emission and backlit panel formats.
- Multiple Ceiling Footprints: Square and rectangular references support different modular ceiling layouts.
- Order-Defined CCT Behavior: Each ordered reference receives its confirmed switching scheme before production.
- White Frame Finish: The series uses a white frame for integration with common light-colored ceiling systems.
| CCT Selection | 3000 K / 4000 K / 5700 K |
|---|---|
| Construction | 9 mm side-emission or 30 mm backlit |
| Rated Power | 24-60 W; 50-60 W for 600 x 1200 mm format |
| Luminous Efficacy | 80–180 lm/W, configurable |
|---|---|
| CRI | Ra >80 |
| Glare Option | UGR <19 |
Technical Specifications
Model Specifications
| Model No. | Construction | Dimensions | Rated Power | Efficacy | Selectable CCT |
|---|---|---|---|---|---|
| XGYPL-SE-6060-E40 | Side-emission | 595 × 595 × 9 mm | 24–60 W | 80–180 lm/W | 3000/4000/5700 K |
| XGYPL-BE-6060-E40 | Backlit | 595 × 595 × 30 mm | 24–60 W | 80–180 lm/W | 3000/4000/5700 K |
| XGYPL-SE-6262-E40 | Side-emission | 620 × 620 × 9 mm | 24–60 W | 80–180 lm/W | 3000/4000/5700 K |
| XGYPL-BE-6262-E40 | Backlit | 620 × 620 × 30 mm | 24–60 W | 80–180 lm/W | 3000/4000/5700 K |
| XGYPL-SE-30120-E40 | Side-emission | 295 × 1195 × 9 mm | 24–60 W | 80–180 lm/W | 3000/4000/5700 K |
| XGYPL-BE-30120-E40 | Backlit | 295 × 1195 × 30 mm | 24–60 W | 80–180 lm/W | 3000/4000/5700 K |
| XGYPL-SE-60120-E60 | Side-emission | 295 × 1195 × 9 mm | 50–60 W | 80–180 lm/W | 3000/4000/5700 K |
| XGYPL-BE-60120-E60 | Backlit | 295 × 1195 × 30 mm | 50–60 W | 80–180 lm/W | 3000/4000/5700 K |
Product Description
Product Details
Product Construction
A rigid perimeter supports the light-producing assembly and diffuser, with a separate electrical package completing the luminaire. Mechanical depth and internal arrangement vary across references.
Selection & Installation Notes
Check the opening, plenum clearance, fixing method and accessory list before installation. Lock the supply input and any dimming protocol in the purchase specification, and keep serviceable components accessible after commissioning. Compare related project-grade LED panels.
Recommended Application
Applications
- Office Ceiling Grids: Select the panel footprint and construction for the room layout and available ceiling void.

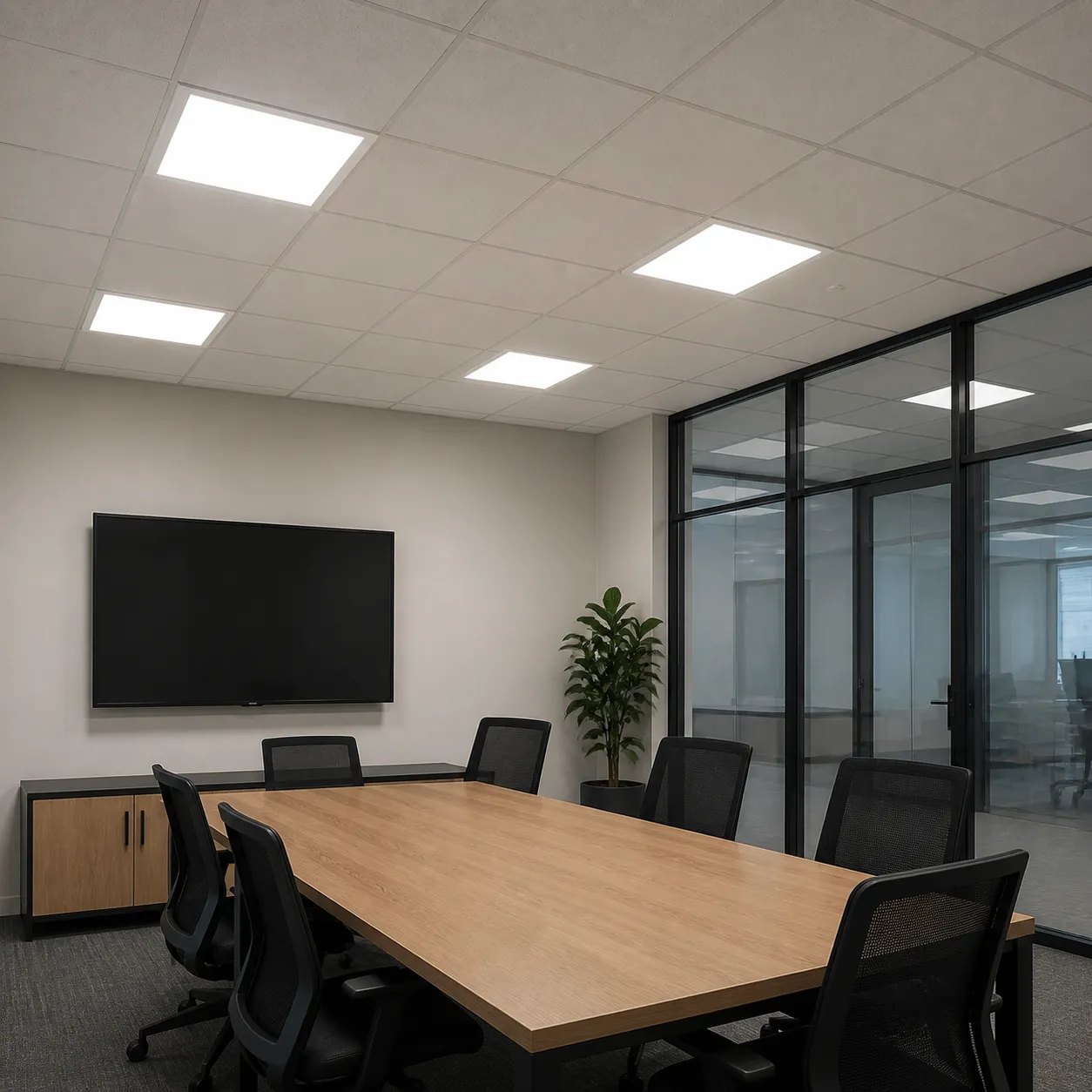

- Meeting Rooms: Specify the required CCT-control behavior and glare target for the approved lighting plan.
- Retail Interiors: Square or rectangular formats coordinate with different ceiling modules and aisle layouts.
- Education Spaces: Match the exact panel and electrical package to the classroom ceiling and control requirement.
